Model: LN-ZDS-618S1
This kind of sand making machine is designed for processing and shaping various types of sand, stone, and aggregates to produce large-scale production of construction aggregates(0-5mm finished product). The VSI sand crushing equipment has a maximum feed capacity of 65 t/h and is a single-main-unit system dedicated to sand making. Ideal for quarries, green mining, and infrastructure projects.
1.Ultra-high-speed secondary acceleration crushing with new synchronous rotor technology / multi-parameter structured rotor in the artificial sand making machine.
2.Main + auxiliary dual-host dry artificial sand making machine with intelligent gradation control.
3.Adopt non-powered vortex air separator.
4.Dust removal system with tail gas recycling and integrated powder selection.
5.The artificial sand making machine equipped with high crushing ratio HCC fine crushing technology.
6.Powder and dust removal system with optional heating or air-cooling pre-drying function.
7.VSI sand crushing equipment is adaptable to dry/wet and soft/sticky materials.
8.No screen replacement required–real-time online adjustment of gradation, fineness, and powder content.
9.Fully intelligent integrated crushing, shaping, and artificial sand making machine.
10.Pre-screening of aggregates followed by selective crushing technology adopted by artificial sand making machine.
11.Flexible shaping and sand making modes for multiple material specifications.
12.Quick operation mode with raw material “memory-based” blending (optional visual recognition system).
13.Secondary fine powder selection process for refined separation in sand manufacturing plant.
14.Dual-backup intelligent control system.
15.Industrial IOT-enabled cloud platform for remote operation and maintenance.
16.Smart PLC control with IOT remote monitoring that equipped by the sand manufacturing plant.

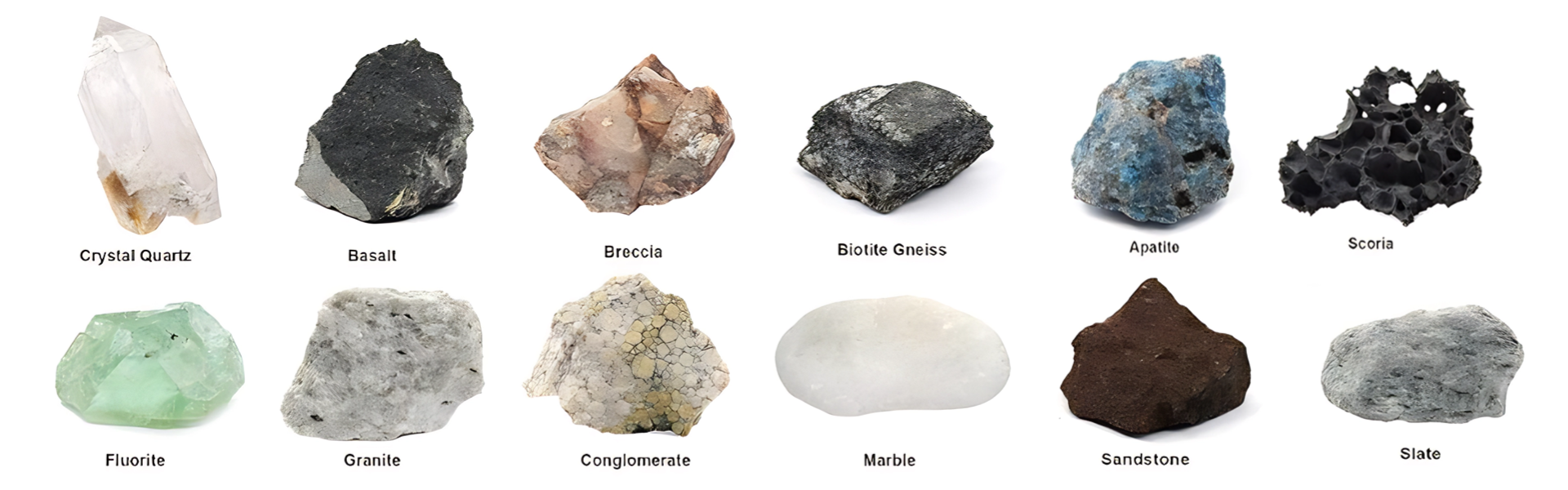

Applicable Materials
Mode of Sand Making and Aggregate Shaping

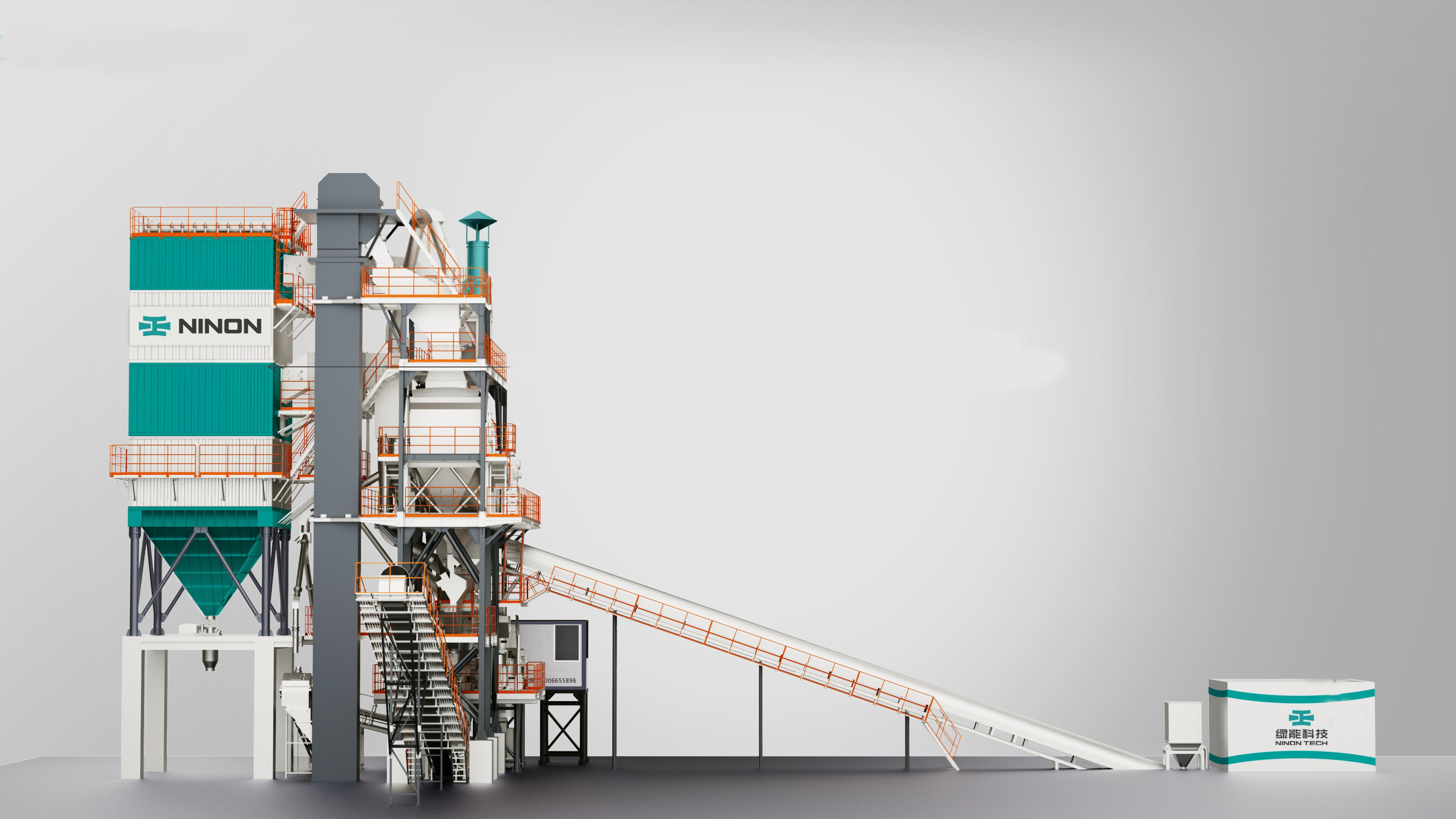

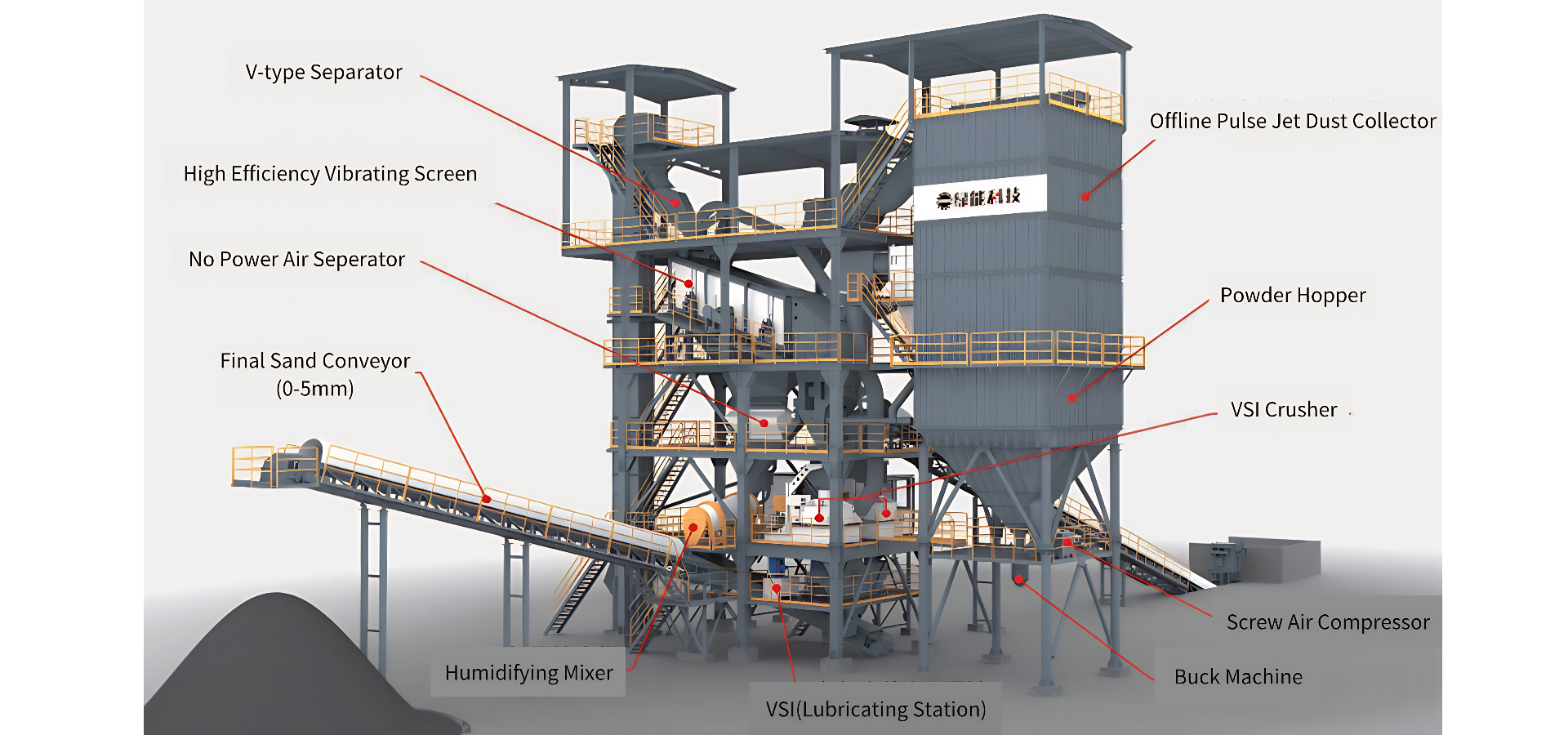

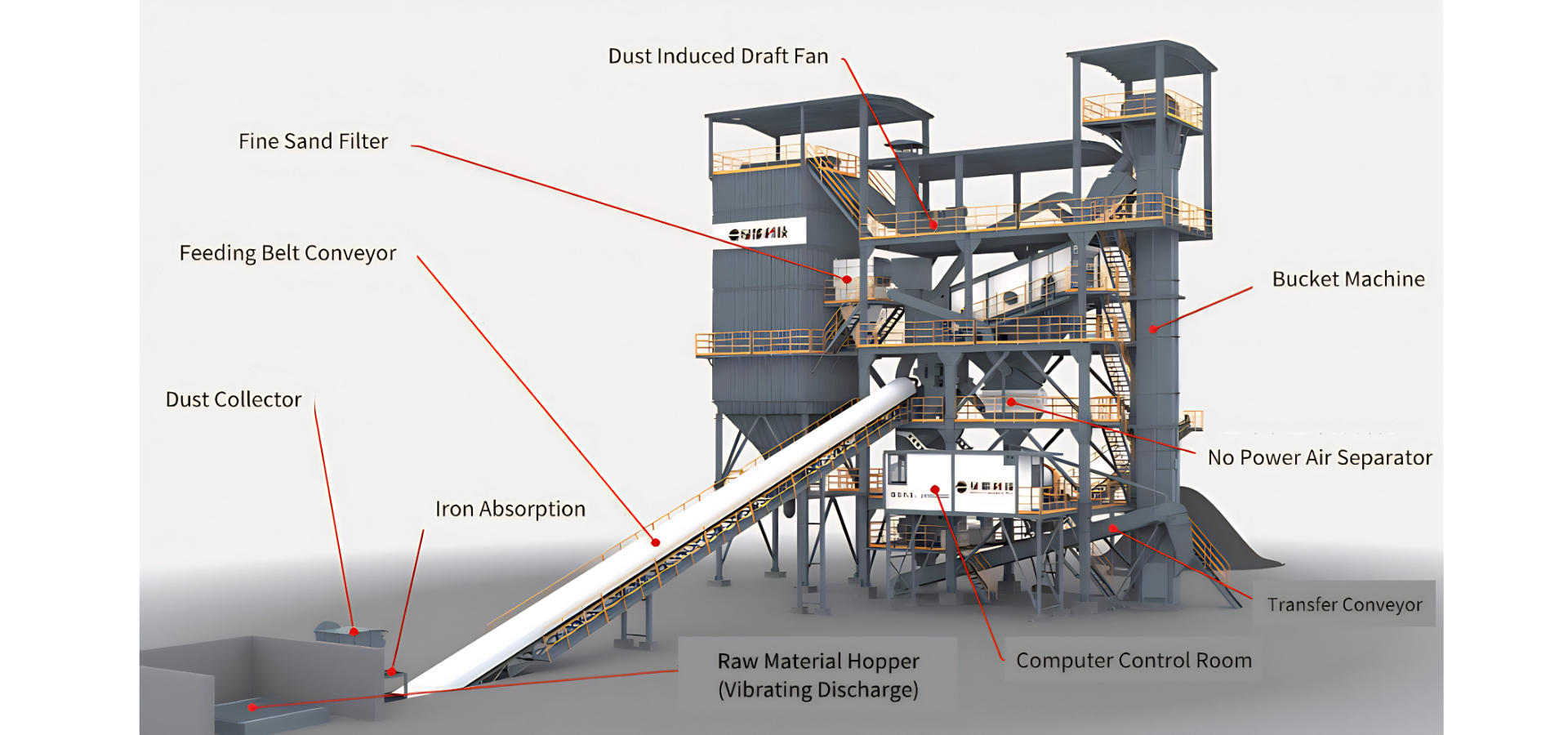

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

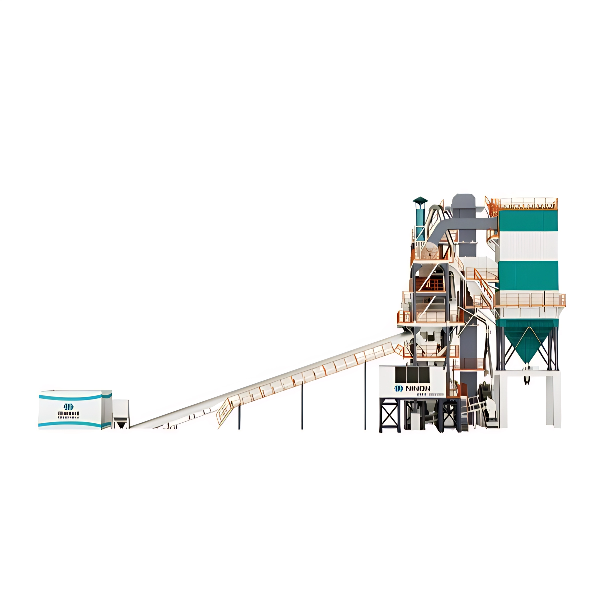

3D Drawing of DS Dry-Type Premium Sand Manufacturing Plant
Video of the layout and construction process of Ninon's sand making plant

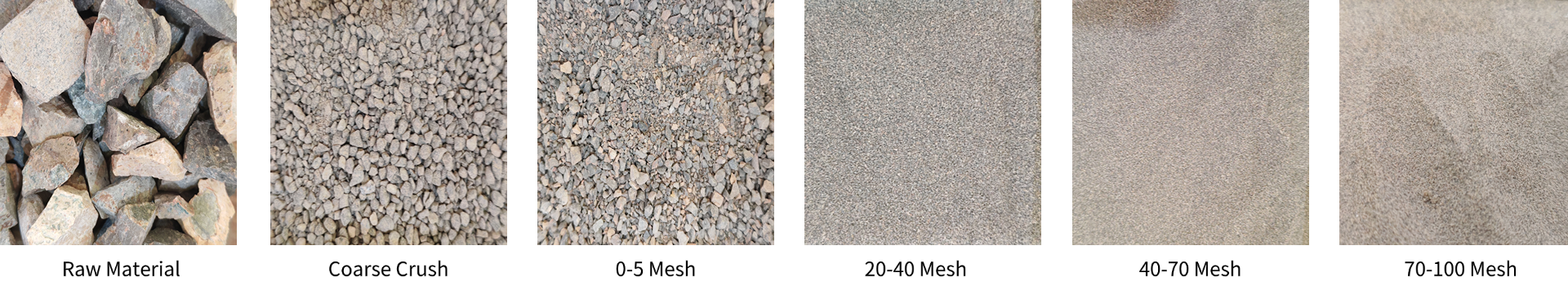

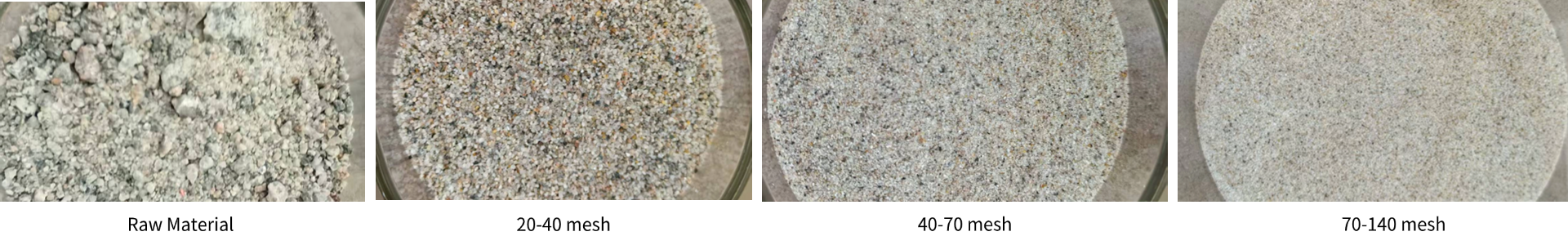

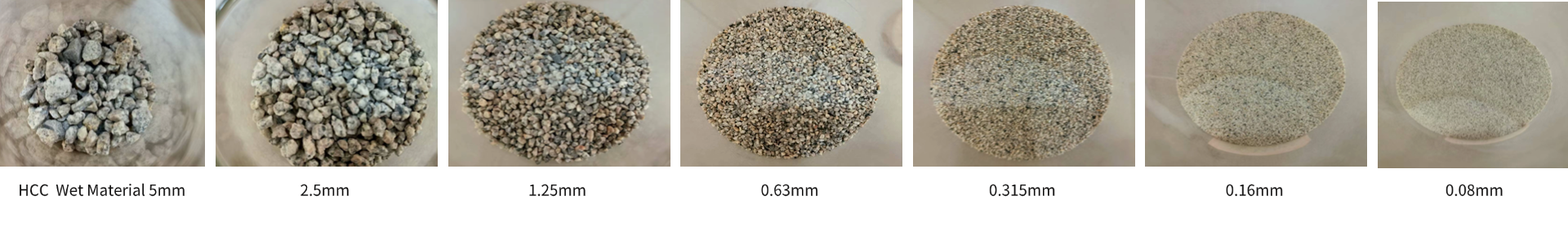

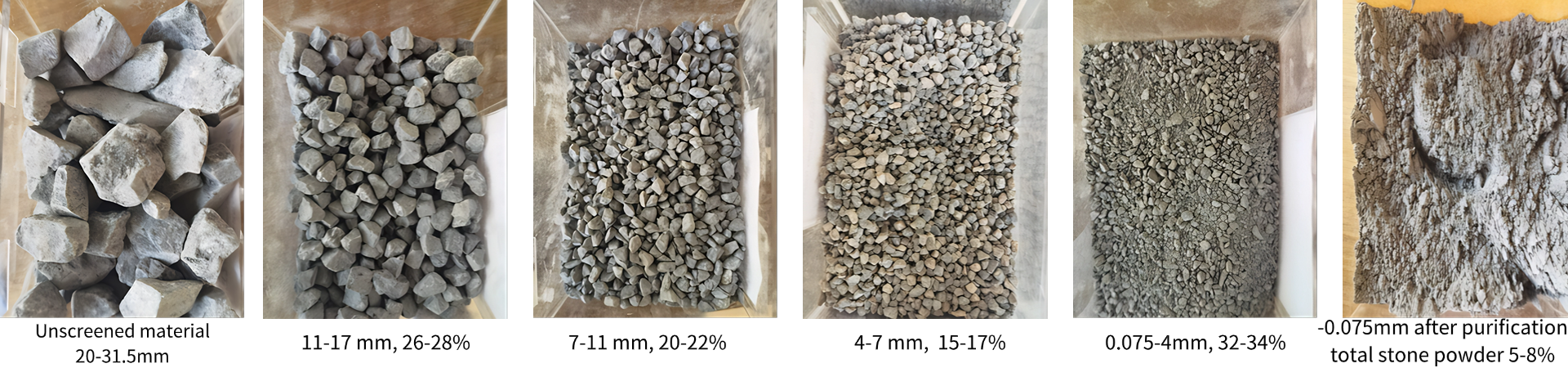

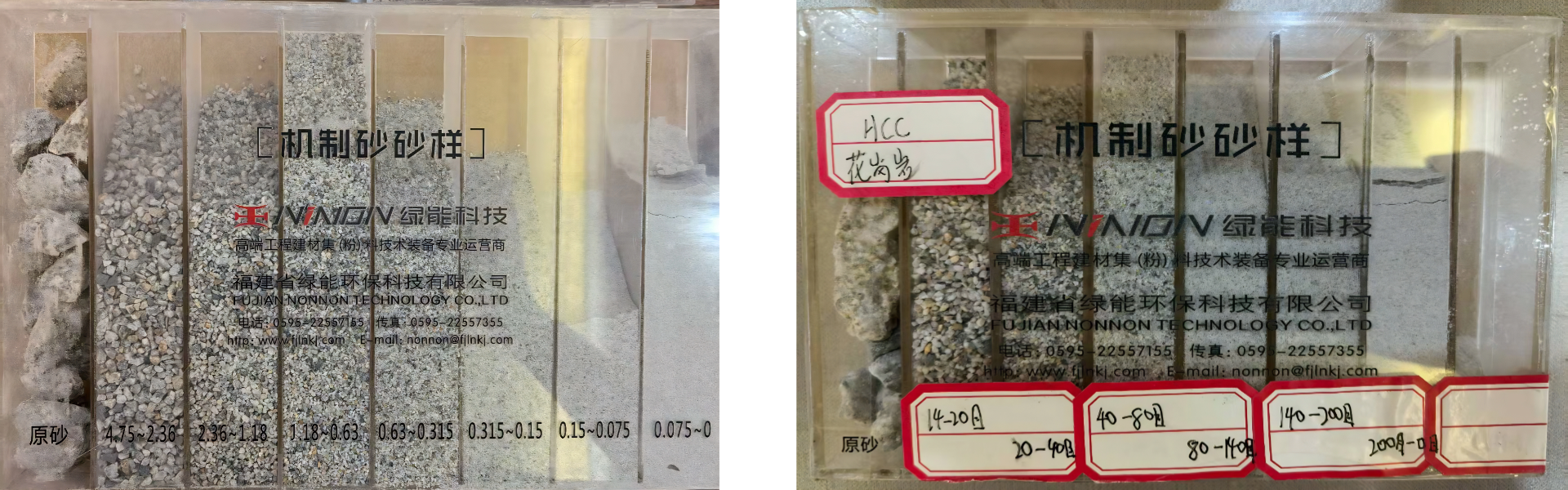

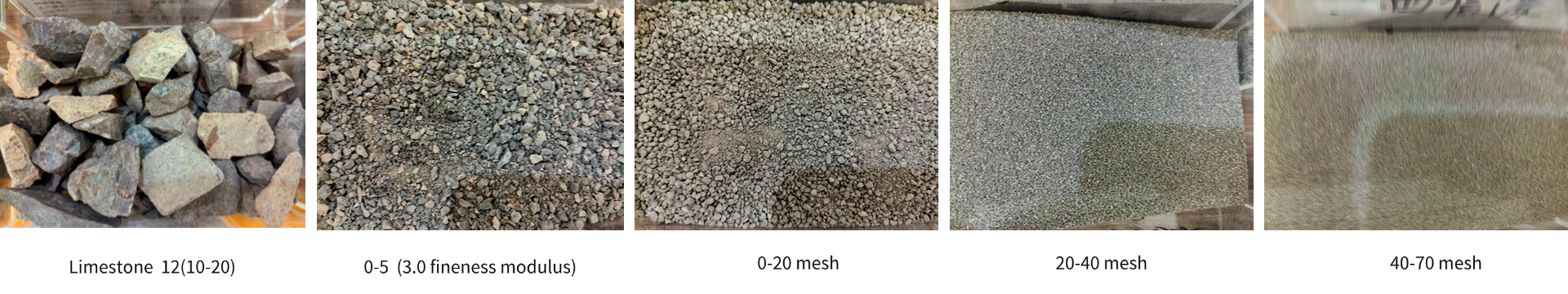

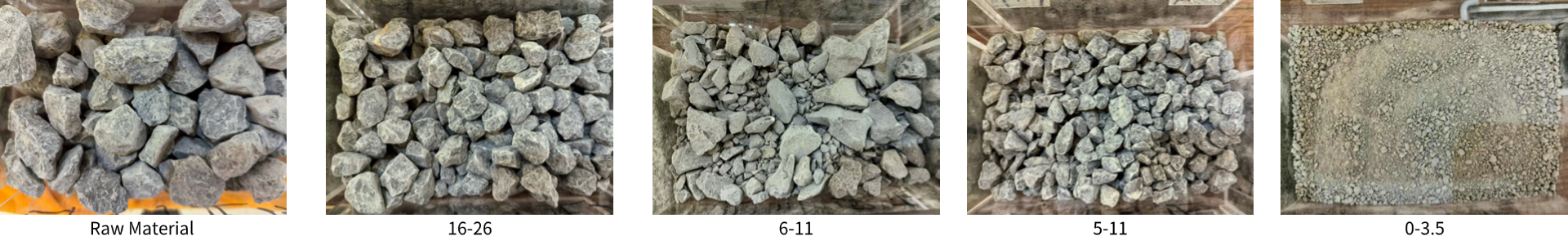

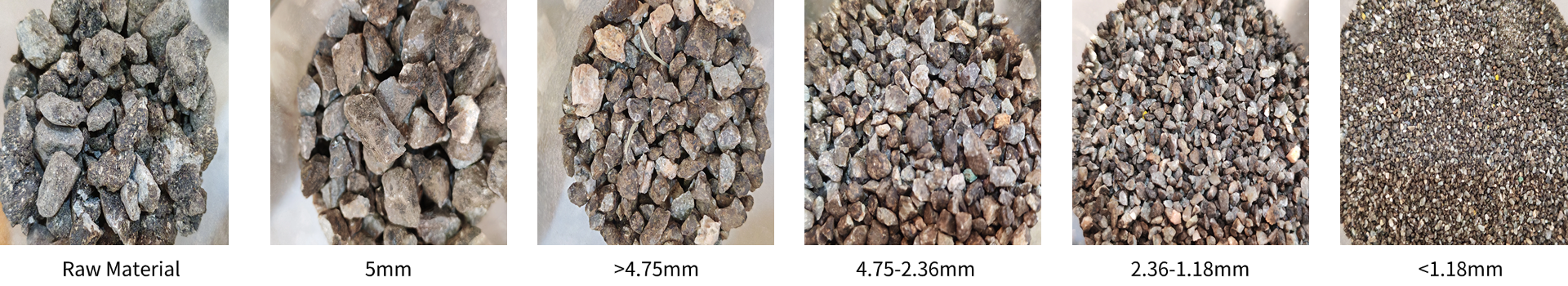

Final Sand Sample

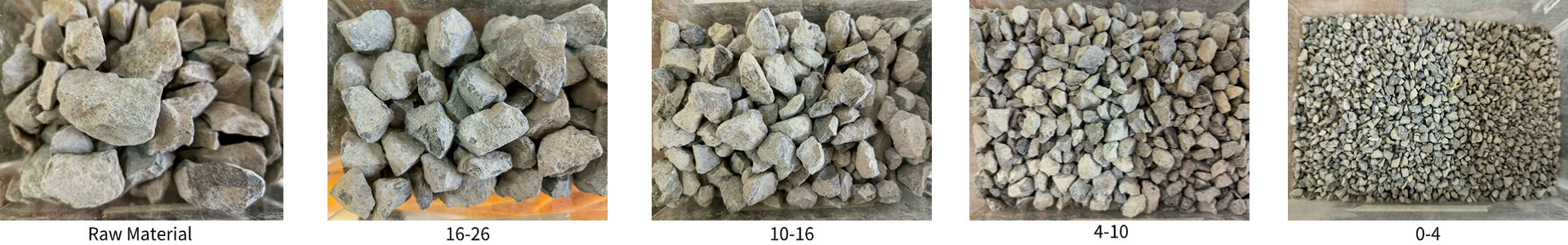

Asphalt Concrete Aggregate

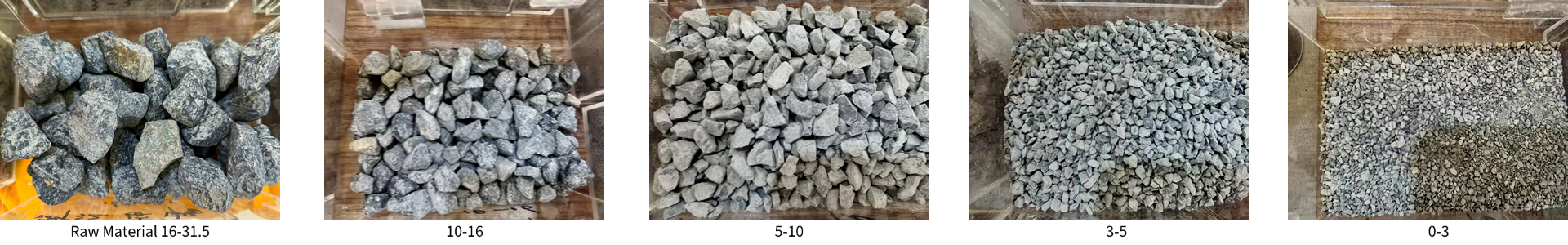

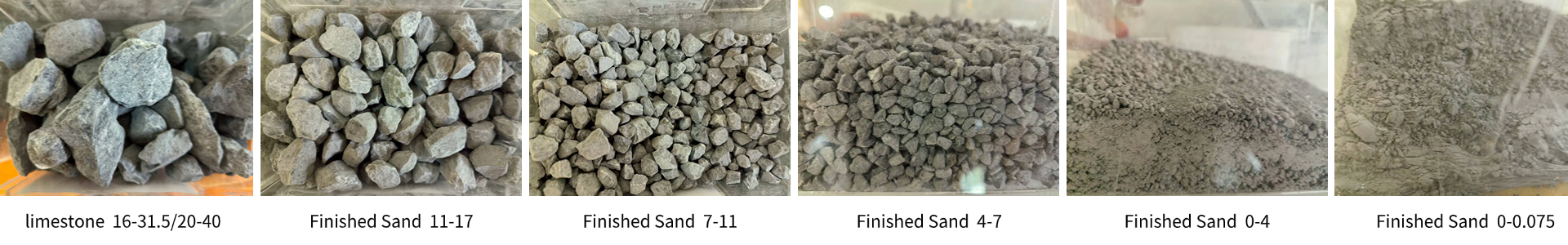

Limestone Aggregate

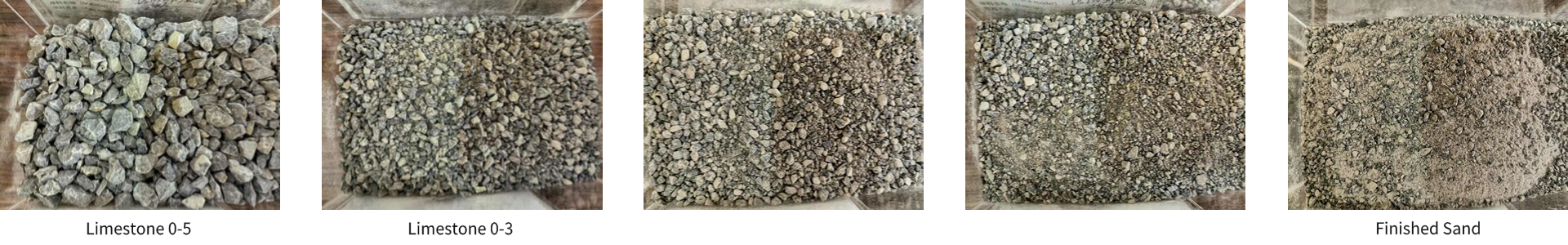

RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

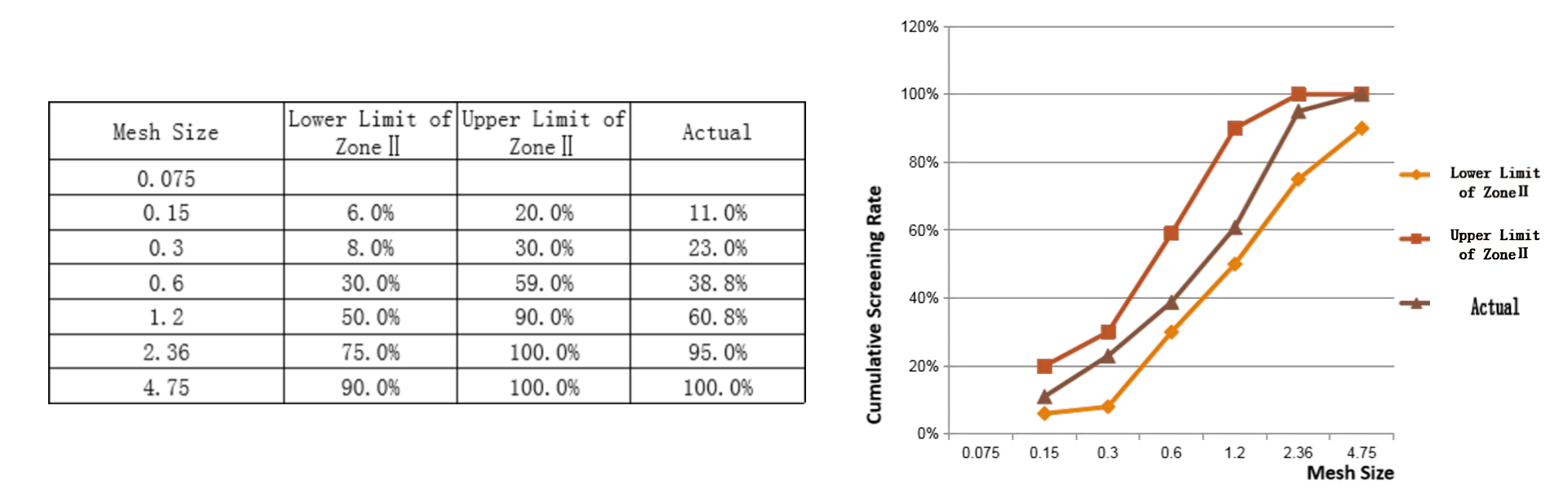

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1. Raw Materials
The VSI sand crushing equipment is suitable for materials with a particle size of 5–30mm.
Typical raw materials include: river pebbles, granite, basalt, quartz stone, quartzite, limestone, recycled construction waste, tailings, slag, metallurgical sand, and reprocessed manufactured sand etc. for reshaping.
2. Configuration Range
· Construction Sand Production
Widely used in concrete mixing stations, ready-mix concrete, high-rise buildings, and residential housing projects. The sand manufacturing plant serves as an ideal replacement for natural sand, enabling large-scale production of manufactured sand.
· Road Infrastructure (Highways & Railways)
Perfect for producing high-quality sand required in the base and surface layers of expressways and railways. The VSI sand crushing equipment output features cubic shapes with minimal needle-like particles, ensuring excellent gradation and compaction.
· Bridge, Dam, and Water Conservancy Projects
These projects demand large volumes of high-strength concrete. The sand manufacturing plant meets stringent particle size distribution and gradation standards, making sand manufacturing plant ideal for such critical applications.
· Municipal Works / Subway Tunnel Backfill
Recycled materials such as construction debris and tailings can be processed and reshaped by VSI sand crushing equipment, promoting environmental sustainability while reducing construction costs.
· Manufactured Sand Reshaping (Secondary Shaping)
Used to refine and improve the grain shape of aggregates after coarse crushing or impact crushing, the sand manufacturing plant enhancing the overall quality and market value of finished sand.
· Tailings Recycling in Mining
VSI sand crushing equipment enable the reuse of metal mine tailings and quarry waste by processing them into usable aggregates or manufactured sand, thus maximizing resource utilization.
· Glass Raw Material Preparation
Efficient in processing high-purity materials like quartz sand and silica, sand making machine provides finely shaped and well-graded particles suitable for industrial glass and precision sand applications.
· Refractory and Metallurgical Industries
Effective for fine crushing of hard and brittle materials such as sintered ore, metallurgical slag, and raw materials for refractory bricks.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
