Model: LN-ZDS-824G1
The Mining Rock Stone Crushing Plant is a cost-effective mid-range model in the G-series, designed for sand and gravel aggregate production lines with a daily output of 5,000–6,000 tons. Integrating multi-stage crushing, intelligent material distribution, and environmental control systems, the mining stone crusher plant is ideal for medium-scale operations such as regional sand plants, raw material processing for commercial concrete stations, or infrastructure material supply in towns and prefecture-level cities.

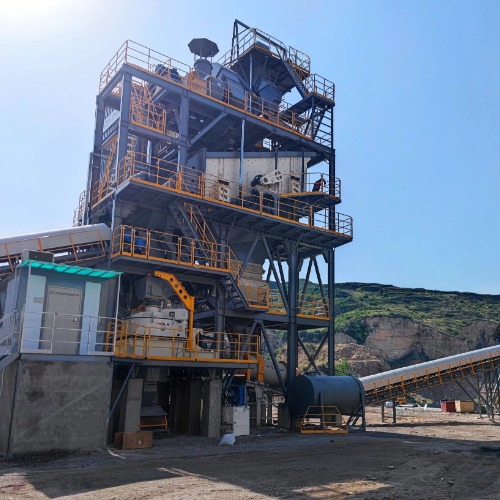

The LN-ZDS-824G1 is a highly efficient stationary rock crushing plant equipped with a VSI9032 core crusher, designed to process raw materials like limestone, shale, river pebbles, and weathered rock. This mining stone crusher plant provides stable performance in handling diverse geological materials.
2.High-Capacity Throughput for Mid-Scale Mining Operations This mining stone crusher plant is ideal for operations targeting 5,000–6,000 tons of daily output. With a processing capacity of 220–250 t/h, crushed rock wash plant delivers high efficiency across sand and aggregate production, making it a key solution in stationary rock crushing plant setups.
3.Integrated Screening and Optional Shaping Modules A complete crushed rock wash plant can be formed with its configurable secondary screening system and optional shaping machine, ensuring excellent gradation and refined particle shape, essential for construction-grade output.
4.Compact, Modular, and Rapid Deployment Design Featuring a modular layout, this stationary rock crushing plant allows ground-level or semi-elevated installation. It supports flexible configurations for output direction, significantly reducing installation time in mining stone crusher plant projects.
5.Smart Control & Environmental Compliance The integrated touchscreen system enables real-time monitoring and alerts, supporting remote diagnostics. Dust and noise suppression systems ensure that the crushed rock wash plant complies with environmental standards, making it a sustainable choice for mining stone crusher plant operations.
6.Dual-Function Output Capability This stationary rock crushing plant can simultaneously produce both fine sand and coarse aggregate, supporting end-to-end processing from raw rock to market-ready materials within a single mining stone crusher plant footprint.
Specification
Model
LN-ZDS-824G1
Equipment Power (Kw)
520
Supporting Main Machine
VSI9032
Processing Capacity (t/h)
220-250
Feed Particle Size
5-40
Remarks
Single-machine sand and aggregate co-production

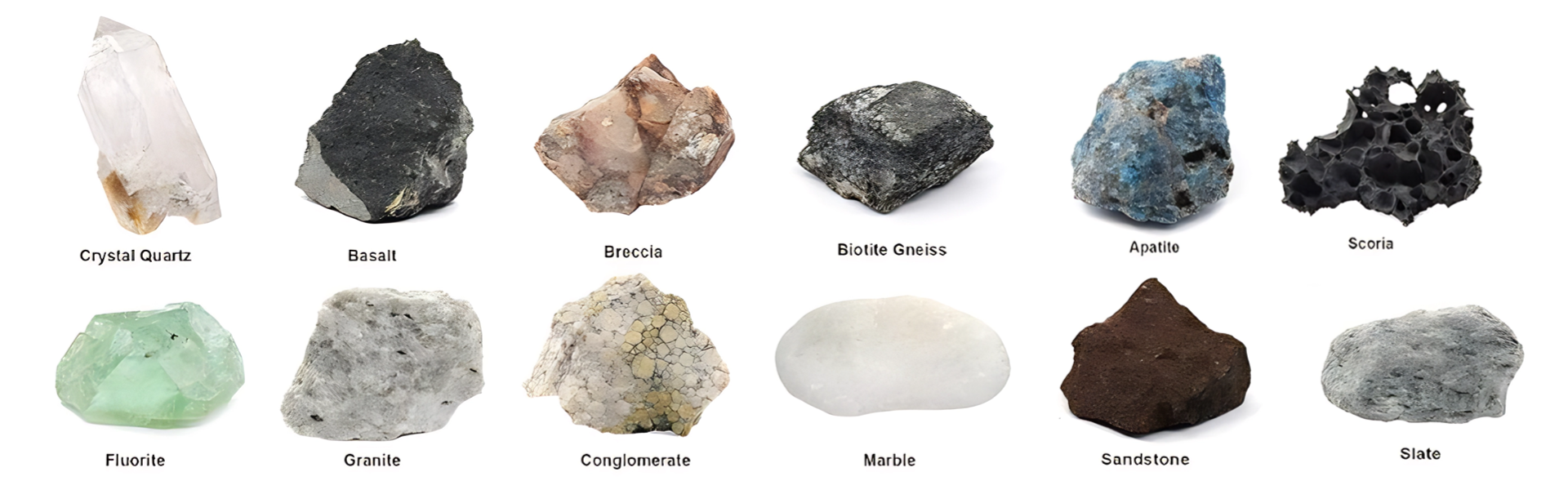

Applicable Materials
Mode of Sand Making and Aggregate Shaping

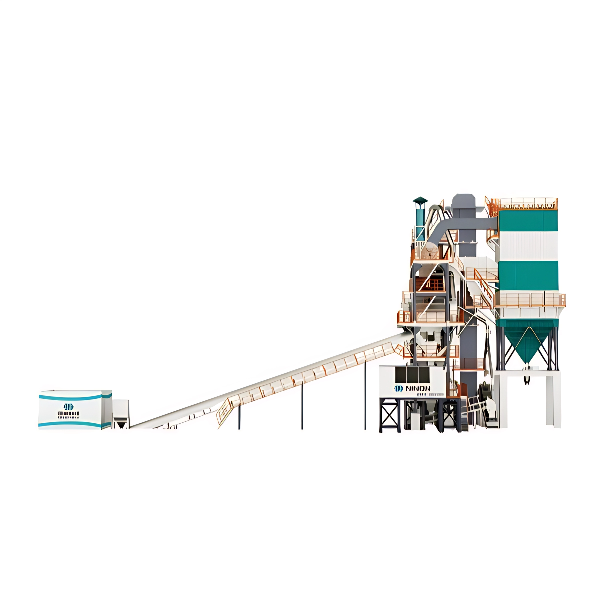

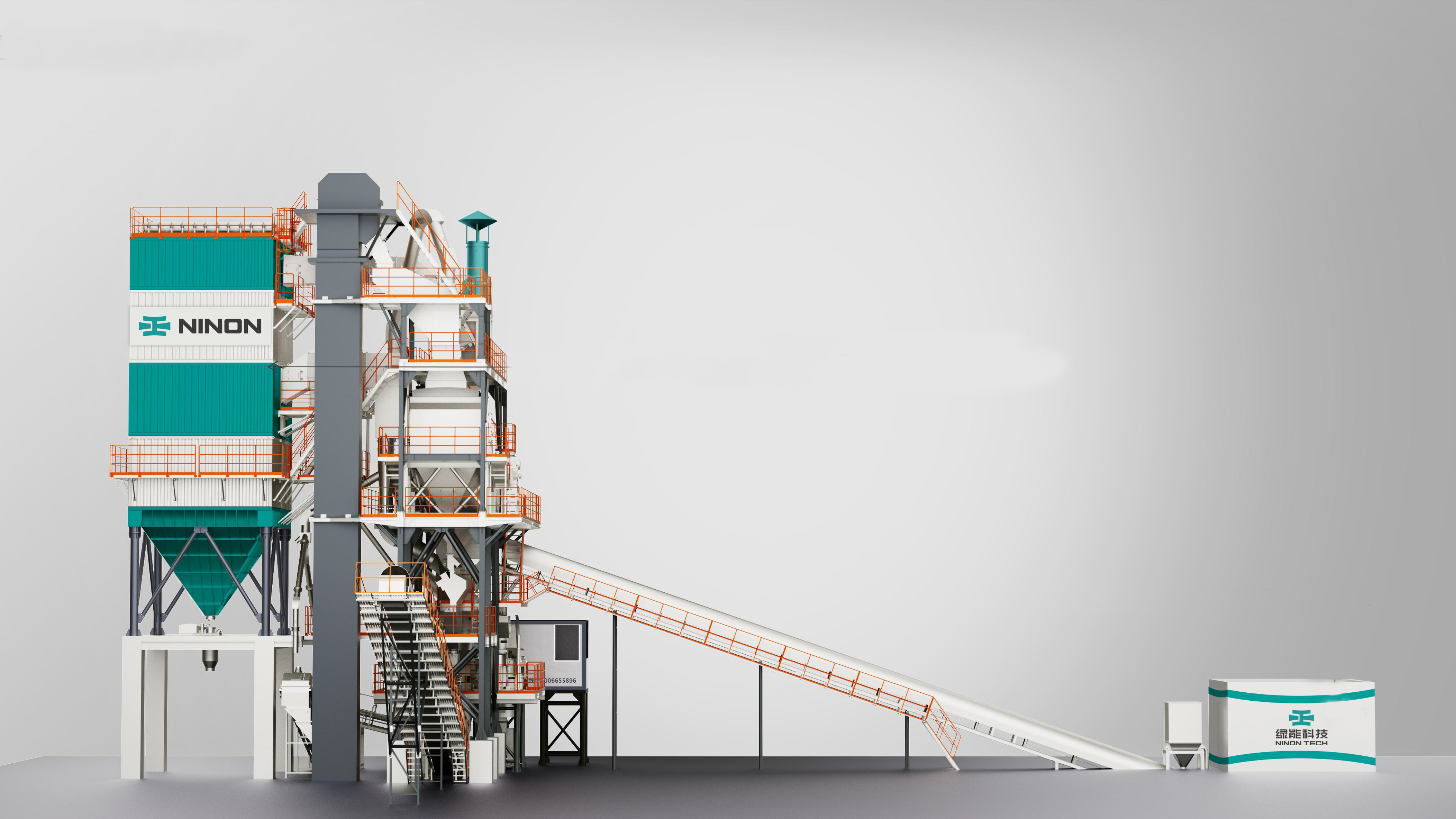

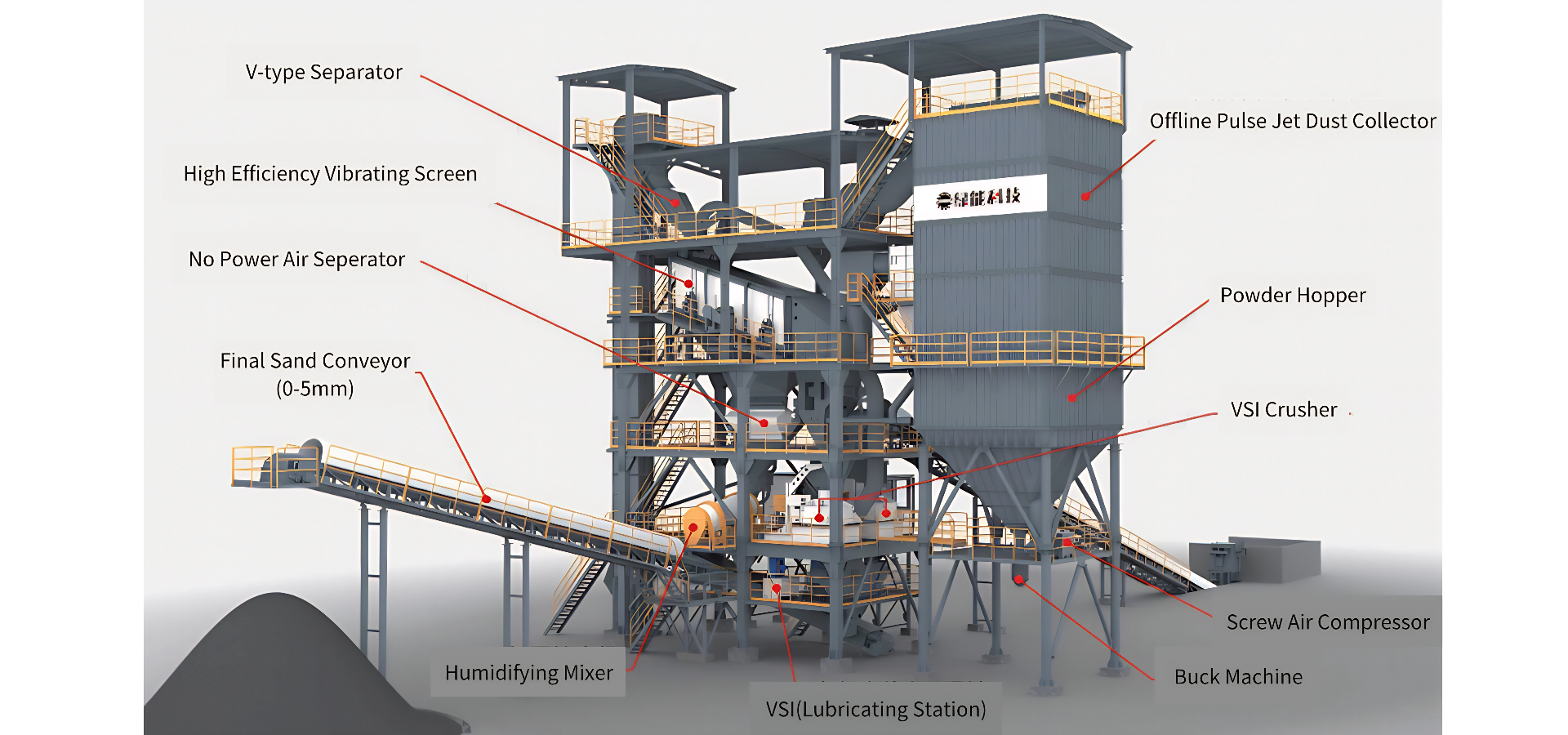

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

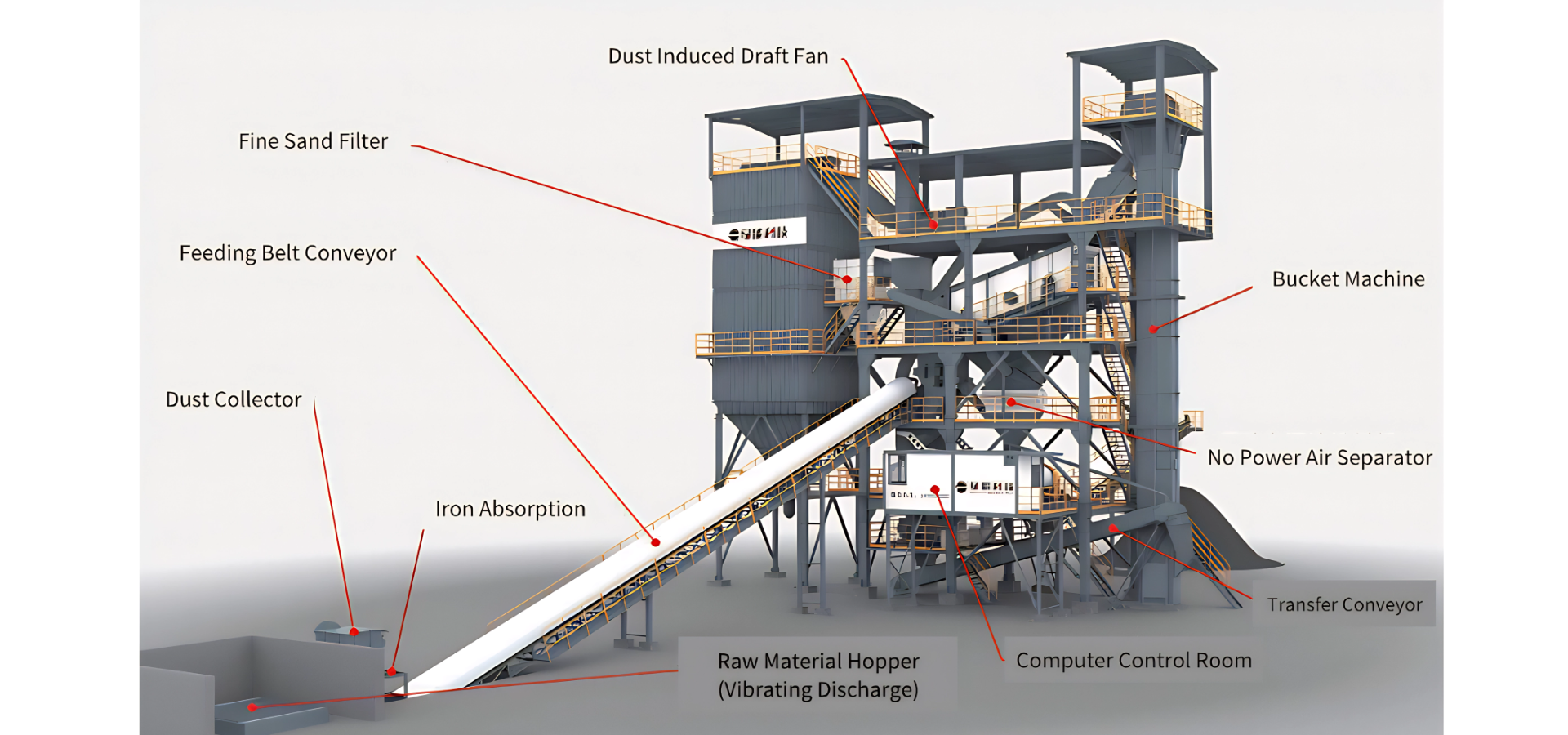

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

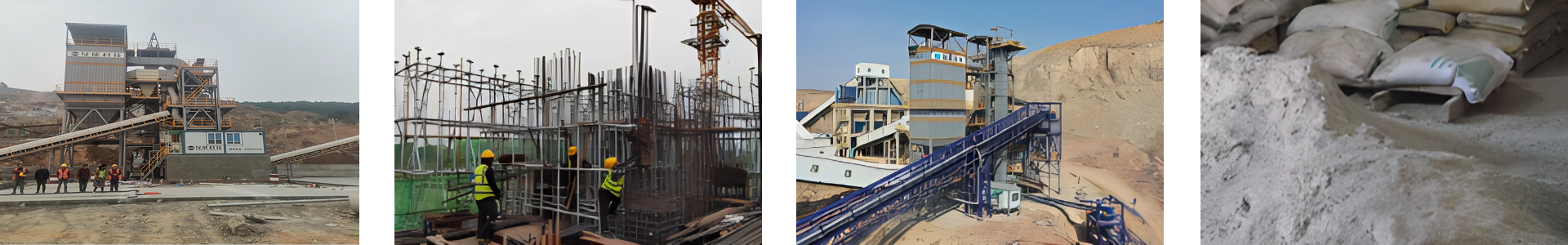

Video of the layout and construction process of Ninon's sand making plant

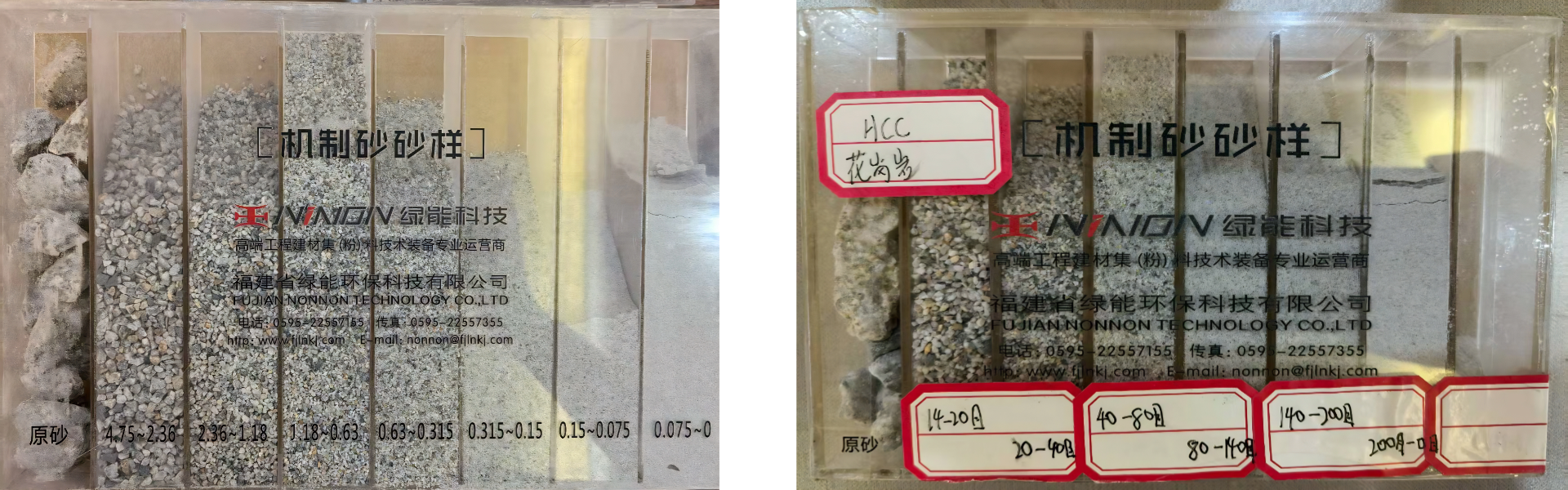

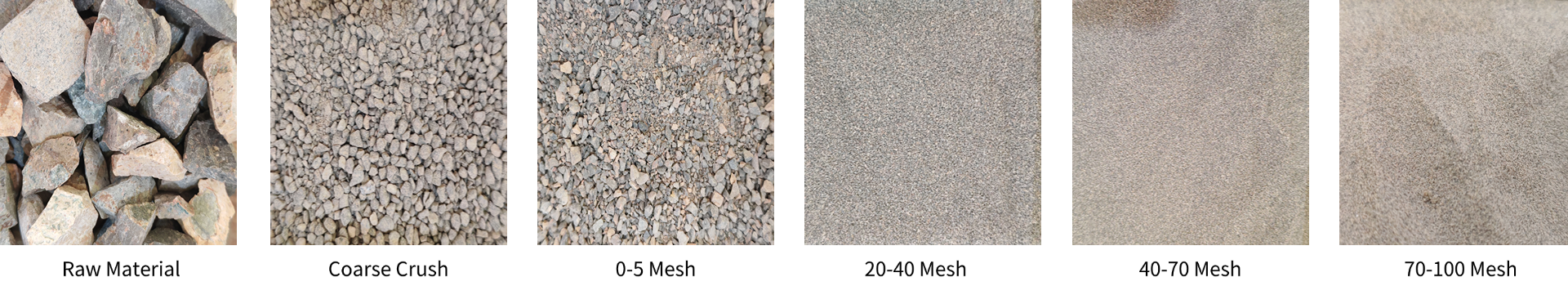

Final Sand Sample
Asphalt Concrete Aggregate

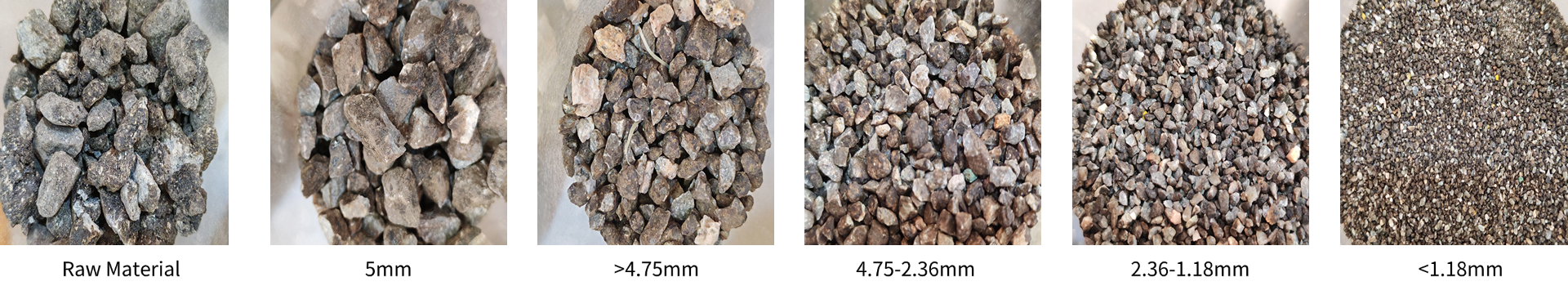

Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

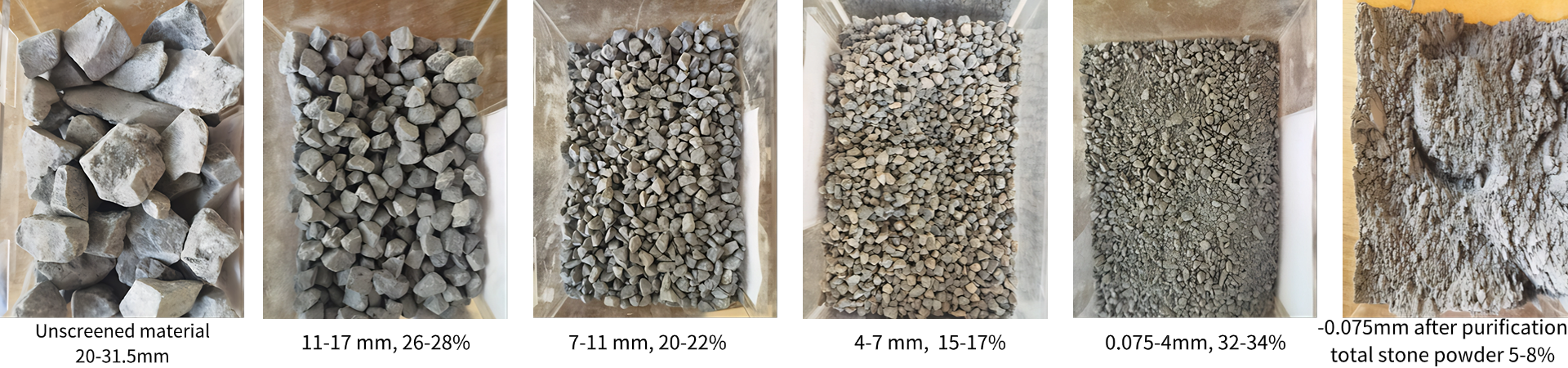

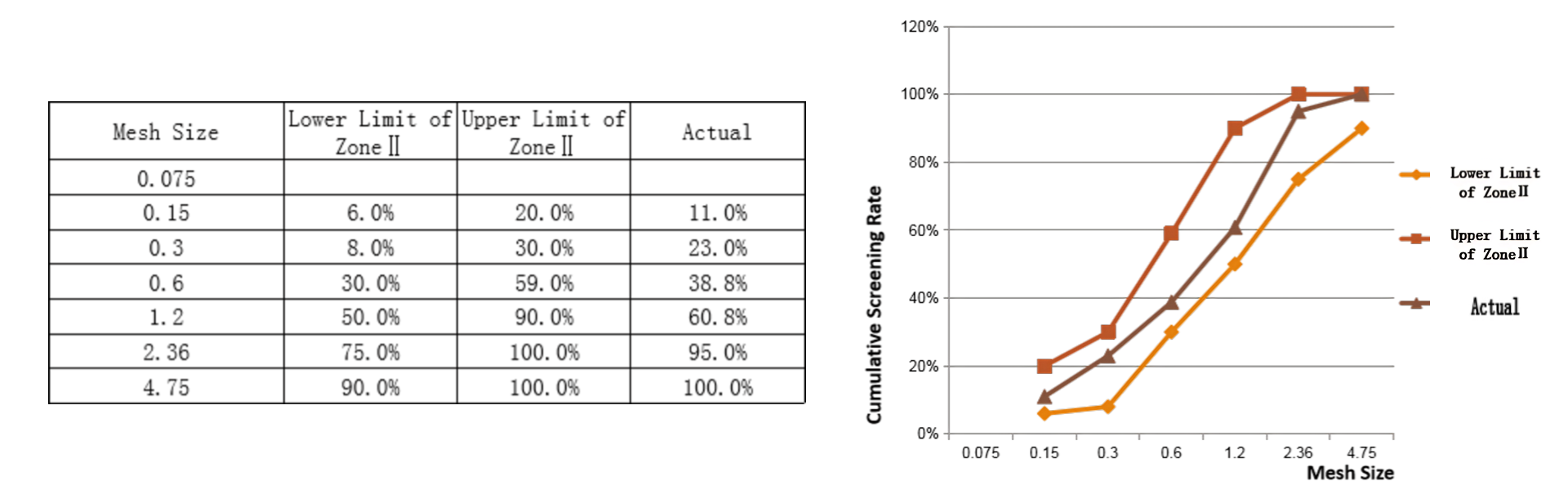

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Regional Aggregate Supply Projects
The LN-ZDS-824G1 is widely used in stationary rock crushing plant setups for supplying crushed stone and manufactured sand to nearby towns, construction zones, and commercial concrete batching plants.
2.Small to Mid-Sized Mining Operations As a compact and powerful mining stone crusher plant, it is ideal for medium-scale quarries and mining operations processing raw materials like limestone, shale, river pebbles, and construction waste.
3.Prefecture-Level Infrastructure Construction This stationary rock crushing plant serves as a key material preparation unit for local infrastructure projects such as roads, bridges, drainage systems, and municipal buildings, producing quality aggregates on-site.
4.Crushed Rock Wash Plant Integration When paired with a crushed rock wash plant, the LN-ZDS-824G1 delivers clean, graded aggregates suitable for premium construction and concrete production, including pavement base layers and ready-mix concrete.
5.Raw Material Preprocessing for Industrial Use The mining stone crusher plant is used in preprocessing for cement plants, asphalt mixing stations, and sand factories—turning large rock into high-grade materials through coordinated crushing and screening, and optionally routing it through a crushed rock wash plant for enhanced purity.
6.Remote and Space-Constrained Deployments Due to its modular design, this stationary rock crushing plant is perfect for remote locations or tight workspaces, where it functions as a standalone mining stone crusher plant or as part of a broader crushed rock wash plant and aggregate supply chain.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
