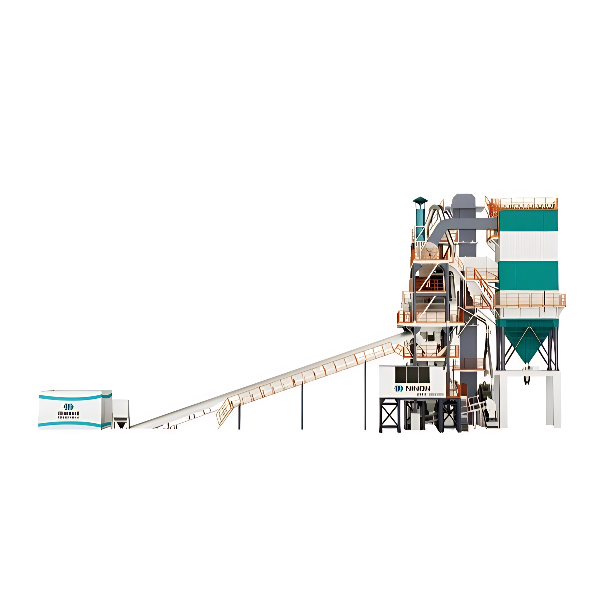

Model: LN-ZDS-2060S2
The Construction Aggregate Crushing Plant is one of the top-tier models in the LN-ZDS series, featuring three core advantages: high daily processing capacity, full-process intelligent scheduling, and integrated environmental management. It is specifically engineered for demanding, long-duration, and high-standard applications such as national-level aggregate bases, high-speed rail and large bridge construction, and green building material industrial parks.
1.Ultra-High Processing Capacity for Demanding Applications
The LN-ZDS-2060S2 is a top-tier construction aggregate crushing plant, delivering an output range of 190–210 t/h and a maximum feed capacity of 230 t/h, making it ideal for large-scale projects requiring steady, high-volume supply—especially when deployed as a limestone crushing plant in infrastructure construction.
2.Optimized for Multi-Material Crushing Whether operating as a construction aggregate crushing plant or a limestone crushing plant, the LN-ZDS-2060S2 excels at handling high-hardness ores, tailings, slag, and manufactured sand raw materials. Its flexibility allows efficient processing of diverse inputs without compromising on performance.
3.Intelligent Control & Automated Workflow Integrated with advanced PLC automation and cloud-based remote monitoring, the system enables real-time control, fault alerts, and intelligent adjustment. This makes it a future-ready construction aggregate crushing plant and highly efficient limestone crushing plant for modern smart mining environments.
4.Excellent Particle Shape and Gradation Control With multi-stage crushing and shaping modules, the construction aggregate crushig plant consistently produces high-quality aggregates with excellent cubicity—perfect for applications requiring precision such as concrete batching. This feature is critical for both construction aggregate crushing plant use and precision-demanding limestone crushing plant setups.
5.Modular Design for Quick Assembly and Expansion The LN-ZDS-2060S2 construction aggregate crushig plant uses a modular, integrated framework that reduces installation time and supports phased expansion. Whether you're upgrading a limestone crushing plant or building a new construction aggregate crushing plant, its plug-and-play setup significantly shortens deployment cycles.
6.Green, Low-Emission Operations The construction aggregate crushig plant Engineered with built-in dust suppression, noise reduction, and waste recycling, this eco-conscious system supports sustainable development goals—ideal for converting traditional setups into modern, environmentally-friendly construction aggregate crushing plants or limestone crushing plants.
Specification
Model
LN-ZDS-2060S2
Equipment Power (Kw)
1540
Maximum Feed Rate (t/h)
230
Output (10% Powder)(t/h)
190-210
Feed Particle Size
5-40
Remarks
Dual-machine sand making or integrated sand and aggregate production

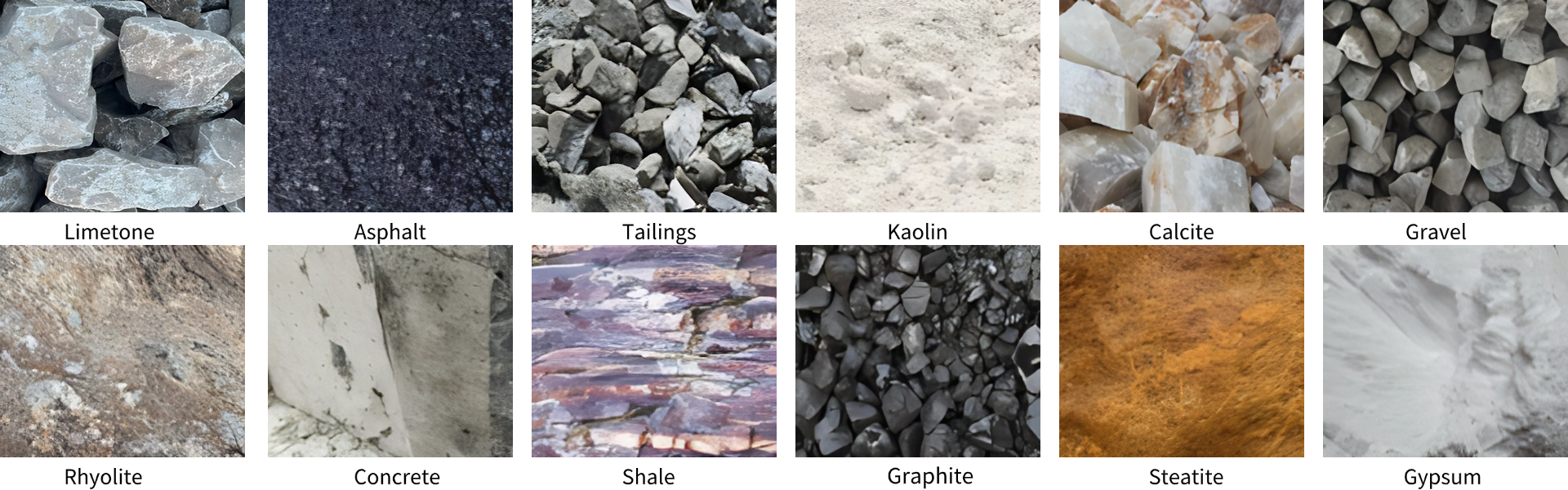

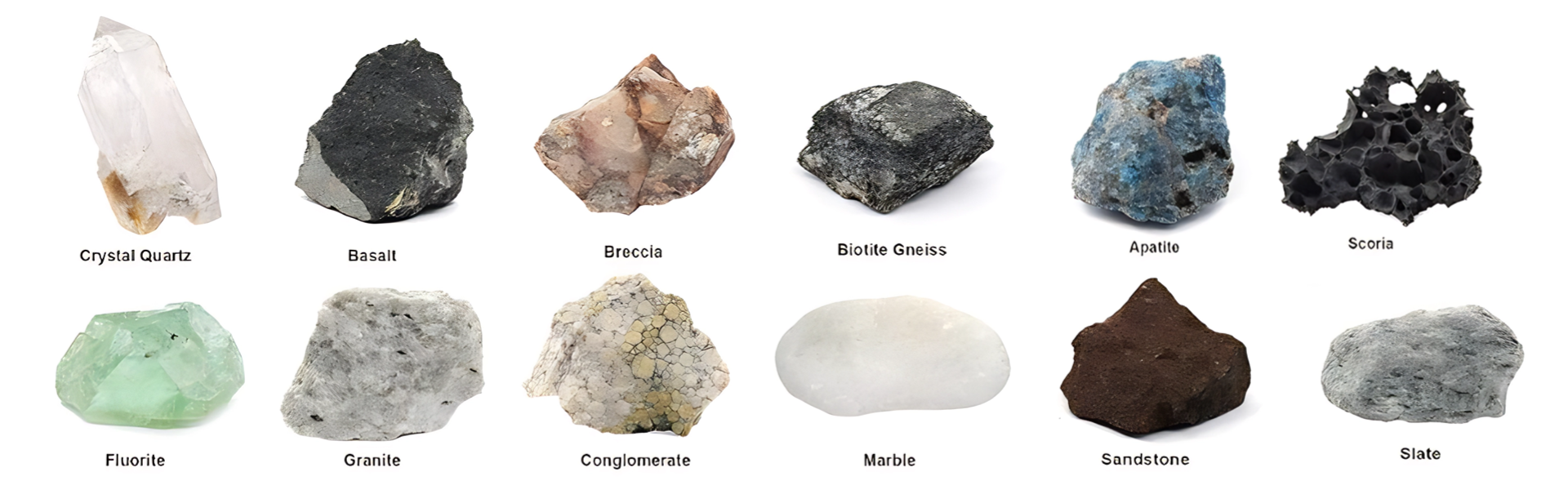

Applicable Materials
Mode of Sand Making and Aggregate Shaping

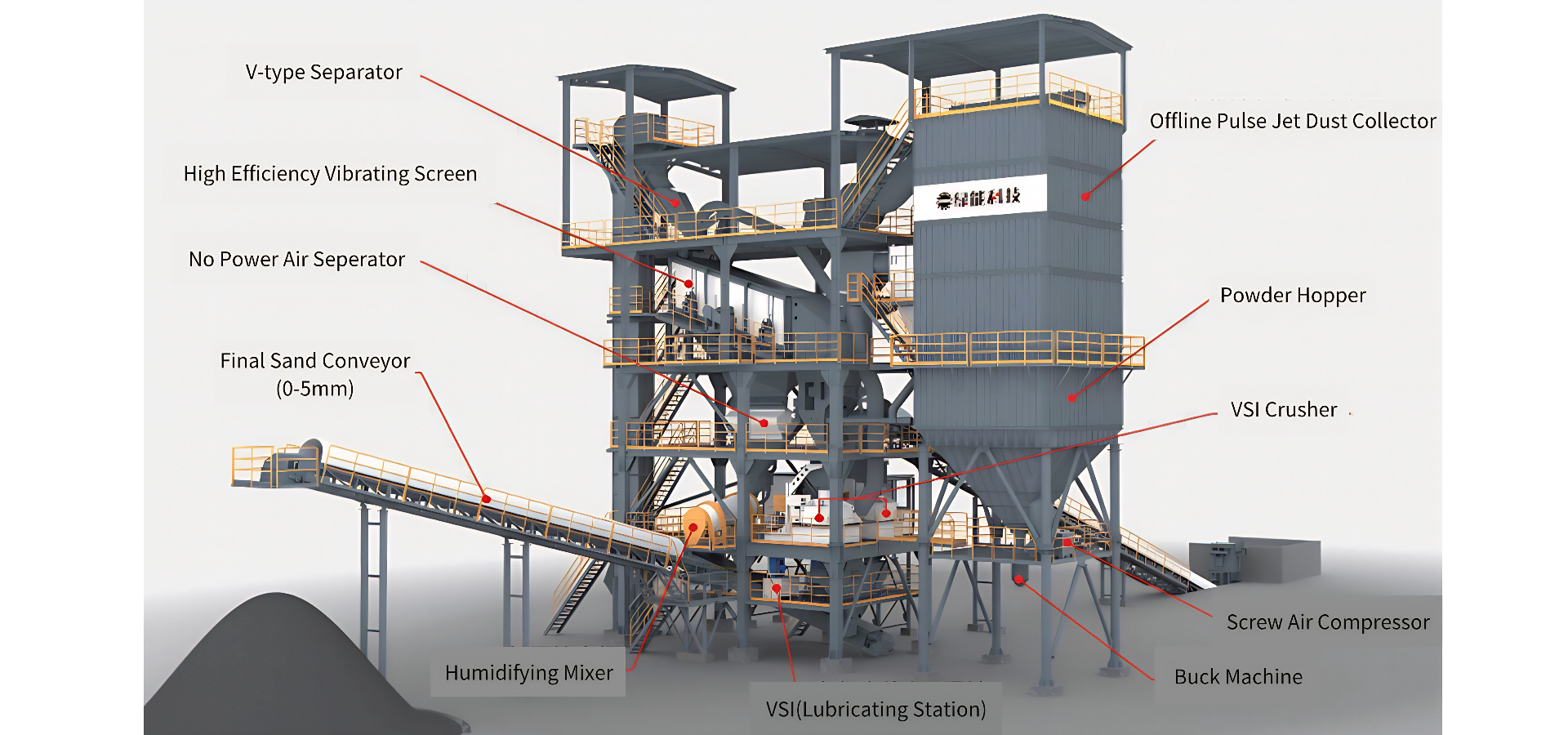

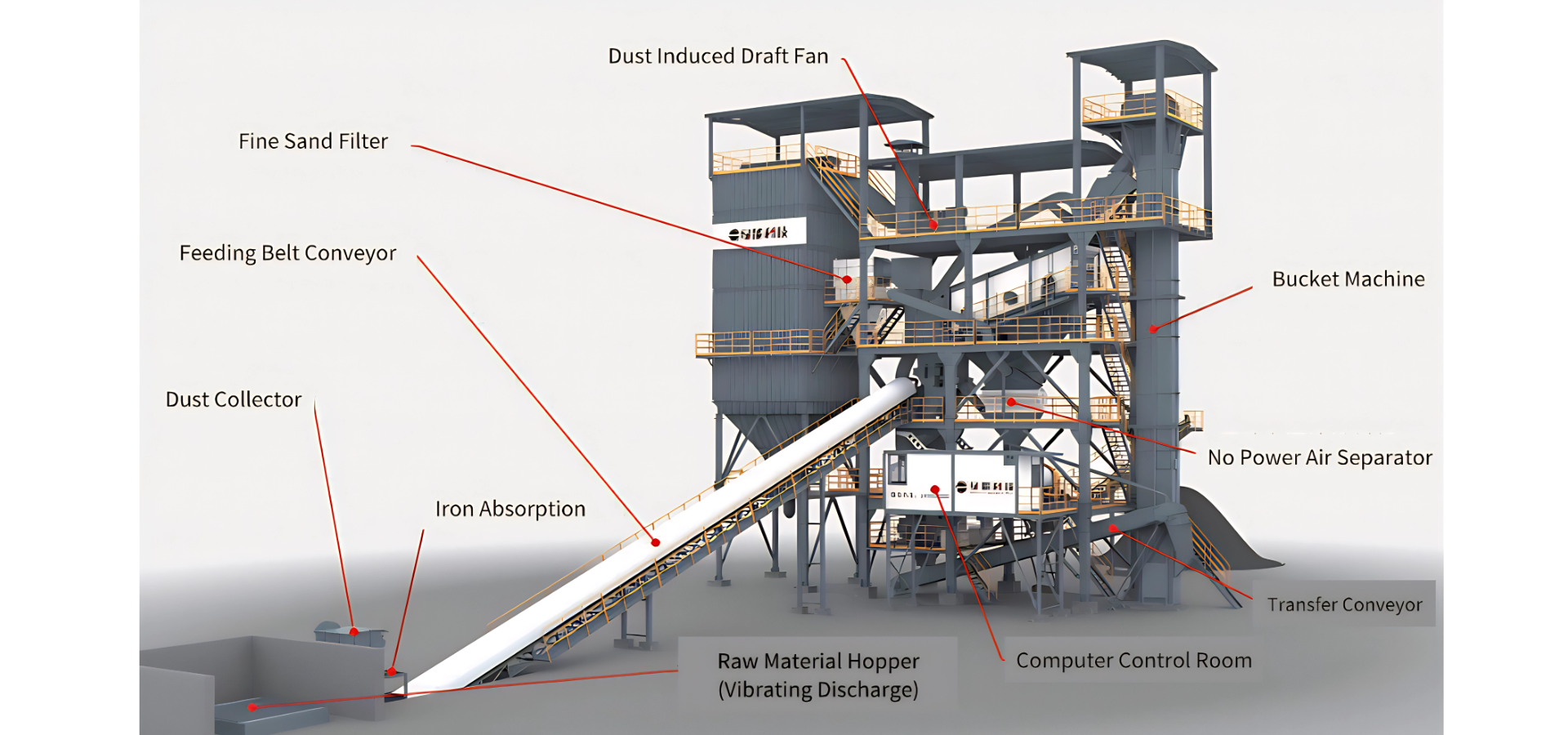

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

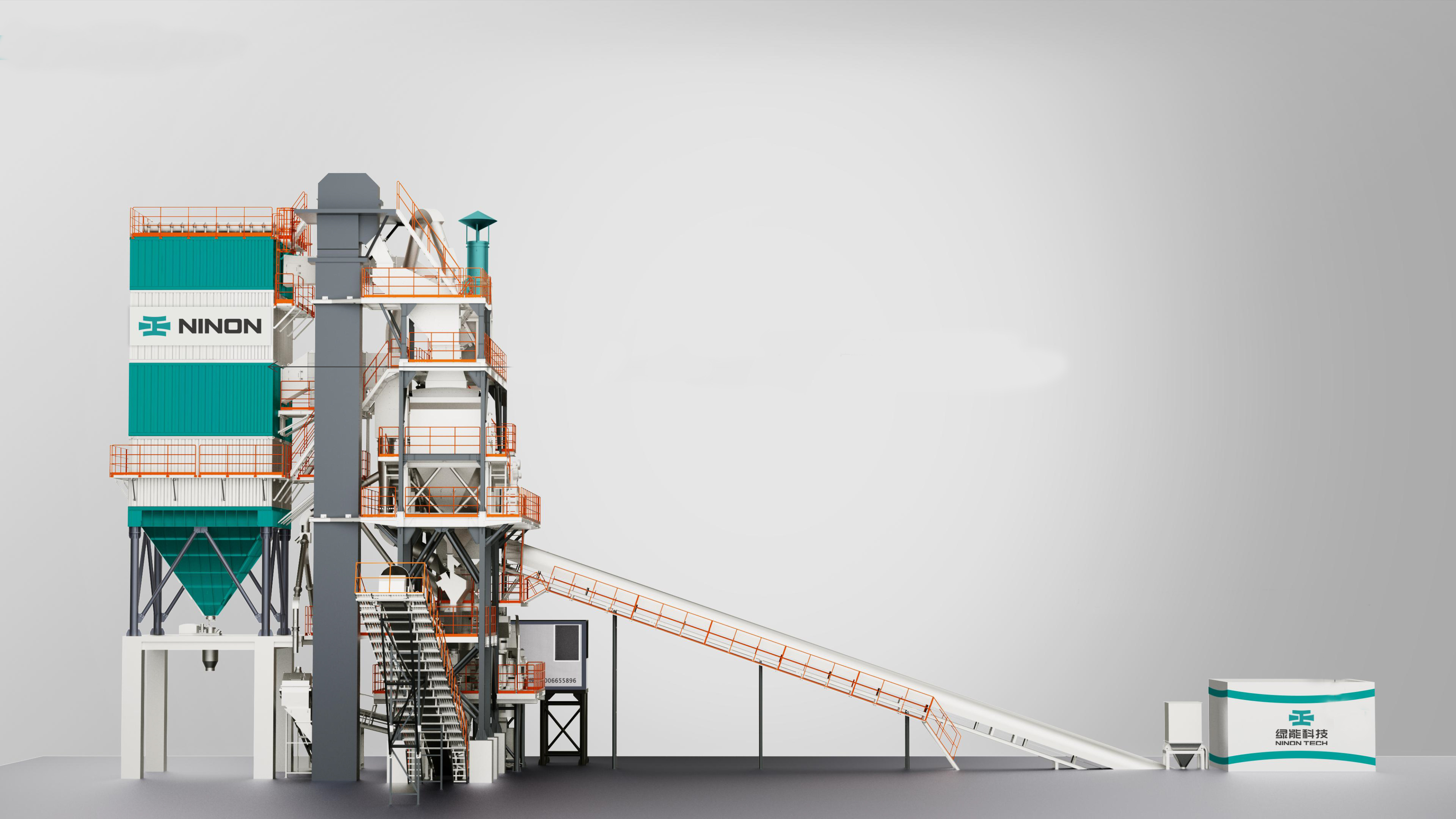

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant
Video of the layout and construction process of Ninon's sand making plant

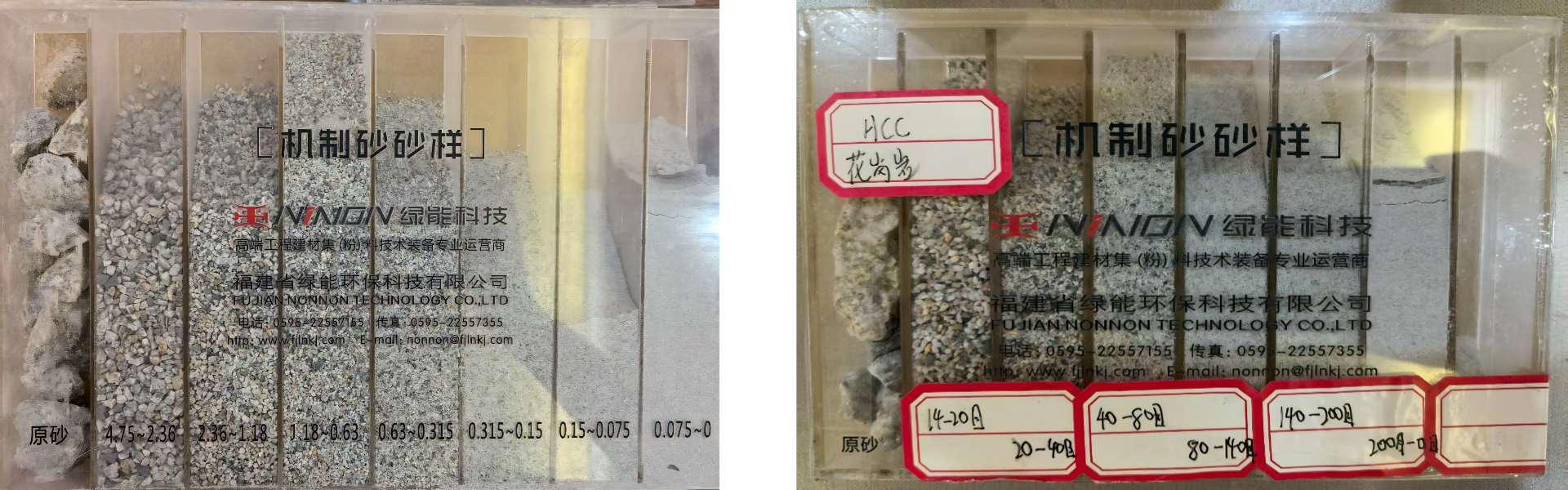

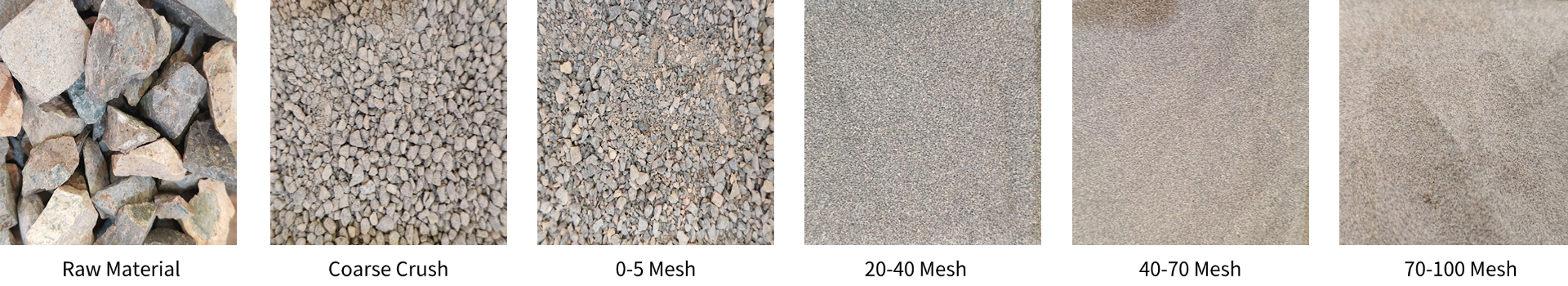

Final Sand Sample
Asphalt Concrete Aggregate

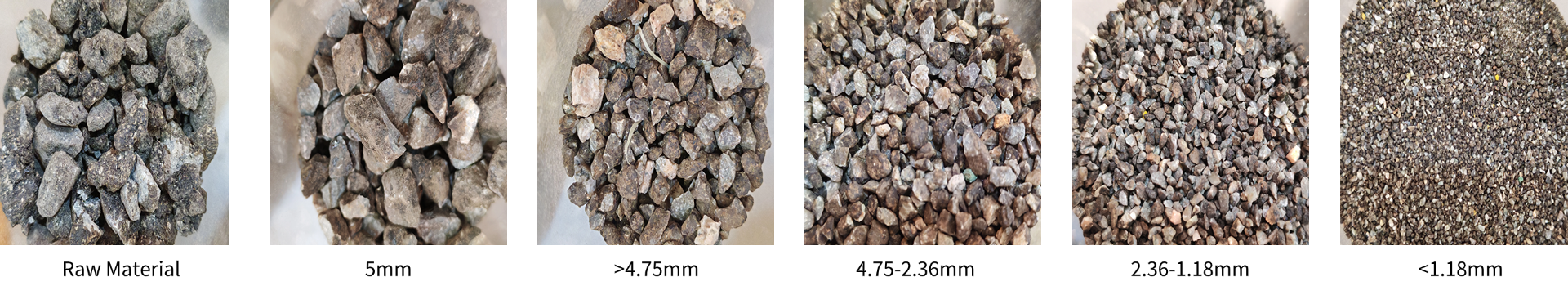

Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

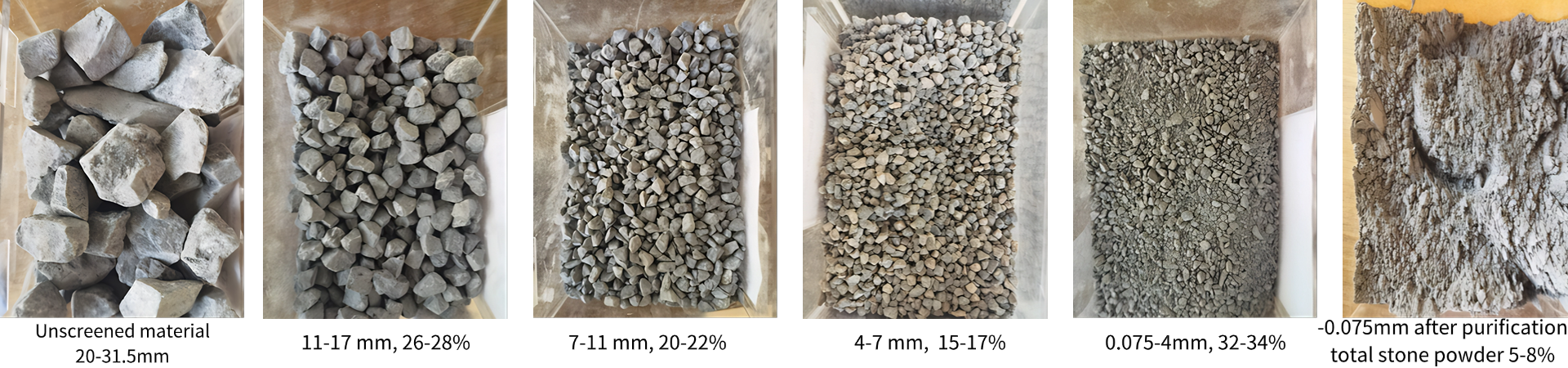

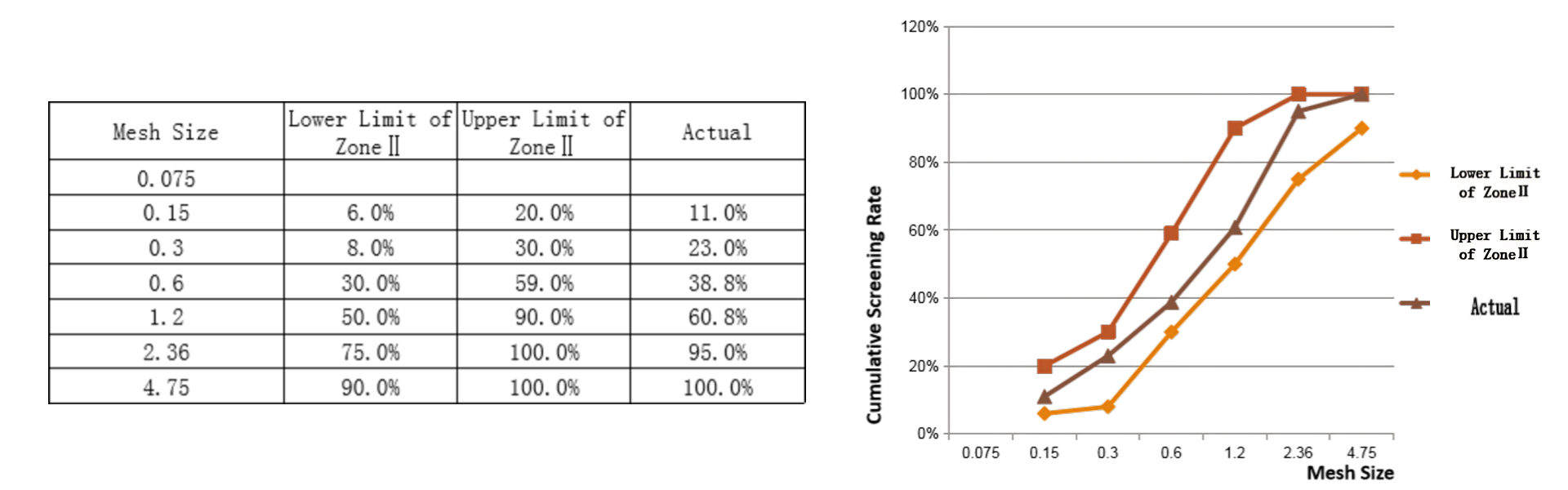

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)

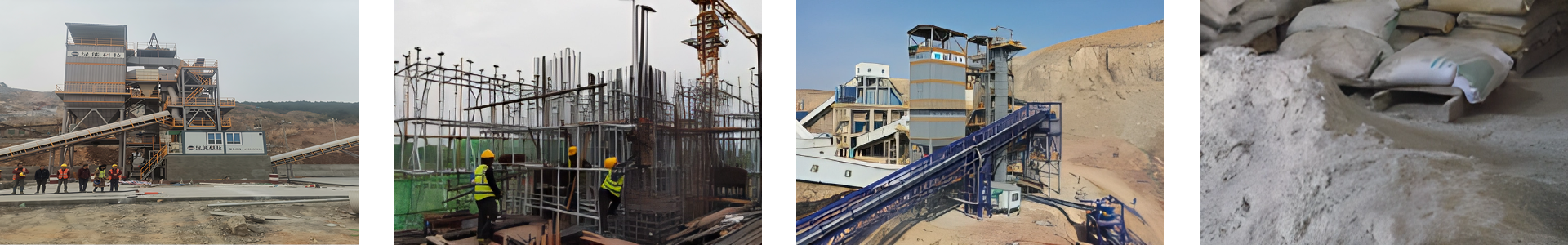

Range of Configuration
1.National Infrastructure Projects
The LN-ZDS-2060S2 construction aggregate crushig plant is widely used in expressways, high-speed railways, and large bridge projects where massive, continuous output is required. As a construction aggregate crushing plant, it delivers high-quality base and sub-base materials essential for such high-load applications. It also serves as a reliable limestone crushing plant for producing fine aggregates for road surfaces.
2.Large-Scale Commercial Concrete Production This model is ideal for commercial concrete batching plants where precision, volume, and quality control are critical. As both a construction aggregate crushing plant and limestone crushing plant, it ensures a consistent supply of premium crushed stone and sand required for high-grade concrete mixes.
3.Green Building Material Industrial Parks In eco-focused zones, the LN-ZDS-2060S2 construction aggregate crushig plant operates as an environmentally optimized construction aggregate crushing plant, integrating dust and noise control. Its capability as a limestone crushing plant also supports sustainable production of materials like eco-friendly cement and concrete.
4.Recycled Aggregate and Tailings Processing Beyond natural stone, the LN-ZDS-2060S2 is used in construction waste recycling to produce usable aggregates. As a construction aggregate crushing plant, it converts old concrete and asphalt into new material, and when configured as a limestone crushing plant, it can refine even difficult materials like slag and tailings.
5.Mining and Quarrying Operations Perfect for high-capacity quarries and mining zones, this system functions as a robust construction aggregate crushing plant in large mining setups. It's also a high-performance limestone crushing plant used in mineral-rich areas where durability and wear resistance are critical.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
