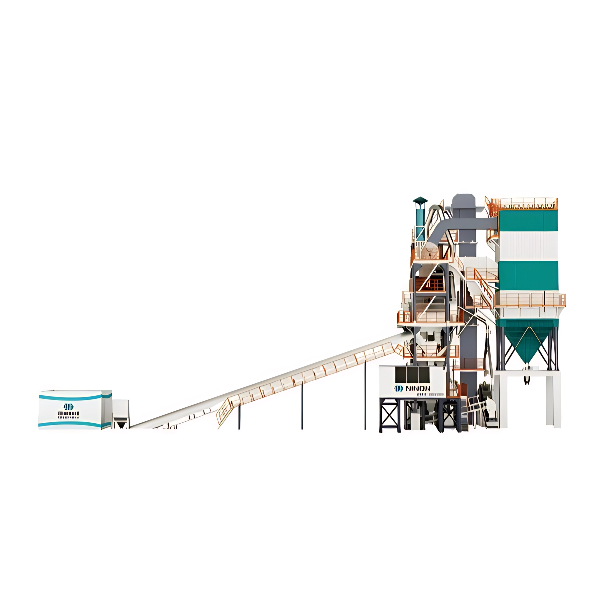

Model: LN-ZDS-618G1

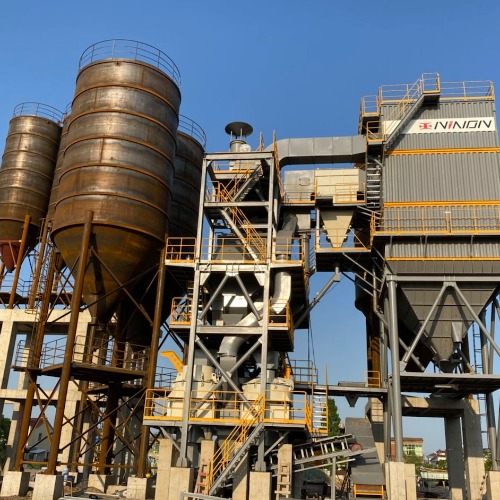

The Graphite Ore Rock Crushing Plant is a highly efficient integrated aggregate processing system tailored for small to medium-scale sand and gravel projects. The cement crushing plantemphasizes compact capacity, low energy consumption, smart operation, and environmental friendliness. Ideal for small-scale quarries with annual output under 200,000 tons, rural infrastructure aggregate supply, or front-end processing in manufactured sand plants, this unit features a compact footprint and flexible layout, perfect for space-constrained or decentralized deployment.
The LN-ZDS-618G1 functions as a fully integrated rock crushing plant, combining feeding, crushing, screening, and discharge into one modular system. Its compact design allows for easy installation, making it highly adaptable for graphite ore crushing plant and cement crushing plant configurations in space-limited or decentralized areas.
2.Versatile Crushing Capabilities This rock crushing plant supports various crusher configurations—including jaw, hammer, and impact crushers—allowing it to process materials like graphite ore, limestone, shale, and construction waste. Whether used as a cement crushing plant or graphite ore crushing plant, it delivers reliable multi-material performance.
3.Energy-Efficient Operation for Sustainable Production Designed with smart control systems, the LN-ZDS-618G1 minimizes energy usage and operational costs. This feature makes it ideal for small to medium-sized rock crushing plant operations focused on sustainability, including cement crushing plant setups seeking energy savings.
4.Dual-Output Capability: Aggregates and Sand The inclusion of the VSI8525 core crusher enables the system to serve as both a graphite ore crushing plant and a fine material processor. It produces well-graded aggregates and manufactured sand, supporting dual-output applications across various rock crushing plant or cement crushing plant demands.
5.Ideal for Low-Investment, High-Efficiency Projects As a graphite ore crushing plant, the LN-ZDS-618G1 offers low investment requirements and rapid deployment. It’s particularly suited for start-up mining operations or regional rock crushing plant solutions where cost efficiency and flexible scaling are essential. It also provides front-end crushing in integrated cement crushing plant lines.
Specification
Model
LN-ZDS-618G1
Equipment Power (Kw)
430
Maximum Feed Rate (t/h)
VSI8525
Processing capacity (t/h)
150-180
Feed Particle Size
5-40
Remarks
Single-machine sand and aggregate co-production

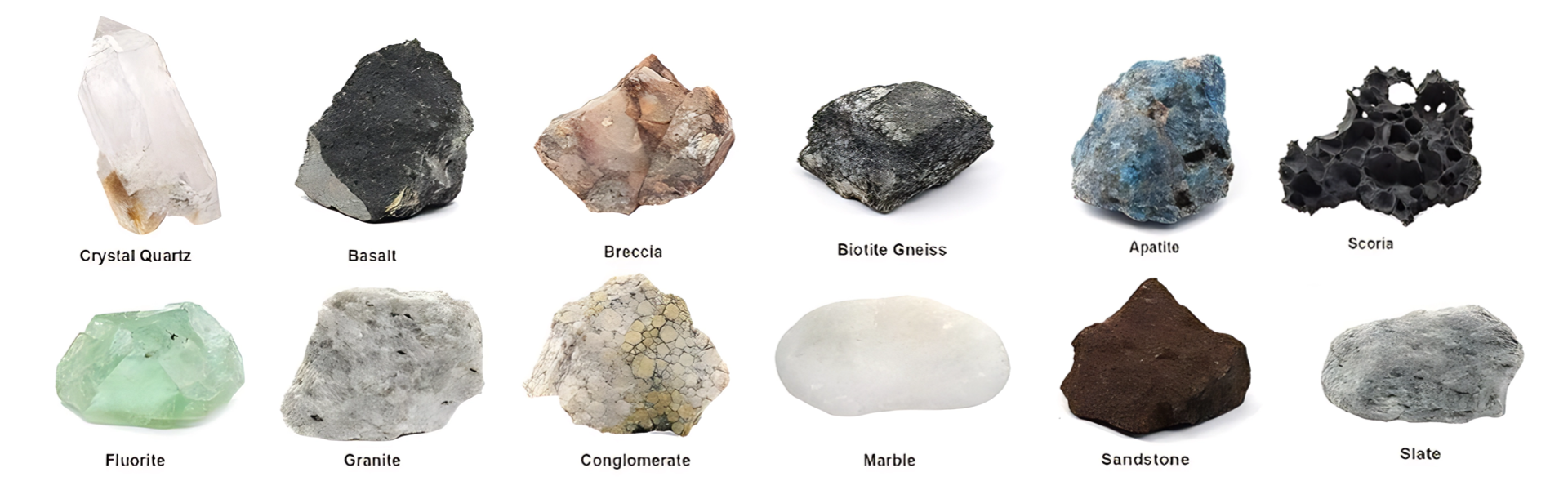

Applicable Materials
Mode of Sand Making and Aggregate Shaping

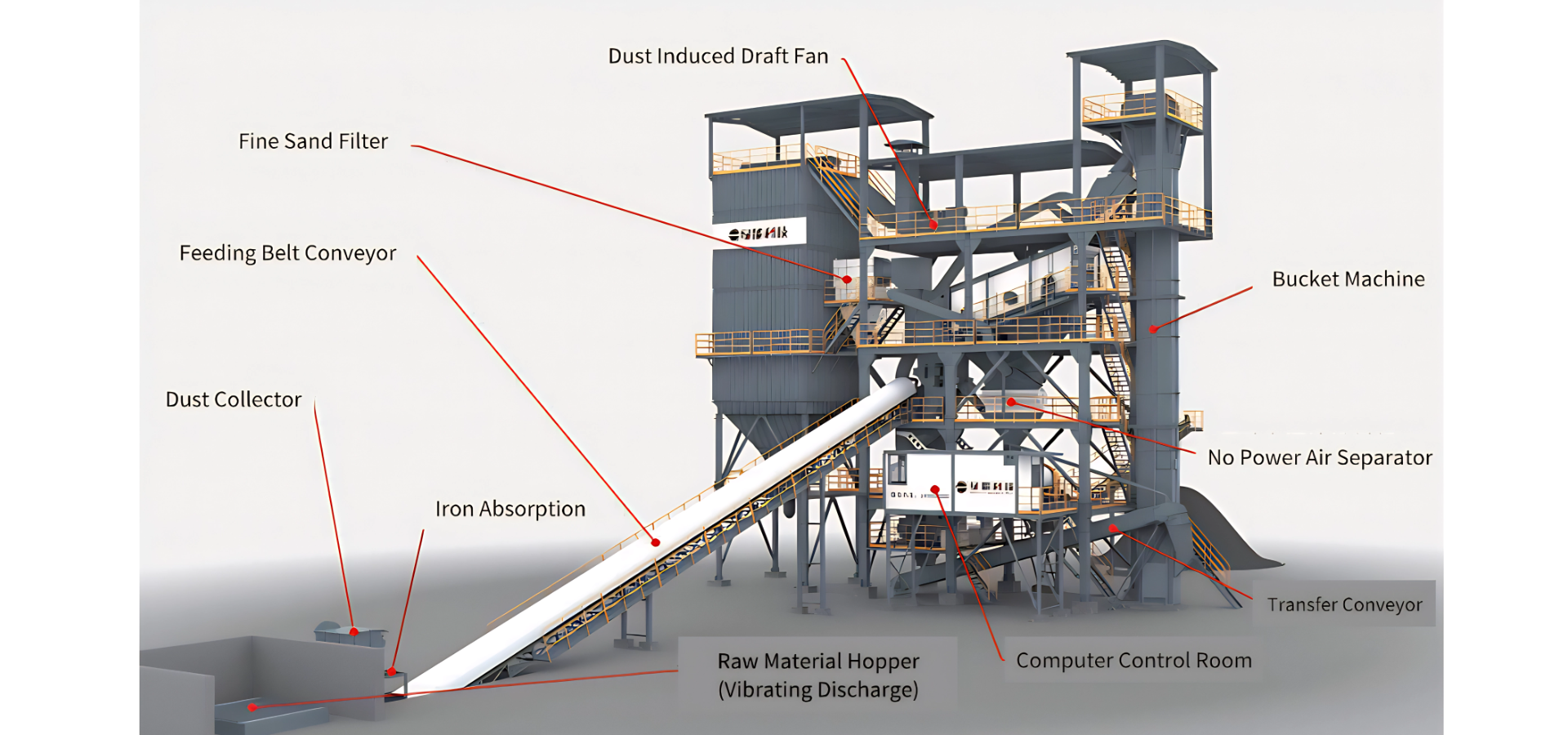

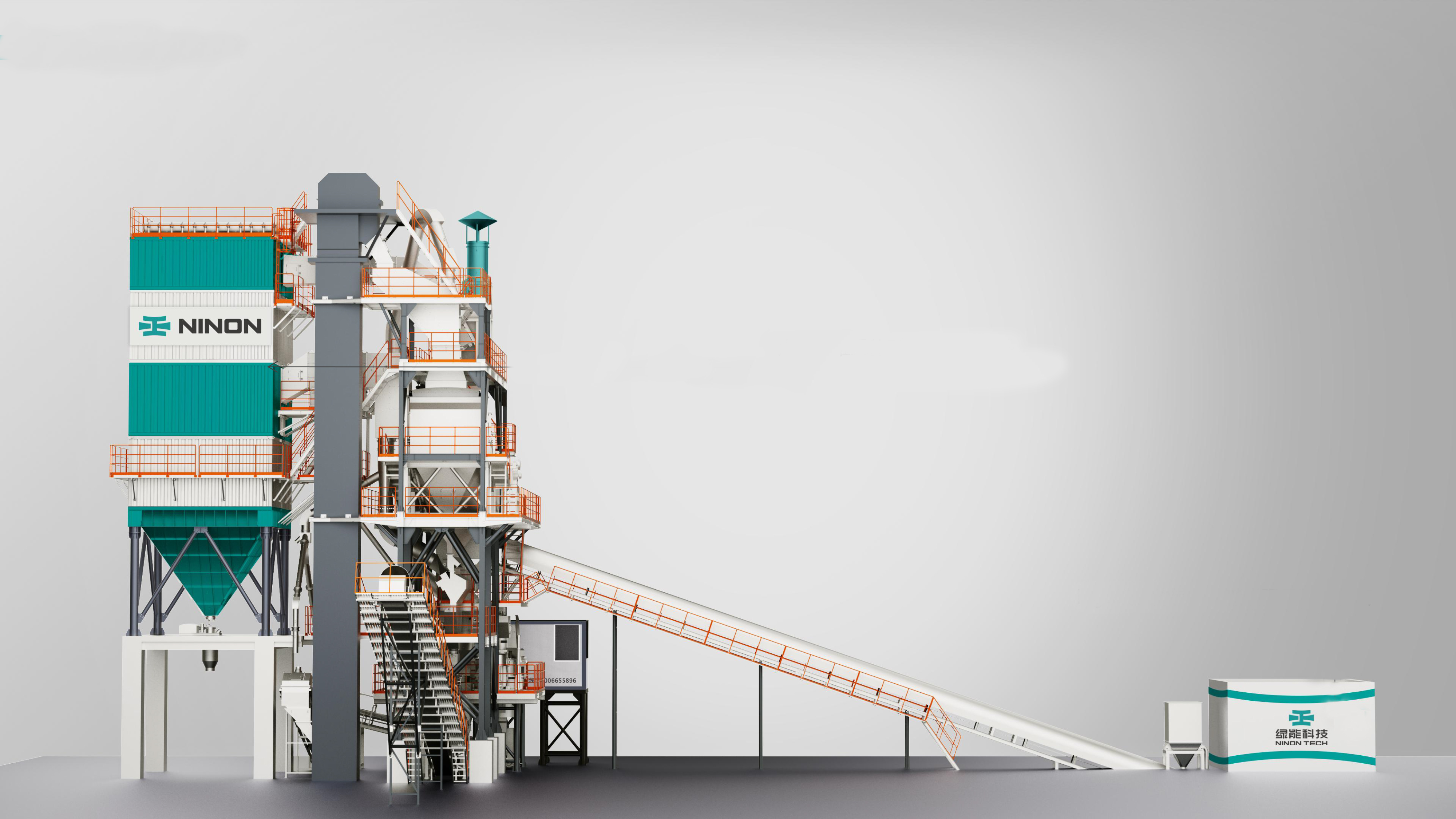

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

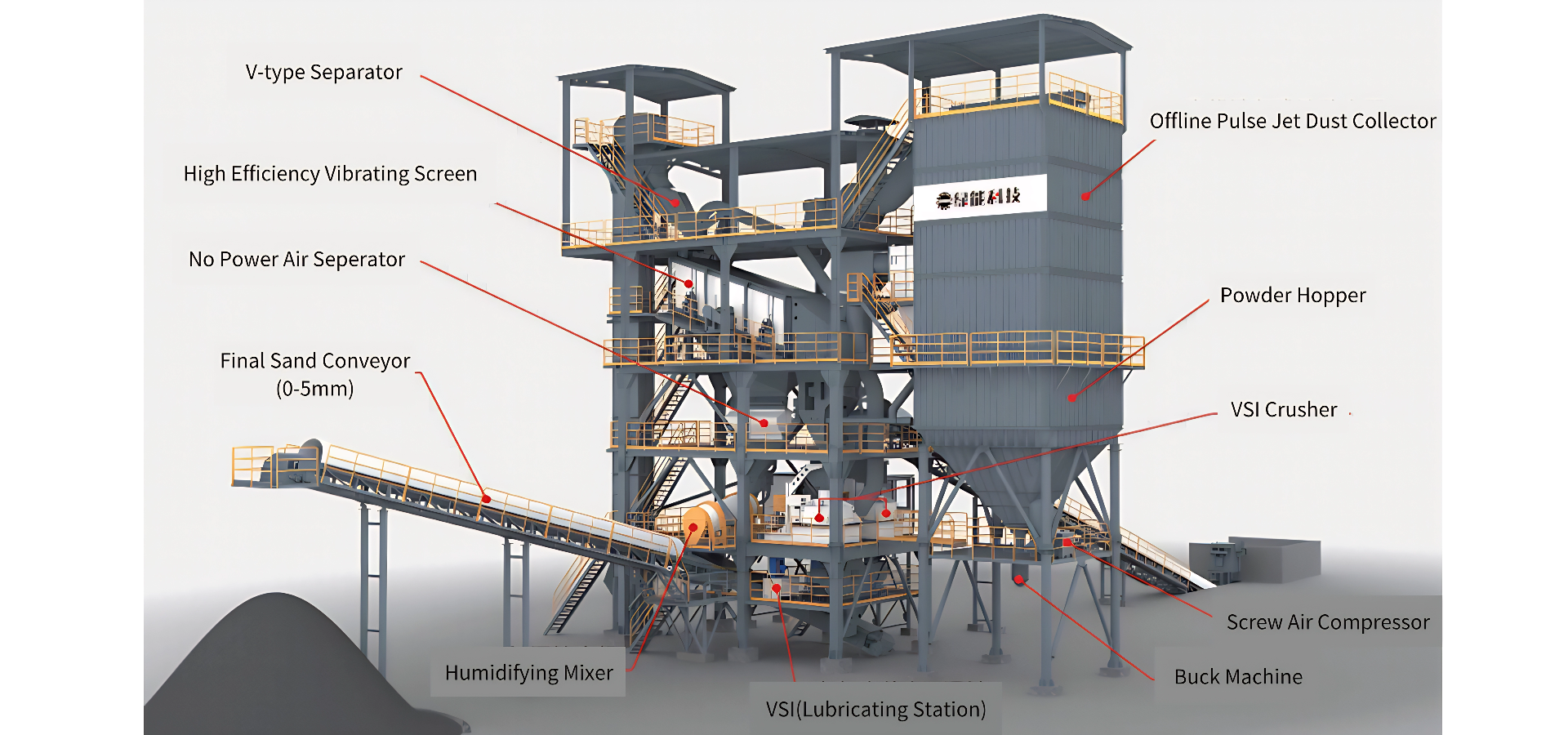

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

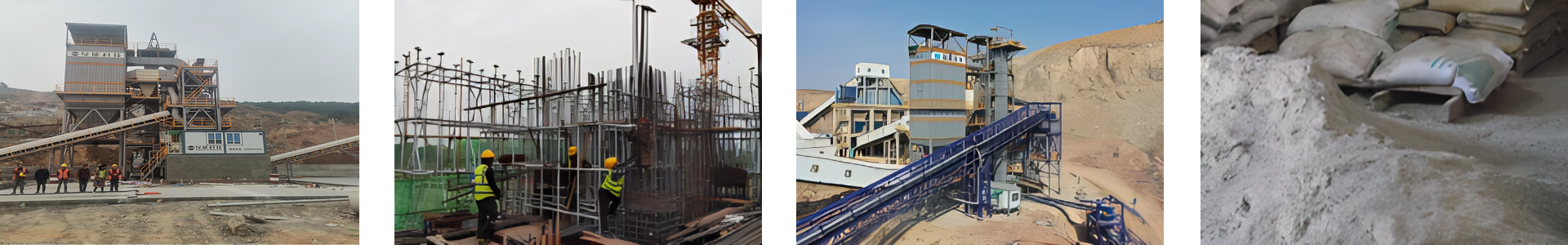

Video of the layout and construction process of Ninon's sand making plant

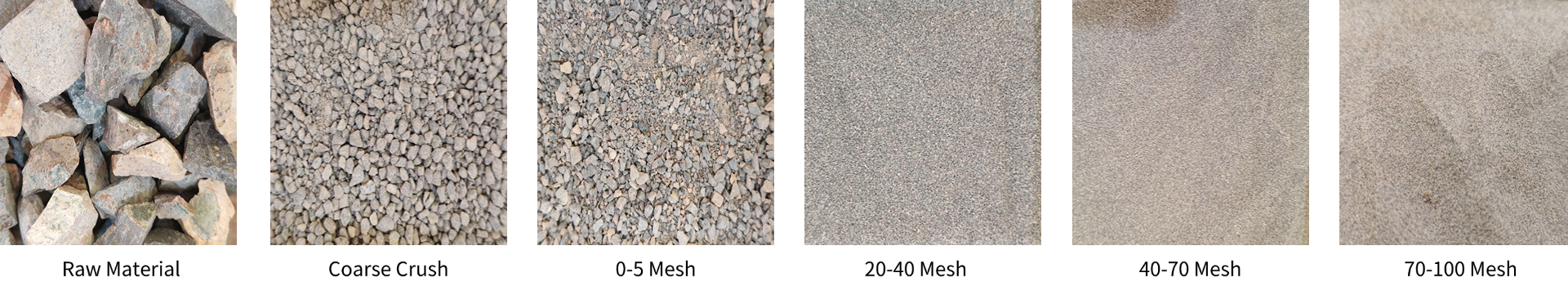

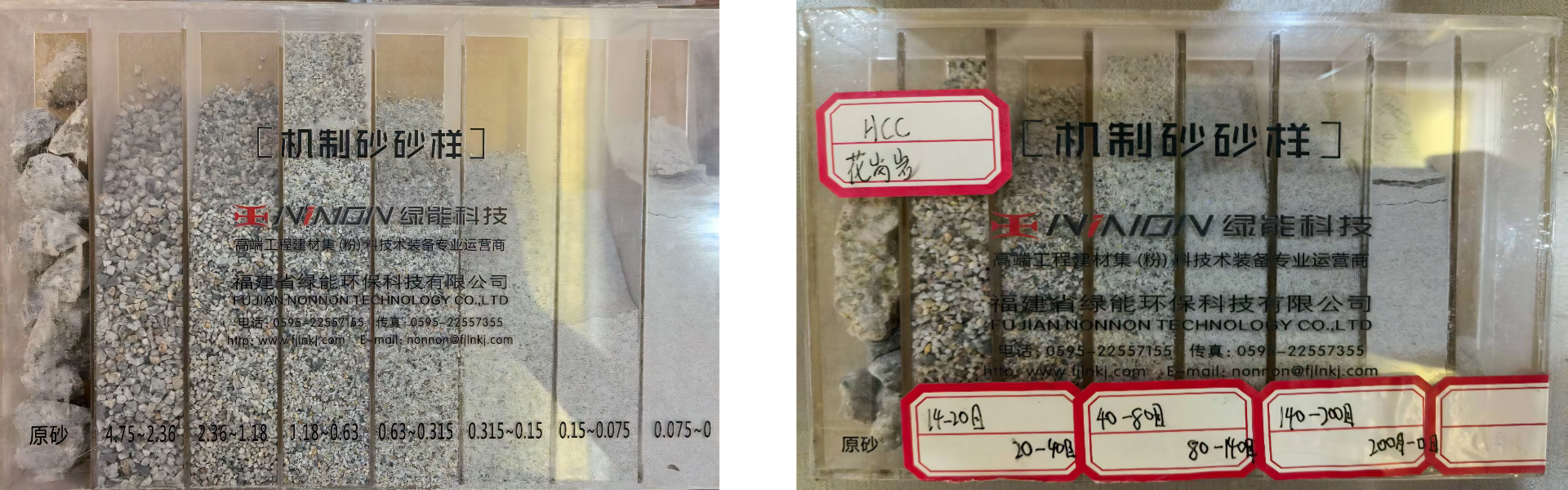

Final Sand Sample
Asphalt Concrete Aggregate

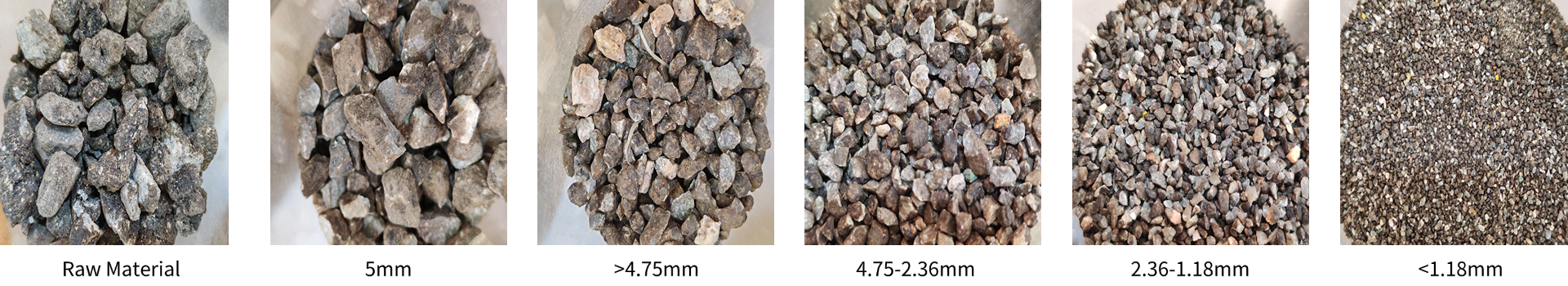

Limestone Aggregate
RAP Aggregate

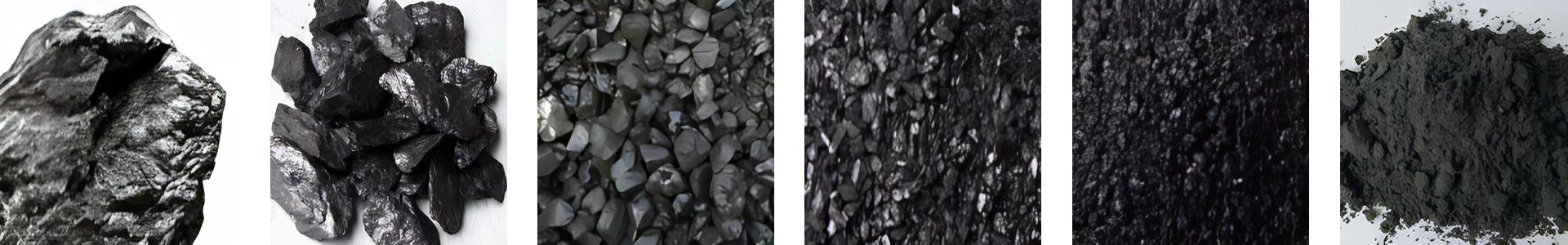

Graphite Ore
Technical Data on Aggregate Shaping and Sand Production

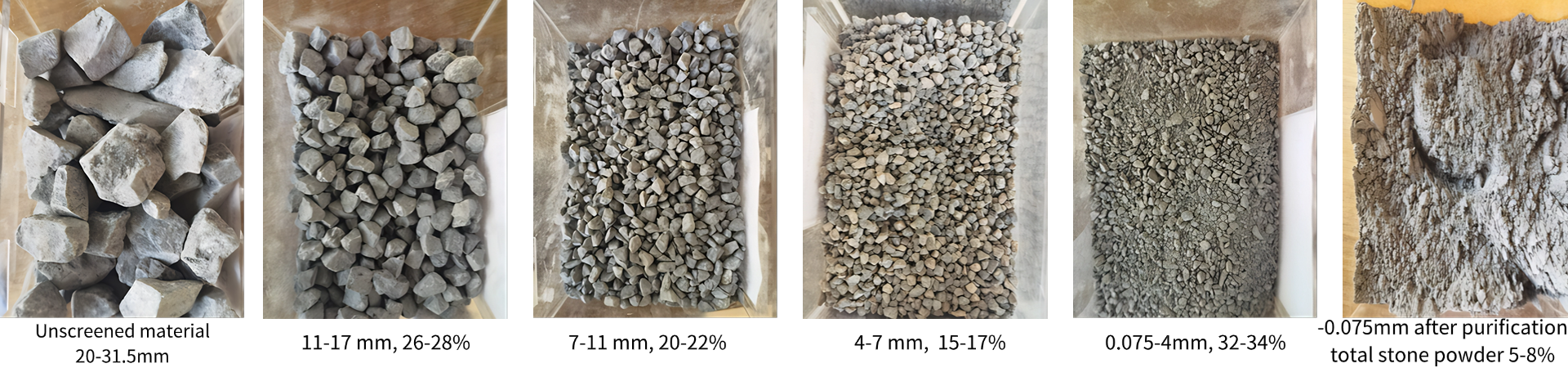

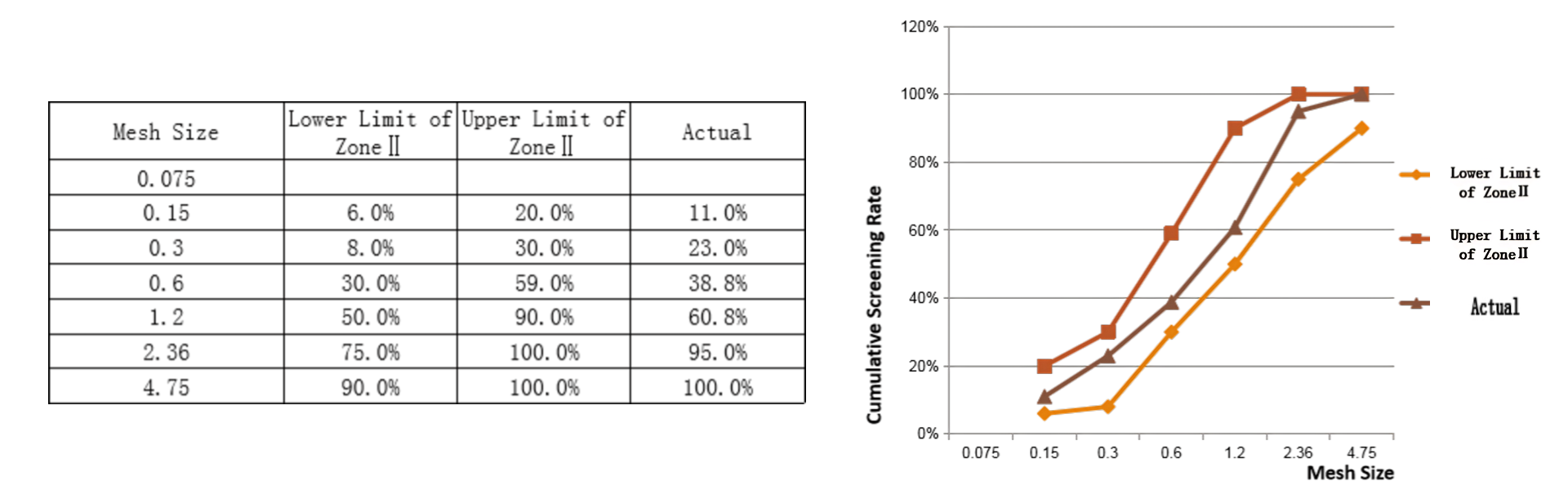

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Graphite Mining and Processing Projects
The LN-ZDS-618G1 is widely used as a graphite ore crushing plant in small to medium-sized graphite mining operations. It effectively handles graphite-bearing rock, turning raw ore into fine aggregates or processed feed for flotation and purification systems, making it an essential part of any graphite ore crushing plant setup.
2.Cement Material Preparation and Limestone Crushing In the cement industry, the system serves as a highly efficient cement crushing plant for processing raw limestone, clay, and shale. It is suitable for front-end material reduction in mini or mobile cement crushing plant lines, providing the right particle size for clinker production.
3.Small Quarry and Decentralized Crushing Operations This rock crushing plant is ideal for small, regional quarries that supply local infrastructure projects. Its compact layout and ease of deployment make it perfect for on-site crushing where larger equipment is impractical, giving small operations access to a full-function rock crushing plant.
4.Construction Waste Recycling and Reuse The LN-ZDS-618G1 is commonly deployed as a cement crushing plant or rock crushing plant for processing recycled concrete and demolition waste. It reduces waste volume while producing reusable base material for roads, foundations, and backfill.
5.Integrated Production Lines for Industrial Minerals It supports multi-purpose roles in integrated mineral processing setups, acting as both a graphite ore crushing plant and rock crushing plant to feed downstream grinding or separation lines. It's especially useful where graphite is extracted alongside other industrial minerals.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
