Model: LN-ZDS-1648G1

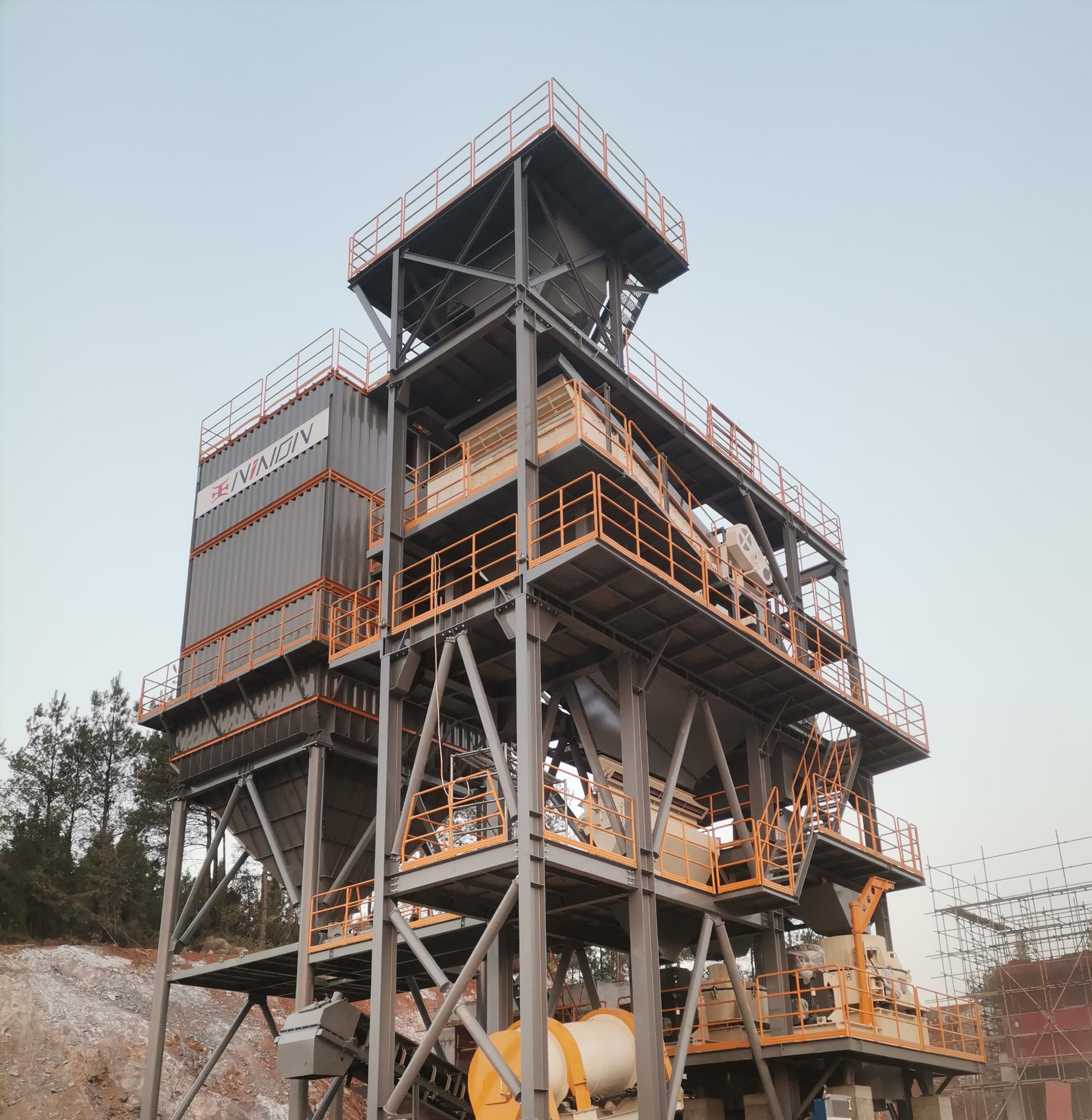

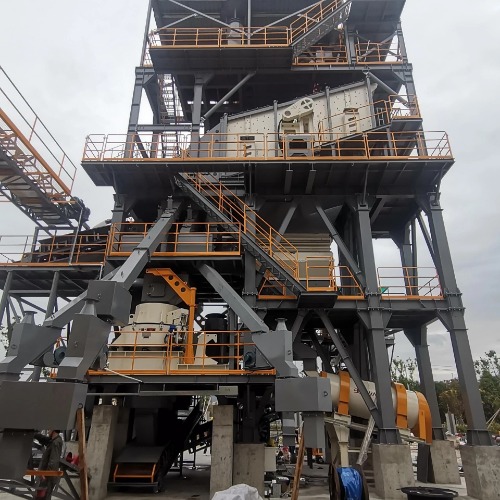

The Kaolin Crushing Plant is a mid-to-high-end model in the G series, ideal for regional aggregate supply bases, transportation infrastructure projects, and primary ready-mix concrete plants. The kaolin processing plant excels in structural configuration, particle shape control, automation, and environmental performance, making it a cost-effective solution for various production scenarios.

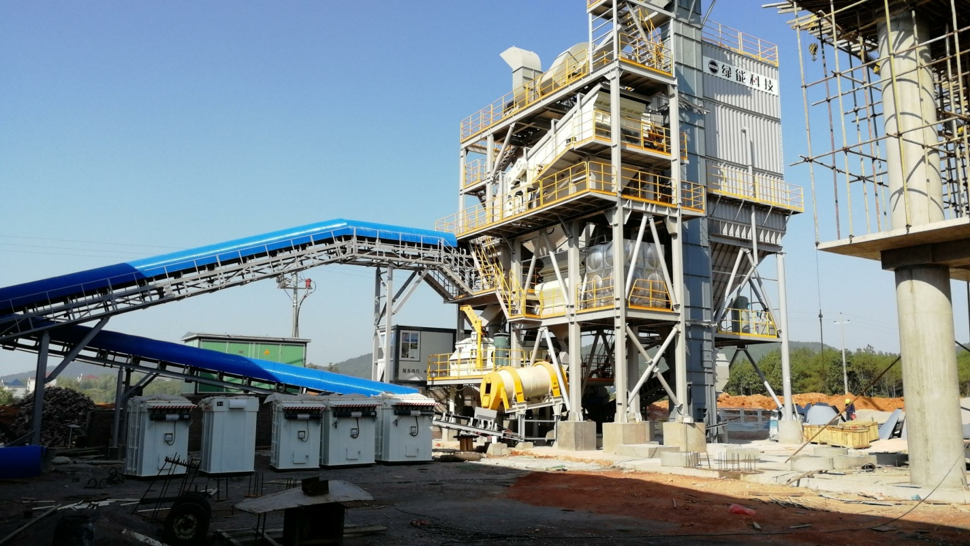

The LN-ZDS-1648G1 kaolin processing plant integrates a stationary rock crusher plant configuration, designed to handle feed sizes of 5–50 mm and process materials at 460–500 t/h. This makes it highly efficient for large-scale kaolin processing plant operations.
2.Multi-Material Compatibility While optimized for kaolin, this hard rock crushing plant also supports materials such as basalt, limestone, river pebbles, and construction debris—offering flexibility across various stationary rock crusher plant applications.
3.Advanced Shaping and Grading The VSI1263 core unit ensures superior particle shaping, making this kaolin processing plant ideal for producing uniform, well-graded output suitable for ceramics, paper fillers, and other high-end uses from kaolin.
4.Smart Automation and Monitoring The stationary rock crusher plant is equipped with a modern PLC system for intelligent operation, automatic fault alerts, and real-time data tracking—enhancing reliability and reducing downtime in your kaolin processing plant.
5.Environmental & Energy Efficiency With enclosed dust control systems and energy-saving design, the hard rock crushing plant meets strict environmental standards—perfect for eco-conscious kaolin processing plant operations seeking regulatory compliance.
6.Customizable Screening Layers The integrated 3–4 layer vibrating screen allows precision classification of kaolin and other materials in the hard rock crushing plant, ensuring product consistency for downstream applications.
7.Durability & Continuous Operation Designed for intensive workloads, the stationary rock crusher plant can run across two or three shifts, making it an optimal choice for high-demand kaolin processing plant setups.
Specification
Model
LN-ZDS-1648G1
Equipment Power (Kw)
950
Supporting Main Machine
VSI1263
Processing Capacity (t/h)
460-500
Feed Particle Size
5-50
Remarks
Single-machine sand and aggregate co-production

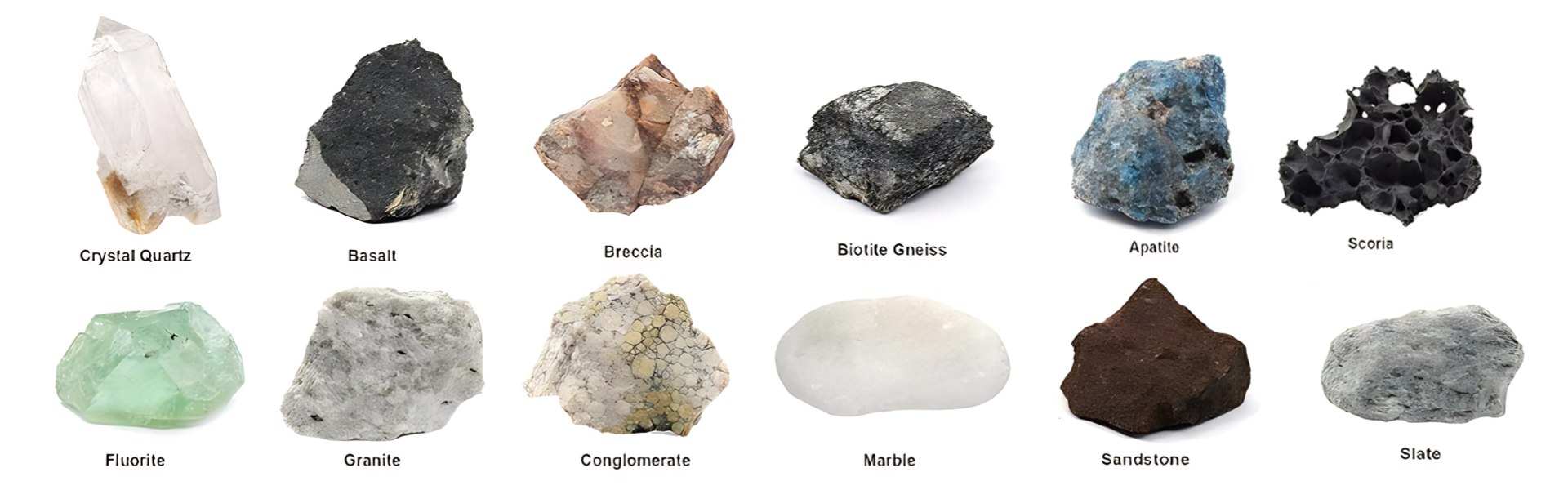

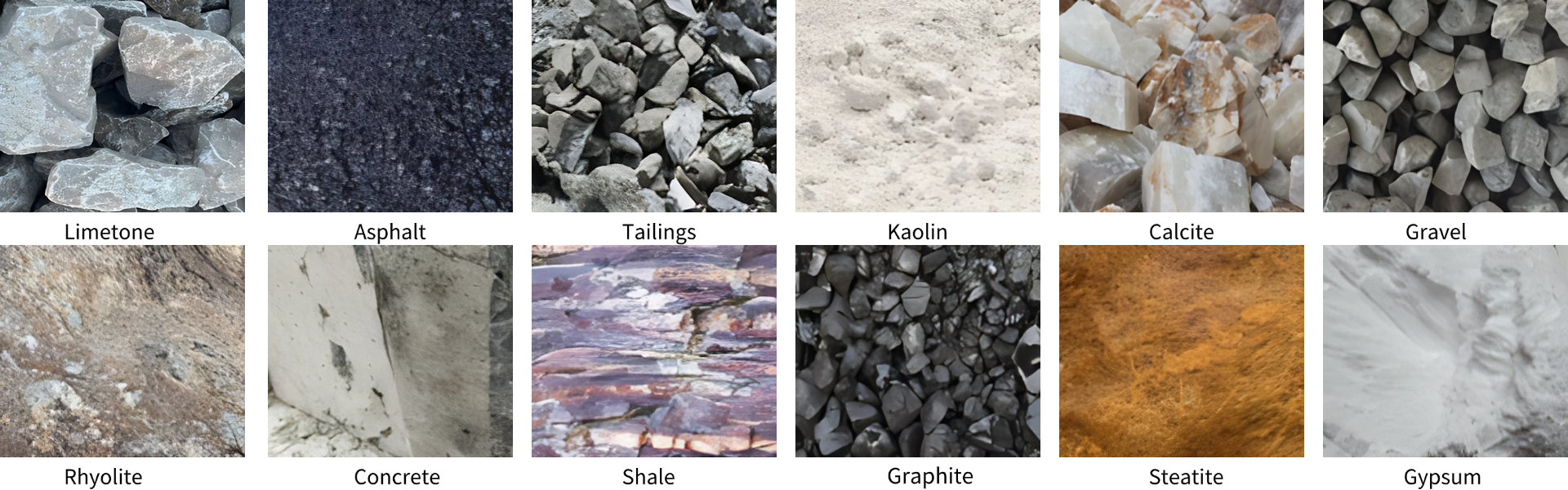

Applicable Materials
Mode of Sand Making and Aggregate Shaping

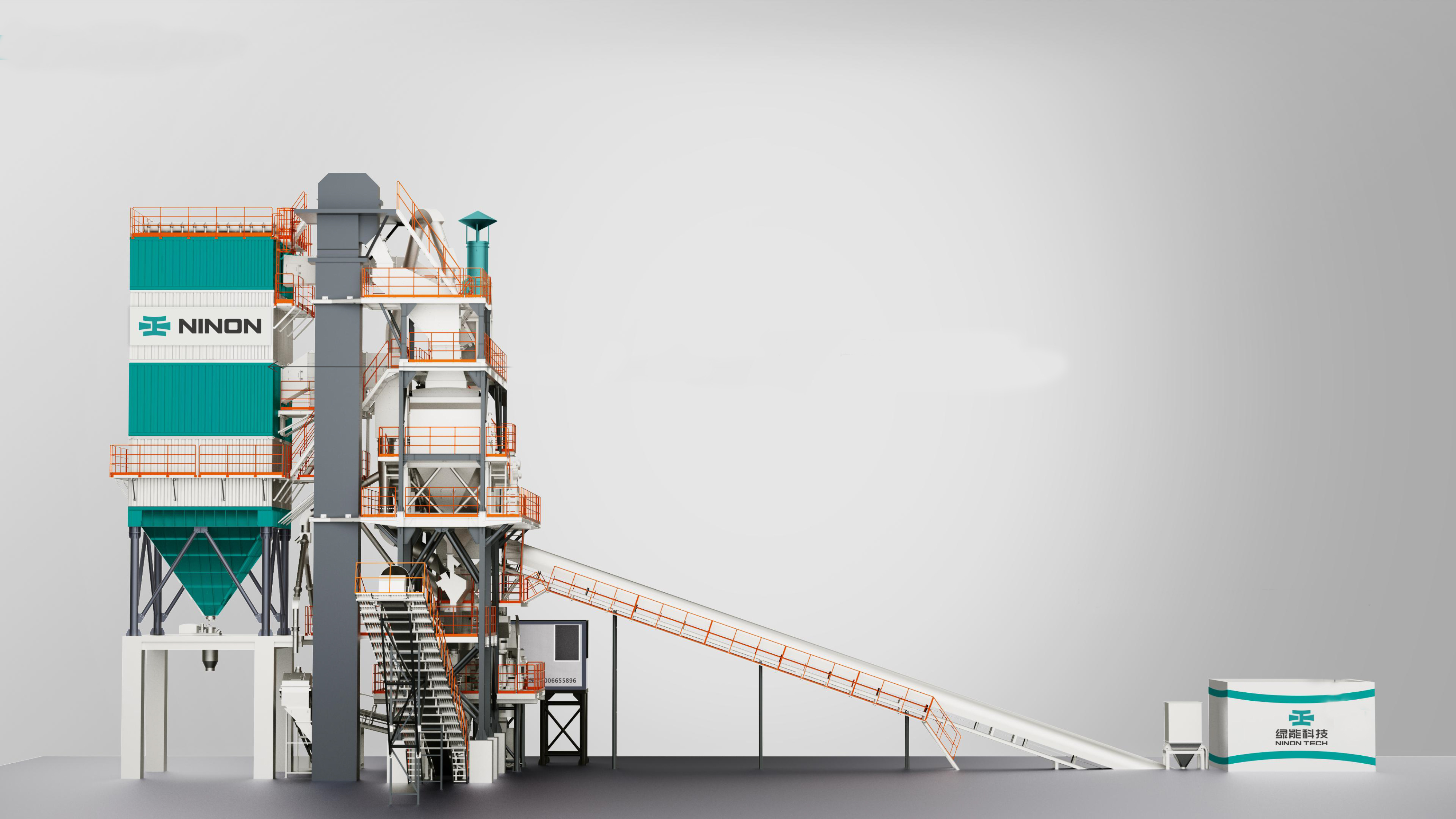

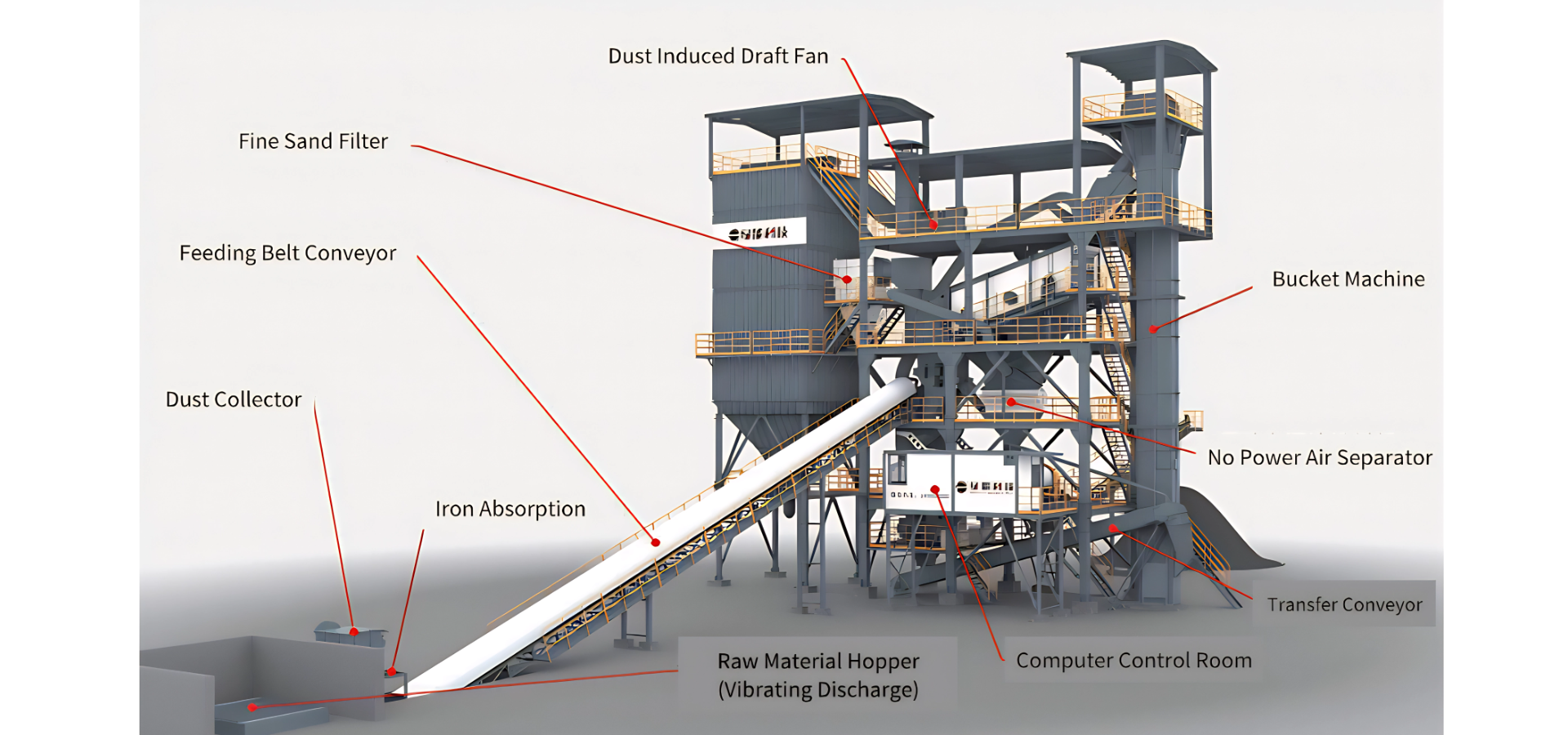

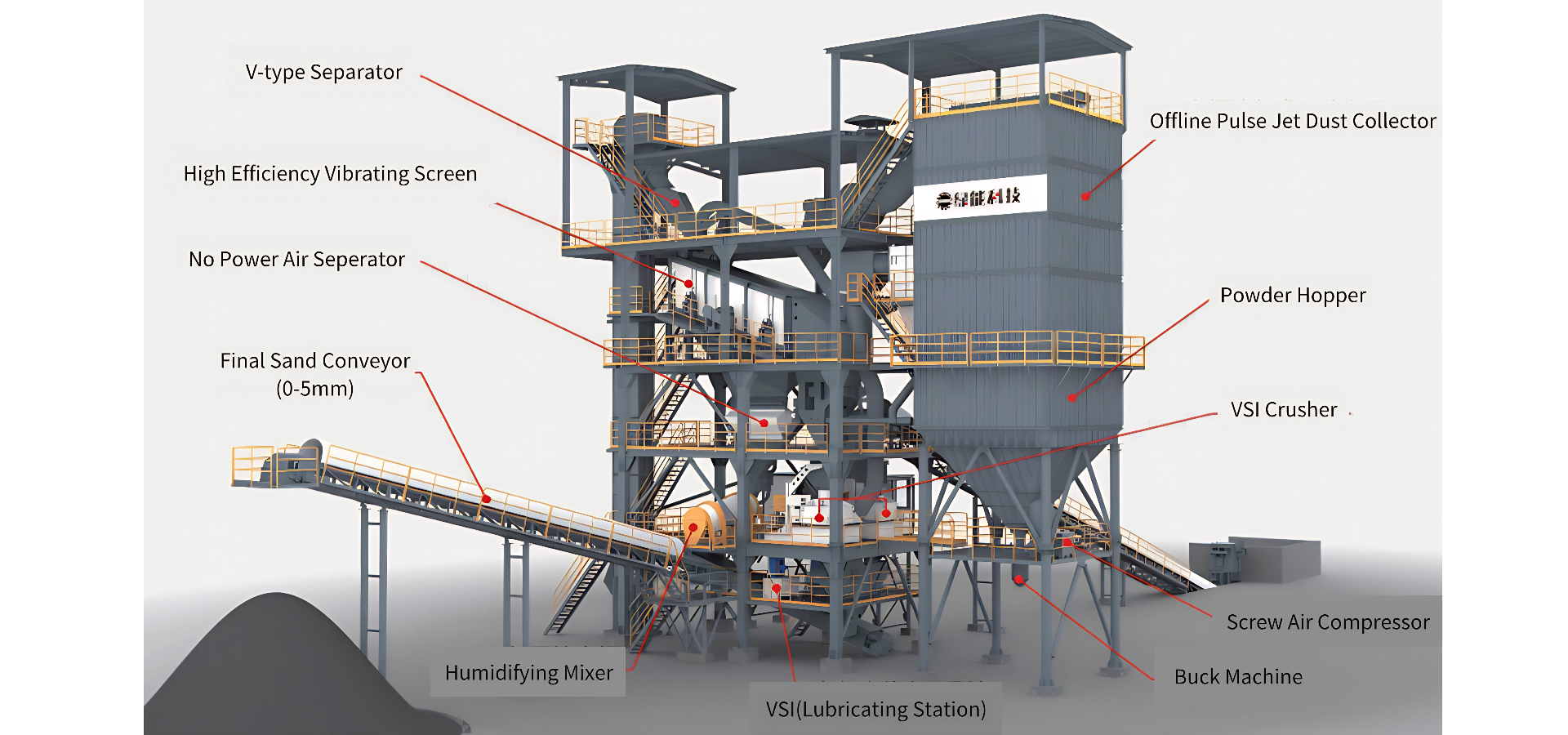

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

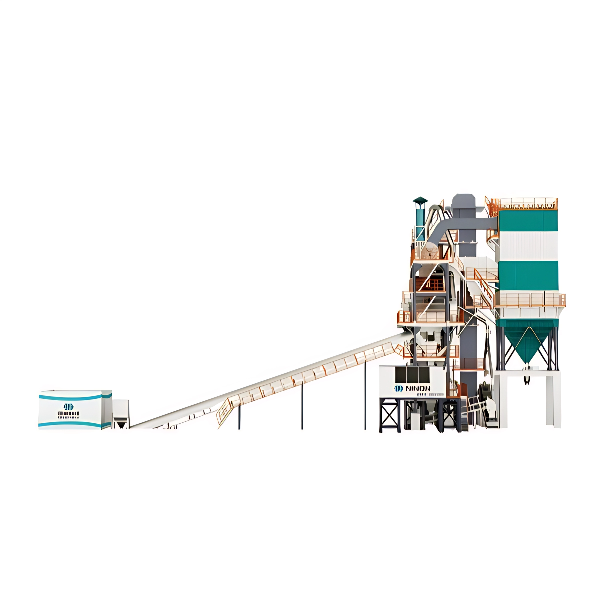

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

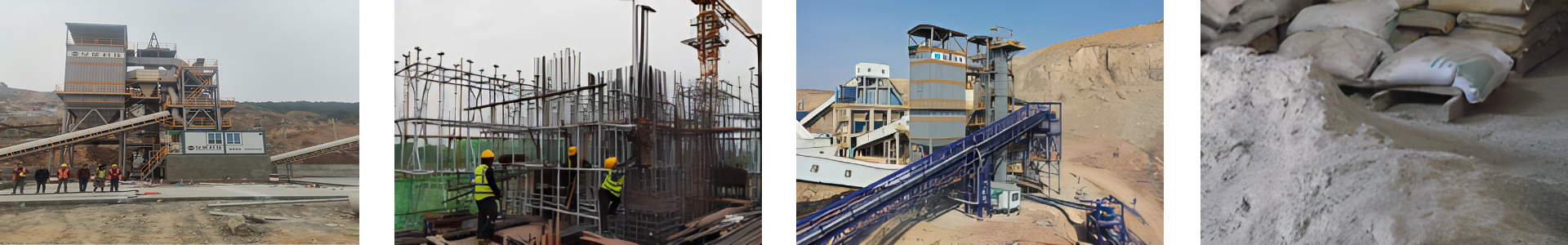

Video of the layout and construction process of Ninon's sand making plant

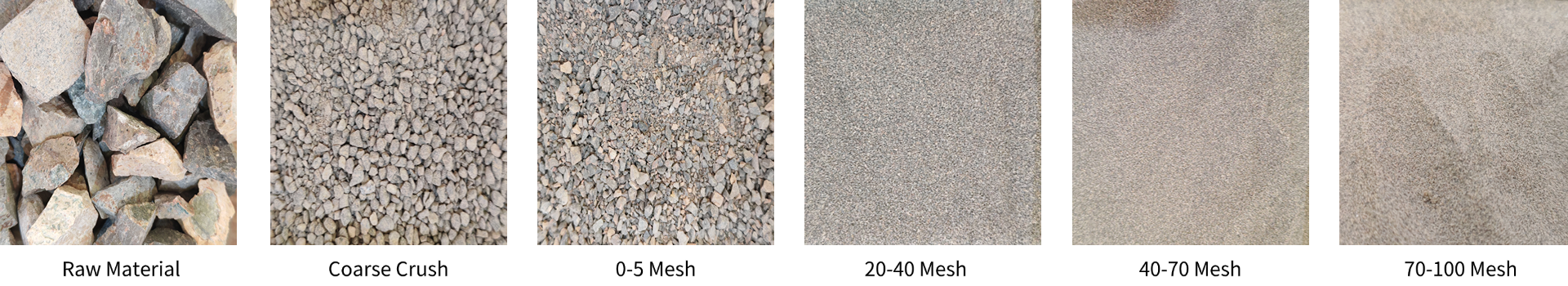

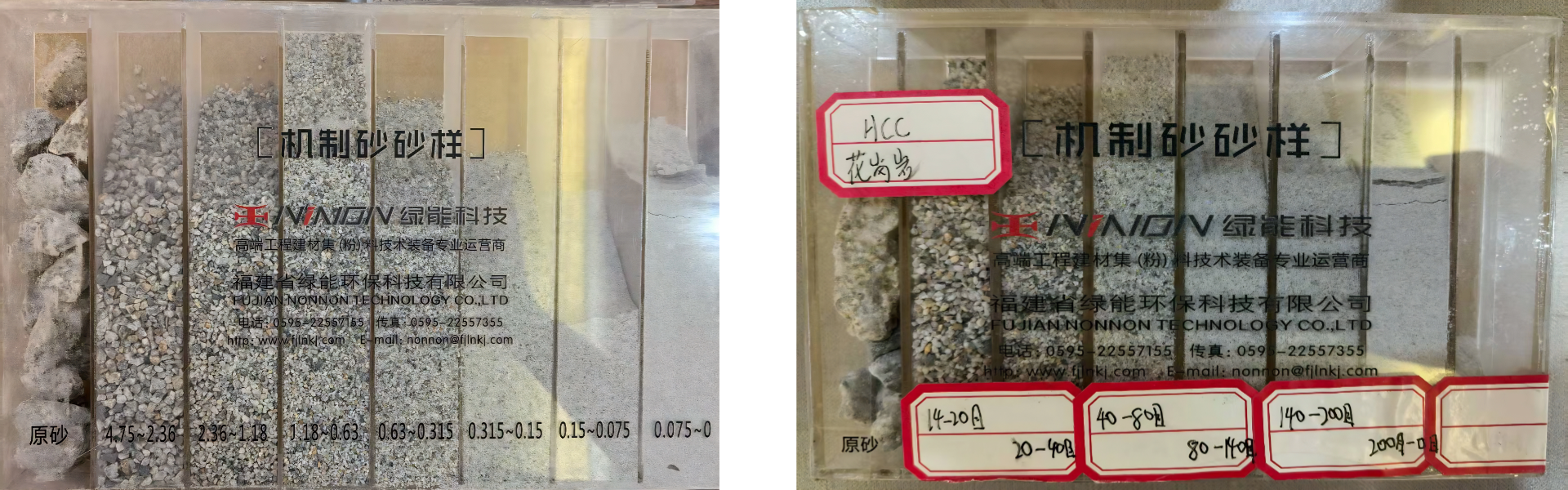

Final Sand Sample

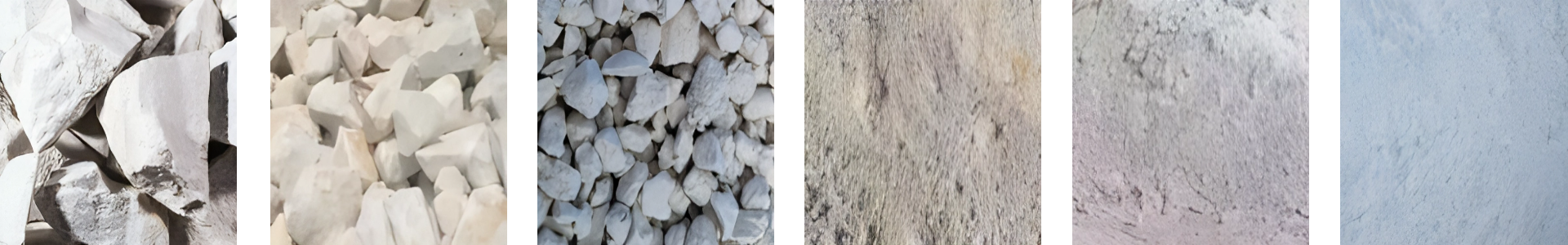

Kaolin
Asphalt Concrete Aggregate

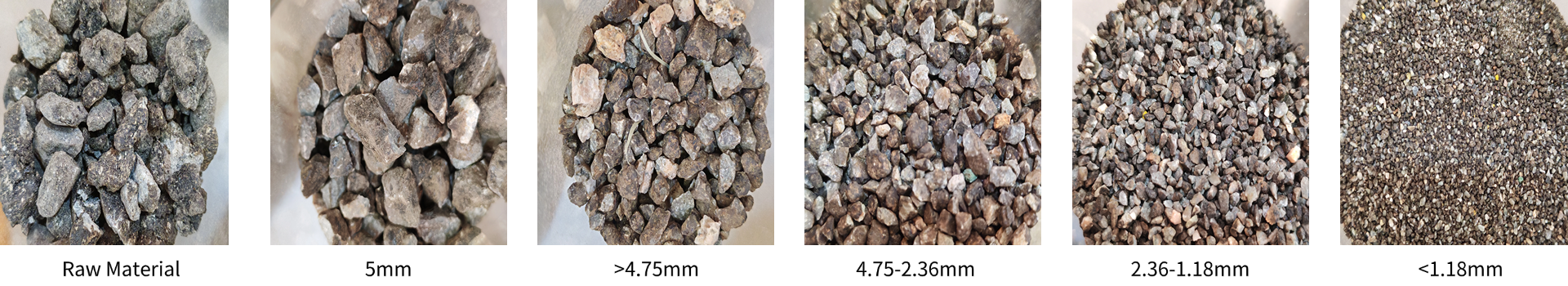

Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

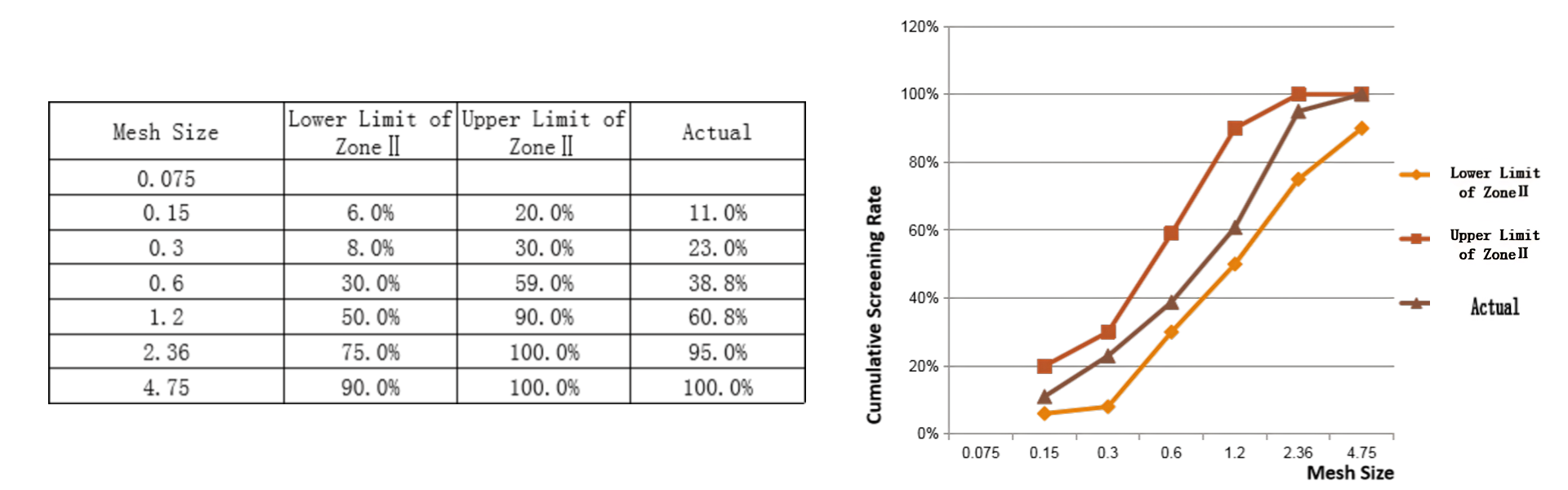

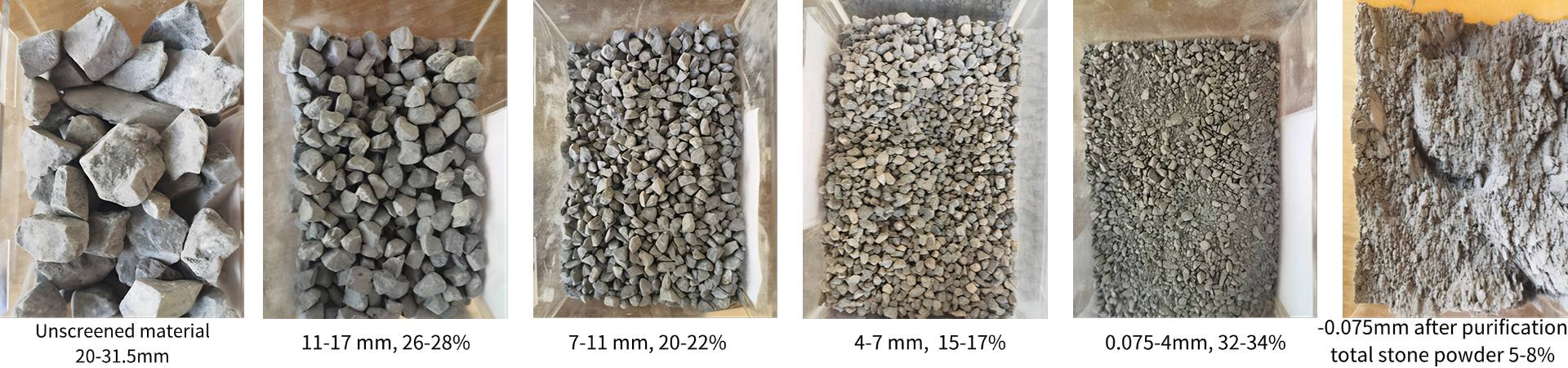

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Kaolin Processing for Ceramic and Paper Industries
The LN-ZDS-1648G1 is widely used as a kaolin processing plant to produce high-purity kaolin powders for ceramics, paper coating, and filler materials. Its precision crushing and grading system makes it ideal for fine particle control in modern kaolin processing plant workflows.
2.Mining and Mineral Refining Projects As a robust hard rock crushing plant, it can efficiently handle a variety of ores alongside kaolin, making it perfect for mineral refining operations where versatility and performance are essential.
3.Construction Aggregate Production The system also functions as a stationary rock crusher plant for producing construction-grade aggregates from hard materials like granite and basalt, making it valuable for large-scale infrastructure or commercial concrete supply chains.
4.Recycling and Reuse of Construction Waste In urban redevelopment or eco-friendly construction initiatives, this hard rock crushing plant can process construction debris and concrete waste, supporting sustainable practices while maintaining the capacity of a full-scale stationary rock crusher plant.
5.Raw Material Processing in Chemical and Industrial Zones The LN-ZDS-1648G1 serves as a dependable kaolin processing plant in industrial parks, handling not only kaolin but also limestone and shale to supply multiple manufacturing sectors including glass, paint, and chemicals.
6.Large-Scale Quarry and Mining Base Operations Deployed as a central stationary rock crusher plant, it provides stable, high-volume crushing capacity for long-term projects—especially when integrated into a full kaolin processing plant layout or hard rock crushing plant configuration.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
