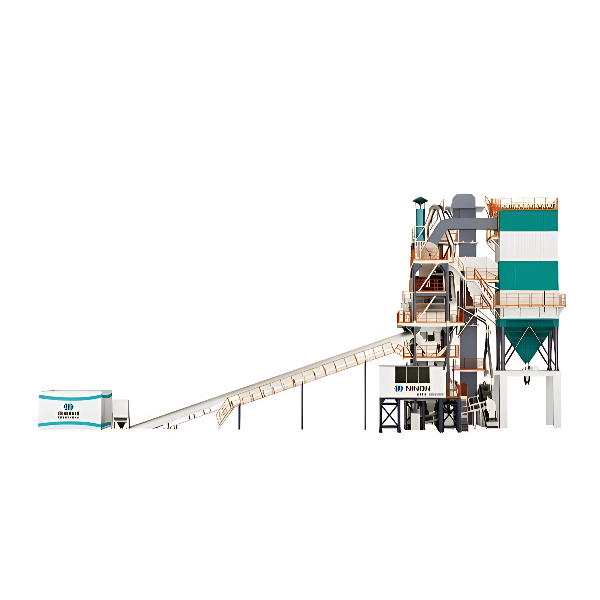

Model: LN-ZDS-1236G1

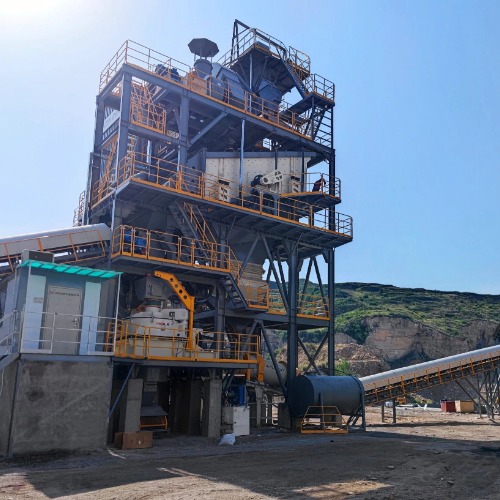

The Modular Rock Crushing Plant is a high-capacity flagship model in the G series, engineered for demanding aggregate production scenarios. With exceptional crushing performance, full-process intelligent control, and comprehensive environmental protection systems. The modular crushing plant is an ideal solution for major infrastructure projects, green mining operations, and leading aggregate enterprises.
At the heart of this tower type rock crushing plant is the VSI1150 unit, engineered for superior crushing efficiency. It delivers high output and excellent shaping, especially for materials like basalt, hard limestone, and river pebbles.
2.Large-Scale Processing Capacity This Modular Rock Crushing Plant handles 5–50 mm feed sizes with a capacity of 340–400 t/h, making it ideal for continuous, heavy-duty operation in commercial mining and infrastructure-grade material supply chains.
3.Advanced Automation & Intelligence The modular crushing plant integrates full-process intelligent control, including real-time energy usage analysis, automatic load adjustment, and remote fault diagnosis—minimizing downtime and labor costs.
4.Eco-Friendly Operation With dust suppression, noise control, and environmentally compliant discharge systems, this stone crushing plant supports green mining operations and reduces environmental impact in sensitive project zones.
5.Flexible and Durable for Harsh Conditions Built for 24/7 operation in rugged environments, the tower type rock crushing plant maintains peak performance across temperature fluctuations and demanding material types, such as mining waste and recycled aggregates.
6.Modular Layout and Easy Deployment This modular crushing plant features a compact yet expandable structure, allowing for seamless on-site configuration changes and future capacity upgrades without major redesigns.
7.Versatile for Various Raw Materials Whether processing construction waste, hard rock, or industrial byproducts, this stone crushing plant ensures consistent particle shape and size distribution, ideal for high-strength concrete and road base layers.
Specification
Model
LN-ZDS-1236G1
Equipment Power (Kw)
780
Supporting Main Machine
VSI1150
Processing Capacity (t/h)
340-400
Feed Particle Size
5-50
Remarks
Single-machine sand and aggregate co-production

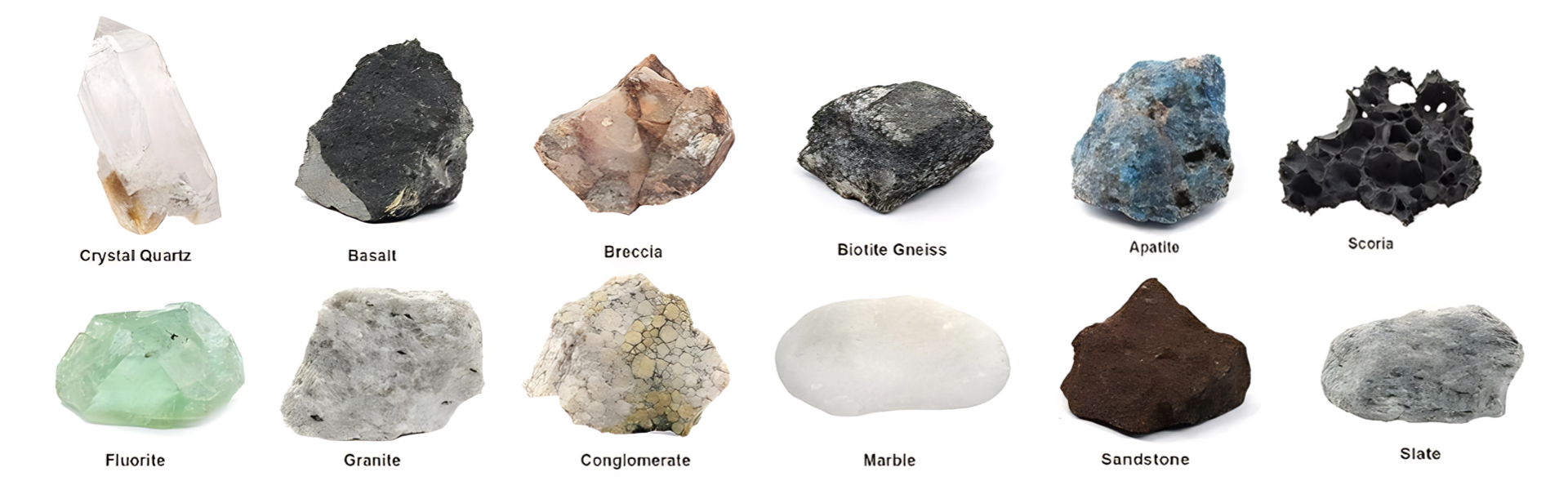

Applicable Materials
Mode of Sand Making and Aggregate Shaping

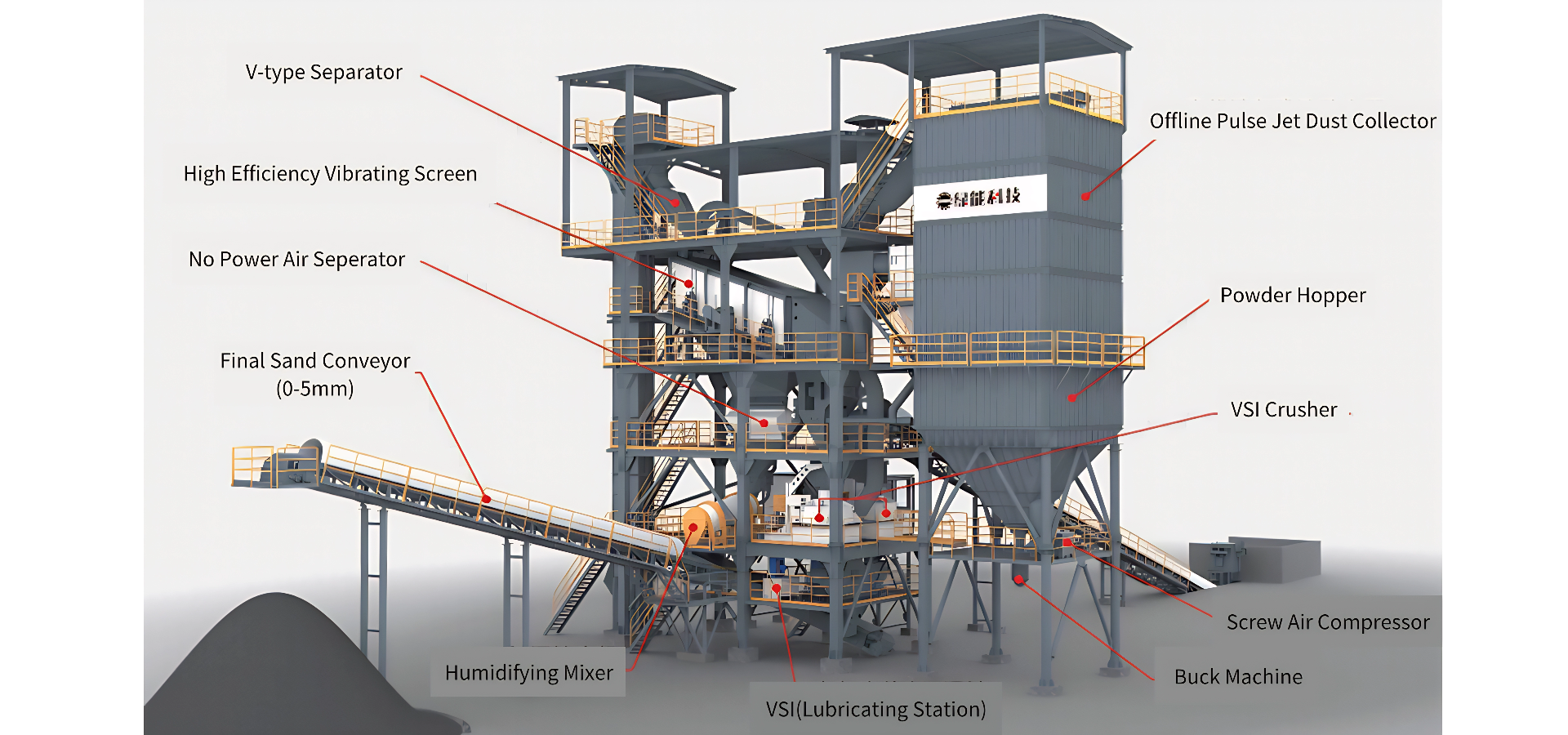

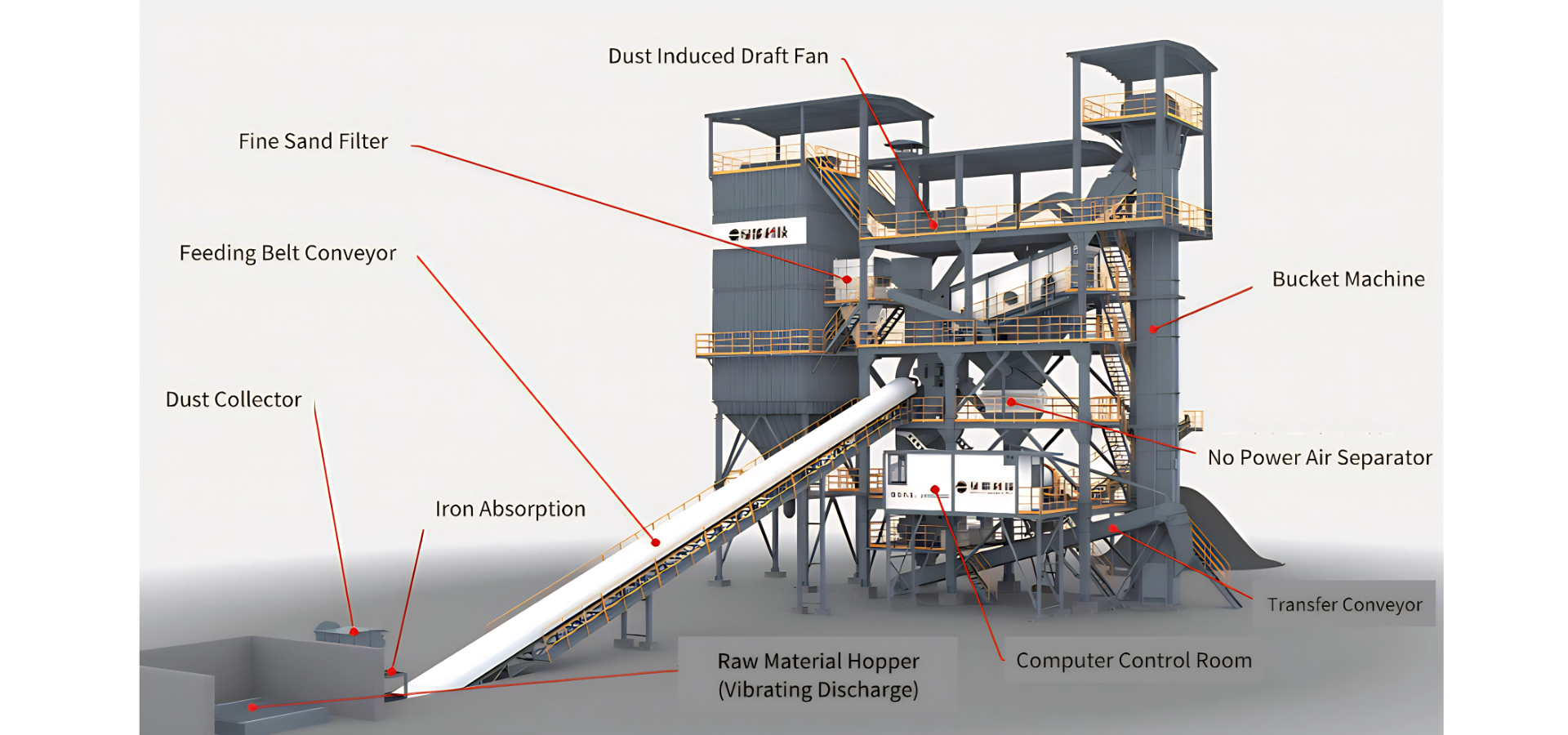

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

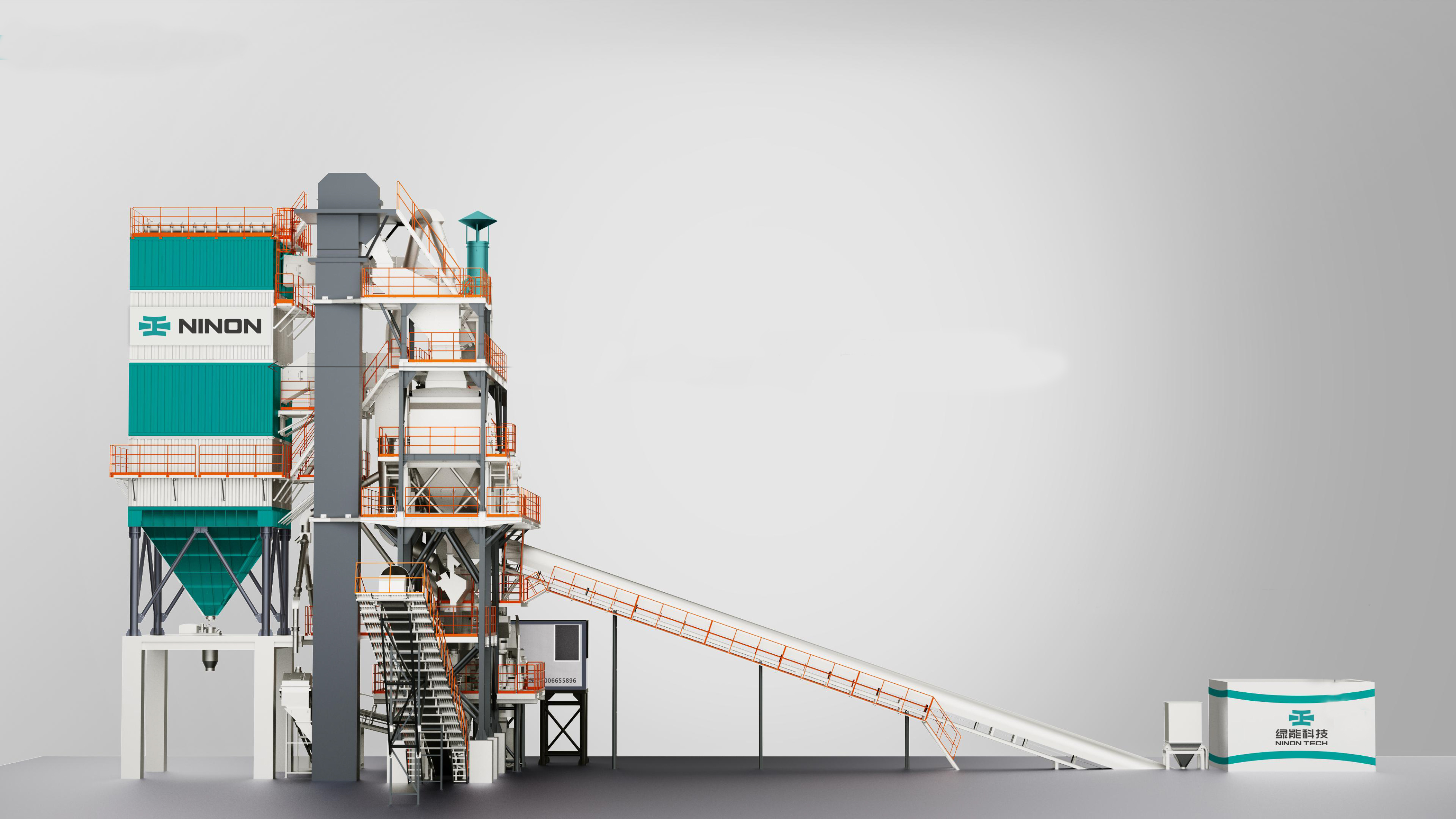

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

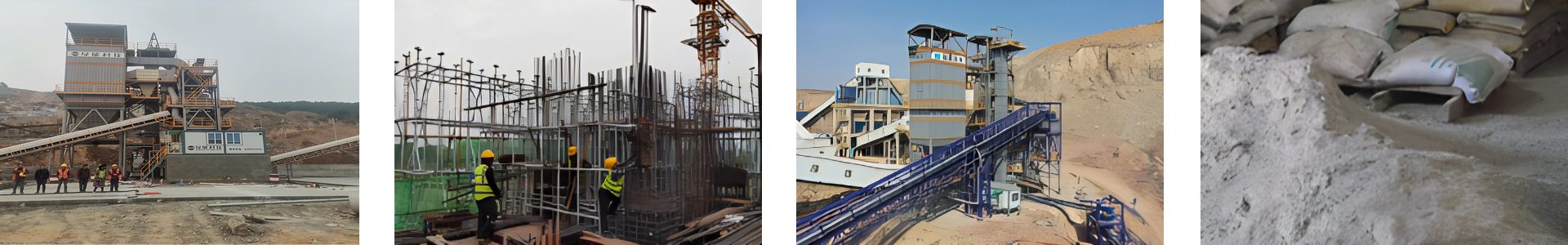

Video of the layout and construction process of Ninon's sand making plant

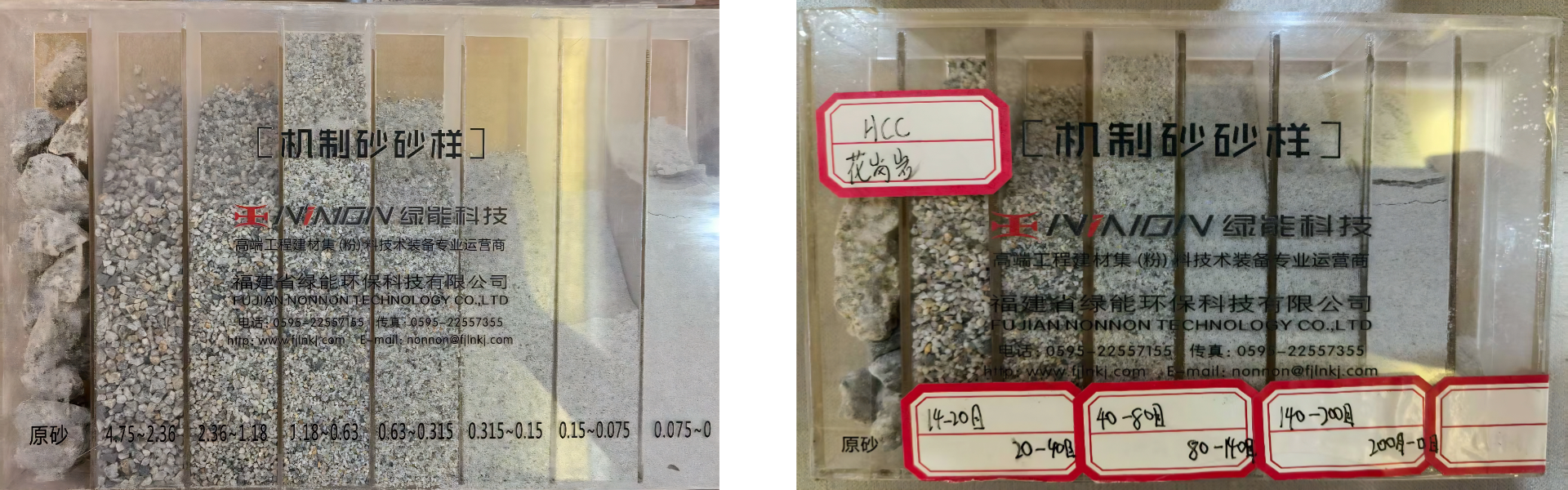

Final Sand Sample
Asphalt Concrete Aggregate
Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

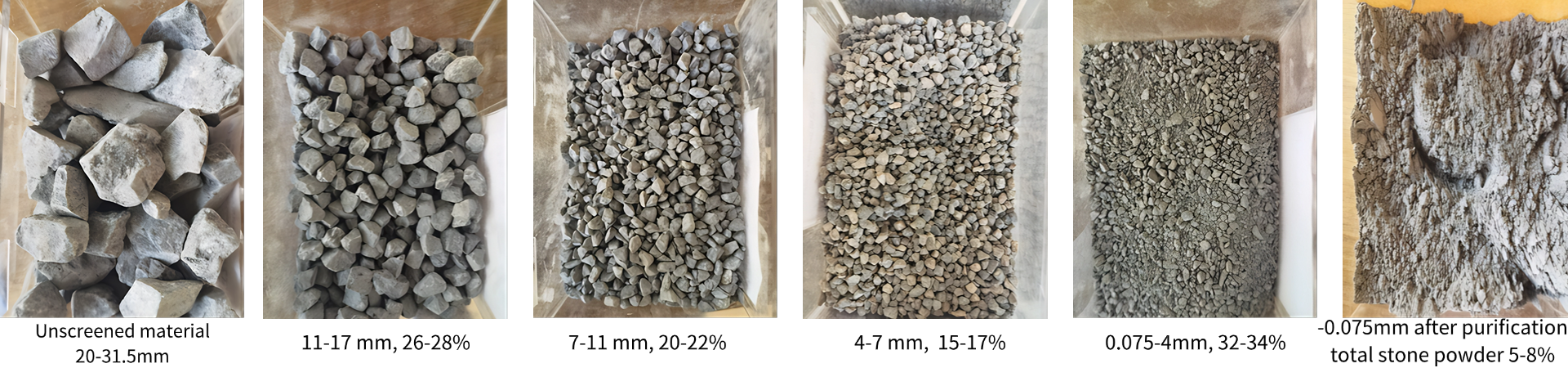

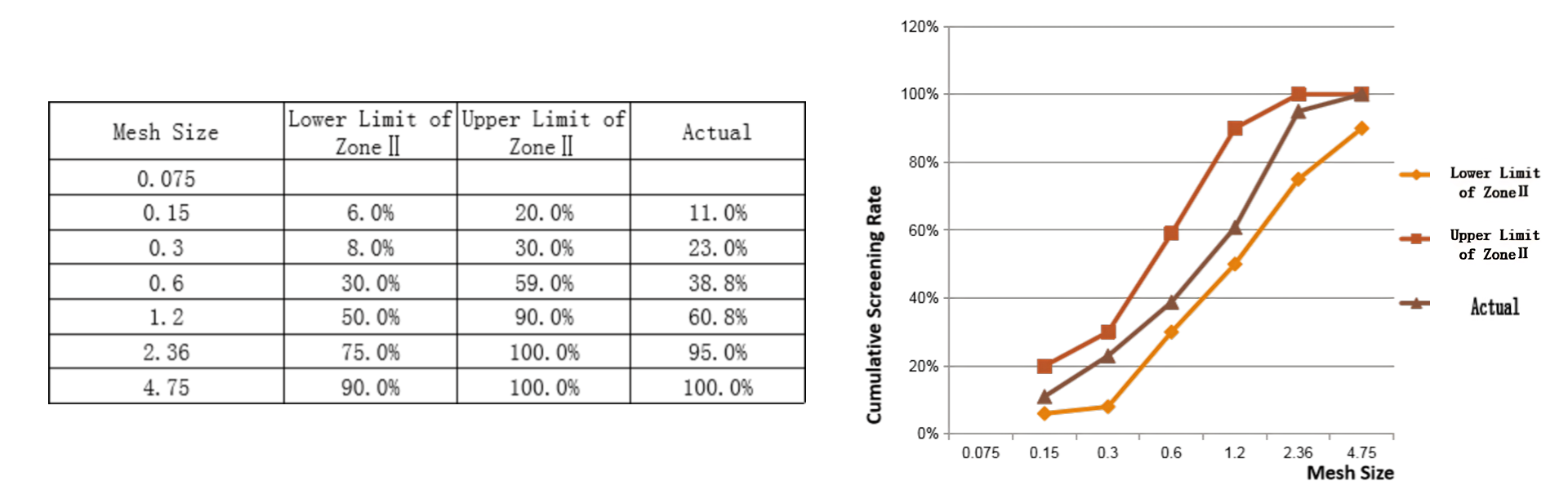

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.National Infrastructure Construction Projects
The LN-ZDS-1236G1 serves as a core solution in tower type rock crushing plant setups for high-speed railways, expressways, airports, and large bridges, offering continuous high-output aggregate supply.
2.Urban Renewal and Smart City Development As a modular crushing plant, it is widely applied in urban demolition and redevelopment projects, efficiently recycling construction waste into high-grade manufactured sand and base material.
3.Green Mining and Eco-Friendly Quarry Operations This tower type rock crushing plant supports sustainable mining with enclosed design, intelligent dust control, and energy-saving systems, making it suitable for eco-sensitive zones and licensed mining areas.
4.Commercial Concrete Production Bases The LN-ZDS-1236G1 modular crushing plant is ideal for regional ready-mix concrete batching plants, delivering uniform, high-quality aggregates for various concrete grades.
5.Aggregate Supply for Cement and Precast Plants This tower type rock crushing plant ensures stable output of precisely graded aggregates used in cement blending, precast elements, and concrete pipe manufacturing.
6.Large Industrial Parks and Aggregate Zones Integrated into large-scale modular crushing plant configurations, it supports daily outputs of 10,000+ tons in aggregate industrial parks serving regional infrastructure and construction needs.
7.Remote or Decentralized Construction Zones Thanks to its quick-deploy modular design, the tower type rock crushing plant can be rapidly installed in mountainous or rural areas for on-site processing, minimizing transport costs.
8.Mining Waste & Tailings Reprocessing The modular crushing plant efficiently reprocesses tailings, overburden, and slag into valuable construction materials, maximizing resource utilization in mining and metallurgy sectors.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
