Model: LN-ZDS-1236S1

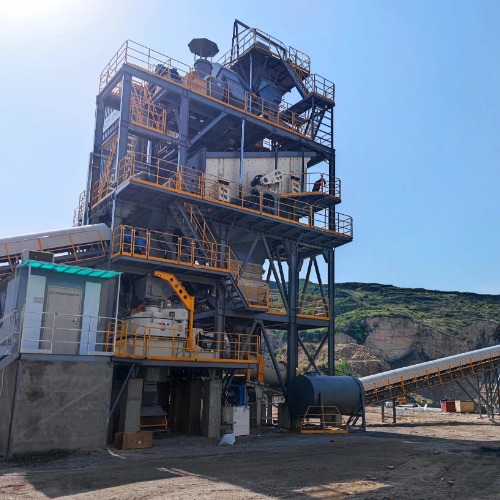

The Stone Crushing And Sand Making Plant is a single-unit machine dedicated to manufactured sand production. The Sand Crusher supports a maximum feed capacity of 130 t/h and delivers 95–110 t/h (with 10% fines), handling feed sizes from 5–40 mm. By optimizing the rotor structure and crushing chamber design, its efficiency surpasses similar equipment by over 15%. The dual crushing chamber with a flow-diverting plate enables material to split and crush separately, reducing build-up and improving throughput.
The LN-ZDS-1236S1 is designed as a single-unit artificial sand processing plant capable of handling large volumes efficiently. With a maximum feed capacity of 130 t/h and output of 95–110 t/h, it ensures continuous production of high-quality manufactured sand.
2.Efficient Dual-Chamber Sand Crusher This plant includes a specially designed sand crusher with dual crushing chambers and a flow-diverting plate. This setup minimizes material build-up and allows simultaneous splitting and crushing—significantly improving throughput and crushing precision.
3.Advanced Rotor & Chamber Design Unlike conventional stone crushing machines, the LN-ZDS-1236S1 uses an optimized rotor and chamber design that increases crushing efficiency by over 15%, making it a standout component in any artificial sand processing plant.
4.Versatile Stone Crushing Machine Suitable for a variety of feed materials from 5–40 mm, the LN-ZDS-1236S1 performs exceptionally well with hard rocks, river pebbles, and medium-hard stones. The Sand Crusher functions both as a sand crusher and a high-performance stone crushing machine in demanding aggregate production environments.
5.Cleaner Output for Premium Sand Quality Integrated with cleaning and shaping capabilities, the LN-ZDS-1236S1 artificial sand processing plant produces sand with reduced fines and excellent grain shape—perfect for concrete, asphalt, and other precision-based applications.
6.Compact Design with Low Maintenance Needs This all-in-one system combines a stone crushing machine, sand crusher, and shaping unit, reducing installation space and maintenance downtime. It's ideal for operations seeking to modernize their artificial sand processing plant with minimal footprint and maximum productivity.
Specification
Model
LN-ZDS-1236S1
Equipment Power (Kw)
800
Maximum Feed Rate (t/h)
130
Output (10% Powder 0-5mm)(t/h)
95-110
Feed Particle Size
5-40
Remarks
Single-machine Sand Making
Applicable Materials
Mode of Sand Making and Aggregate Shaping

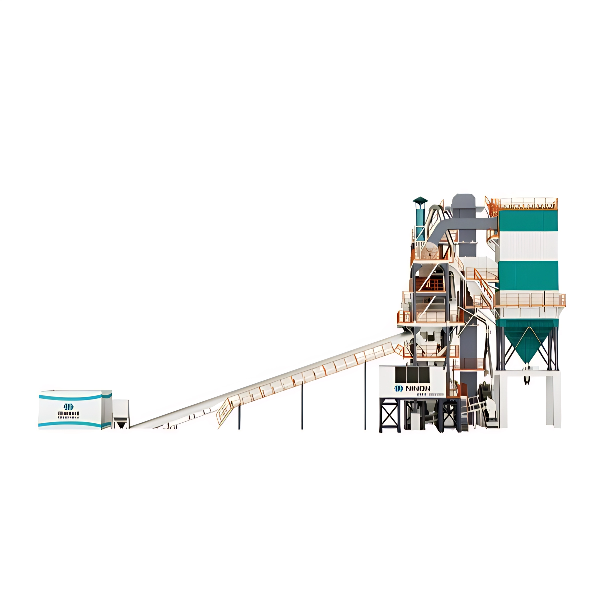

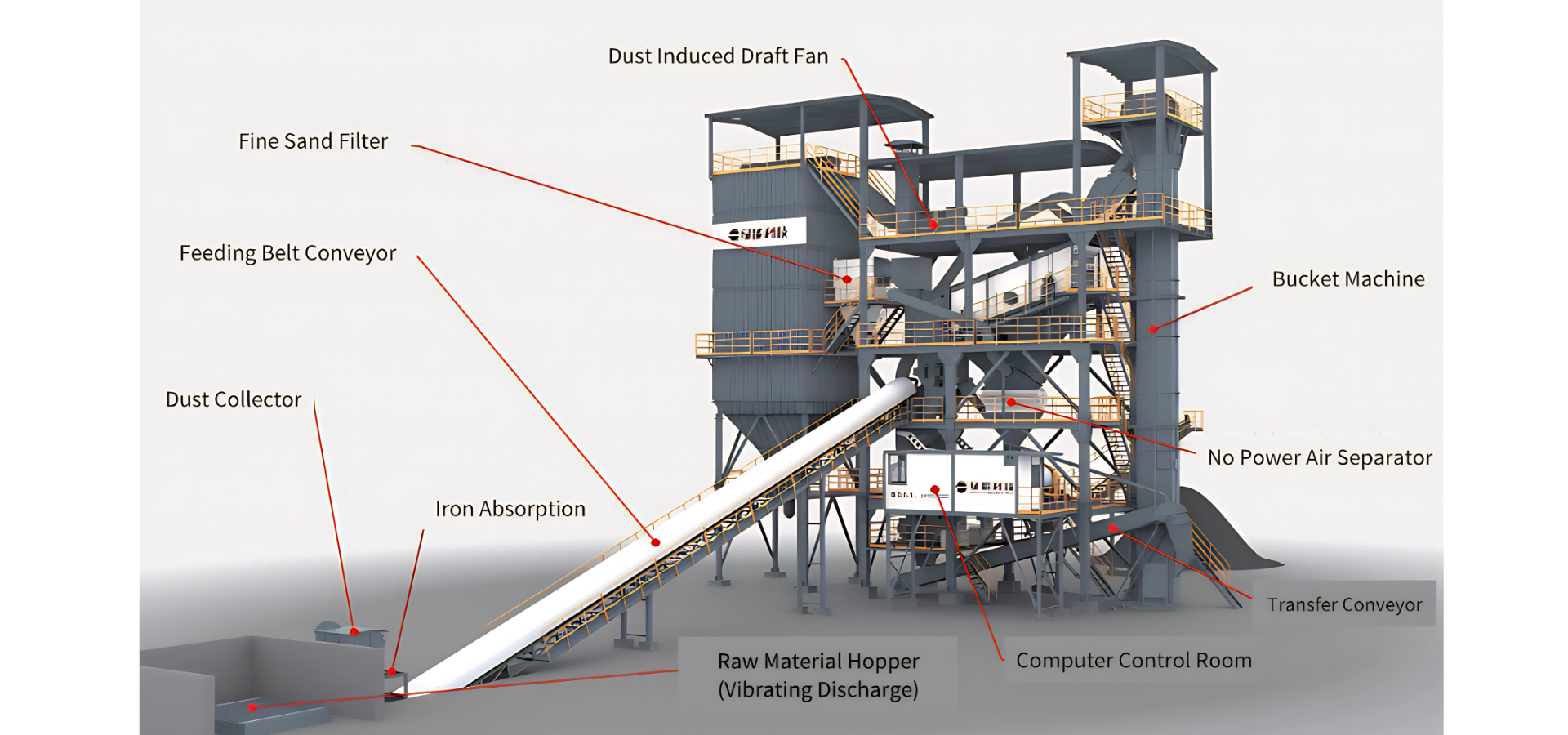

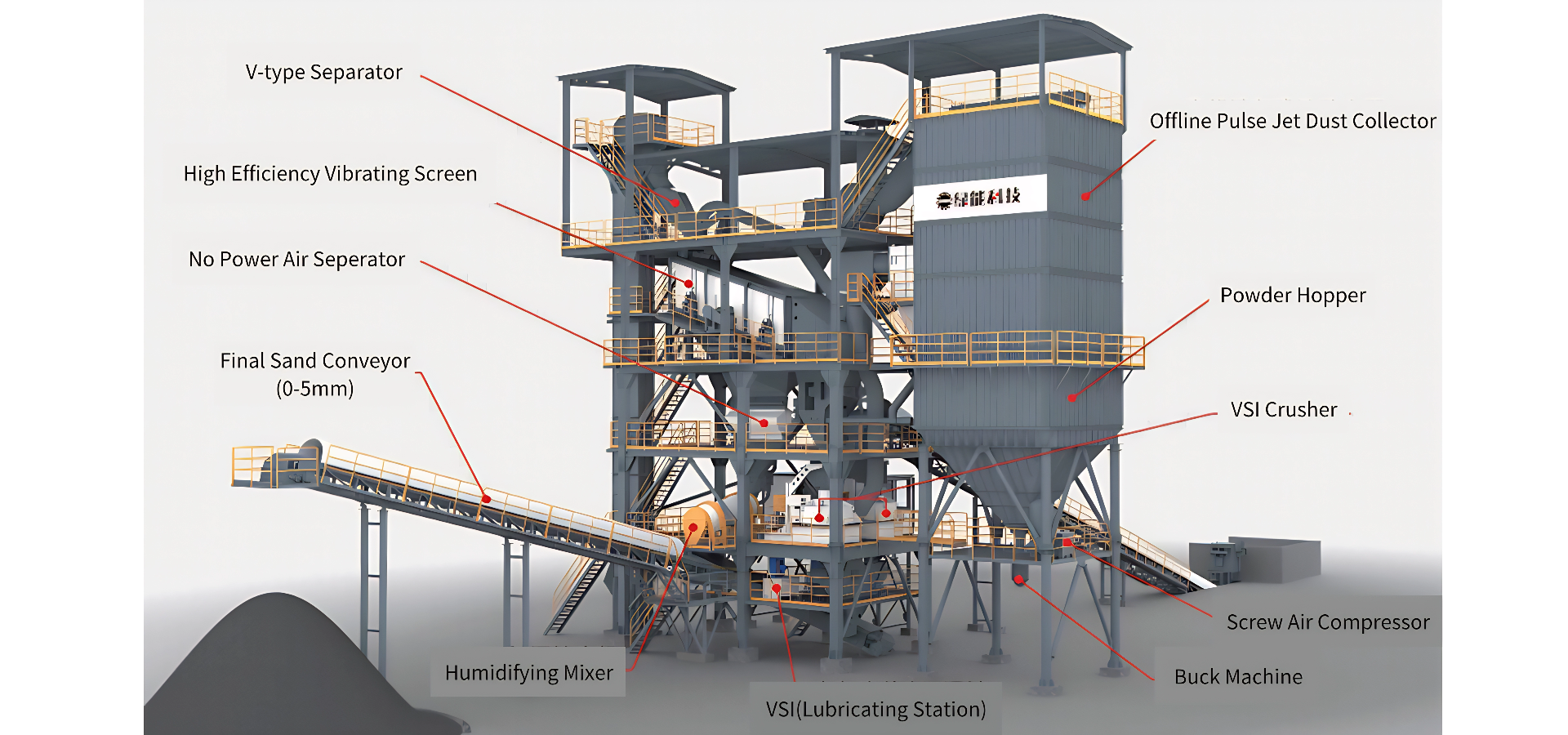

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

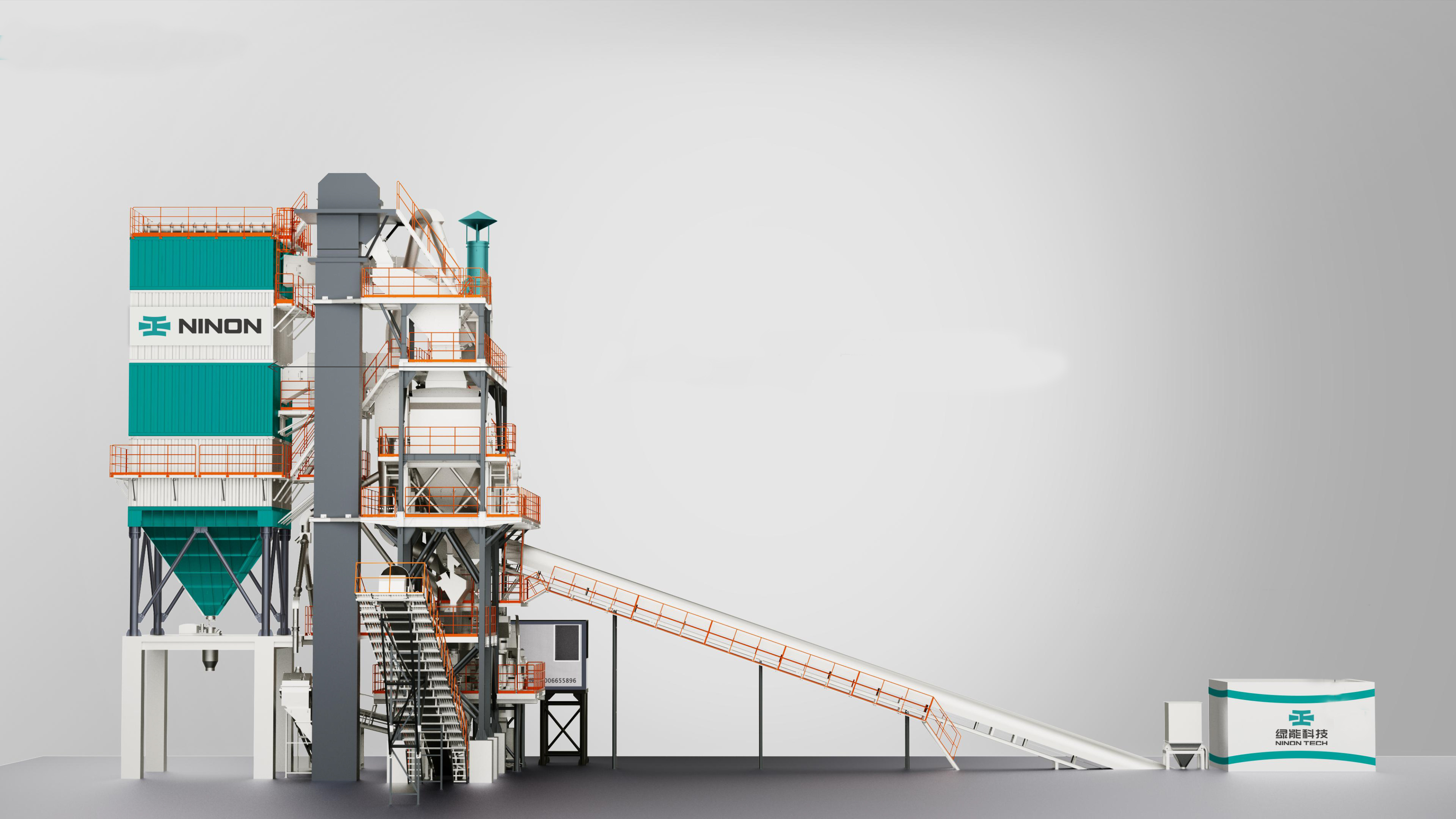

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

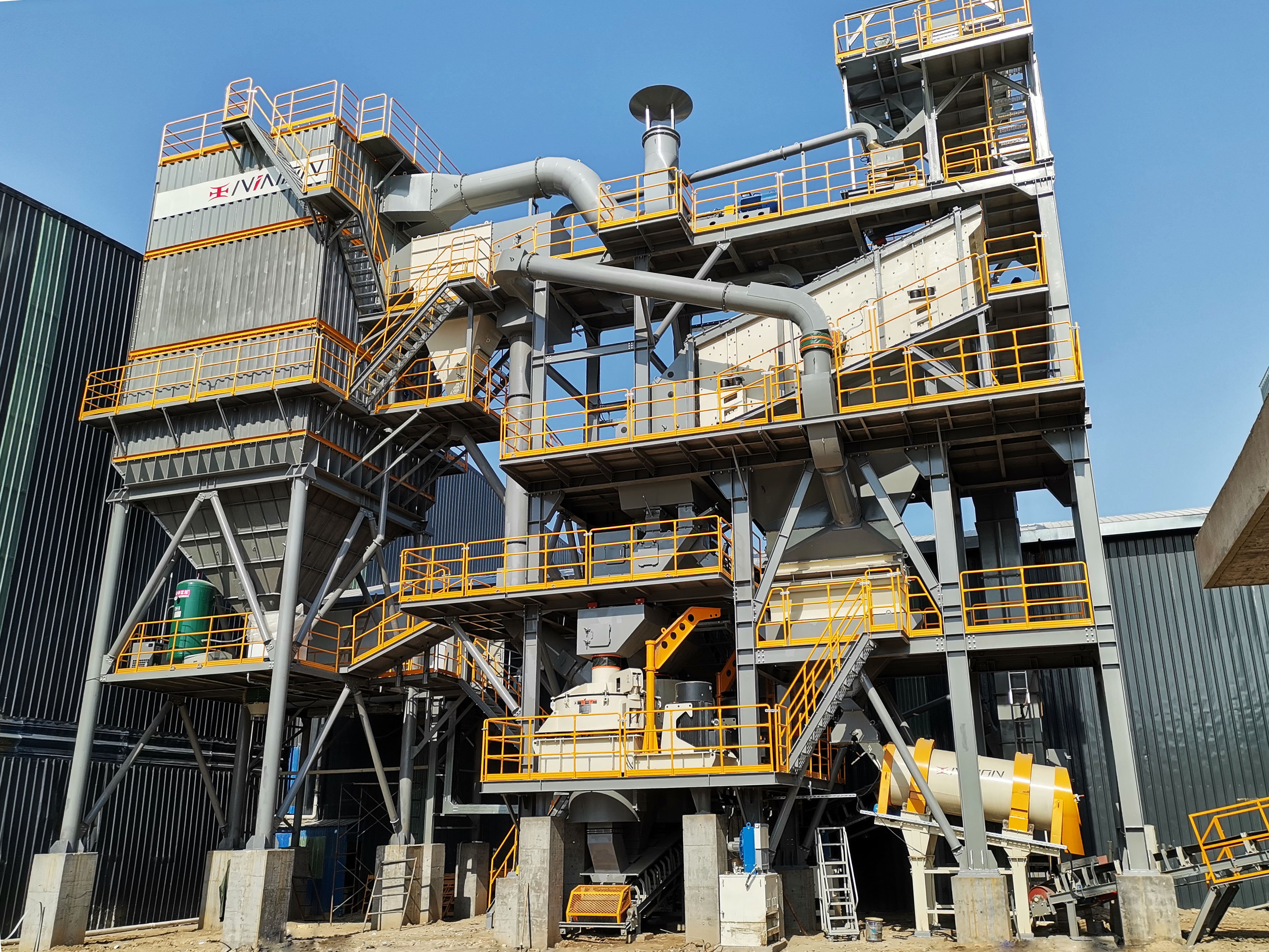

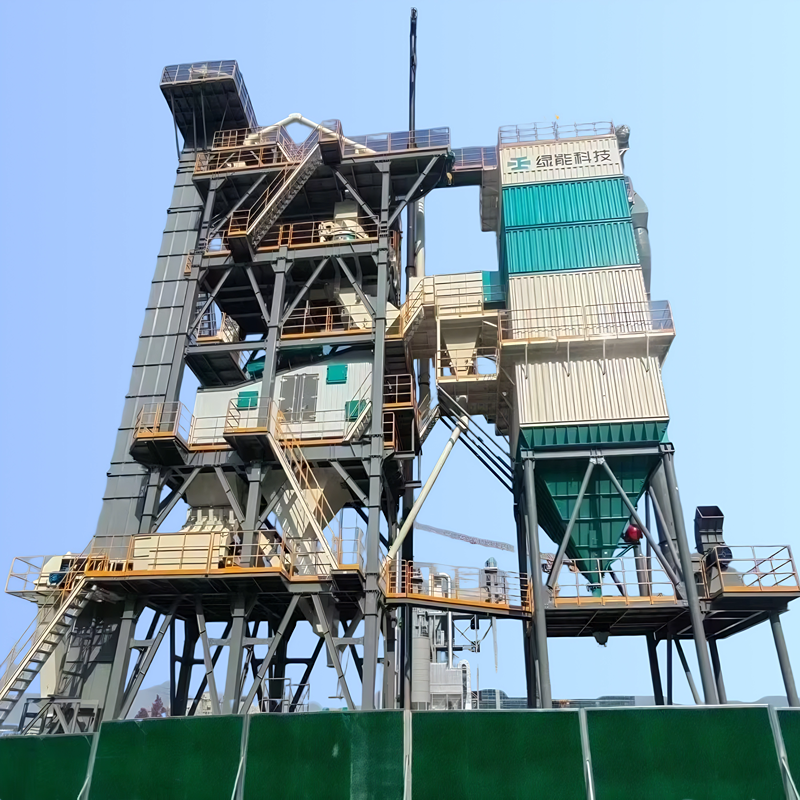

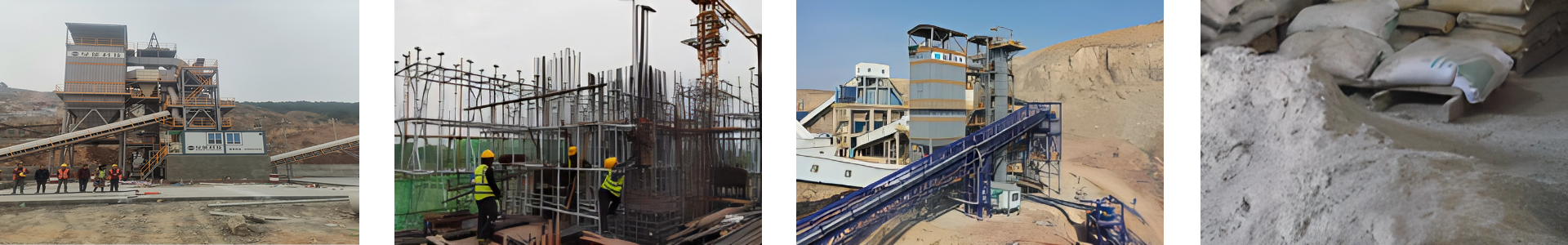

Video of the layout and construction process of Ninon's sand making plant

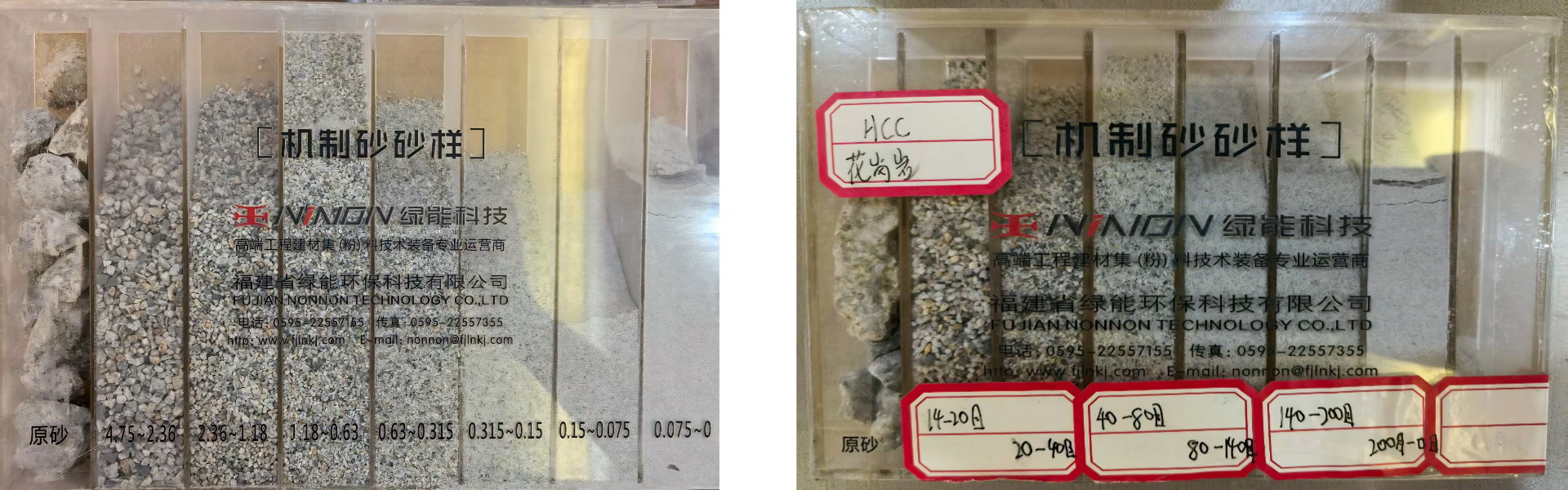

Final Sand Sample
Asphalt Concrete Aggregate
Limestone Aggregate
RAP Aggregate

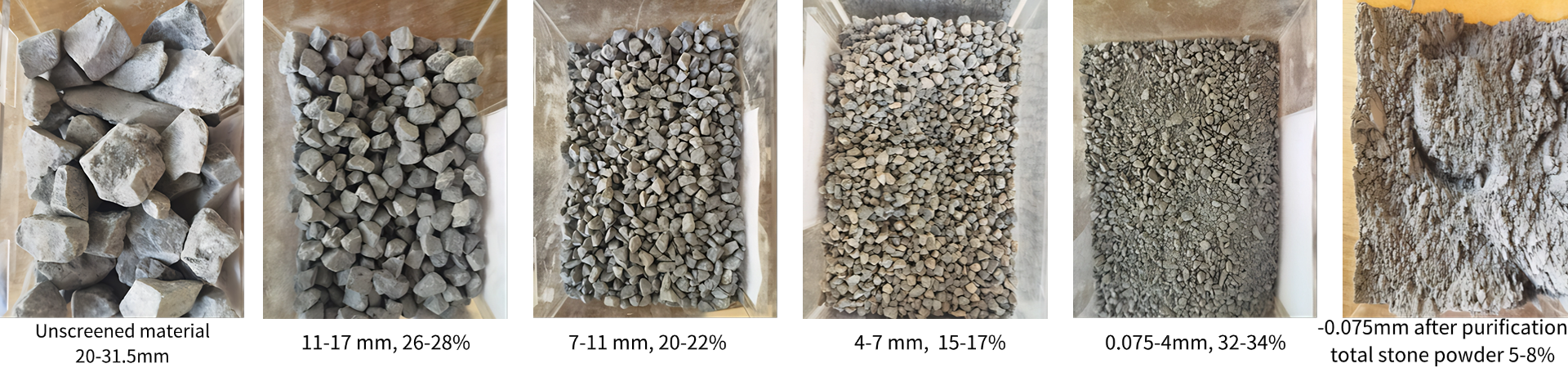

Technical Data on Aggregate Shaping and Sand Production

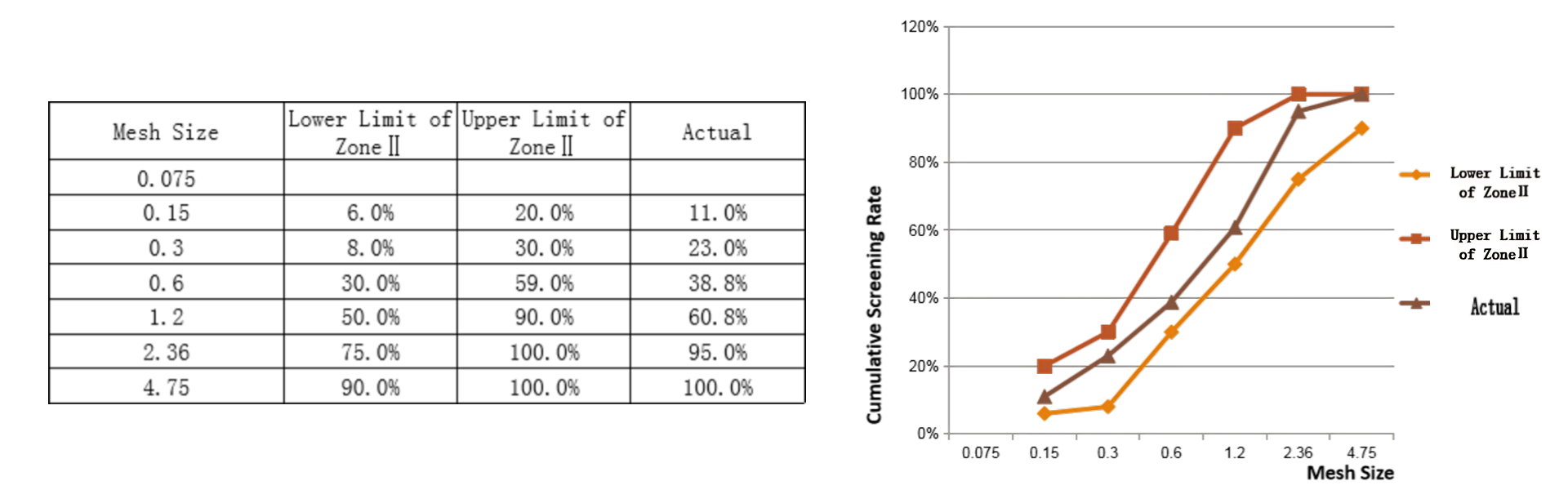

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Construction and Infrastructure Projects
The LN-ZDS-1236S1 stone crushing and sand making plant is perfect for large-scale construction projects requiring high-quality manufactured sand. As part of an artificial sand processing plant, it ensures consistent output for concrete, asphalt, and mortar mixes, helping meet the demand for durable construction materials.
2.Road and Highway Construction In road building, the plant's sand crusher produces the fine aggregates needed for asphalt and base layers. The LN-ZDS-1236S1 works efficiently with both hard stones and river pebbles, making it ideal for producing sand used in stone crushing machines for sub-base and surface layers.
3.Urban Development and Precast Manufacturing For urban development projects, this sand crusher provides high-quality sand for use in making bricks, blocks, and tiles. The sand produced by the sand crusher within the LN-ZDS-1236S1 is perfect for maintaining precise dimensions and strength in precast concrete products.
4.Mining Waste Recycling and Resource Recovery The LN-ZDS-1236S1 sand crusher also serves as an excellent solution for mining waste recycling. By transforming mining tailings and waste rock into marketable sand, it acts as a stone crushing machine and sand crusher to recover valuable materials, thus promoting sustainability in aggregate production.
5.Hydropower and Dam Construction For hydropower projects, the plant's sand crusher ensures that high-quality, durable aggregates are produced for reinforced concrete structures. The stone crushing machine component processes hard materials like granite, providing robust sand suitable for the complex requirements of dam construction.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
