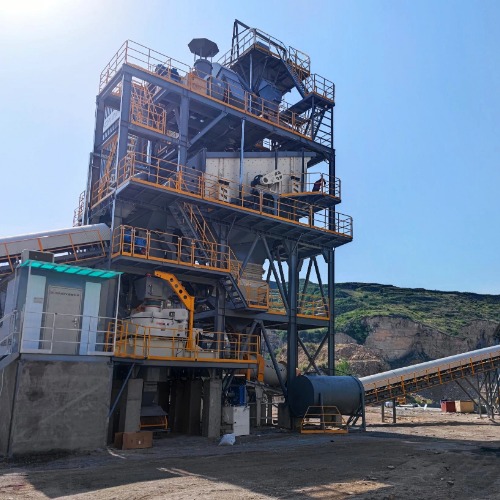

Model: LN-ZDS-1545S2
The Slag Aggregate Crushing Plant is a high-efficiency sand and aggregate production system with an output capacity of 135–155 t/h and a maximum feed capacity of 170 t/h. Suitable for feed sizes of 5–40 mm, the slag crushing plant supports dual-main-machine operation for either dedicated sand production or simultaneous sand and aggregate output. The multi-stage crushing and shaping process ensures excellent particle shape and gradation quality.
The LN-ZDS-1545S2 is a versatile slag crushing plant capable of processing a variety of materials such as steel slag, furnace slag, and industrial by-products. As a reliable aggregate crusher plant, it also handles medium to high-hardness materials like basalt, limestone, and granite—making it ideal for integrated operations that combine slag recovery with natural aggregate production.
2.Integrated Crushing and Screening System Equipped with dual-main-machine capability, this slag crushing plant performs both crushing and shaping, resulting in well-graded aggregates. This configuration is especially useful in aggregate crusher plant setups where both sand and coarse aggregate are needed. It can also be paired with a soil washing plant to remove contaminants and maximize the quality of the final product.
3.High Throughput and Smart Control
Designed for high-efficiency material processing, this aggregate crusher plant features intelligent PLC controls and cloud-based remote monitoring—allowing full operational visibility. This feature is critical when the slag crushing plant is integrated with a soil washing plant for complex reclamation or environmental projects.
4.Second-Generation Modular Design The system features a modular structure that allows quick installation, flexible site layout, and fast deployment. This makes it a valuable asset in mobile or temporary slag crushing plant projects, especially when integrated with a soil washing plant for remediation or brownfield site recovery.
5.Eco-Friendly and Energy-Efficient Operation The LN-ZDS-1545S2 offers 8–12% energy savings, dust suppression options, and low-noise performance. Whether used as a soil washing plant, slag crushing plant, or aggregate crusher plant, it supports environmentally responsible aggregate production that complies with modern sustainability standards.
Specification
Model
LN-ZDS-1545S2
Equipment Power (Kw)
1170
Maximum Feed Rate (t/h)
170
Output (10% Powder)(t/h)
135-155
Feed Particle Size
5-40
Remarks
Dual-machine pure sand making or integrated sand and aggregate production
Applicable Materials
Mode of Sand Making and Aggregate Shaping

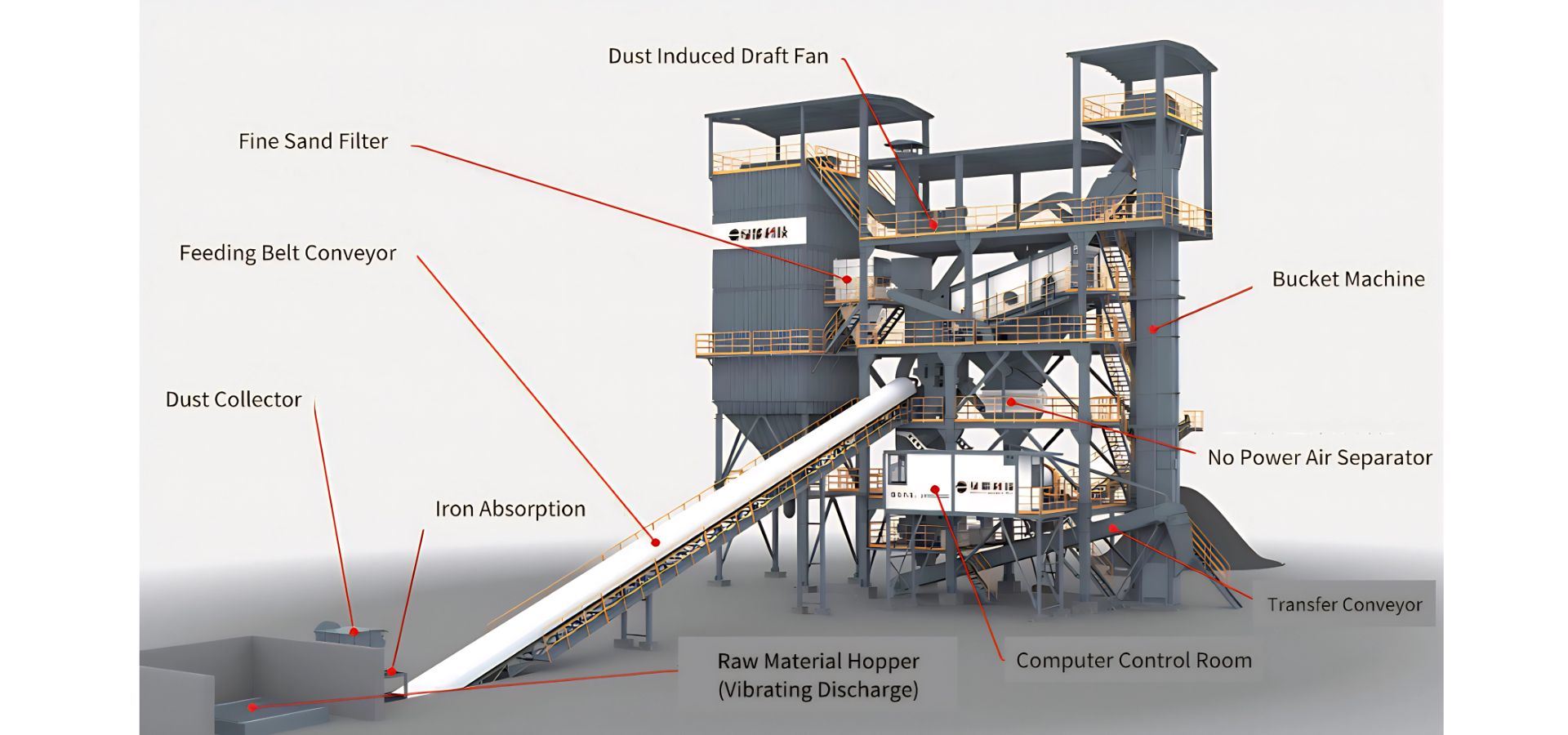

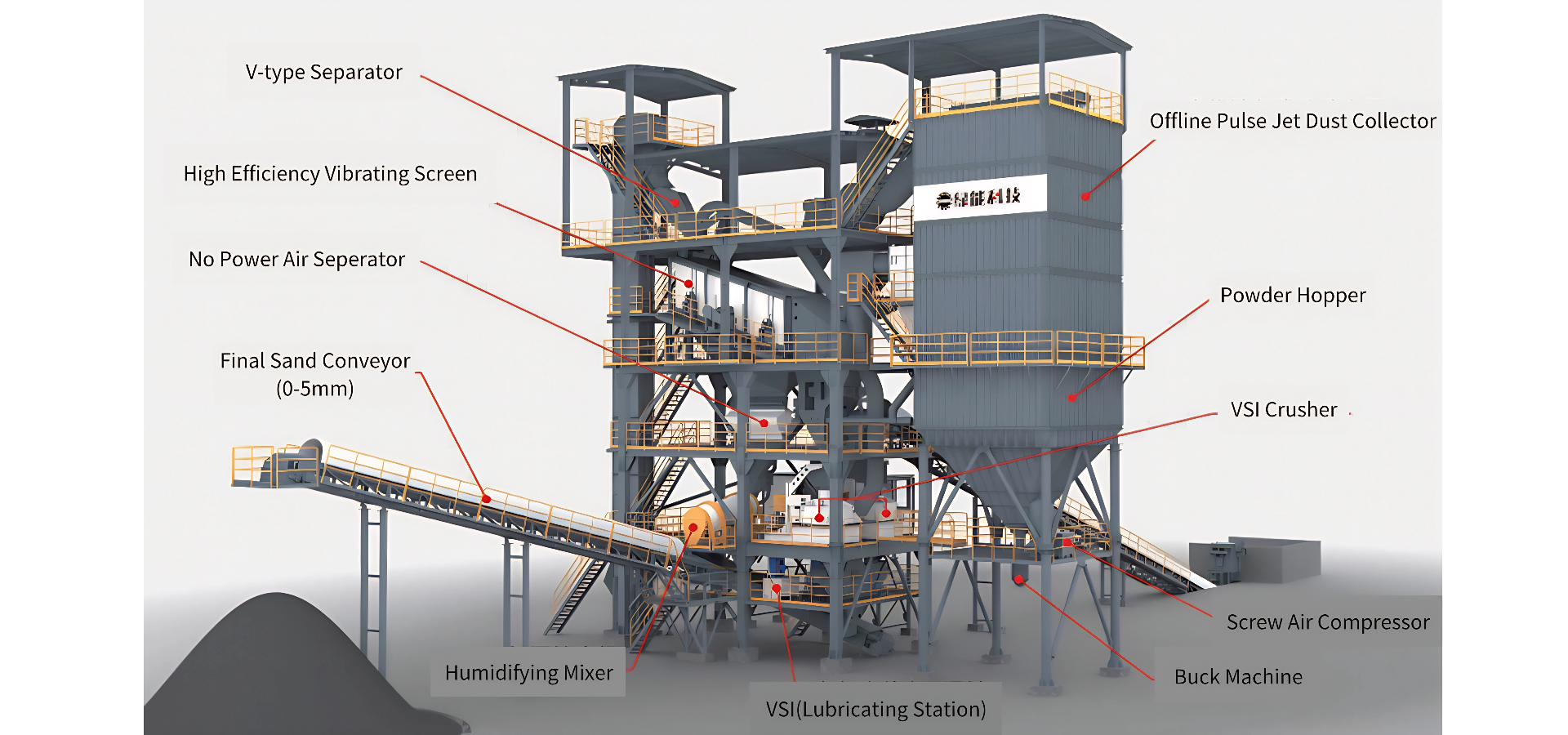

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

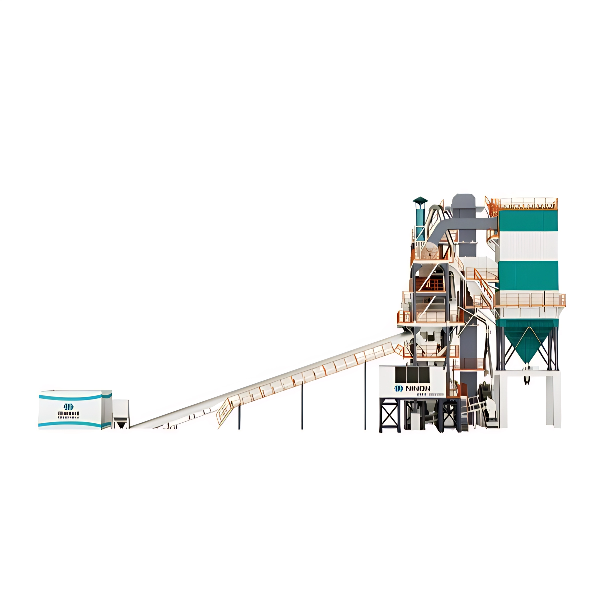

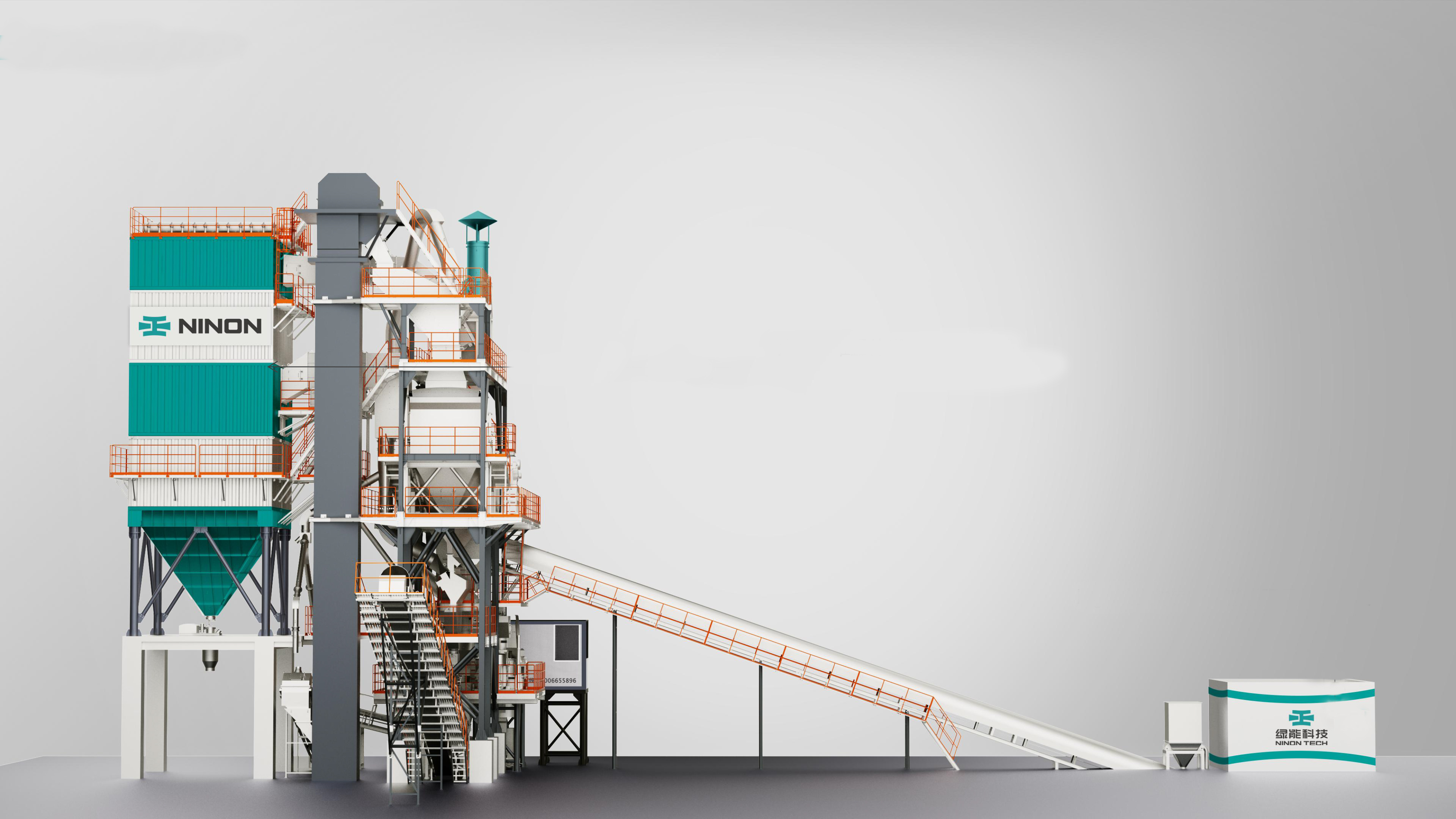

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

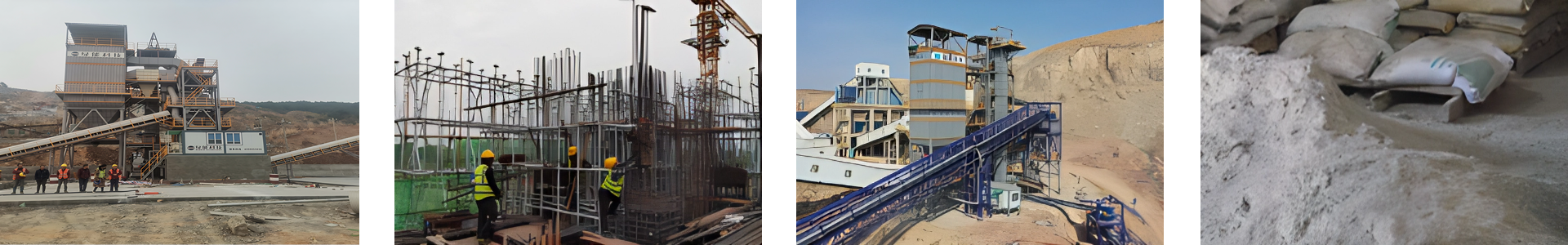

Video of the layout and construction process of Ninon's sand making plant

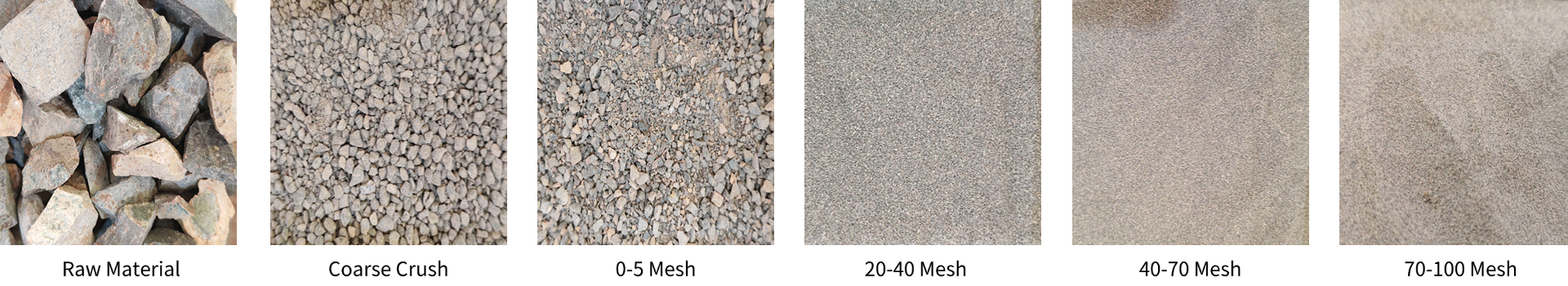

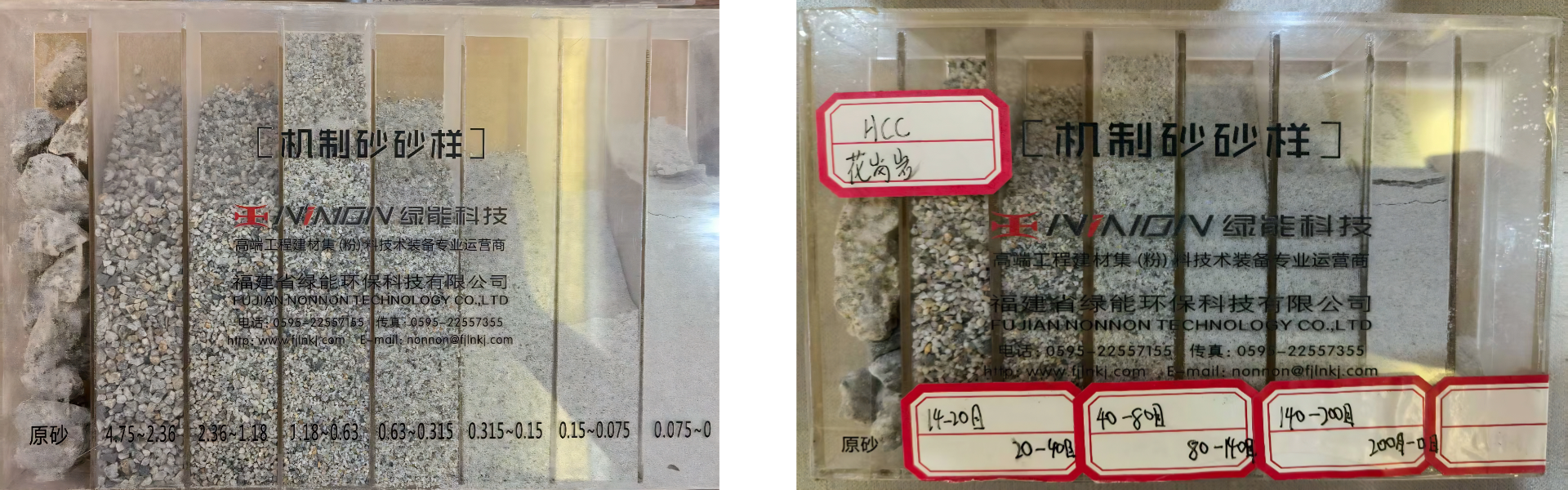

Final Sand Sample
Asphalt Concrete Aggregate

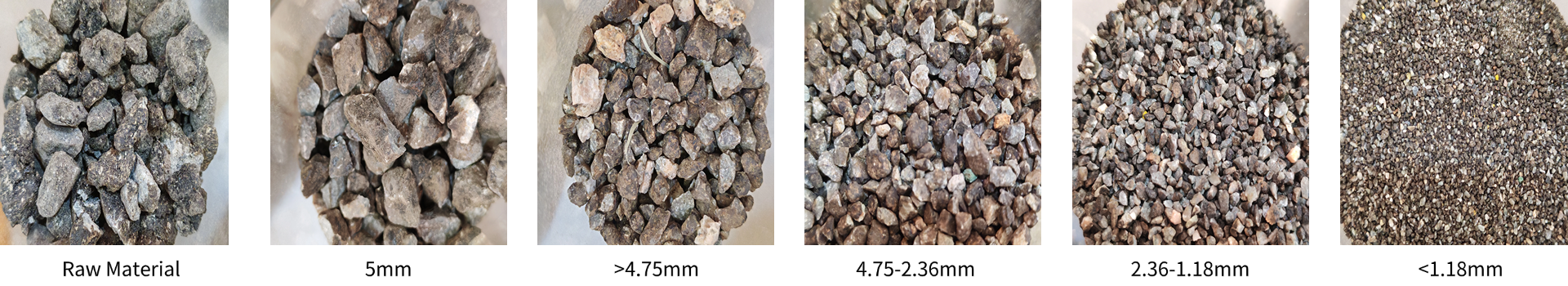

Limestone Aggregate
RAP Aggregate

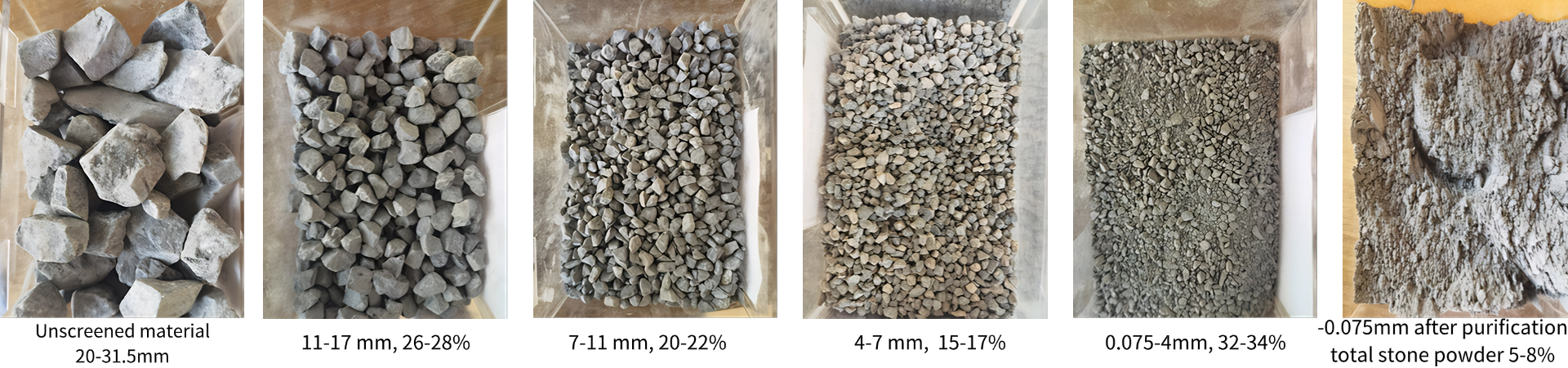

Technical Data on Aggregate Shaping and Sand Production

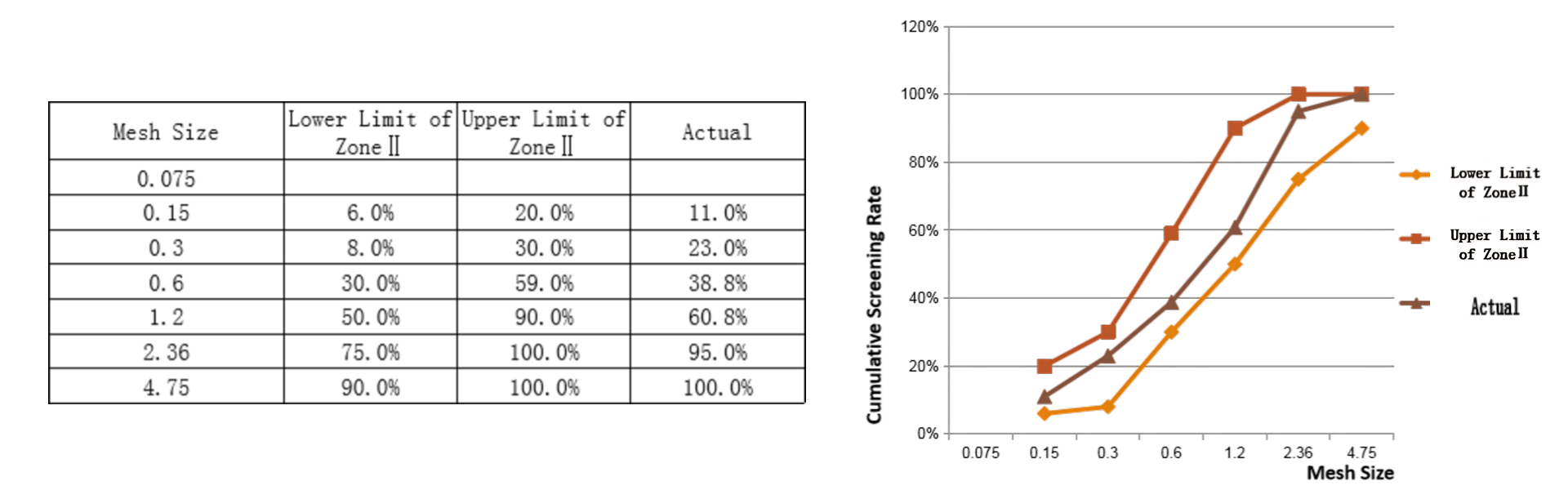

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Steel and Metallurgical Slag Recycling
The LN-ZDS-1545S2 is widely used as a slag crushing plant in steel mills and metal refining industries to recycle blast furnace and steel slag into usable construction aggregates. This process transforms industrial waste into high-quality materials for aggregate crusher plant applications.
2.Brownfield Remediation and Soil Recovery In contaminated site rehabilitation projects, the system can work alongside a soil washing plant to remove heavy metals and other pollutants from excavated materials. It then acts as a slag crushing plant to process remaining mineral components into reclaimed fill or construction-grade aggregate.
3.Concrete and Road Base Production As a robust aggregate crusher plant, the LN-ZDS-1545S2 is ideal for producing coarse and fine aggregates from slag, suitable for road foundations, ready-mix concrete, and precast structures. It can operate in tandem with a soil washing plant for projects requiring reclaimed earth and aggregates.
4.Urban Infrastructure and Construction Waste Recycling The system serves as a mobile or stationary slag crushing plant in urban construction sites, where it processes demolition materials and slag into aggregates. It enhances sustainability in city redevelopment by integrating a soil washing plant for full material recovery.
5.Industrial Waste Valorization Projects The LN-ZDS-1545S2 is essential in large-scale aggregate crusher plant operations focusing on industrial by-product reuse. In combination with a soil washing plant, it turns mixed waste—including slag, soil, and debris—into clean, graded material for industrial backfill or secondary construction use.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
