Model: LN-ZDS-1236S2

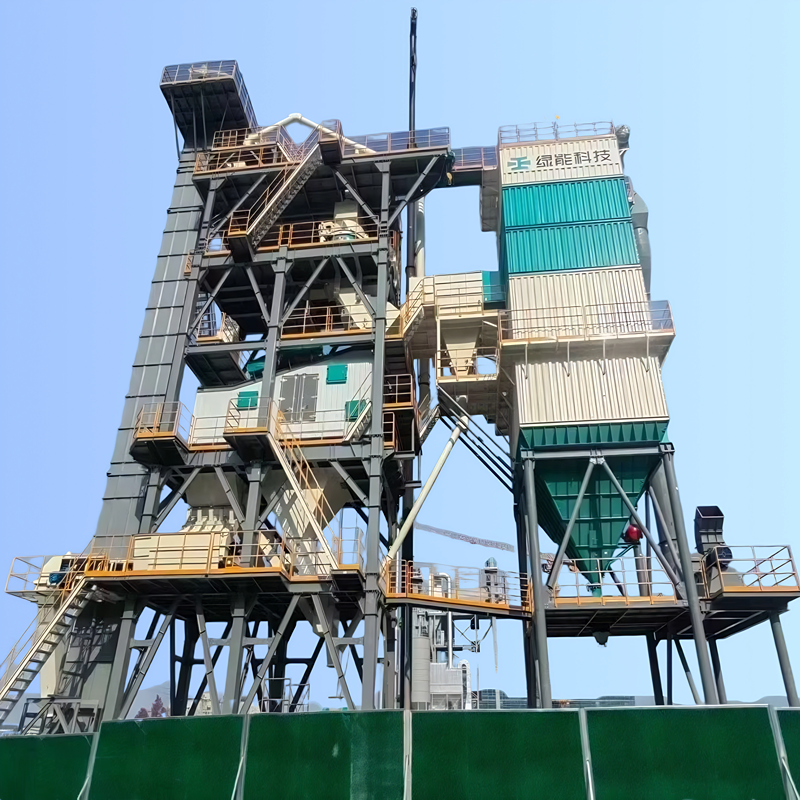

The Quartz Aggregate Crushing Plant is a high-performance integrated system designed for medium to large-scale sand and gravel aggregate projects, balancing capacity, particle shape, intelligence, and environmental compliance. Its modular design allows for easy transport, quick installation, and future expansion. Producing well-shaped end products, quartz crushing plant is especially suitable for high-grade concrete applications.
The LN-ZDS-1236S2 functions as both a quartz crushing plant and an aggregate processing plant, supporting dual-machine configurations that allow for either dedicated sand production or combined sand and aggregate output. This makes it ideal for projects requiring precision in quartz crushing and broader aggregate processing capabilities.
2.High Throughput with Modular Design
This aggregate processing plant is engineered to handle various materials such as granite, limestone, and especially quartz. It can also be adapted to perform efficiently in silver coal crushing plant operations where material hardness and consistency are key.
3.Superior Product Shape for High-Grade Applications As a quartz crushing plant, the system is optimized for producing well-graded, well-shaped aggregates required in high-quality concrete. Its advanced shaping and screening process makes it an excellent choice for aggregate processing plants focusing on infrastructure-grade material.
4.Quick Deployment and Easy Expansion Designed with a modular structure, this silver coal crushing plant alternative supports rapid installation and minimal civil work. It can be easily transported, installed, and expanded—ideal for dynamic projects where deployment time is crucial.
5.Environmental and Operational Intelligence Integrated with intelligent control and monitoring systems, the quartz crushing plant provides real-time feedback on energy use, product quality, and equipment status. This makes it suitable not only as an aggregate processing plant, but also for environmentally sensitive silver coal crushing plant operations.
6.Versatile Use Across Industrial Applications Beyond quartz and typical aggregates, this system can be configured as a silver coal crushing plant for energy sector needs, or as a quartz crushing plant for mineral-based manufacturing. It provides a comprehensive solution for companies looking to diversify raw material handling within a single system.
Specification
Model
LN-ZDS-1236S2
Equipment Power (Kw)
850
Maximum Feed Rate (t/h)
130
Output (10% Powder)(t/h)
100-120
Feed Particle Size
5-30
Remarks
Dual-machine pure sand making or integrated sand and aggregate production
Applicable Materials
Mode of Sand Making and Aggregate Shaping

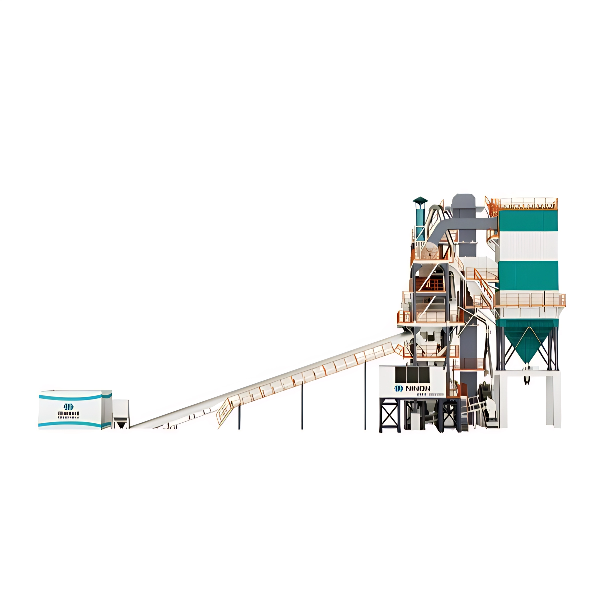

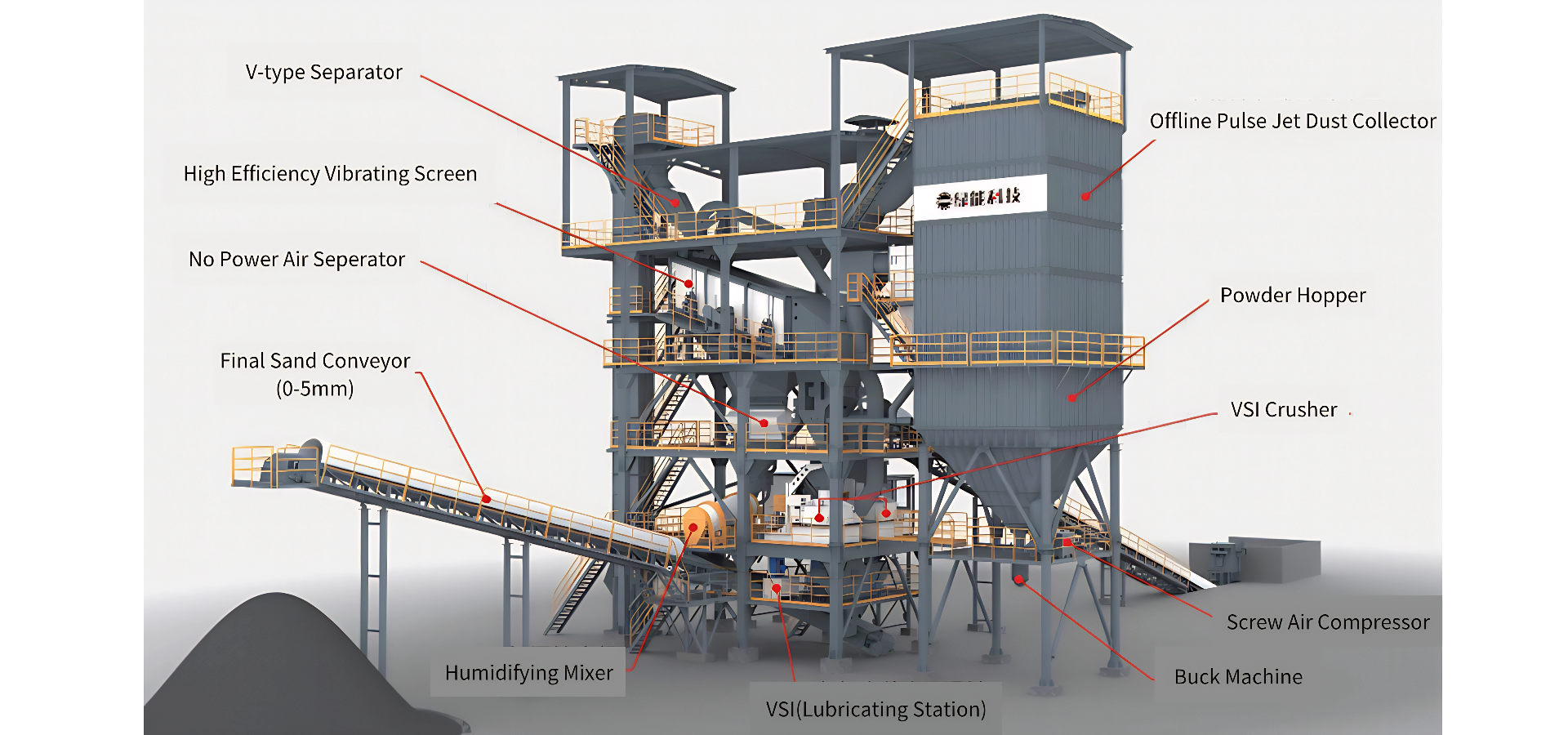

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

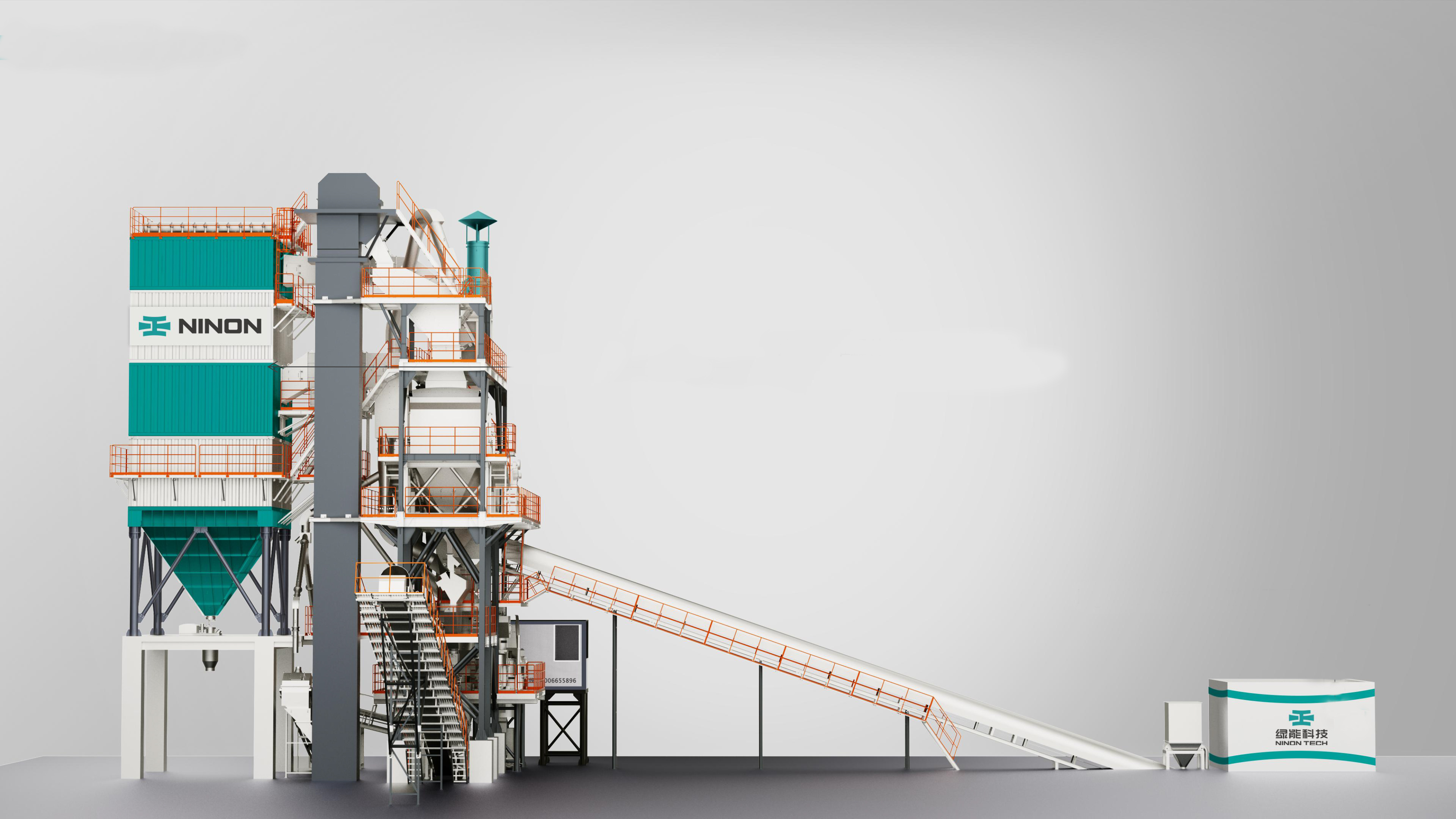

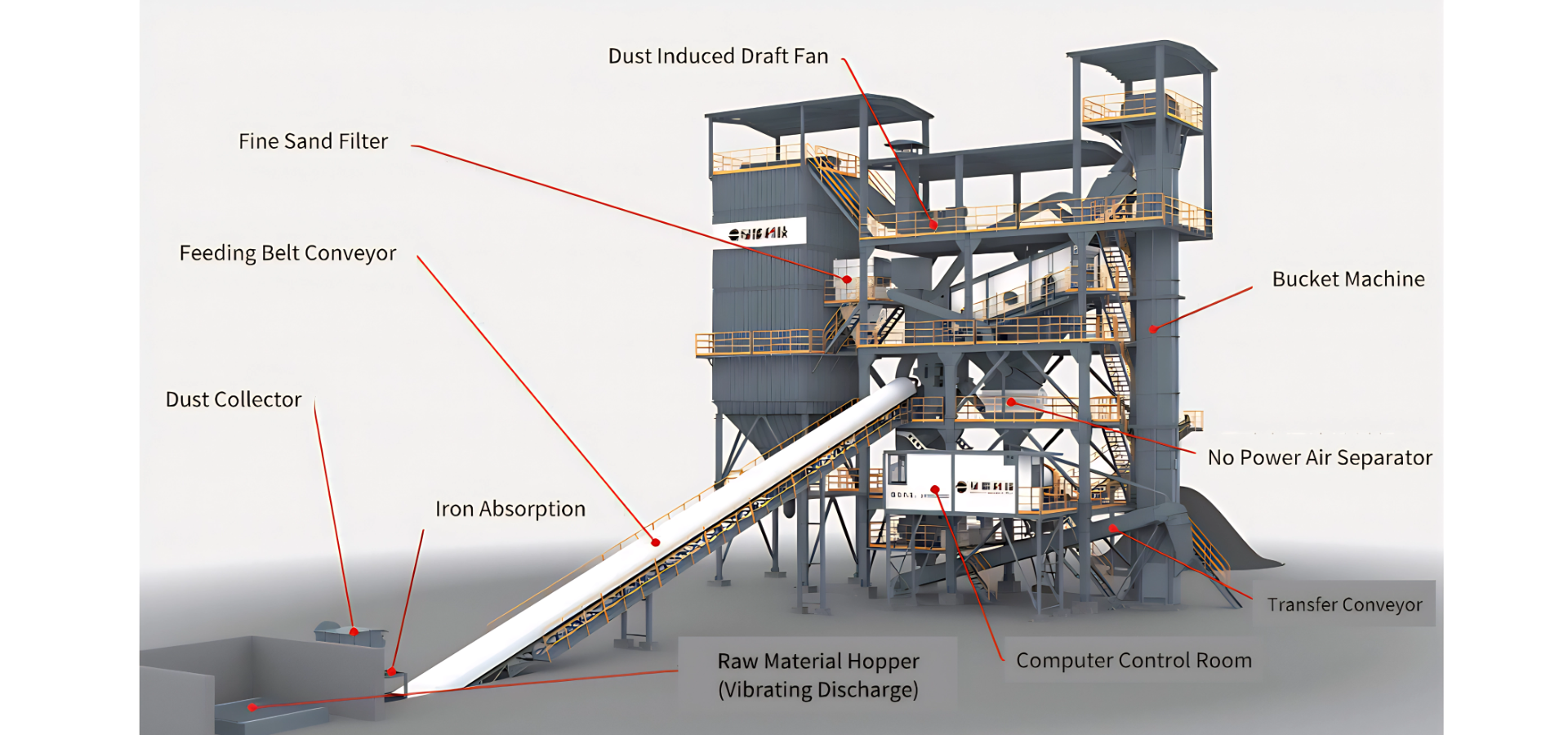

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

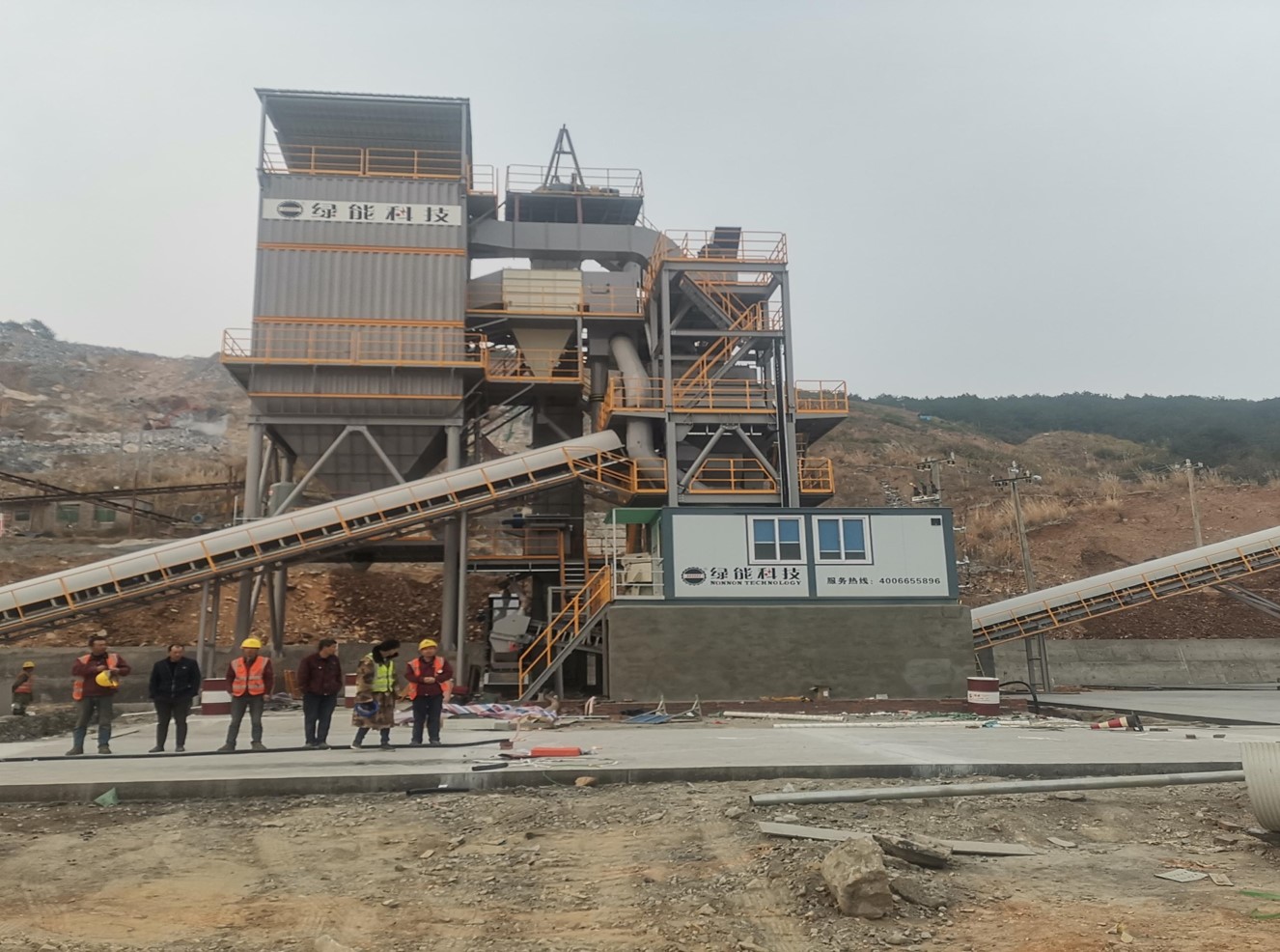

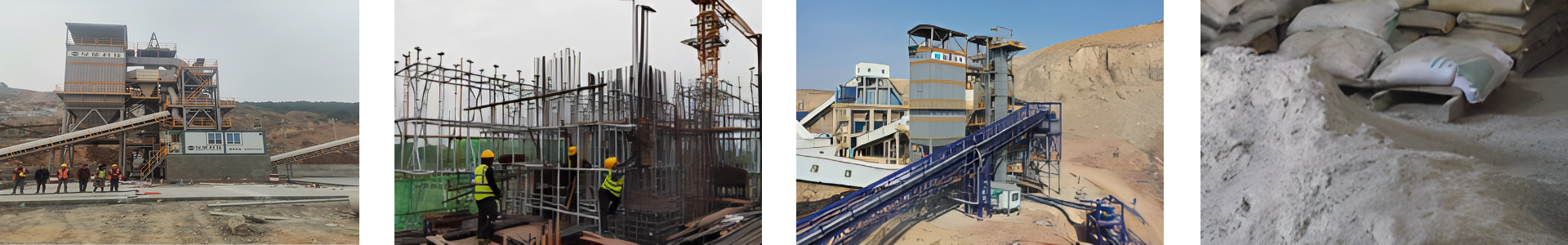

Video of the layout and construction process of Ninon's sand making plant

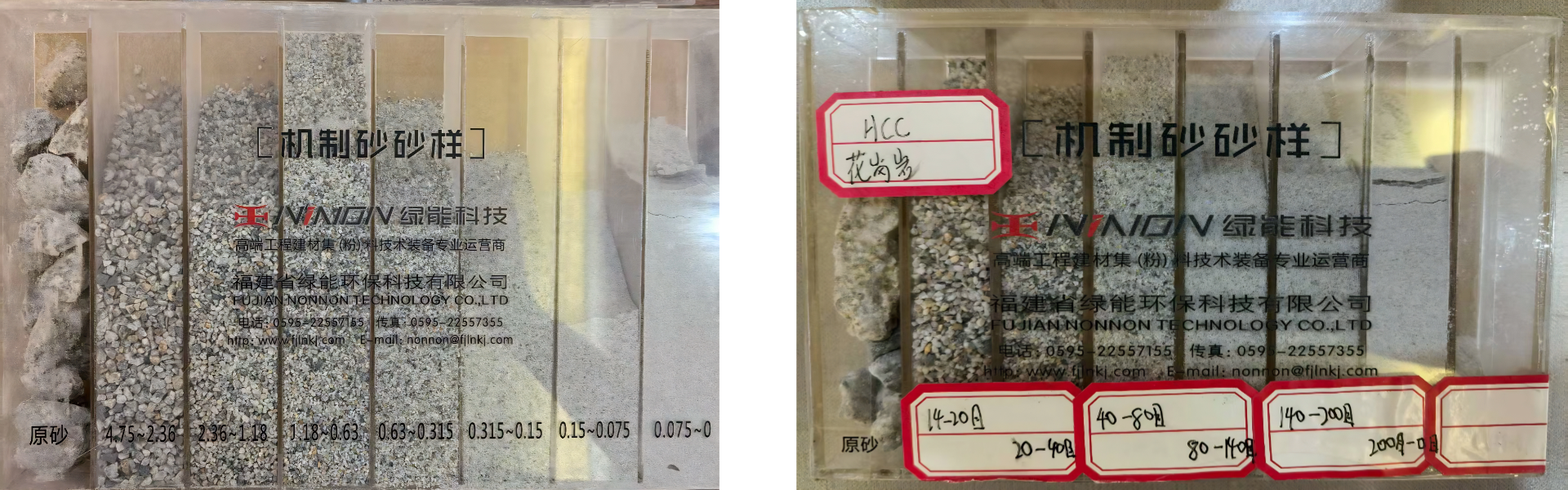

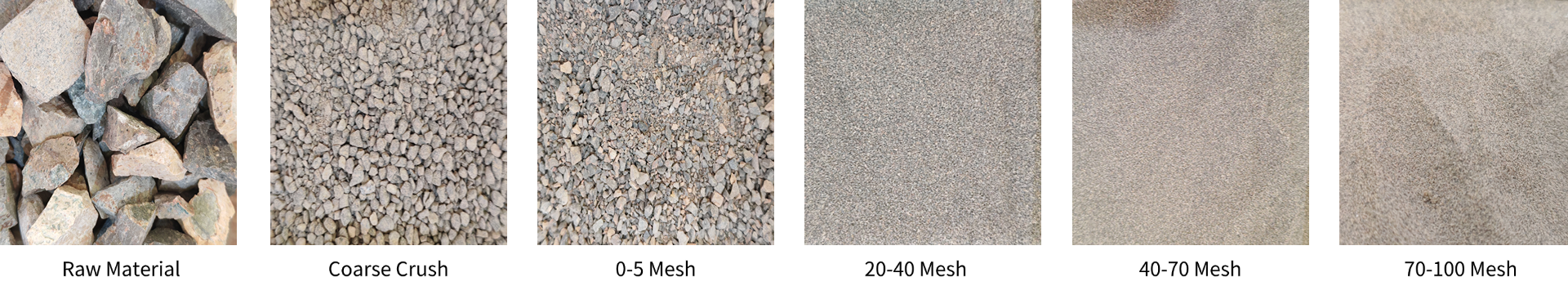

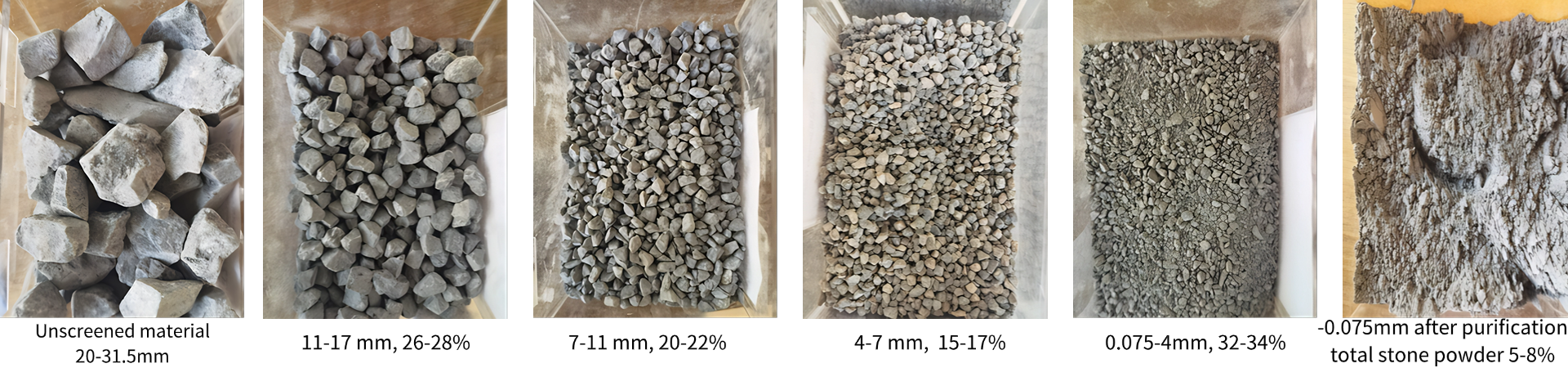

Final Sand Sample

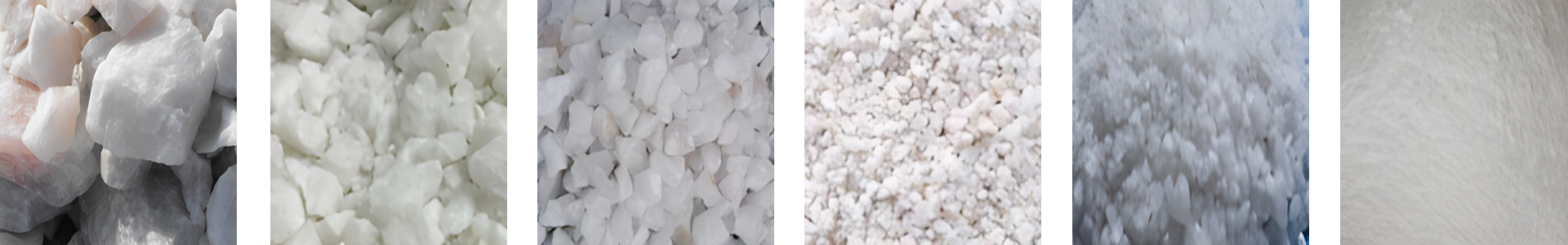

Quartz
Asphalt Concrete Aggregate

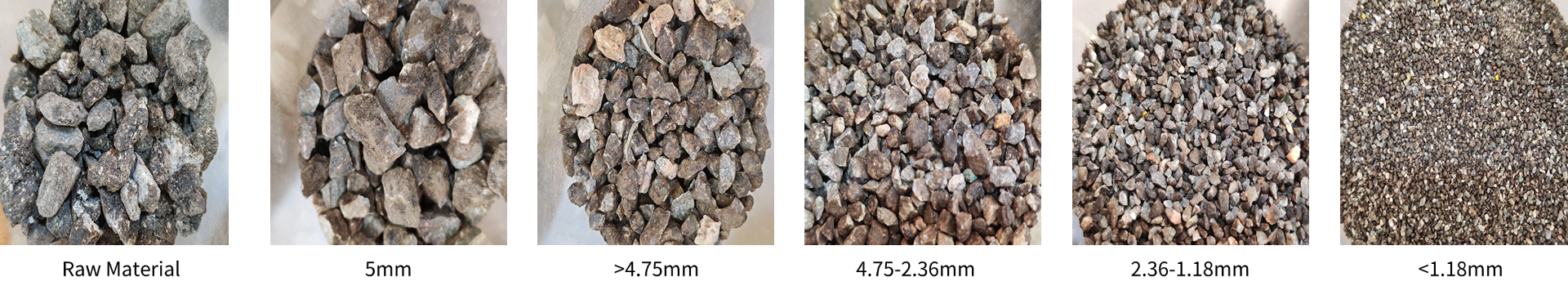

Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

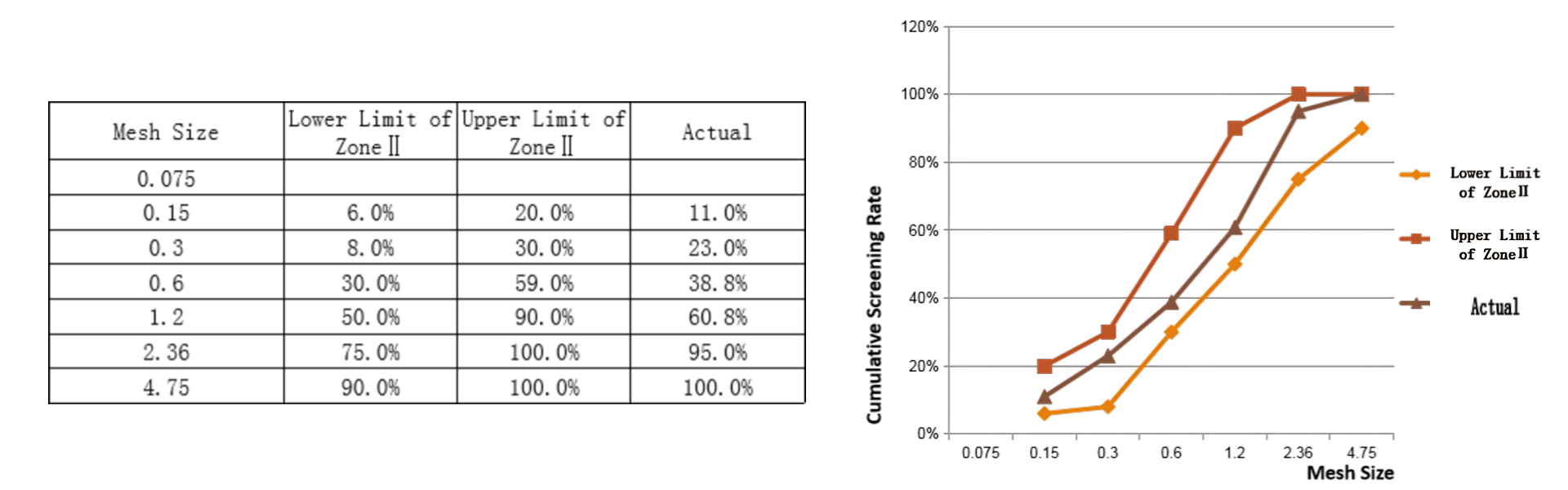

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.High-Performance Infrastructure Projects
The LN-ZDS-1236S2 is ideal for infrastructure applications such as highways, bridges, and tunnels. As a highly reliable aggregate processing plant, it delivers high-strength materials that meet the demands of load-bearing and long-lasting infrastructure.
2.Urban Construction and Real Estate Development As a compact and efficient quartz crushing plant, this system provides well-shaped aggregates suitable for high-grade concrete used in residential, commercial, and municipal construction. It ensures quality raw materials for modern urban development.
3.Energy and Power Sector Projects The LN-ZDS-1236S2 can be configured as a silver coal crushing plant, supporting material preparation for power stations and industrial energy plants. Its robust crushing capabilities handle hard coal and associated materials efficiently, making it an asset in the energy sector.
4.Mining and Mineral Refinement With its adaptability to quartz and hard rock materials, this quartz crushing plant is widely used in mineral processing applications. It enables consistent output in facilities focused on refining or producing quartz-based products or silica-rich materials.
5.Concrete and Asphalt Mixing Plants As a central piece in a quartz crushing plant or aggregate processing plant, the LN-ZDS-1236S2 supplies finely graded aggregates ideal for ready-mix concrete and asphalt production. It ensures the consistent grain shape and size required for high-performance paving and structural mixes.
6.Industrial Material Recycling The LN-ZDS-1236S2 is also suitable for recycled material processing, functioning effectively as a silver coal crushing plant or aggregate processing plant in facilities that recycle demolished concrete, asphalt, or even coal byproducts, turning waste into usable materials.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
