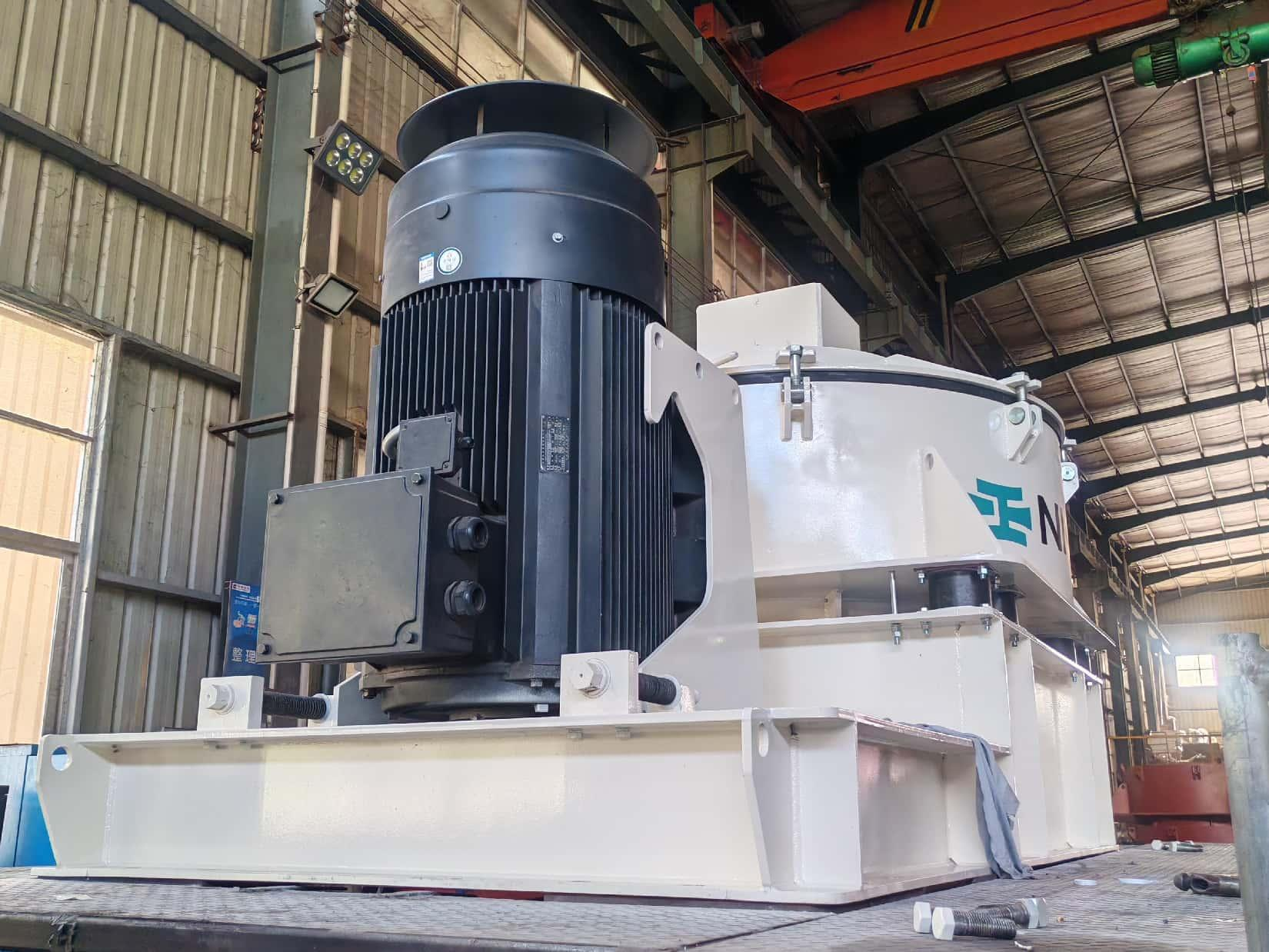

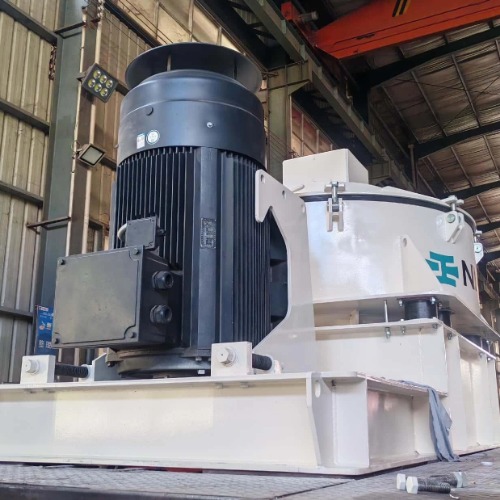

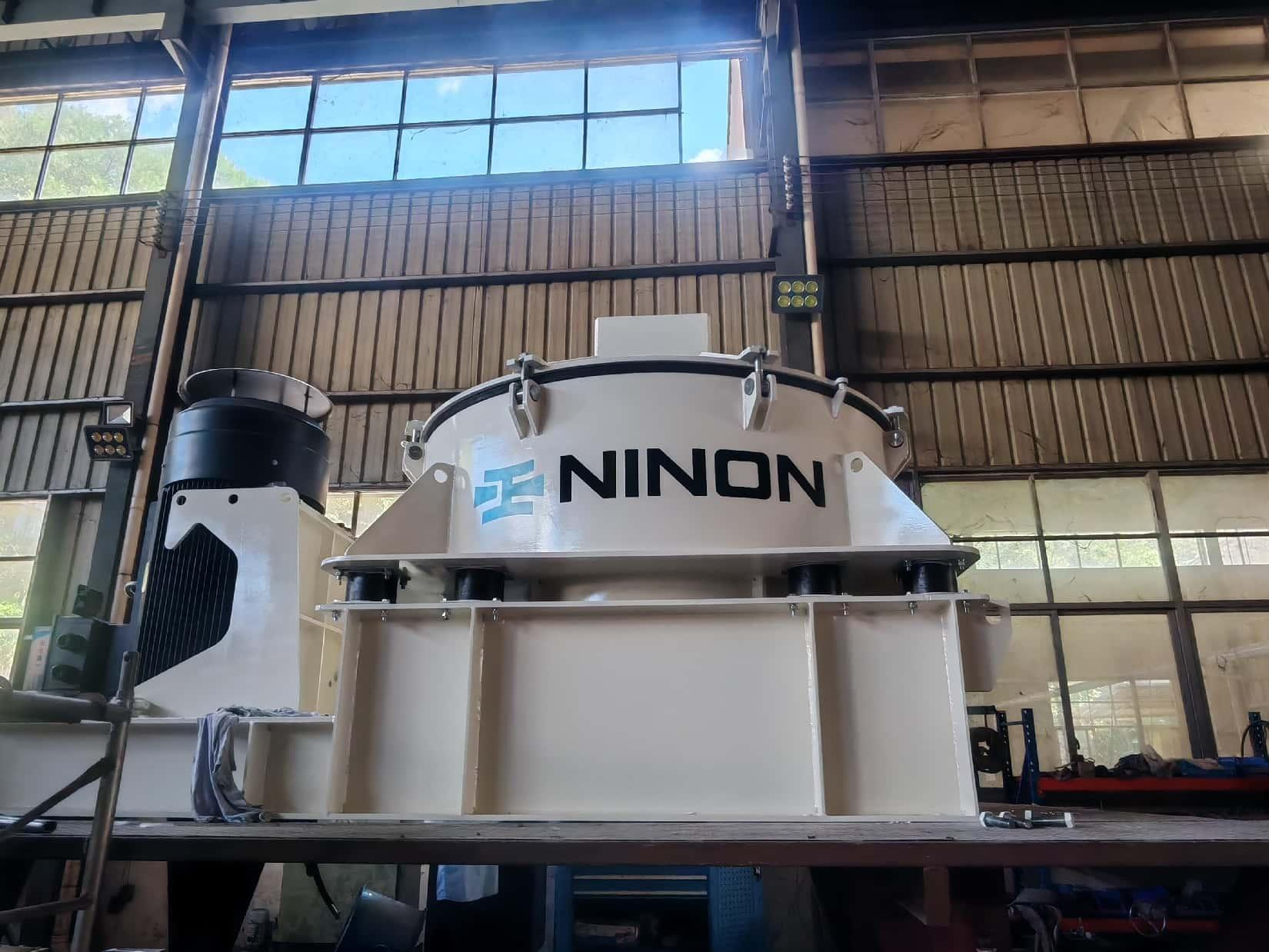

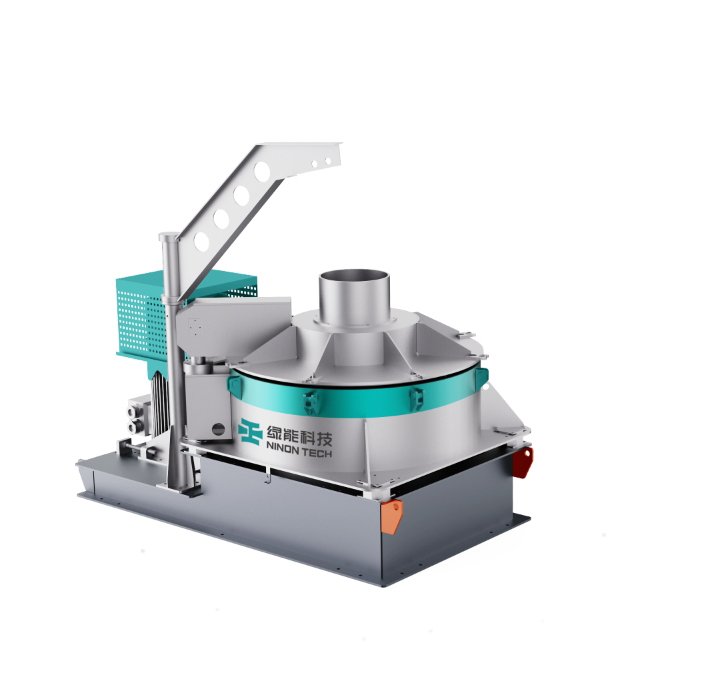

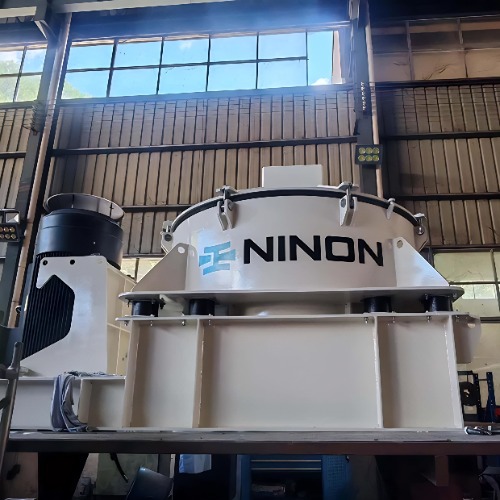

Model: VSI-8505
The integrated vertical shaft crusher is a vertical shaft impact crusher designed for high-quality manufactured sand production lines and high-grade aggregate shaping applications. It inherits the structural advantages of the VSI-8503 while further optimizing the sand production rate, wear-resistant structures, and energy efficiency control. This makes it particularly well-suited for long-term operation in large-scale aggregate plants, ready-mix concrete stations, and environmentally-conscious high-quality sand and gravel production bases.
The VSI-8505 integrated vertical shaft crusher is designed for quick setup and relocation, making it ideal for on-site crushing tasks across multiple project locations. This vertical shaft crusher eliminates the need for fixed foundation work, reducing preparation time.
2.Efficient Sand Production in Remote or Temporary Sites With its integrated design, the portable vertical shaft crusher brings high-quality manufactured sand capabilities directly to the job site. It performs efficiently even in areas lacking permanent crushing infrastructure.
3.Compact Yet Powerful Crushing Unit Despite its mobility, the vertical shaft crusher houses a robust VSI-8505 core, delivering excellent particle shaping, fine crushing, and precise gradation control—all while saving space.
4.Energy-Efficient Operation in Mobile Settings Optimized for fuel and power efficiency, the integrated vertical shaft crusher maintains low operational costs during continuous use, which is crucial for large-scale mobile aggregate production.
5.Seamless Integration with Other Mobile Equipment The vertical shaft crusher is easily paired with mobile screens, conveyors, and feeders, forming a fully integrated portable crushing and screening line for complete material processing.
6.Durable and Weather-Resistant for Outdoor Operations Engineered for rugged outdoor use, the integrated vertical shaft crusher features reinforced components and weather-resistant materials, ensuring stable performance in various environmental conditions.

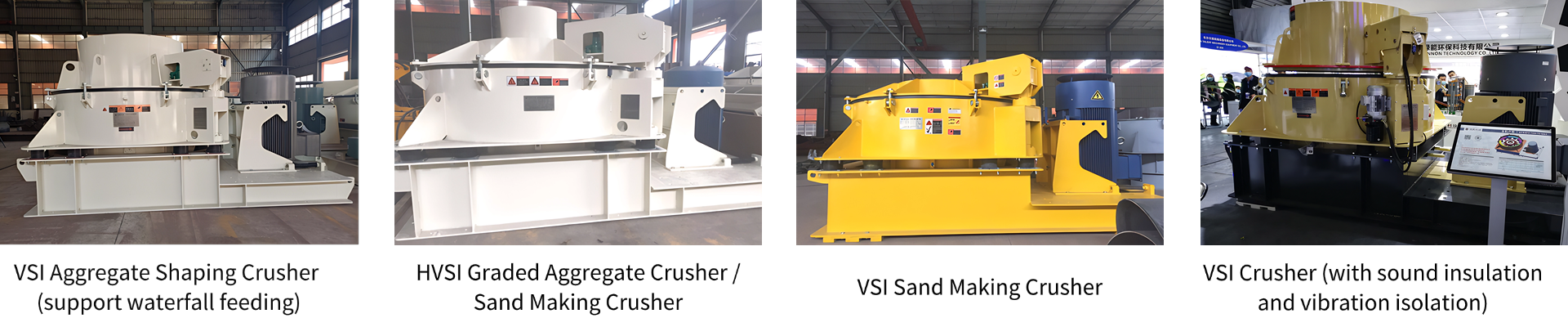

Functional Types of Single Motor Driven Crusher
Product Detailed
Specification
Model
VSI-8505
Maximum Feed Particle Size(mm)
Sand Making
30
Aggregate Shaping
40
Throughput (t/h)
Sand Making
110-130
Aggregate Shaping
140-160
Spindle Speed (r/min)
1700-2100
Motor Power (Kw)
250-315
Operational Principle

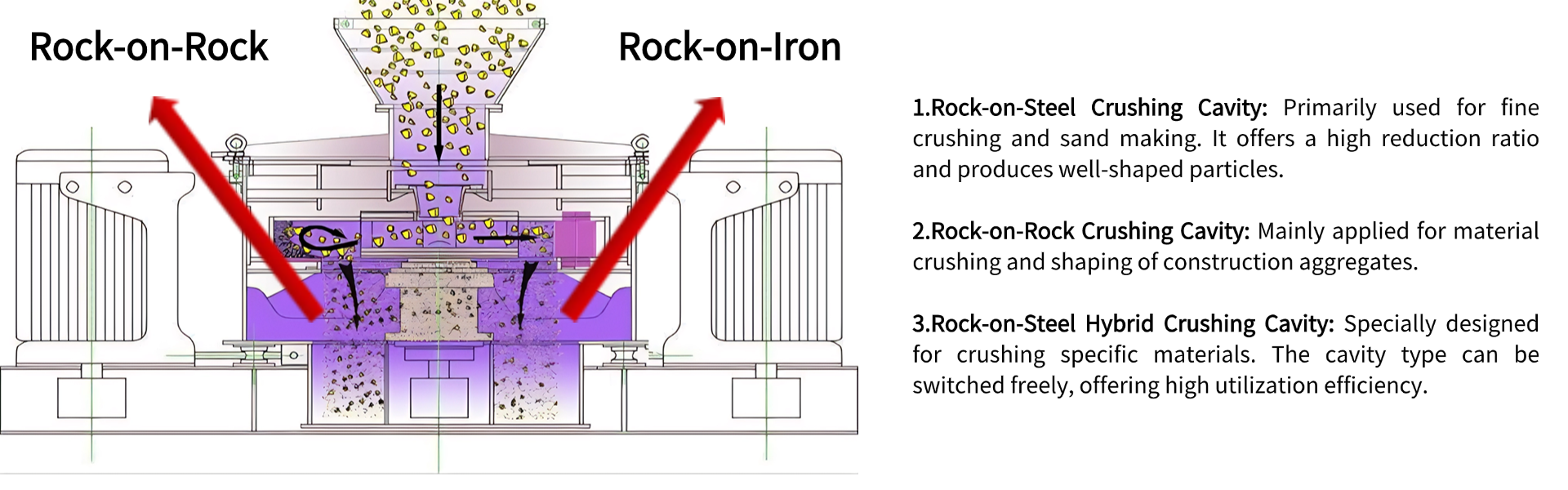

Three Types of Working Principles

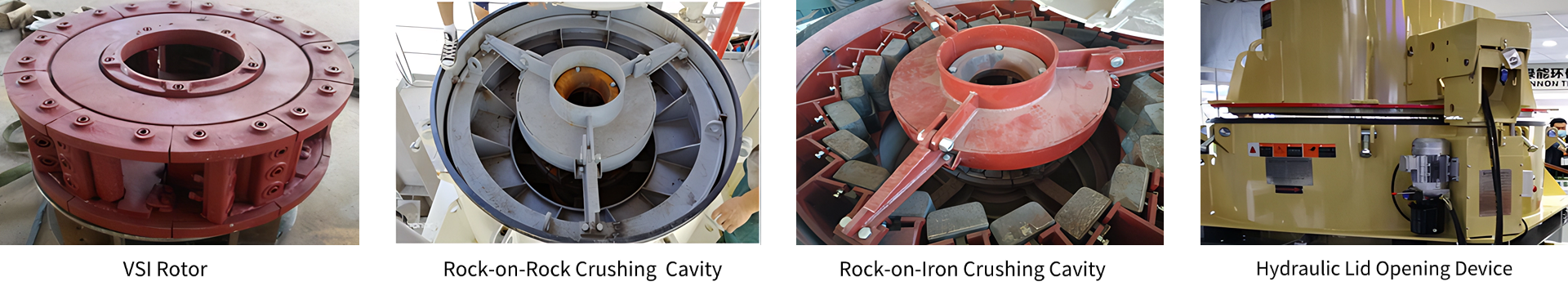

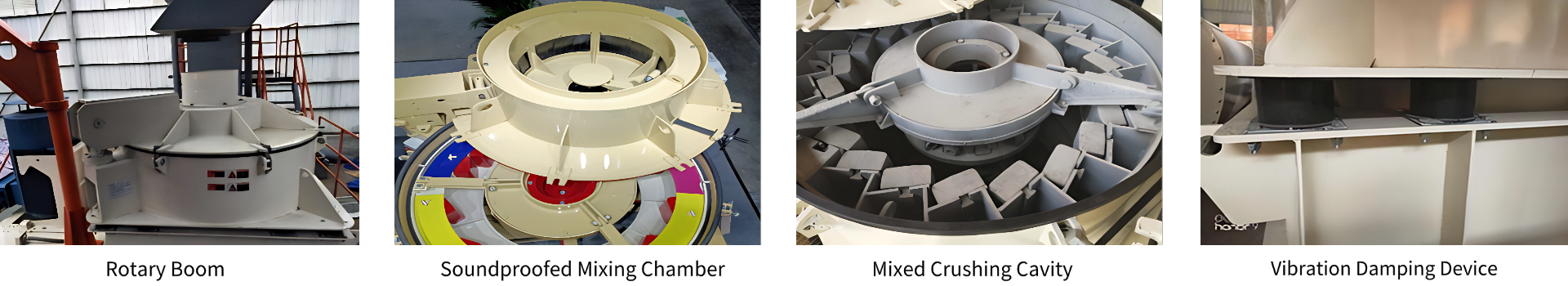

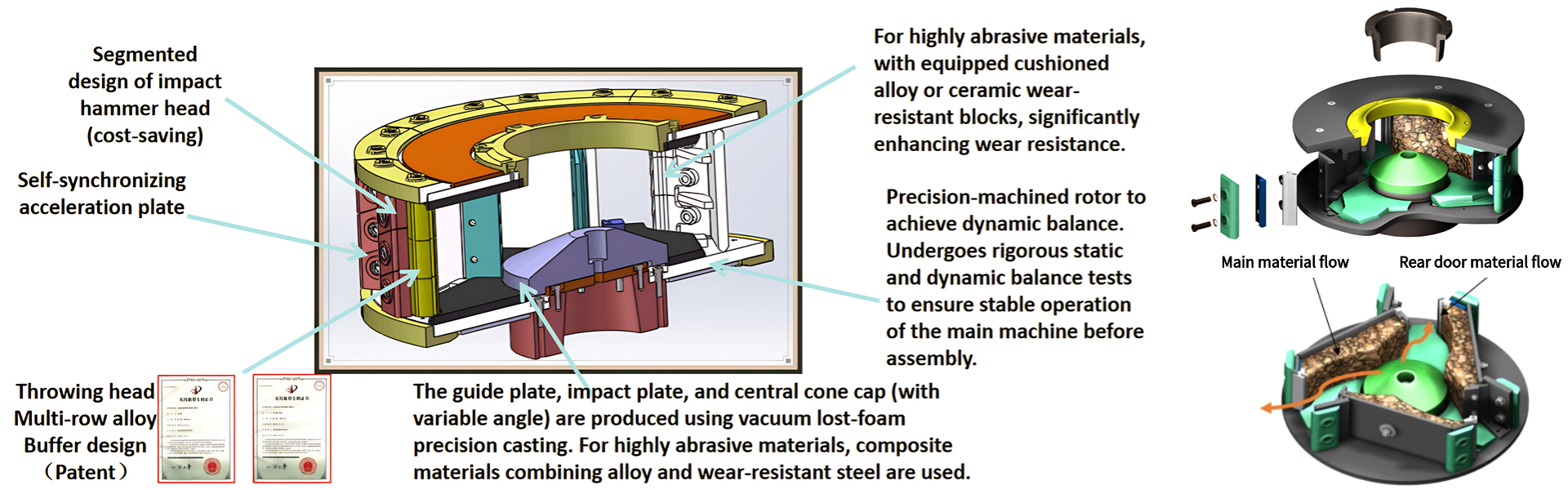

Functions of the Inner Compoents

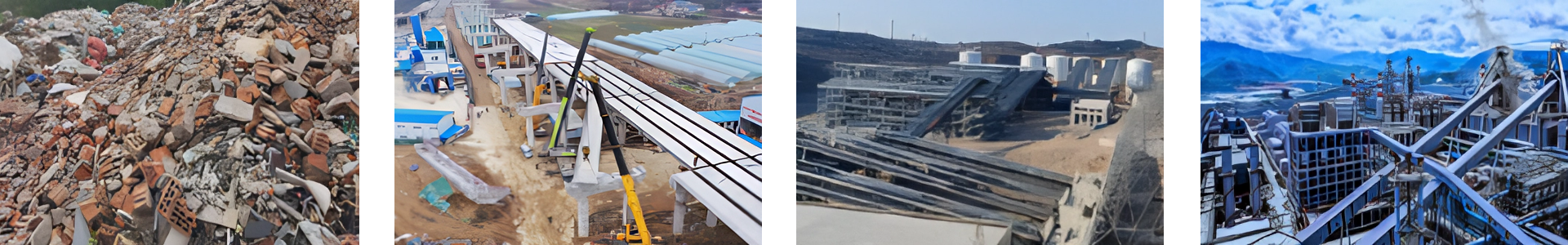

Range of Configuration
1.On-Site Sand Production for Remote Construction Projects
The integrated vertical shaft crusher is ideal for remote or hard-to-access construction sites where transporting aggregates is difficult. It enables on-the-spot production of manufactured sand and fine aggregates.
2.Mobile Concrete Batch Plant Support Used alongside concrete plants, the mobile vertical shaft crusher provides consistent high-quality sand directly at the mixing location, improving concrete strength and reducing material transport time.
3.Temporary Road and Bridge Projects For infrastructure projects with shifting work zones, the integrated vertical shaft crusher delivers reliable aggregate shaping and fine crushing exactly where it’s needed, reducing the need for centralized crushing stations.
4.Quarry Face Operations and Short-Term Mining Sites The vertical shaft crusher is perfect for quarry operations where flexibility is key. It can be easily repositioned as mining progresses, ensuring continuous and efficient on-site material processing.
5.Disaster Relief and Emergency Construction Work In post-disaster reconstruction zones or temporary build-up areas, the integrated vertical shaft crusher helps produce the necessary materials quickly and efficiently, without relying on fixed-site facilities.
6.Environmental and Green Construction Projects With its low emissions and mobile adaptability, the vertical shaft crusher is suitable for eco-friendly projects that prioritize sustainable operations and minimal environmental impact.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
