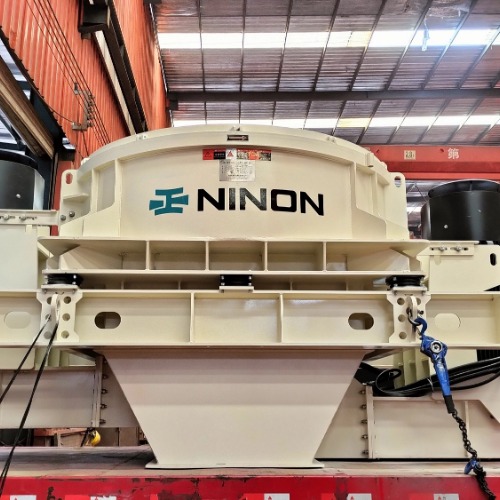

Model: VSI-1003

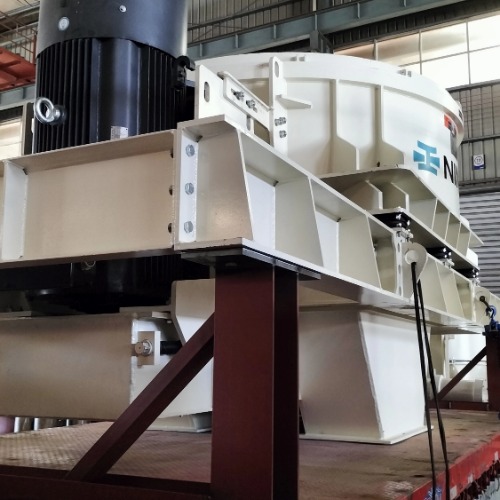

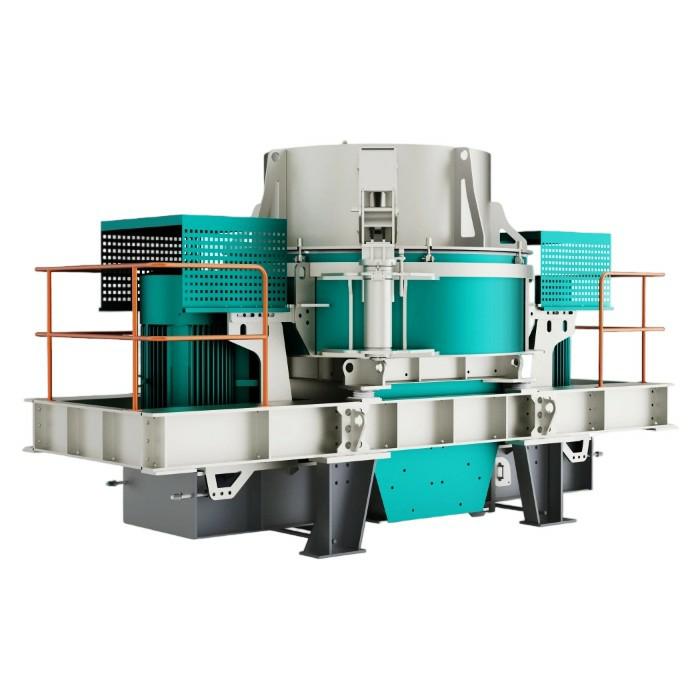

The Compact Vertical Shaft Impact Crusher is a large-scale sand-making and shaping equipment designed for high-hardness materials such as granite, basalt, and quartzite. It features higher rotation speeds, a larger crushing chamber, and reinforced wear-resistant components. With its strong shaping capability and intelligent lubrication system, the VSI-1003 vertical shaft crusher is an ideal choice for high-standard ready-mix concrete, railway, and water conservancy project sand-making operations.
The VSI-1003 combines high efficiency with a space-saving footprint, making it ideal for operations with limited installation areas. This compact crusher is easy to integrate into existing crushing lines.
2.Superior Shaping vs. Jaw Crusher
Unlike a jaw crusher that primarily handles coarse crushing, this vertical shaft crusher delivers excellent particle shaping, producing high-quality, cubical aggregates for premium concrete and asphalt applications.
3.High-Speed Vertical Shaft Crusher
The core of the VSI-1003 is its vertical shaft crusher mechanism, which operates at higher rotor speeds to maximize impact energy and ensure fine, uniform output ideal for demanding projects.
4.Versatile Application with Compact Crusher Efficiency
Whether used independently or in conjunction with a jaw crusher, the VSI-1003 functions as a powerful compact crusher in multi-stage crushing setups, especially for hard rock and abrasive materials.
5.Enhanced Durability & Lower Maintenance
This vertical shaft crusher is equipped with wear-resistant parts and an intelligent lubrication system, minimizing downtime and offering a longer service life than traditional compact crushers and jaw crushers in similar roles.
6.Energy-Efficient Crushing Technology
The VSI-1003 integrates energy-saving design principles, making it more efficient than conventional jaw crushers and compact crushers, especially when processing high-hardness materials.
7.Ideal Pairing with Jaw Crusher Systems
Often used as a secondary or tertiary stage following a jaw crusher, this vertical shaft crusher ensures high-quality sand and fine aggregate output with superior control over particle size and shape.
Product Detailed
Specification
Model
VSI-1003
Maximum Feed Particle Size(mm)
Sand Making
45
Aggregate Shaping
55
Throughput (t/h)
Sand Making
290-340
Aggregate Shaping
350-380
Spindle Speed (r/min)
1100-1400
Motor Power (Kw)
400-440
Operational Principle

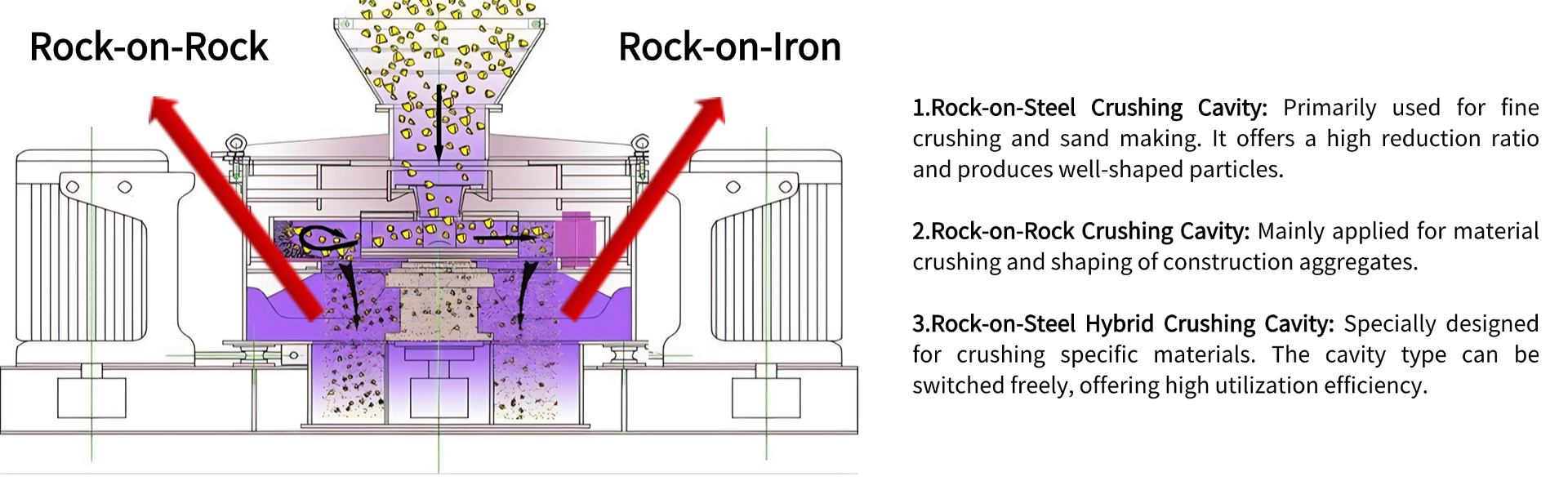

Three Types of Working Principles

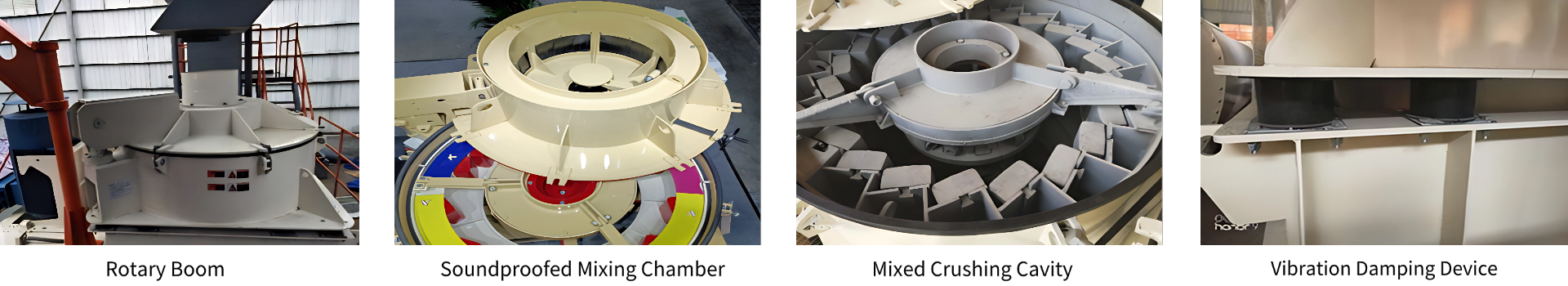

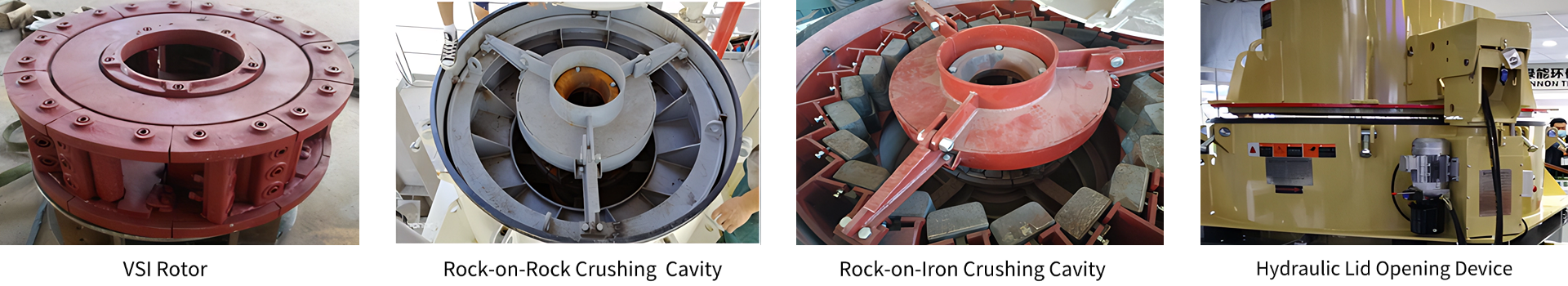

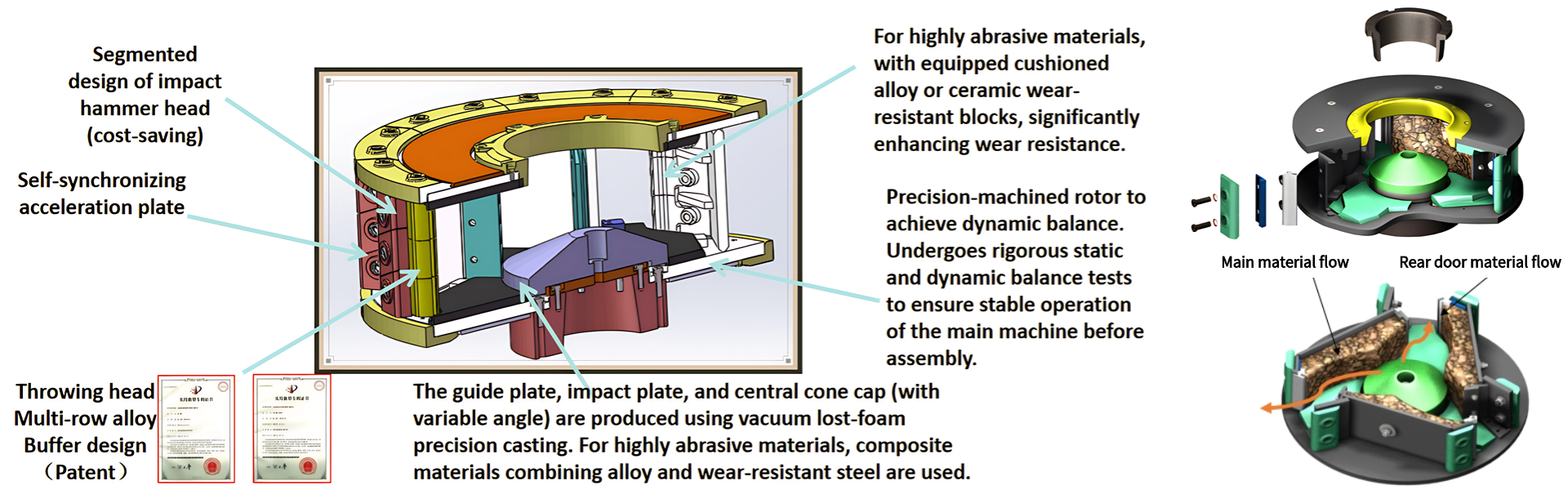

Functions of the Inner Compoents

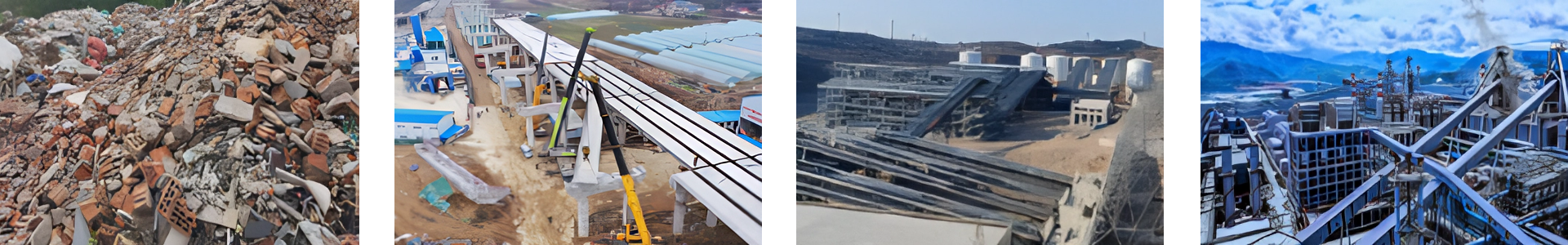

Range of Configuration
1.High-Standard Sand Production
As a precision vertical shaft crusher, the VSI-1003 is ideal for producing high-quality machine-made sand for ready-mix concrete, outperforming both the compact crusher and jaw crusher in shaping fine aggregates.
2.Railway and Highway Infrastructure Projects
Paired with a jaw crusher in a two-stage crushing line, this vertical shaft crusher refines the output to meet strict gradation and flakiness requirements for base and sub-base layers in transport engineering.
3.Aggregate Shaping in Urban Construction
The VSI-1003 compact crusher is frequently used in city infrastructure development where consistent particle shape is crucial—something standard jaw crushers can’t easily achieve on their own.
4.Crushing Hard Rock for Industrial Use
In industries dealing with granite, basalt, and quartzite, the VSI-1003 vertical shaft crusher complements the coarse reduction of a jaw crusher, offering a refined final product suitable for industrial concrete, brick, and block production.
5.Mining and Quarrying Operations
Thanks to its rugged design and adaptability, the compact crusher excels in on-site quarry applications. It's commonly integrated with a jaw crusher to streamline material processing and reduce logistics and handling costs.
6.Water Conservancy and Hydropower Projects
The VSI-1003 vertical shaft crusher plays a critical role in producing stable, clean, and well-graded sand for concrete used in dams and canals—often following a compact crusher or jaw crusher primary stage.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
