Recently, Ninon's service team conducted a follow-up visit to the Handan Zhuoran site, where the Ninon ZDS200 aggregate shaping and sand making plant has sustained efficient aggregate production starting from 2020. This artificial sand making plant combines high-efficiency crushing, precise particle shaping, intelligent screening and ultra-low dust abatement, continuously outputting premium manufactured sand and aggregate to fully satisfy the large-volume production requirements of the local construction materials manufacturers.

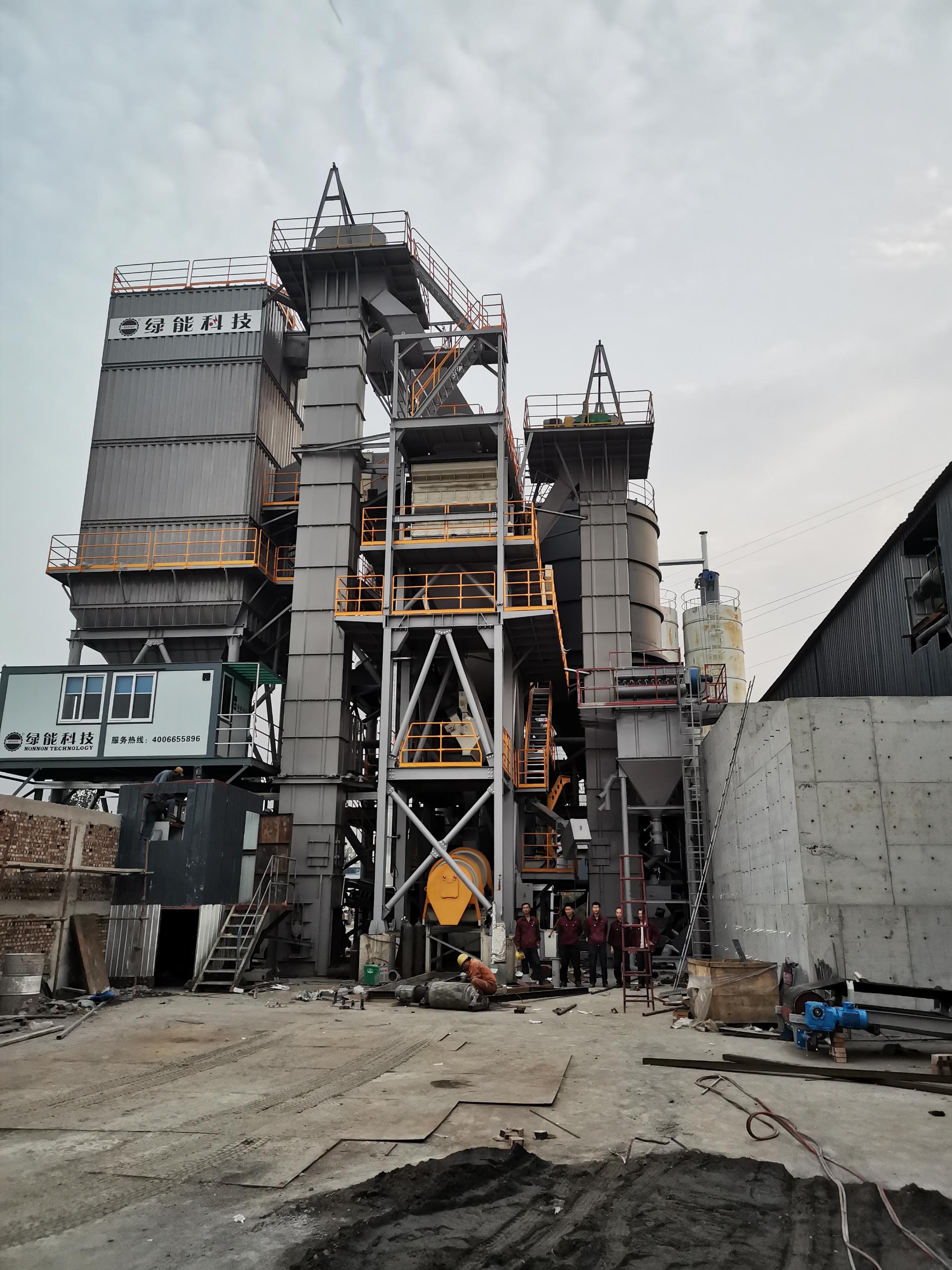

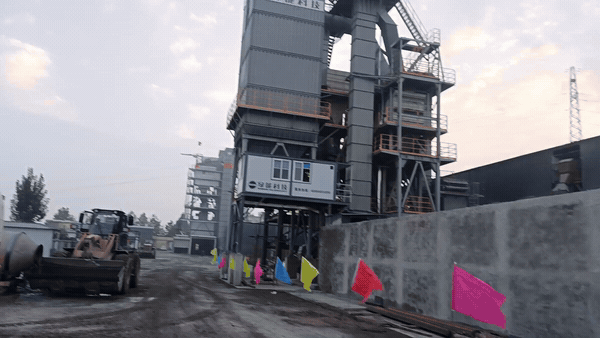

Ninon aggregate shaping and sand making plant in Handan Zhuoran Project
The core crushing unit of this aggregate shaping and sand making plant is the VSI8532 sand making machine, delivering a total shaping throughput of 200 t/h while central feeding capacity of the sand making machine falls within 125 -150 t/h. The sand processing plant accepts raw feedstock sized 0–31.5 mm and enforces a raw material total moisture limit of maximum 1%, eliminating common operational troubles like crushing chamber clogging and decreased sand output triggered by overly wet stock. Fitted with a tunable fineness modulus assembly, the artificial sand making plant keeps the finished sand fineness modulus steadily between 2.3 and 3.2, meeting material specifications for concrete, road subgrade and various construction works.

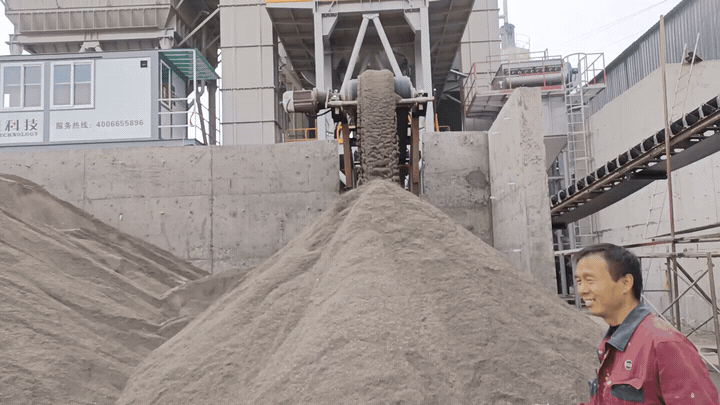

Sand Production
The supporting system of the artificial sand making plant includes a four-deck grading vibrating screen rated at 400 t/h processing capacity. The sand making machine inside this aggregate shaping and sand making plant allows seamless switchover between two operational modes. Pure sand production mode generates 0–5 mm fine finished sand; shaping and grading mode concurrently yields multi-size aggregates: 0–3 mm, 3–5 mm, 5–10 mm and 10–15 mm. Aggregates from the artificial sand making plant boast smooth, rounded grains, minimal needle and flake particle content, plus consistent, well-balanced grading curves.

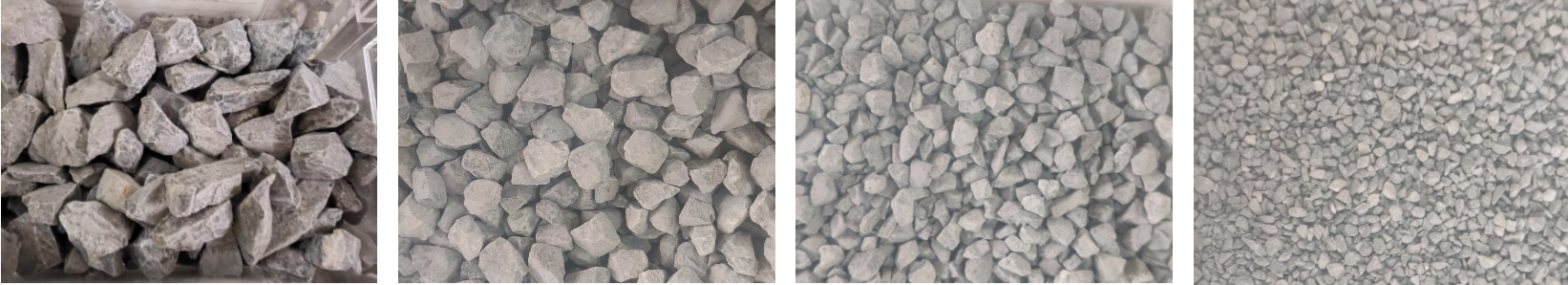

Limestone Sand Sample
The sand processing plant is outfitted with a dedicated dust suppression unit. The dust collector holds a 60 m² filtration area and a nominal air treatment capacity of 4,500 m³/h. Paired with fully sealed dust capture and high-performance filter materials, the aggregate shaping and sand making plant maintains onsite dust emission concentrations ＜20 mg/Nm³, conforming to green mine ultra-low emission regulations and drastically upgrading the workshop working environment of the sand processing plant .

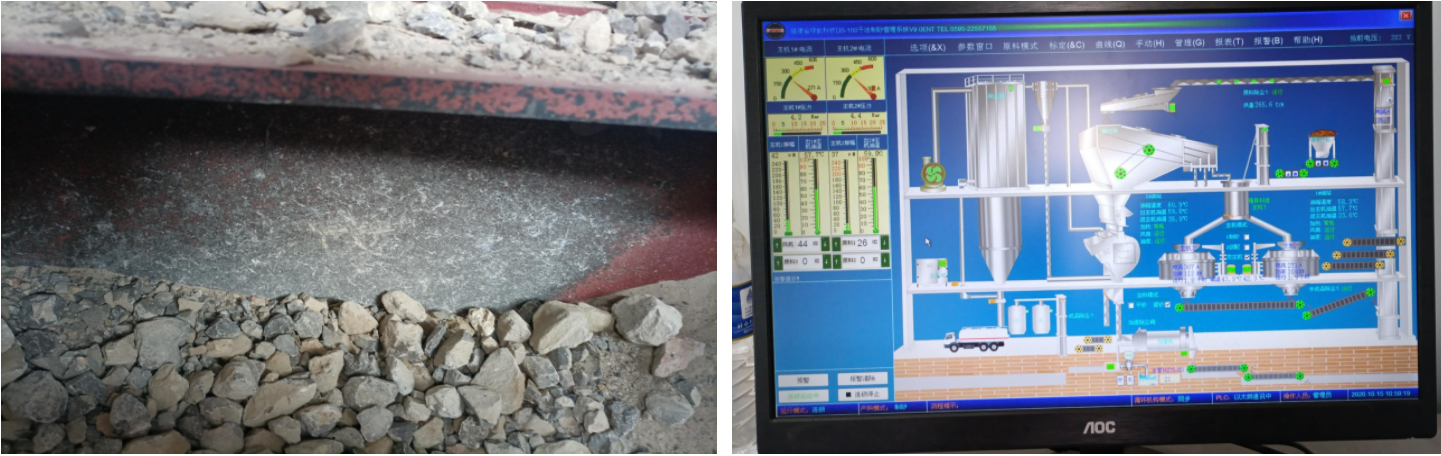

Raw Material & Intelligent Control System
A unified intelligent electrical control system runs the artificial sand making plant. It tracks critical operational metrics in real time, such as sand making machine load, screening throughput, dust differential pressure and temperature, and autonomously modifies feeding, screening and dust suppression operating parameters. Built-in sand making machine overload safeguard, fault prompt and remote servicing capabilities let the sand processing plant run uninterruptedly with fewer on-site staff, substantially lowering labor and routine upkeep expenses.
Ninon Service Team in Handan
Since formal operation kicked off, the Ninon ZDS200 sand making machine within the sand processing plant runs stably at full design throughput, delivers consistent aggregate quality and maintains fully compliant environmental readings. Boasting integrated strengths in high productivity, intelligent control and eco-friendly performance, this sand processing plant acts as core processing hardware for Handan Zhuoran's standardized premium aggregate production line and represents a landmark installation showcasing mass rollout of Ninon aggregate shaping and sand making plant solutions across construction materials manufacturing projects.
