Overview of Industrial Dust Collectors
Industrial dust collectors are professional purification devices tailored to trap and isolate solid particles including industrial dust and smoke produced in manufacturing procedures, serving as core equipment for numerous industrial fields like mechanical processing and construction materials production. A pulse jet dust collector is one of the most widely used industrial dust removal devices in modern industries.
A pulse jet dust collector focuses on industrial waste gas purification and exhaust emission reduction, helping manufacturing factories meet updated environmental protection standards. A pulse jet dust collector also effectively protects the physical health of frontline workers and guarantees the continuous and reliable operation of industrial production equipment.
What is A Pulse Jet Baghouse ?
A pulse jet baghouse is a high-efficiency mainstream device for industrial flue gas dust removal, relying on mature bag filtration technology to complete dust reduction work in various industrial scenarios. A pulse jet baghouse features a complete and standardized structural design, covering upper shell, middle shell, ash hopper, air inlet distribution pipeline, bag-type filter elements, pulse jet cleaning components and automatic ash discharging devices.

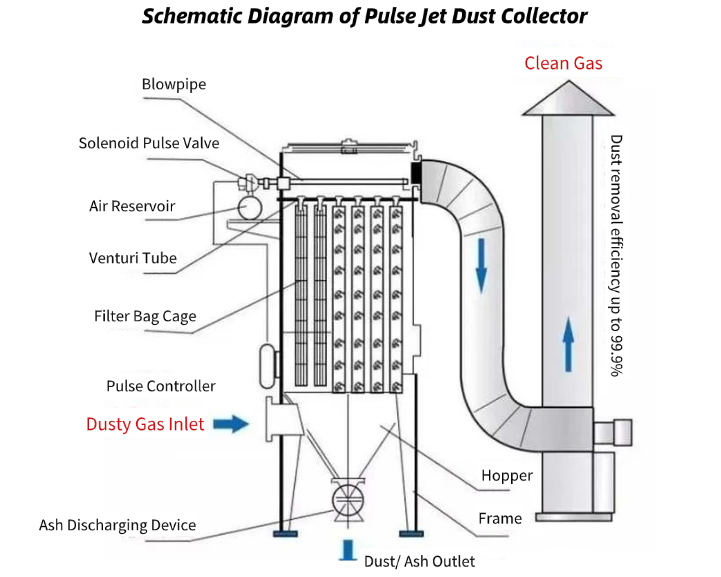

Schematic diagram of pulse jet baghouse
A pulse jet baghouse adopts independent chamber off-line cleaning to achieve uninterrupted dust removal work. Dust-containing flue gas enters the independent chamber hopper through the air inlet pipe, with large-particle dust settling naturally, while tiny particles attach to the outer layer of filter bags, and clean gas passes through the filter medium and is discharged up to standard.
When dust accumulation raises the system resistance to the preset 1500 Pa, the control system closes the off-line valve of a single chamber according to pressure difference or timing signals. The pulse valve instantly sprays compressed air to blow off dust on the filter bags, and the falling dust is uniformly discharged through the unloading system to ensure stable long-term operation of the pulse jet baghouse.

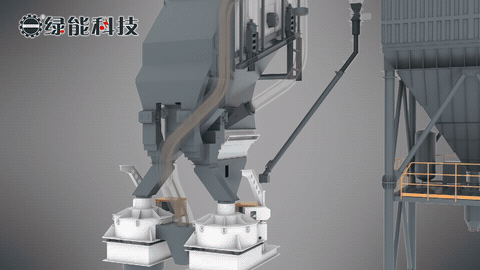

Operation of Ninon modular pulse jet dust collector
Ninon Premium Pulse Jet Baghouse
Based on mature dust removal and cleaning principles, Ninon's modular baghouse dust collector adopts an optimized modular assembly structure to upgrade traditional dust removal equipment. The modular baghouse dust collector inherits reliable off-line pulse cleaning technology and achieves excellent fine powder recovery capability. The modular baghouse dust collector can effectively capture fine particles smaller than 75 μm, controlling the exhaust emission concentration stably at 10 mg/m³.

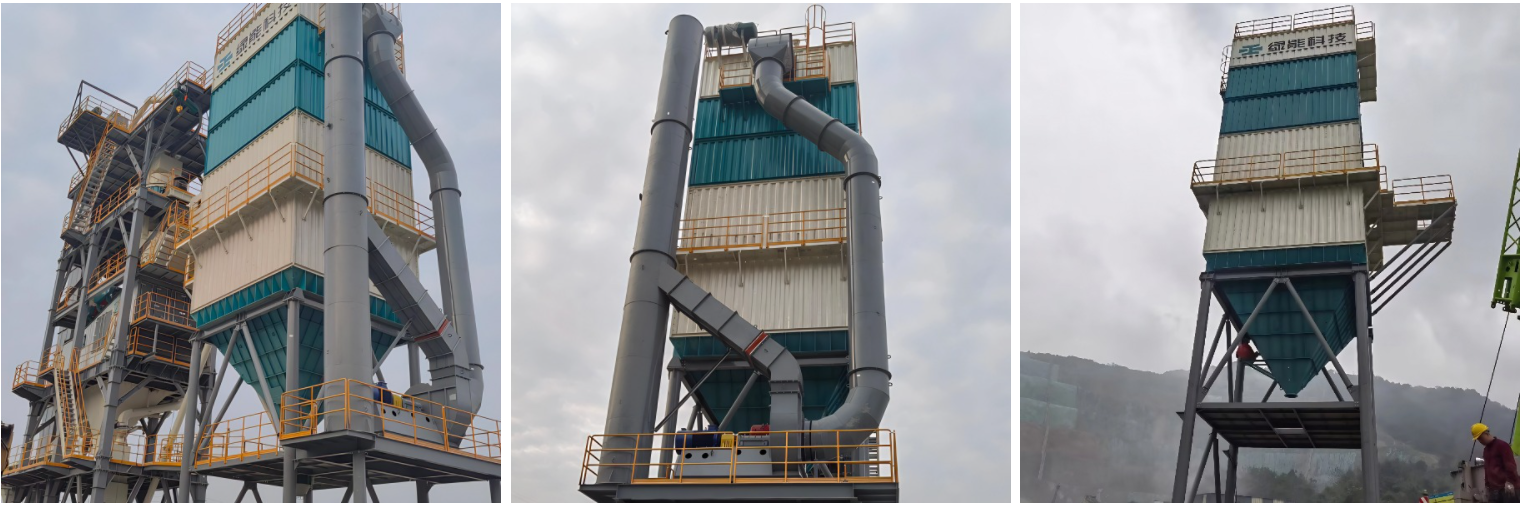

Ninon modular pulse jet dust collector
With high-efficiency dust purification, green environmental protection and low running noise, the modular baghouse dust collector adapts to complex working conditions in mining, building materials, mechanical processing and other industries.
Meanwhile, the upgraded modular pulse jet dust collector further optimizes structural stability and operational efficiency. The modular pulse jet dust collector integrates modular assembly advantages and pulse jet cleaning core technology to reduce equipment failure rates. Ninon modular pulse jet dust collector maintains efficient and stable dust removal performance in long-term industrial operation, becoming the preferred dust control equipment for diverse industrial production scenarios.
