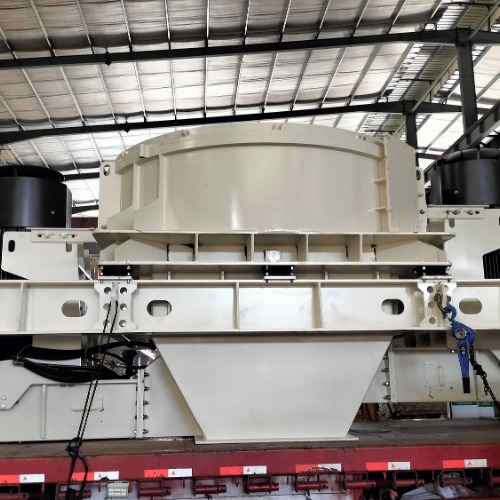

In the field of hard rock aggregate and ultra-fine manufactured sand processing, Ninon sand making machines deliver leading comprehensive performance in ultra-fine hard rock crushing with self-developed mature technologies, ideal for refined sand production of high-hardness stones such as granite and basalt.

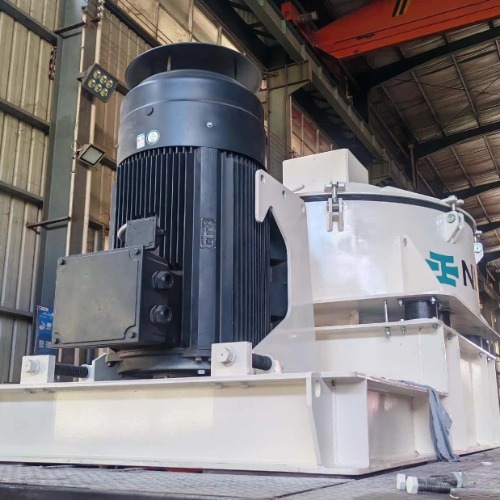

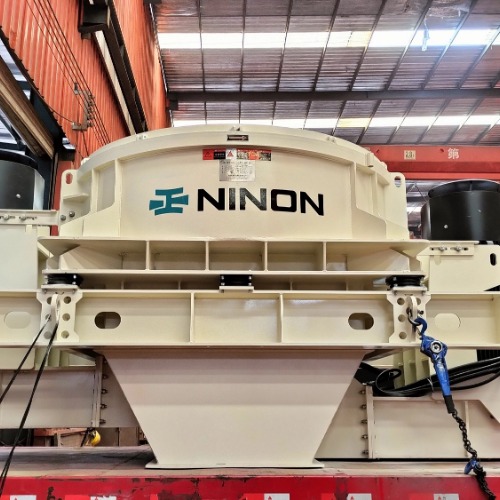

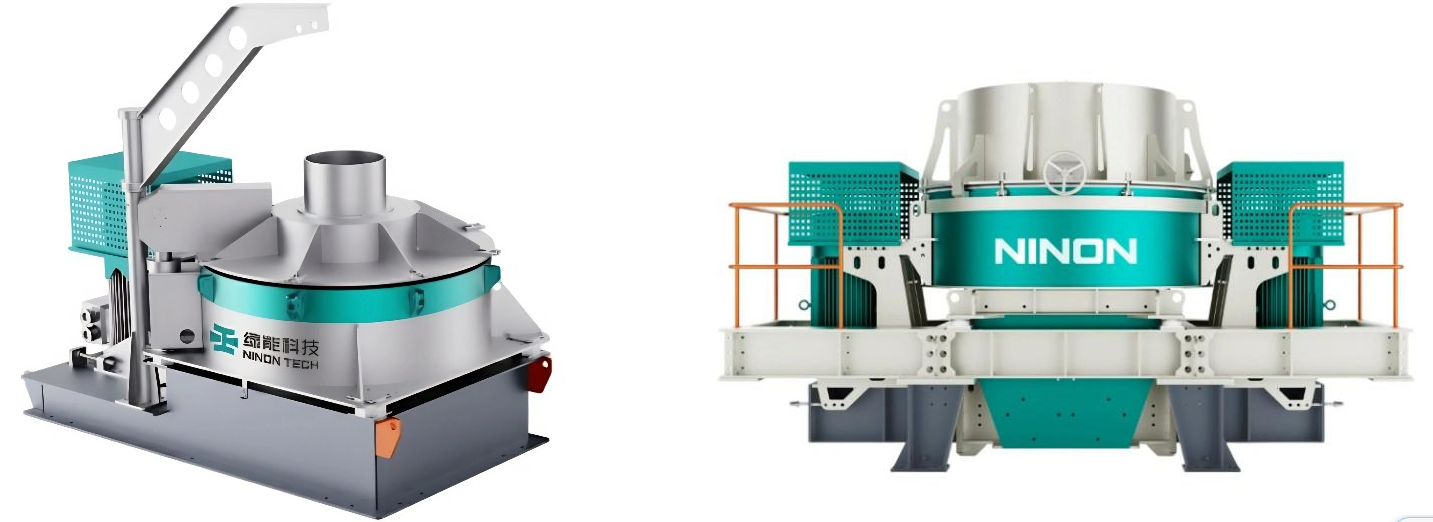

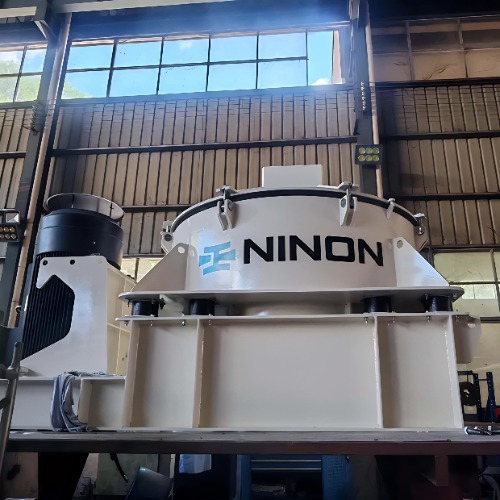

The machine body of this vsi sand making machine is fitted with 3 to 5 replaceable material throwing channels, which can be flexibly selected according to site working conditions of any aggregate shaping and sand making plant. Different rotors and crushing chambers can be matched correspondingly on this vertical shaft impact crusher to adapt to diverse production requirements of every sand making plant.

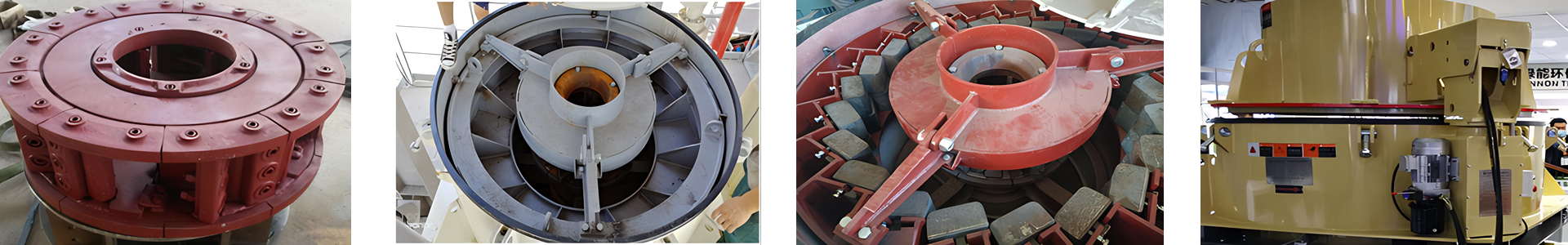

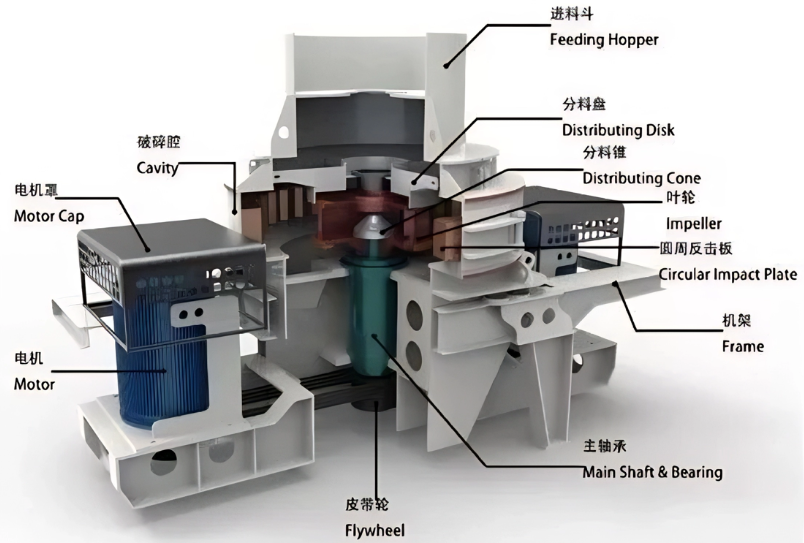

Crushing Chamber/ Rotor in Sand Making Machine
Core wear-resistant parts and rotor assemblies of the vsi sand making machine support personalized parameter adjustment to precisely meet varied raw material hardness and finished particle size standards for all aggregate shaping and sand making plant projects. Key components of the vertical shaft impact crusher adopt imported bearings, tungsten alloy, chromium alloy and other high wear-resistant materials, which greatly extend the service life of this sand making machine and reduce maintenance and replacement costs for every sand making plant operator.
This vsi sand making machine is equipped with an intelligent thin oil lubrication system that monitors oil flow, pressure, temperature and pipeline resistance in real time. It is built-in with safety protection against oil shortage and oil cut-off, and sends automatic reminders for oil deterioration and replacement, realizing unattended lubrication management for the whole aggregate shaping and sand making plant. The vertical shaft impact crusher features a hydraulically adjustable opening cover with self-correction function, together with digital online monitoring systems for vibration, current and motor temperature. This sand making machine will trigger automatic alarms and shut down once abnormal working conditions occur to avoid equipment damage to the whole sand making plant.
A full range of crushing chamber types are available for this vsi sand making machine, including stone-on-stone, stone-on-iron and adjustable-proportion stone-iron hybrid crushing modes, combined with central feeding and cascade feeding dual structures to fit coarse crushing and ultra-fine sand making processes of any aggregate shaping and sand making plant. This vertical shaft impact crusher boasts high output and low energy consumption, with a sand yield of 0.18–0.25 tons per kilowatt hour, making this sand making machine the cost-effective core unit of every sand making plant. Furthermore, the complete vsi sand making machine is integrated with an intelligent adaptive control system, which autonomously adjusts operating parameters based on real-time operating data to sustain stable and efficient production, helping all aggregate shaping and sand making plant operators improve quality, cut costs and raise overall productivity of their sand making plant.
