Model: LN-ZDS-1030S1

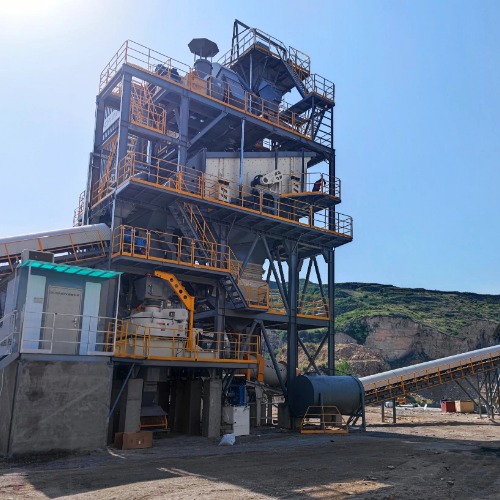

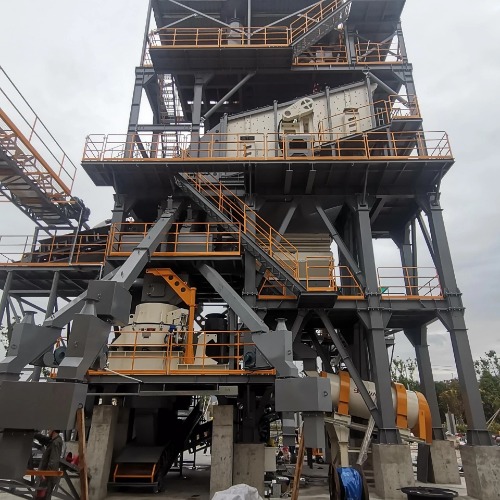

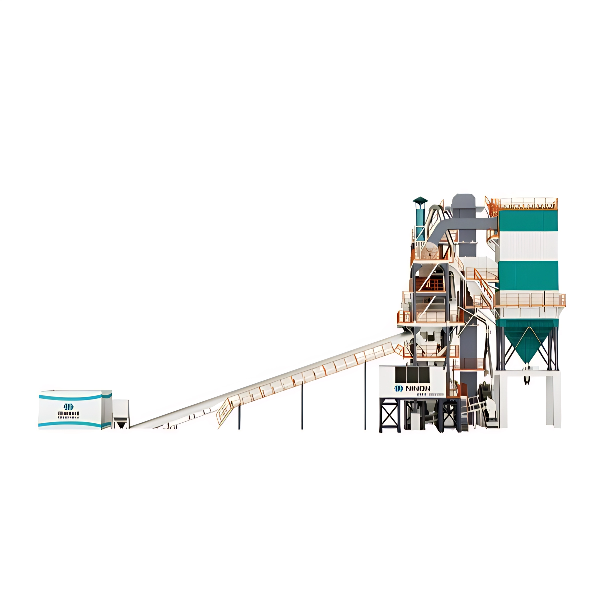

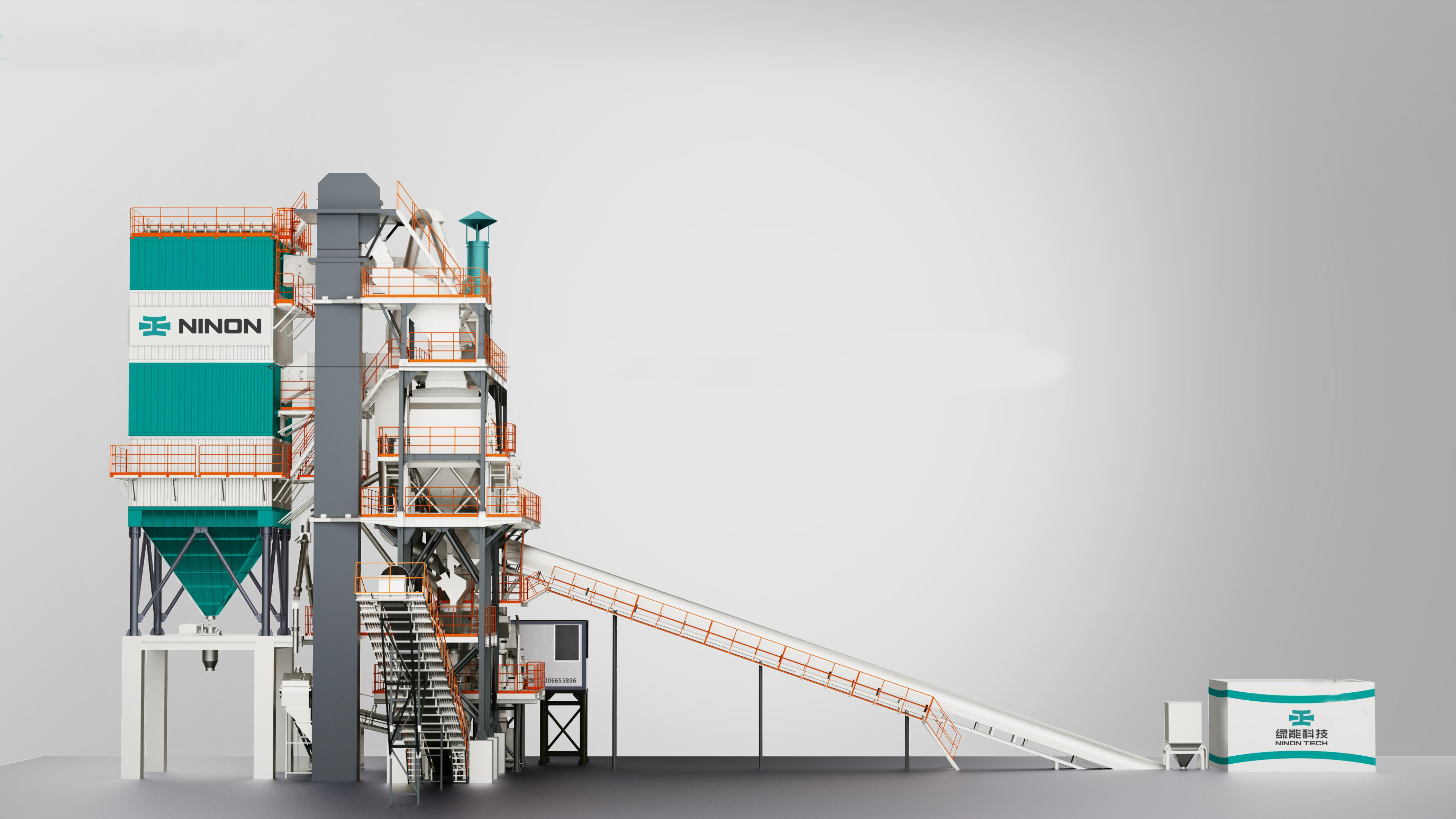

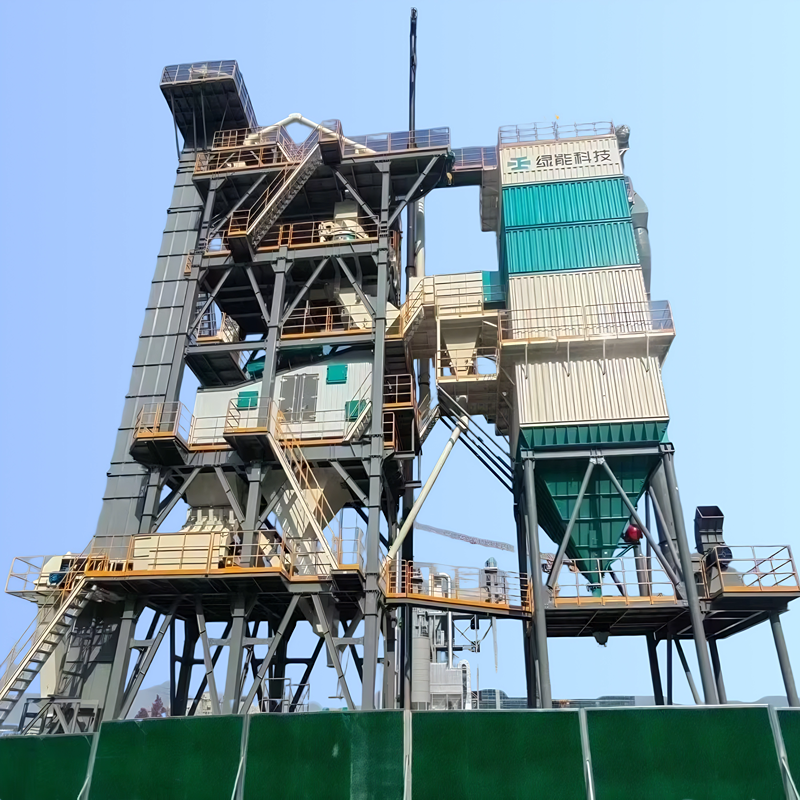

The Sand Crushing Sand Making Plant is a core piece of equipment for medium to large-scale aggregate production lines. It is suitable for crushing and screening hard rocks such as granite and basalt, as well as medium-hard materials like limestone and river pebbles. With a maximum feed capacity of 100 t/h and a total power of 670 kW, the system adopts a multi-stage crushing and shaping process that increases the finished product yield by over 20%.

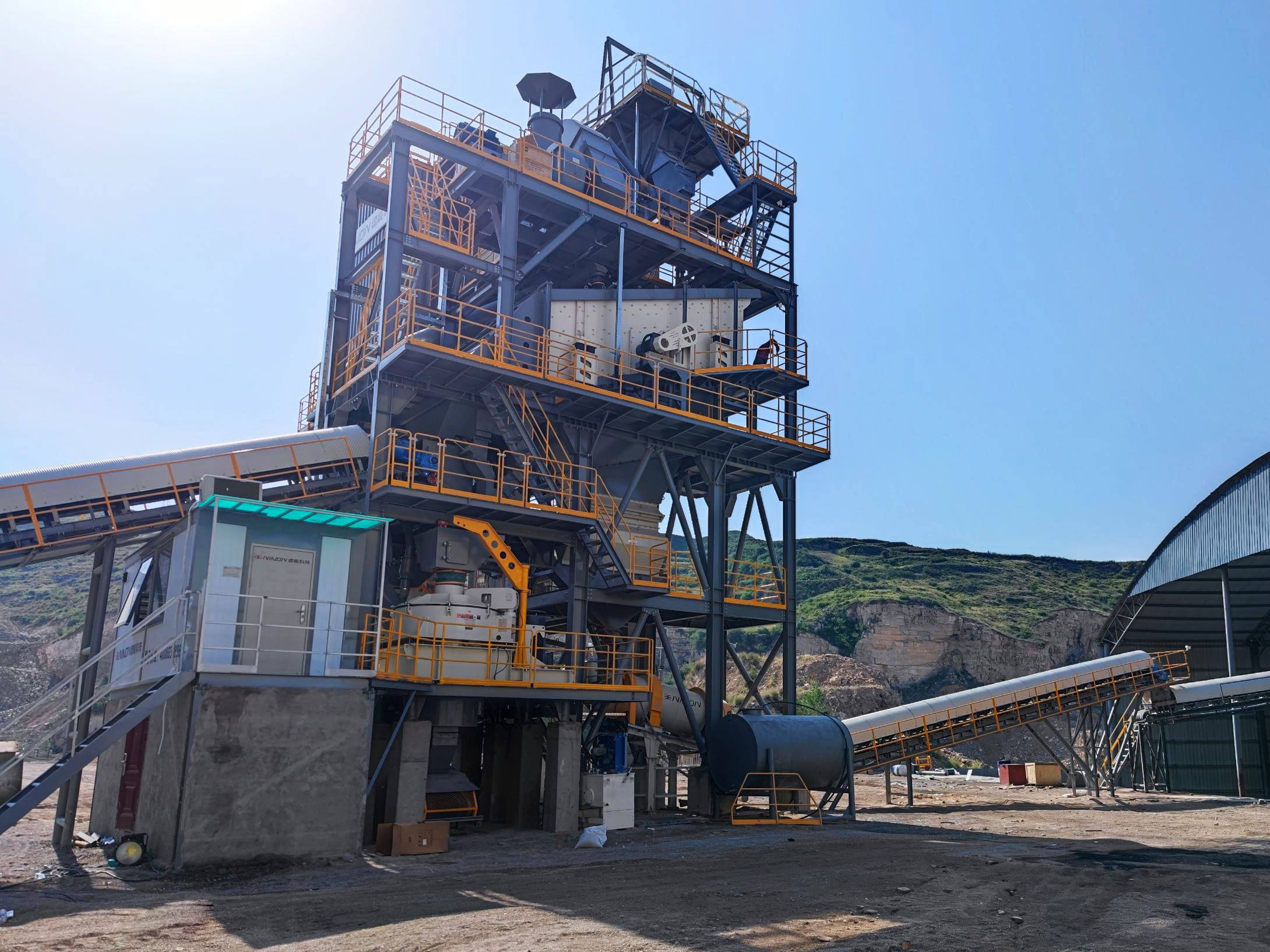

The LN-ZDS-1030S1 sand crushing plant adopts a multi-stage crushing and shaping system, significantly enhancing particle quality. As a core artificial sand maufacturing machine, it ensures consistent size and shape for construction-grade aggregates.
2.High Output & Energy Optimization With a 100 t/h feed capacity and 670 kW total power, this sand crushing plant is built for large-scale operations. It delivers high throughput while optimizing energy usage across its artificial sand maufacturing machine and auxiliary equipment.
3.Versatile Material Compatibility Designed to process hard rocks like granite and basalt, as well as softer materials like limestone and river pebbles, this offers flexible application in various geological settings.
4.Integrated Sand Washer Machine System The plant is often paired with a high-efficiency sand washer machine to ensure clean, high-quality manufactured sand. This combination boosts the overall performance of the sand crushing plant by removing fine impurities and clay content.
5.Superior Finished Product Yield Compared to conventional setups, this sand crushing plant improves finished product output by over 20%. Each artificial sand maufacturing machine within the system contributes to higher efficiency, better gradation, and minimal over-crushing.
Modular Design for Easy Maintenance The system allows easy integration of sand washer machines and screening modules, making the LN-ZDS-1030S1 a fully adaptable artificial sand maufacturing machine setup for evolving production needs.
Specification
Model
LN-ZDS-1030S1
Equipment Power (Kw)
670
Maximum Feed Rate (t/h)
100
Output (10% Powder 0-5mm)(t/h)
75-85
Feed Particle Size
5-40
Remarks
Single-machine Sand Making
Applicable Materials
Mode of Sand Making and Aggregate Shaping

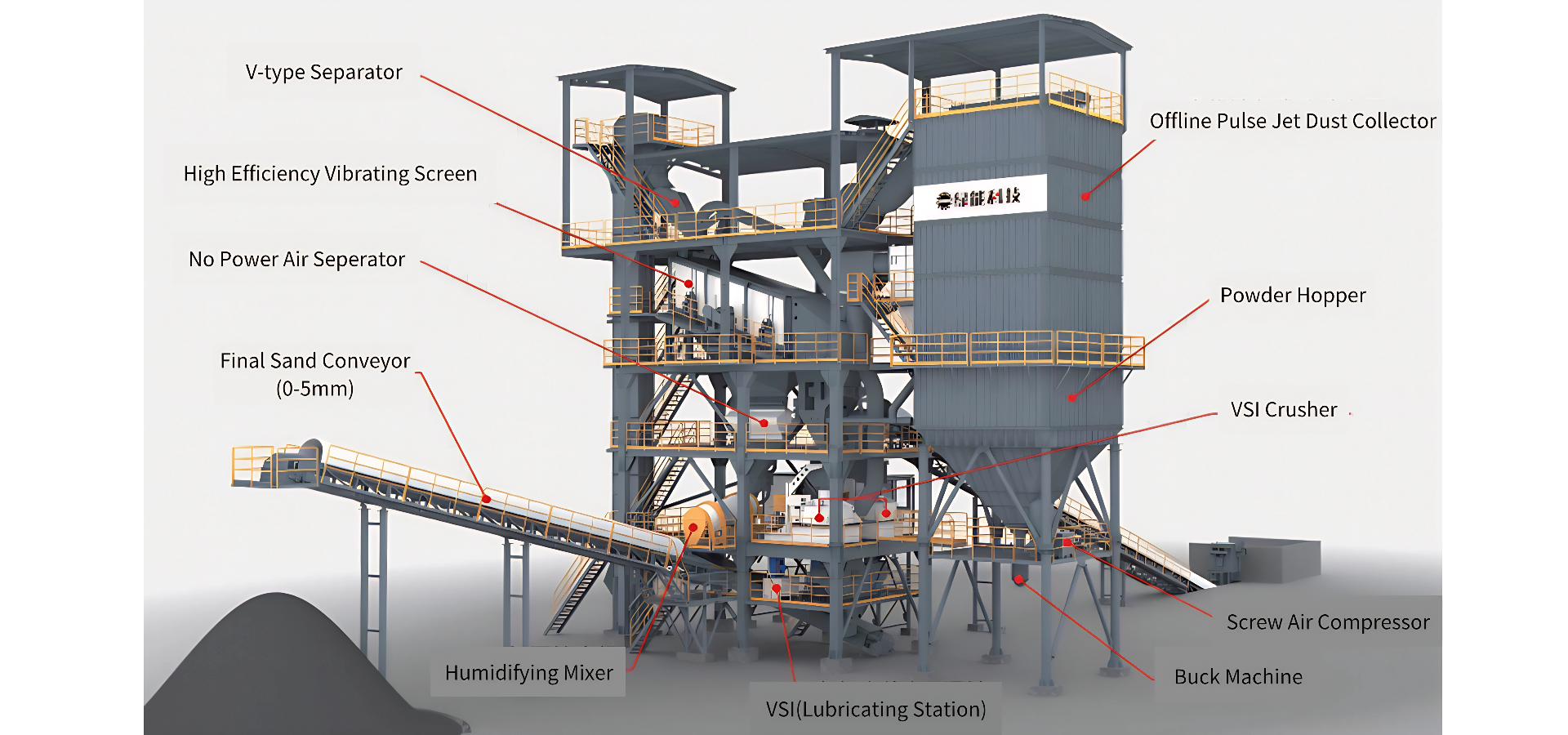

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

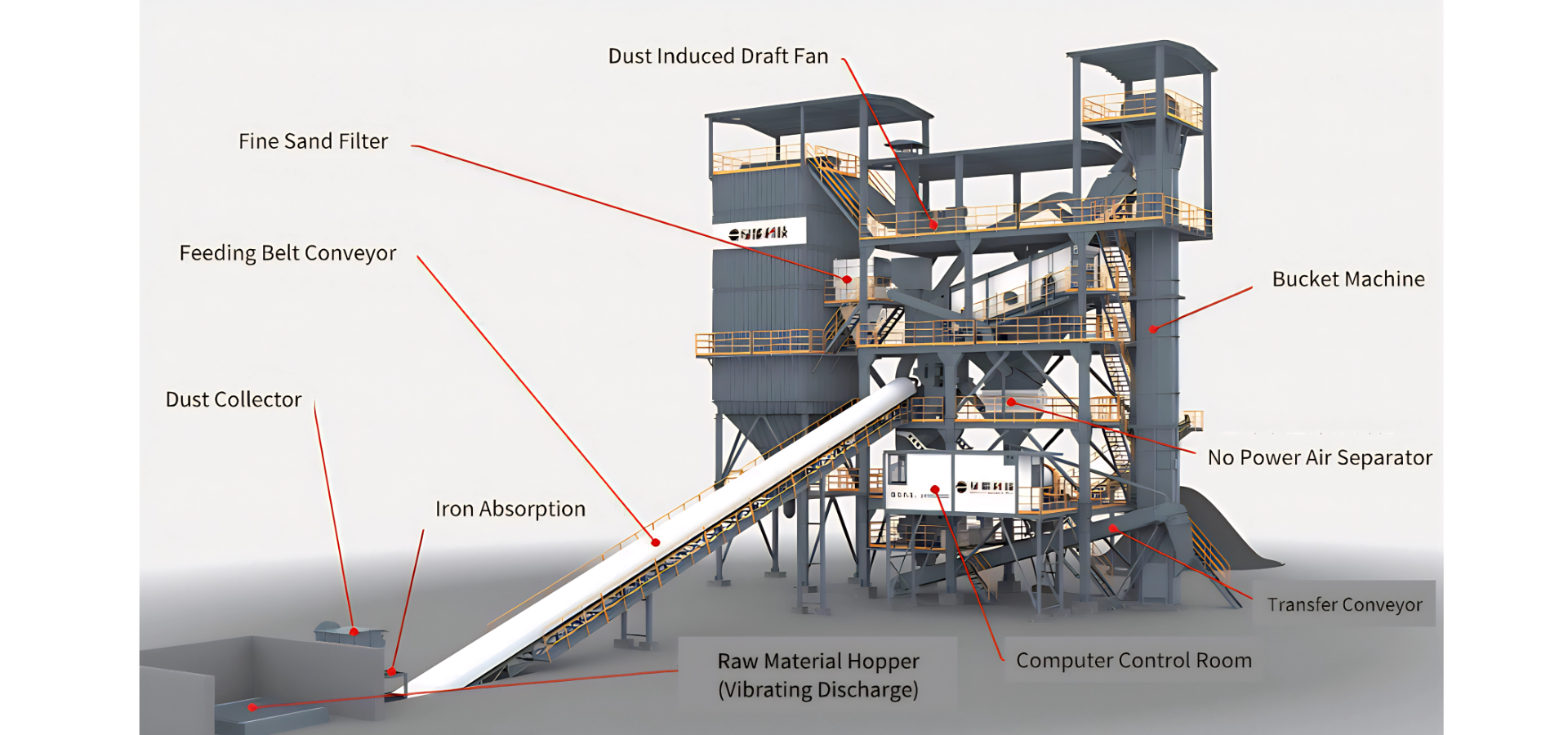

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

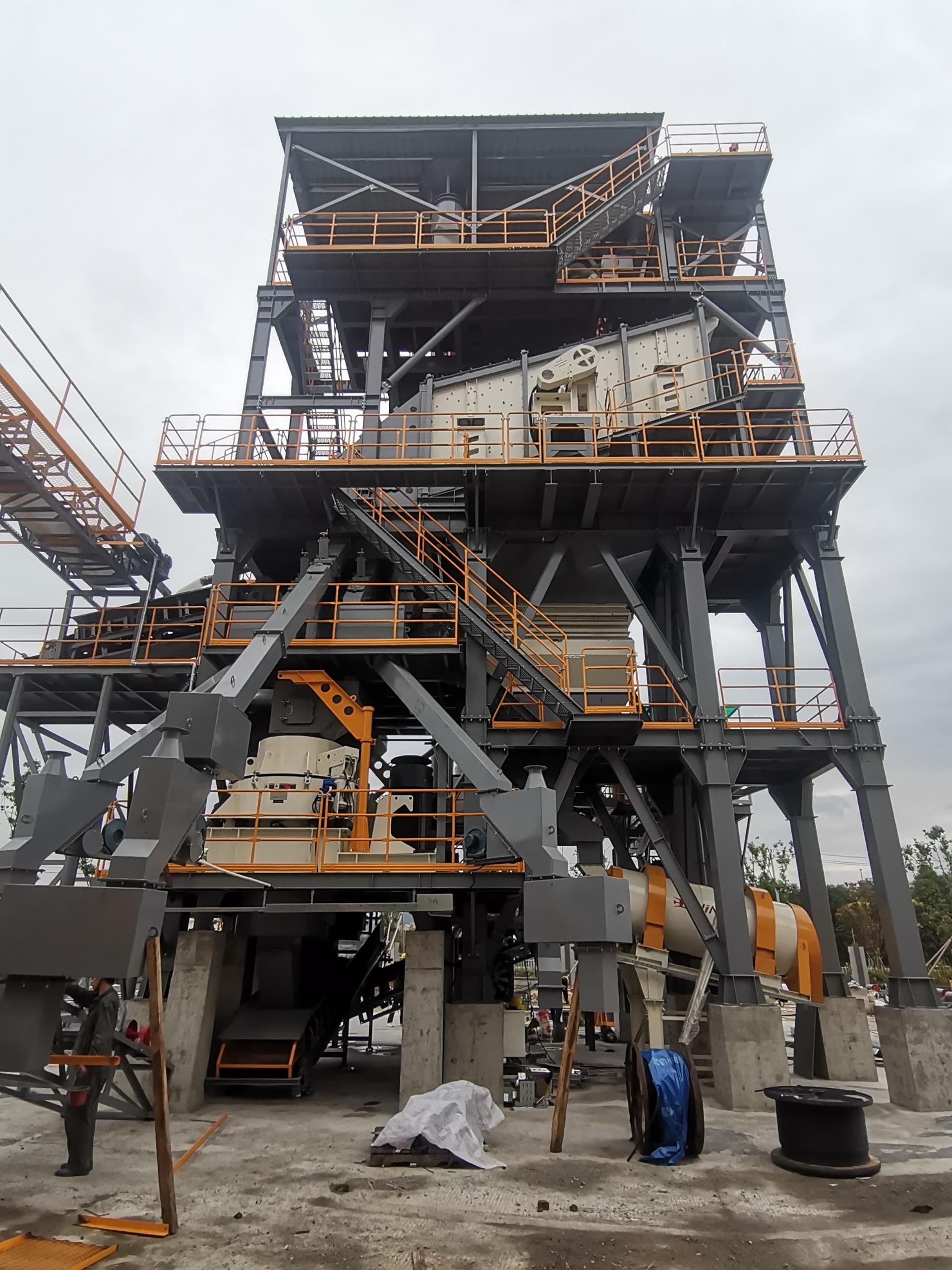

Video of the layout and construction process of Ninon's sand making plant

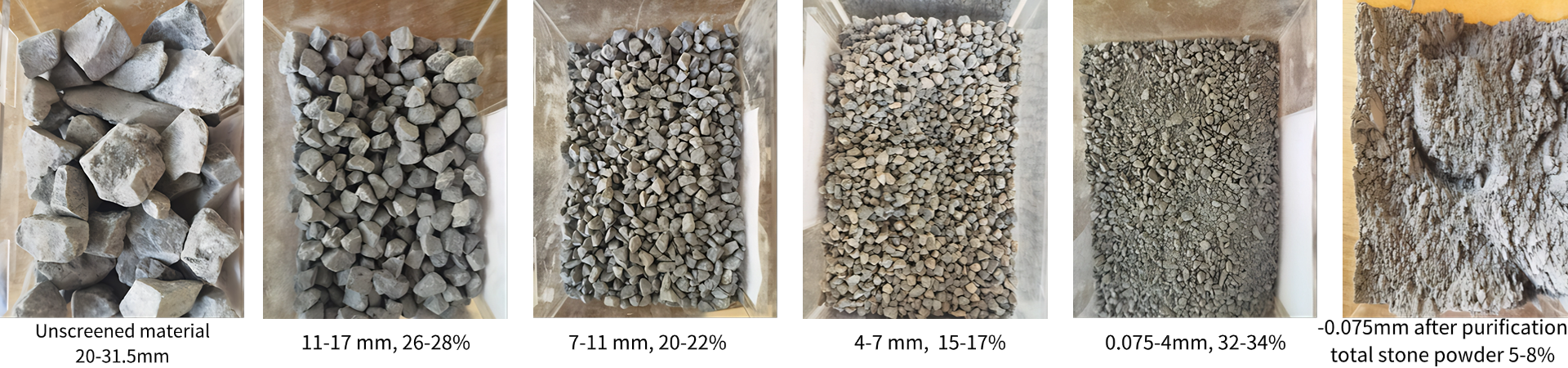

Final Sand Sample
Asphalt Concrete Aggregate
Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

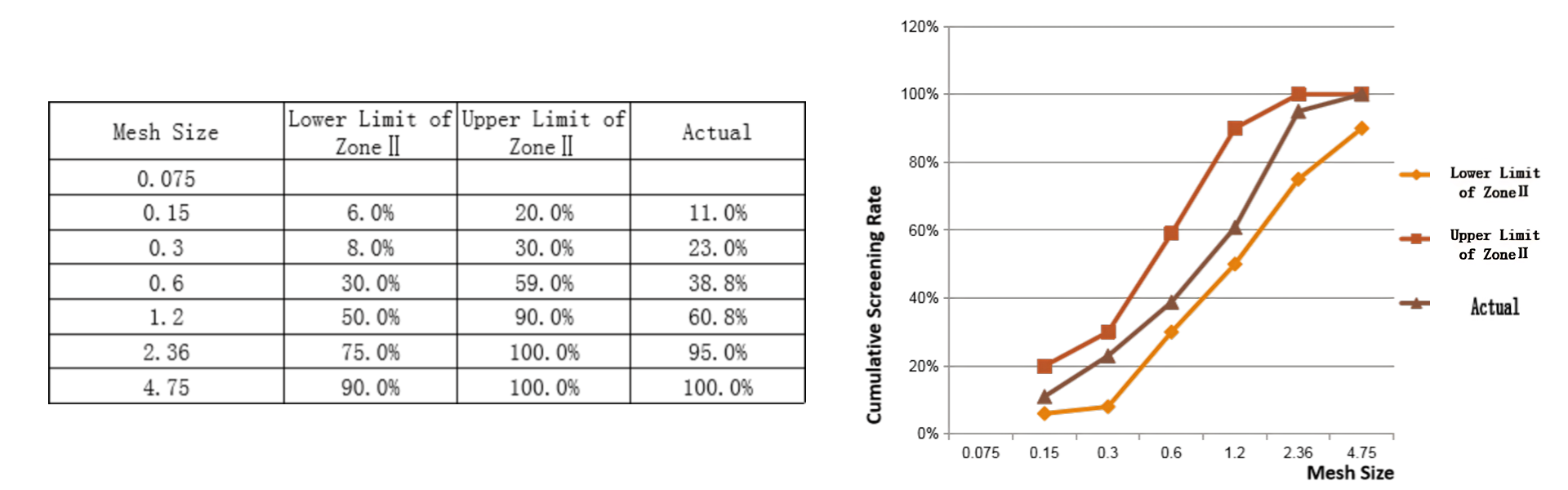

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration

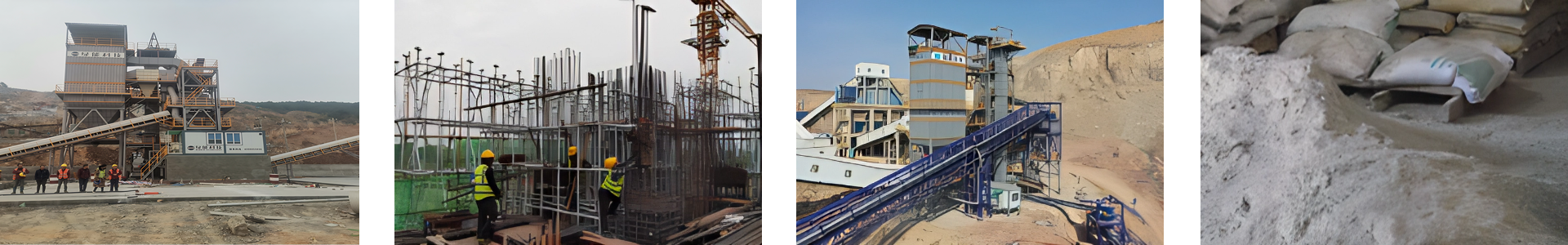

1.Highway and Expressway Construction
The LN-ZDS-1030S1 sand crushing plant provides durable, angular manufactured sand essential for sub-base layers and asphalt mixes. With its integrated artificial sand maufacturing machine and sand washer machine, it ensures high-quality material for long-lasting road infrastructure.
2.Commercial Concrete and Precast Plants This sand making plant is widely used in producing fine aggregates for ready-mix concrete and precast products. The sand crushing plant works in tandem with a sand washer machine to produce clean, well-graded sand, improving concrete strength and workability.
3.Hydropower and Dam Engineering In hydropower construction, the artificial sand manufacturing machine processes hard stones like granite and basalt into reliable aggregates, while the sand washer machine ensures the materials meet strict cleanliness standards required for high-performance concrete.
4.Urban Development and Real Estate Projects The LN-ZDS-1030S1 sand crushing plant supplies high-quality manufactured sand used in brick-making, plastering, and masonry work. The artificial sand maufacturing machine is a sustainable alternative to river sand, and the sand washer machine enhances sand purity for aesthetic and structural applications.
5.Mining Waste Recycling and Resource Recovery In mining and quarrying operations, this sand crushing plant repurposes waste rock and tailings into valuable sand products. Paired with a sand washer machine, the artificial sand maufacturing machine transforms discarded materials into usable construction aggregates, promoting environmental sustainability.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
