Model: LN-ZDS-1545S1

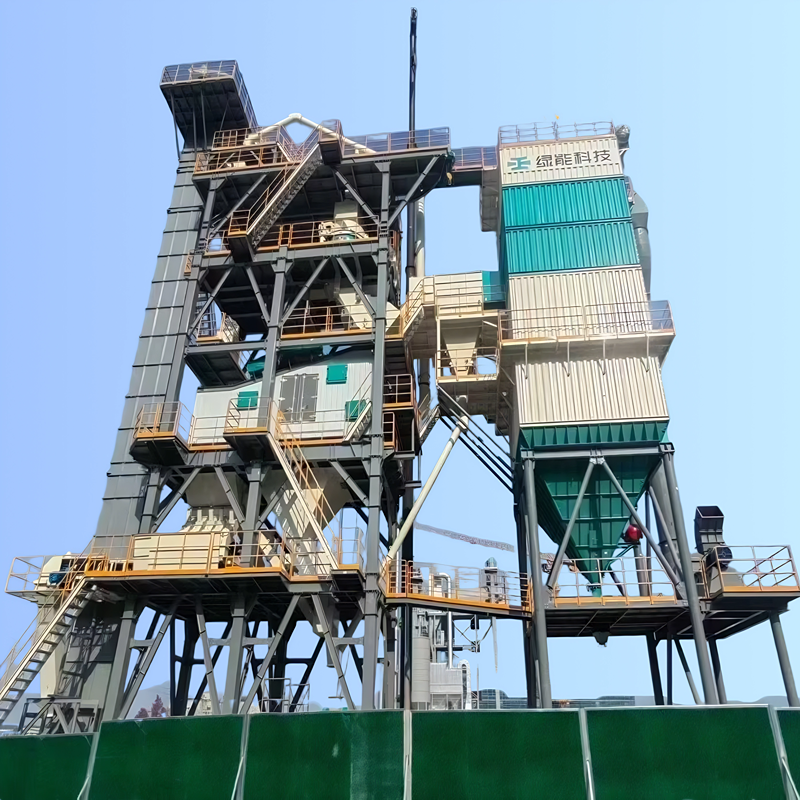

The Manufactured Sand Making Plant is a fully integrated system designed for high-efficiency sand and gravel aggregate production, widely used in infrastructure projects such as highways, railways, water conservancy, and construction. The artificial sand processing equipment adopts a multi-stage crushing system that integrates advanced impact and jaw crushing technologies. It processes feed sizes of 5–40 mm into well-shaped 0–5 mm fine sand, with an output of 120–140 t/h (10% fines), meeting the demands of large-scale aggregate production with a single sand-making unit.
1.Multi-Stage Sand Making Machine Design The LN-ZDS-1545S1 manufactured sand crushing plant integrates sand making machine technology with a multi-stage crushing and screening system. This design optimizes material processing, ensuring that feed sizes of 5–40 mm are efficiently transformed into high-quality, well-shaped 0–5 mm manufactured sand.
2.High-Efficiency Artificial Sand Processing Equipment This plant is equipped with advanced tower type sand making plant that ensures high throughput while minimizing energy consumption. The system processes large volumes of material, providing an output of 120–140 t/h, making it ideal for large-scale construction projects.
3.Integrated Crushing, Sand Making, and Screening The LN-ZDS-1545S1 manufactured sand crushing plant combines crushing, sand making, and screening functions within a single unit, optimizing space and reducing equipment costs. The integration of tower type sand making plant enables smoother material flow and consistent product quality.
4.Advanced Impact and Jaw Crushing Technologies The LN-ZDS-1545S1 sand making machine adopts impact and jaw crushing technologies that enhance the efficiency of the manufactured sand crushing plant. This combination ensures high crushing performance with reduced wear and tear, resulting in lower maintenance costs and extended equipment life.
5.High-Quality Manufactured Sand Production The system's tower type sand making plant ensures the production of clean, uniform sand that meets industry standards for concrete, asphalt, and other construction materials. The sand produced is well-shaped, with minimal fines, ideal for applications requiring high-strength aggregates.
6.Compact and Efficient Design The LN-ZDS-1545S1 sand making machine is designed for high efficiency in a compact layout, combining crushing, sand-making, screening, and conveying into a single, streamlined system. This minimizes operational space and simplifies the overall process for users.
Specifications
Model
LN-ZDS-1545S1
Equipment Power (Kw)
1000
Maximum Feed Size (t/h)
165
Output (10% Powder 0-5mm)(t/h)
120-140
Feed Particle Size
5-40
Remarks
Single-machine Sand Making

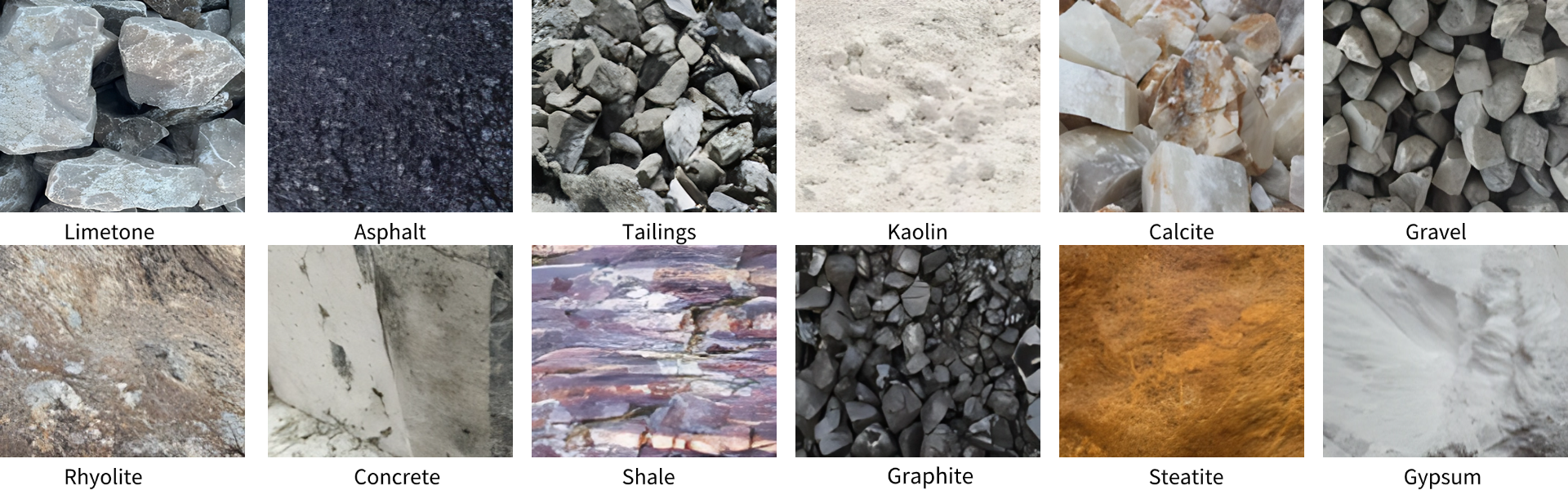

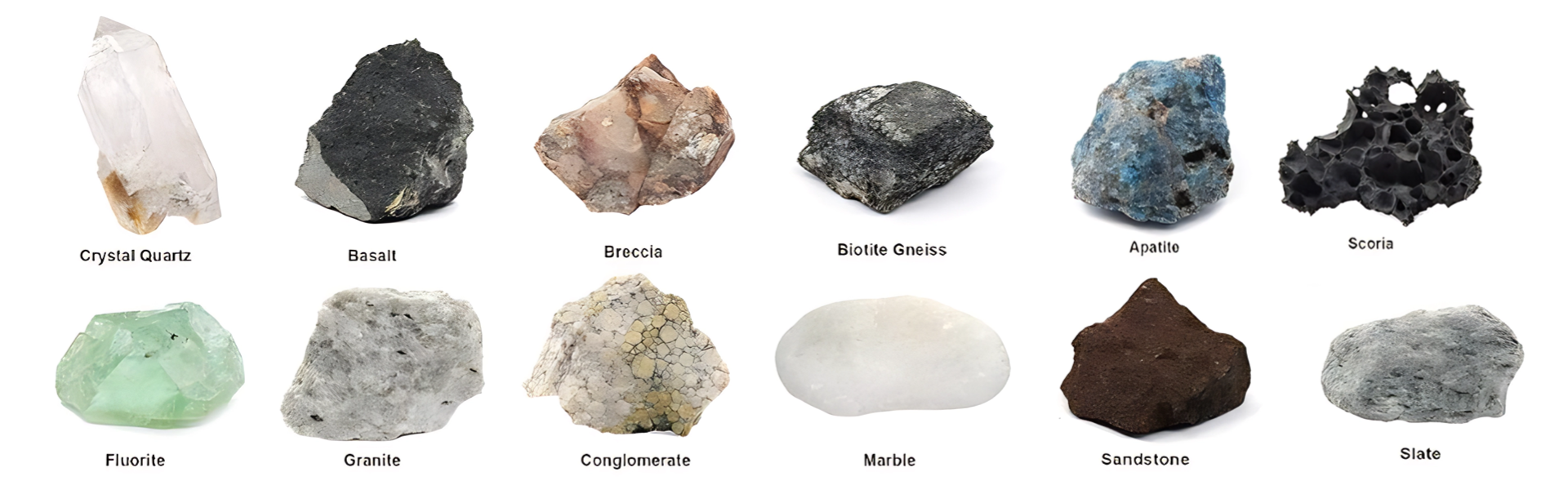

Applicable Materials
Mode of Sand Making and Aggregate Shaping

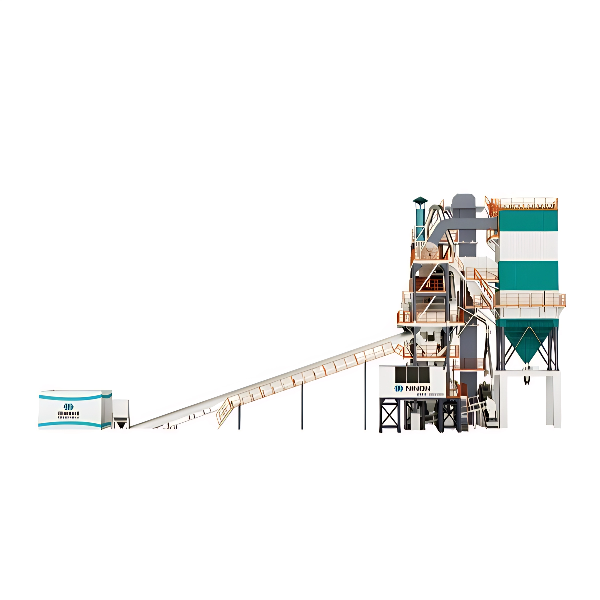

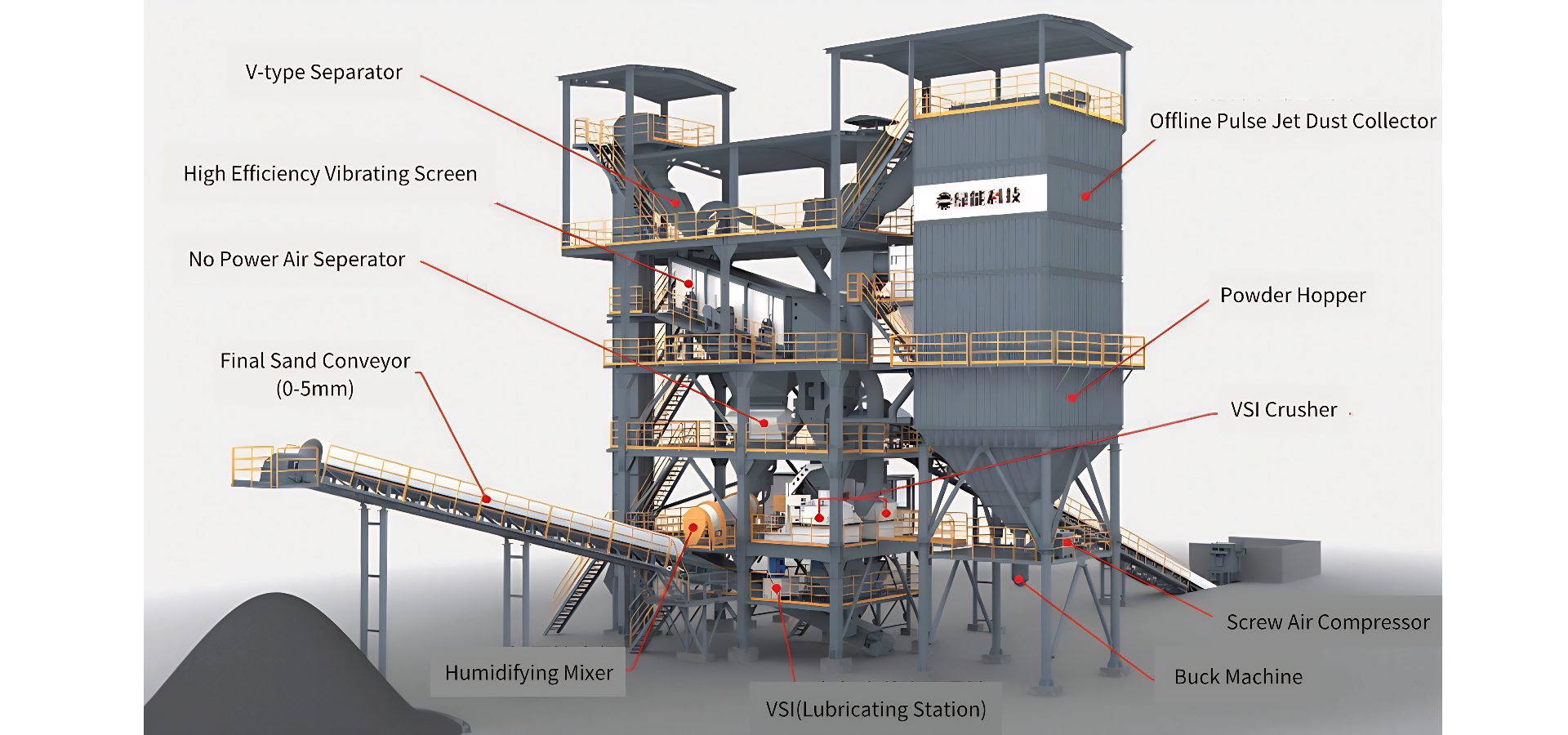

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

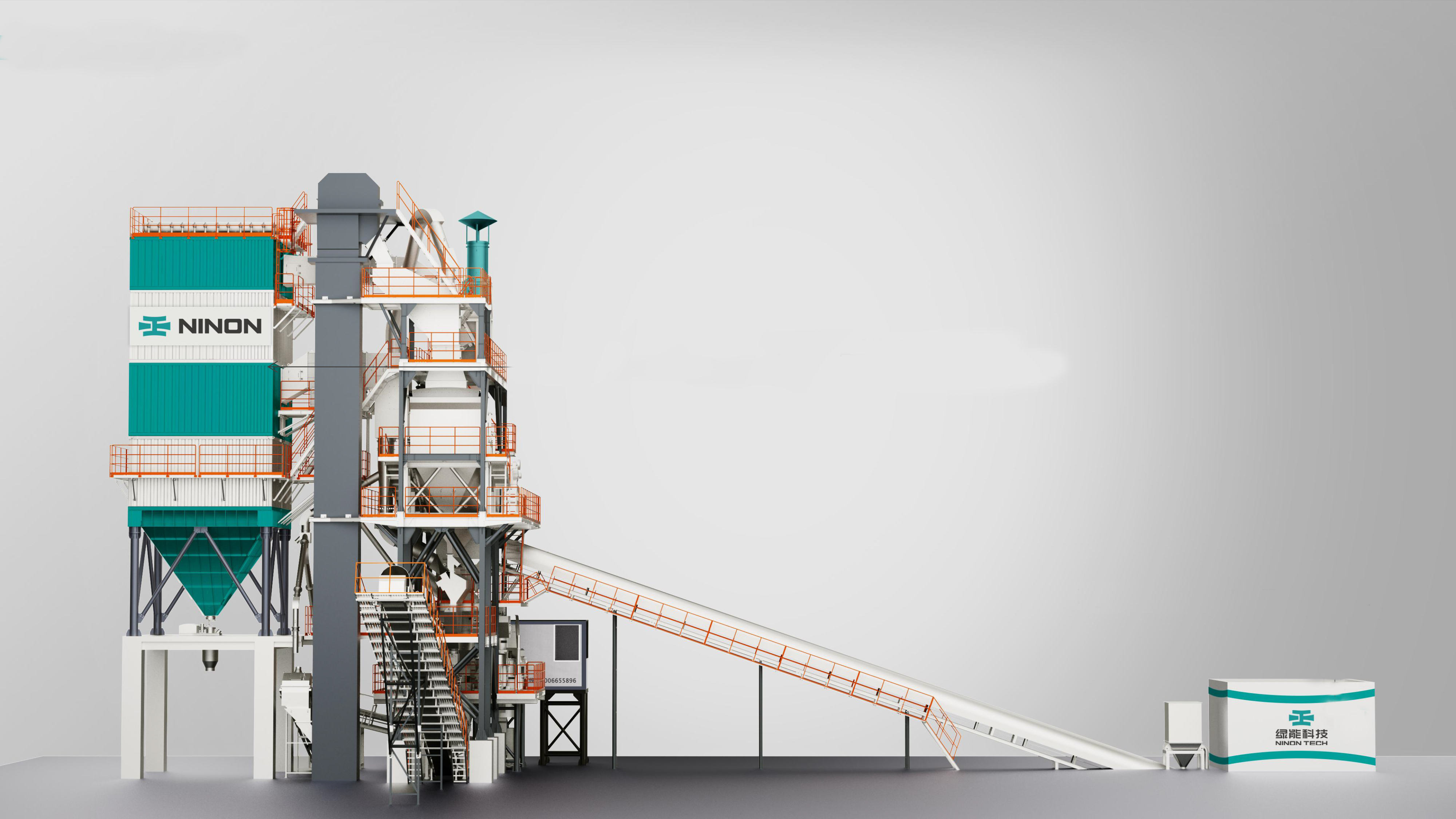

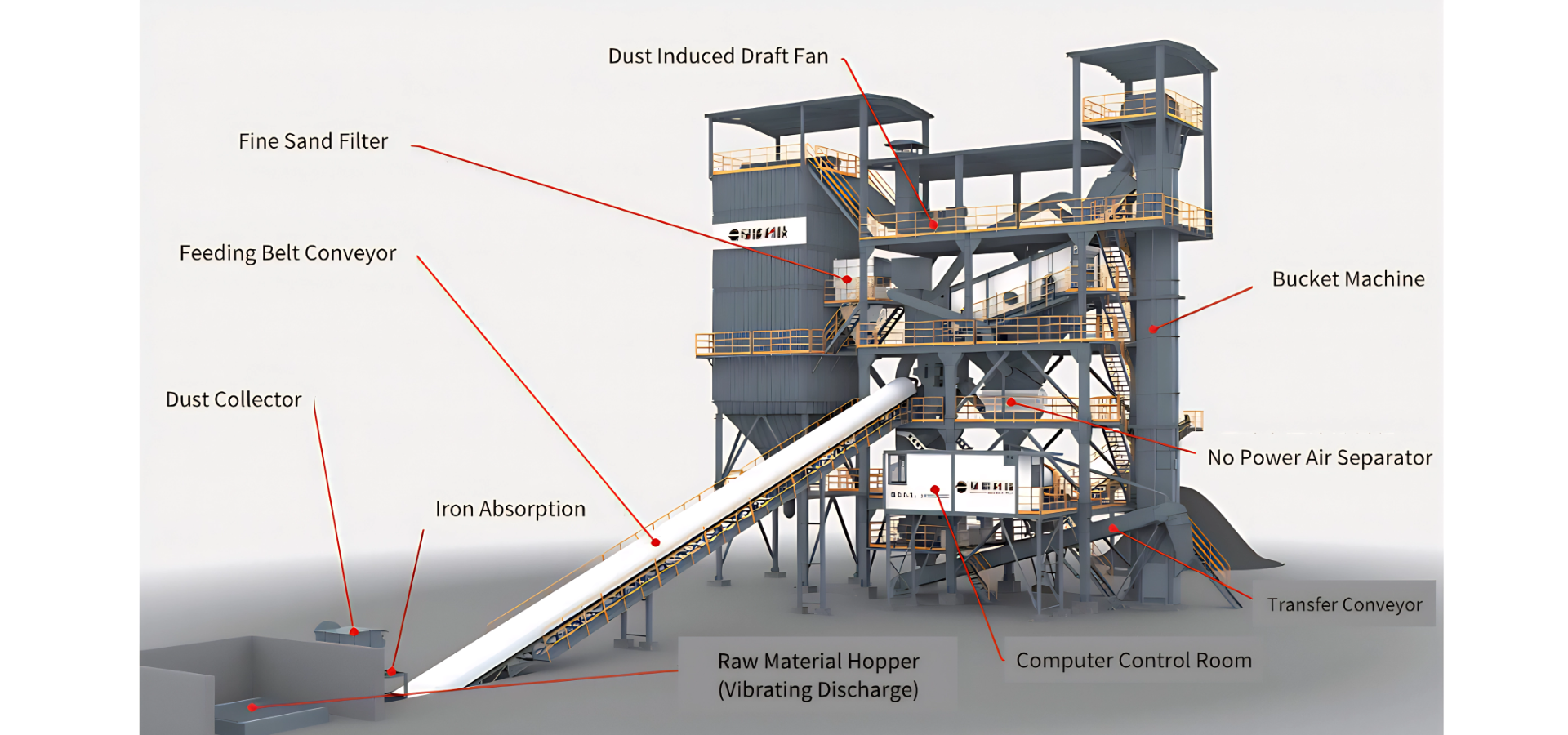

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant

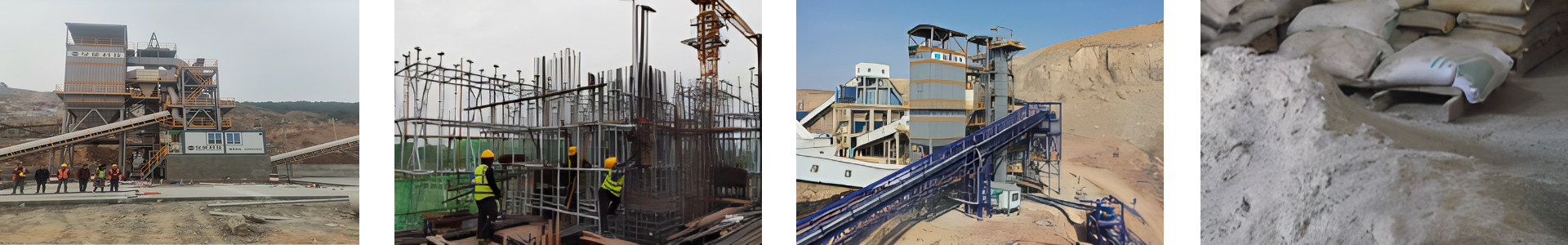

Video of the layout and construction process of Ninon's sand making machine

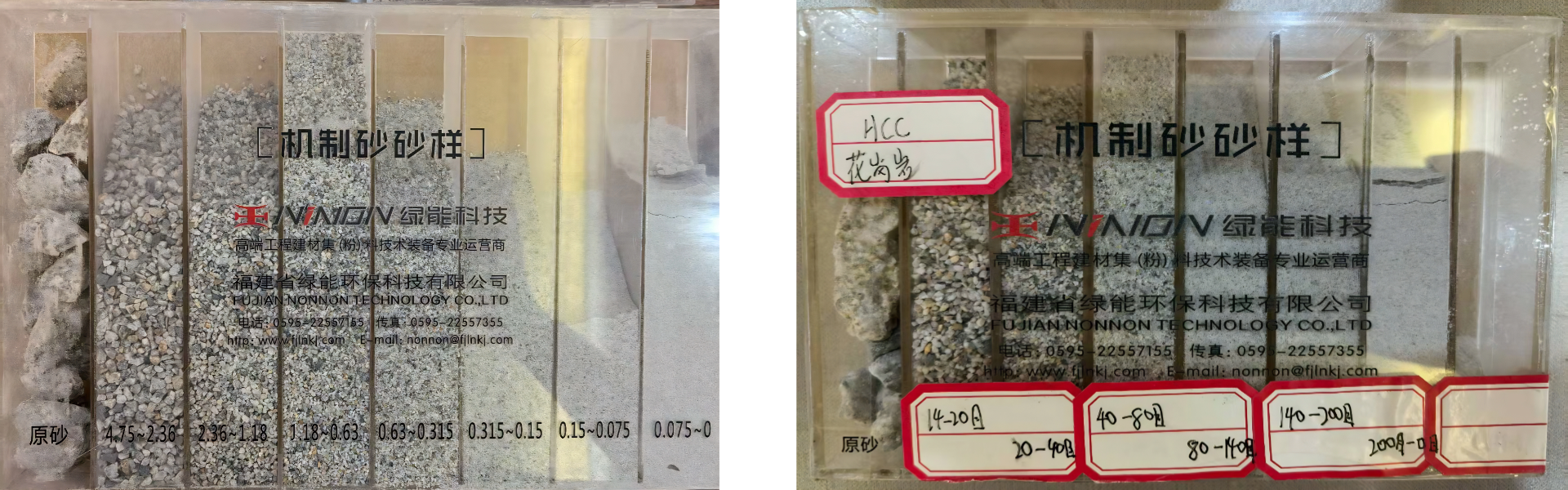

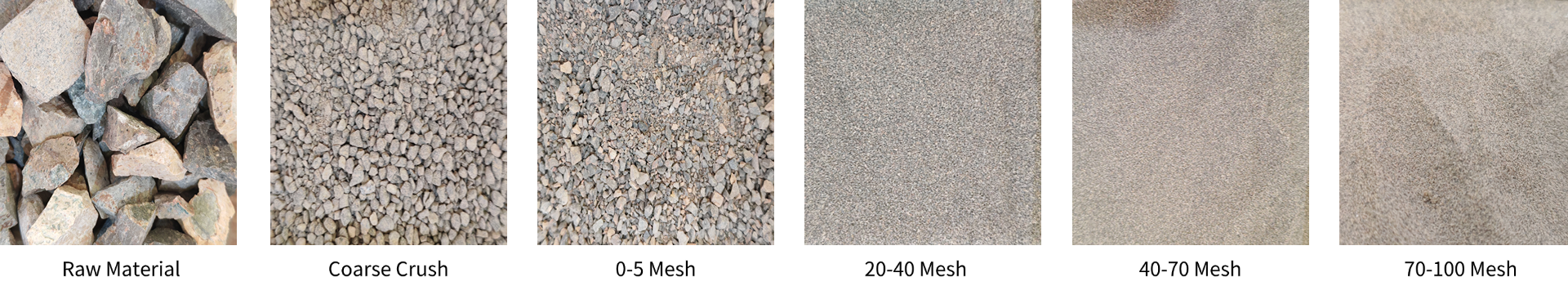

Final Sand Sample
Asphalt Concrete Aggregate
Limestone Aggregate
RAP Aggregate

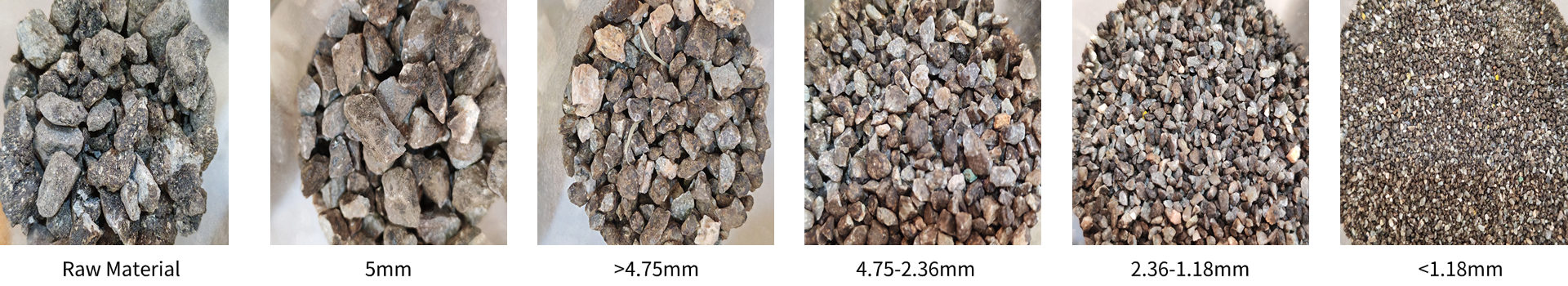

Technical Data on Aggregate Shaping and Sand Production

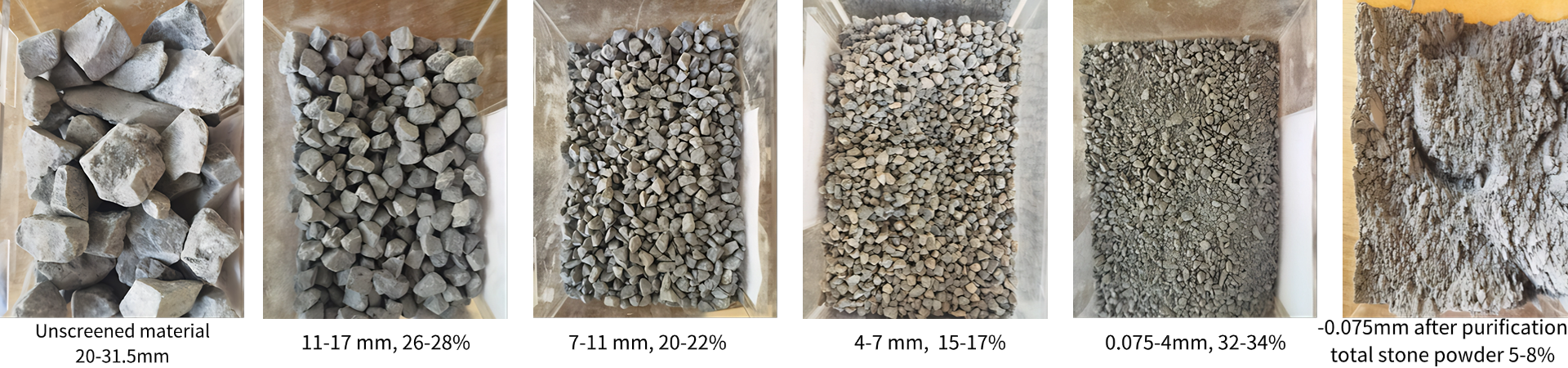

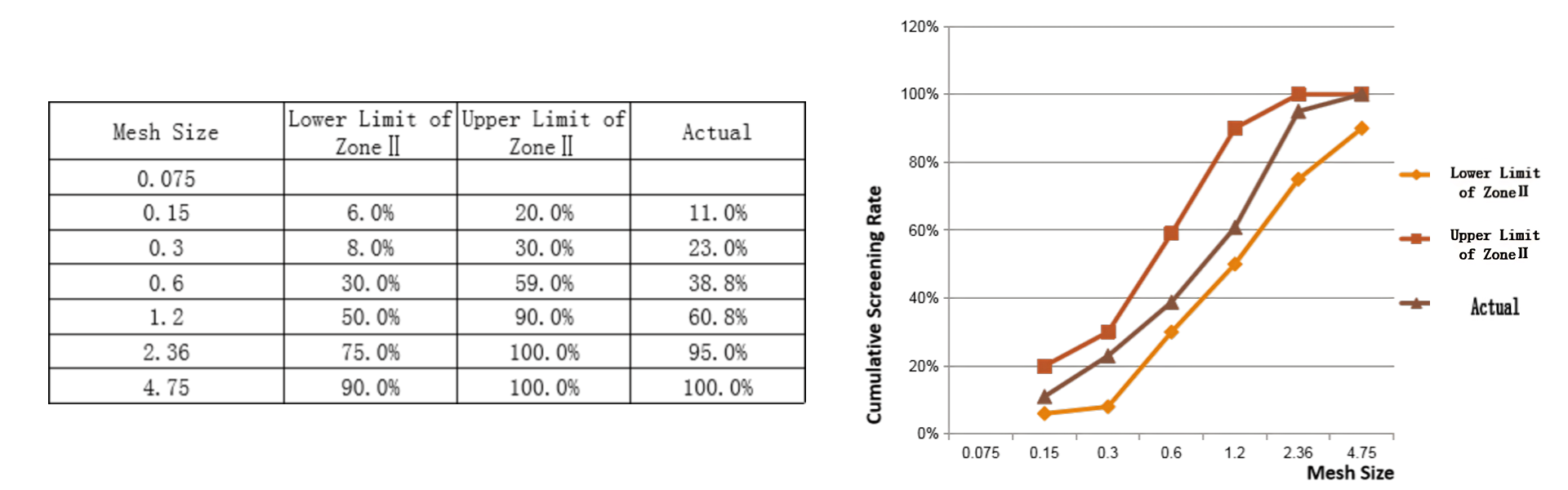

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)
Range of Configuration
1.Highway and Expressway Engineering
The LN-ZDS-1545S1 manufactured sand crushing plant is widely used in road construction projects. Its integrated sand making machine produces high-quality fine aggregates ideal for asphalt mixes and road base layers. The use of advanced artificial sand processing equipment ensures that the final product meets strict road construction standards.
2.Urban Infrastructure and Real Estate Development In large-scale urban projects, the tower type sand making plant provides a reliable source of consistent, clean manufactured sand for concrete, plaster, and brickwork. With the help of high-performance artificial sand processing equipment, the sand making machine ensures low-fines, high-strength sand for residential and commercial construction.
3.Railway and Bridge Construction The LN-ZDS-1545S1 manufactured sand crushing plant supports projects requiring robust, load-bearing structures. Its sand making machine and associated tower type sand making plant produce angular, well-graded aggregates needed for concrete beams, sleepers, and support columns in railway and bridge building.
4.Water Conservancy and Hydropower Projects Hydropower stations and dam projects rely on high-quality, clean sand for concrete. The LN-ZDS-1545S1 tower type sand making plant uses precision-driven artificial sand processing equipment to deliver fine aggregates free from impurities, suitable for water-resistant and high-strength concrete applications.
5.Mining Rehabilitation and Aggregate Recycling In mining and quarry rehabilitation, the plant acts as a recycling solution—processing leftover rock and tailings into usable construction-grade sand. The integrated sand making machine and artificial sand processing equipment allow for eco-friendly repurposing of waste materials, supporting green construction initiatives.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
