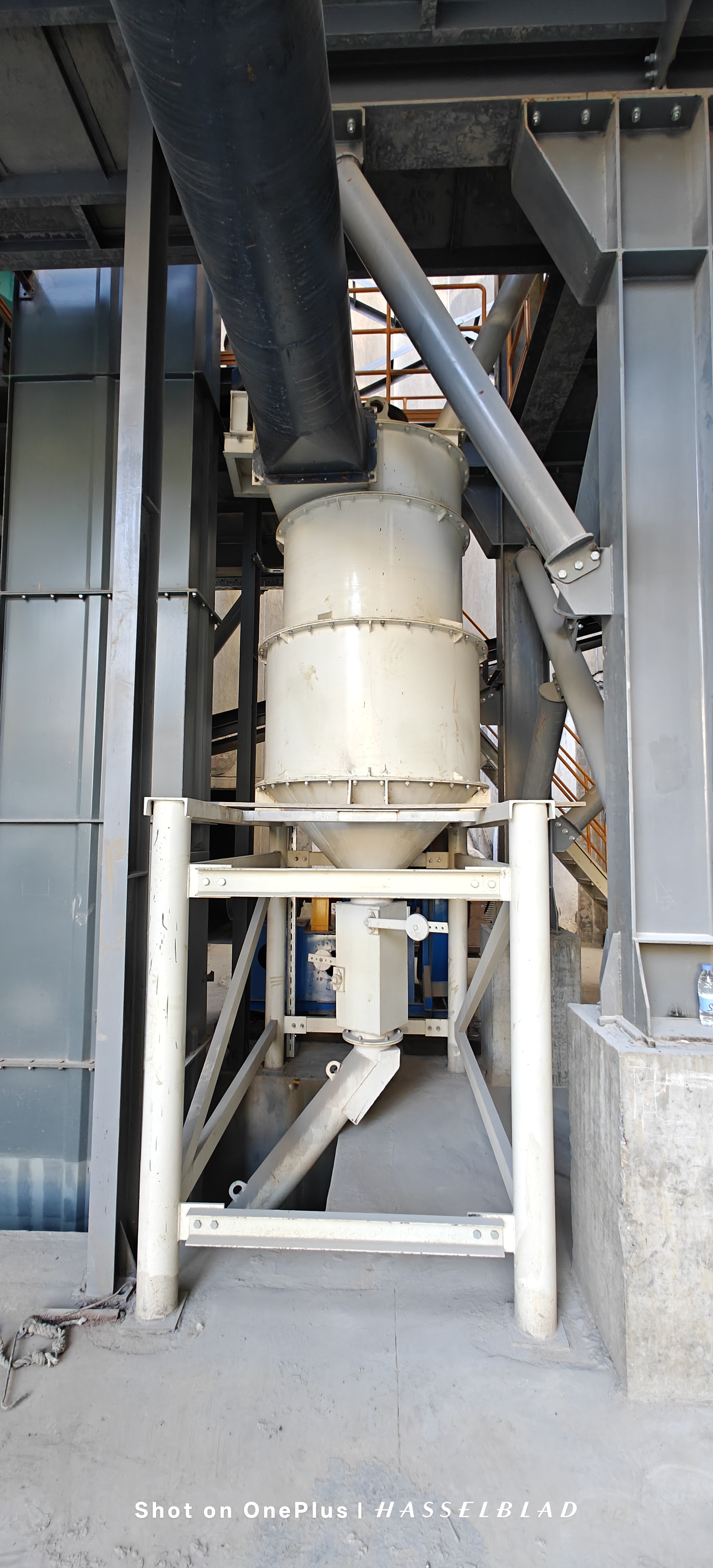

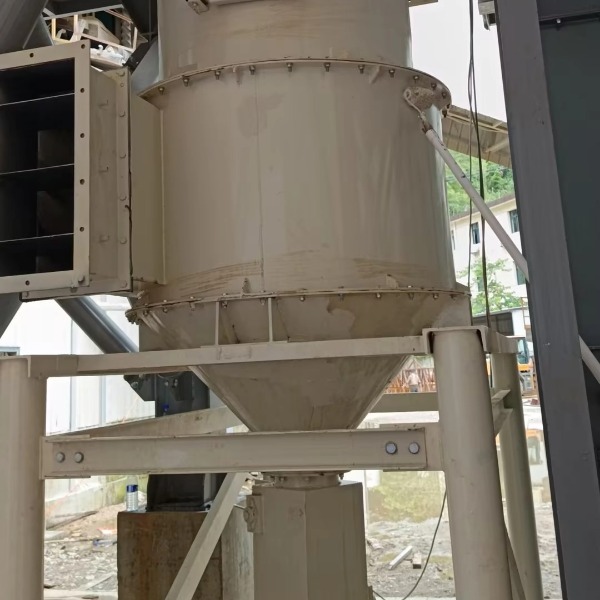

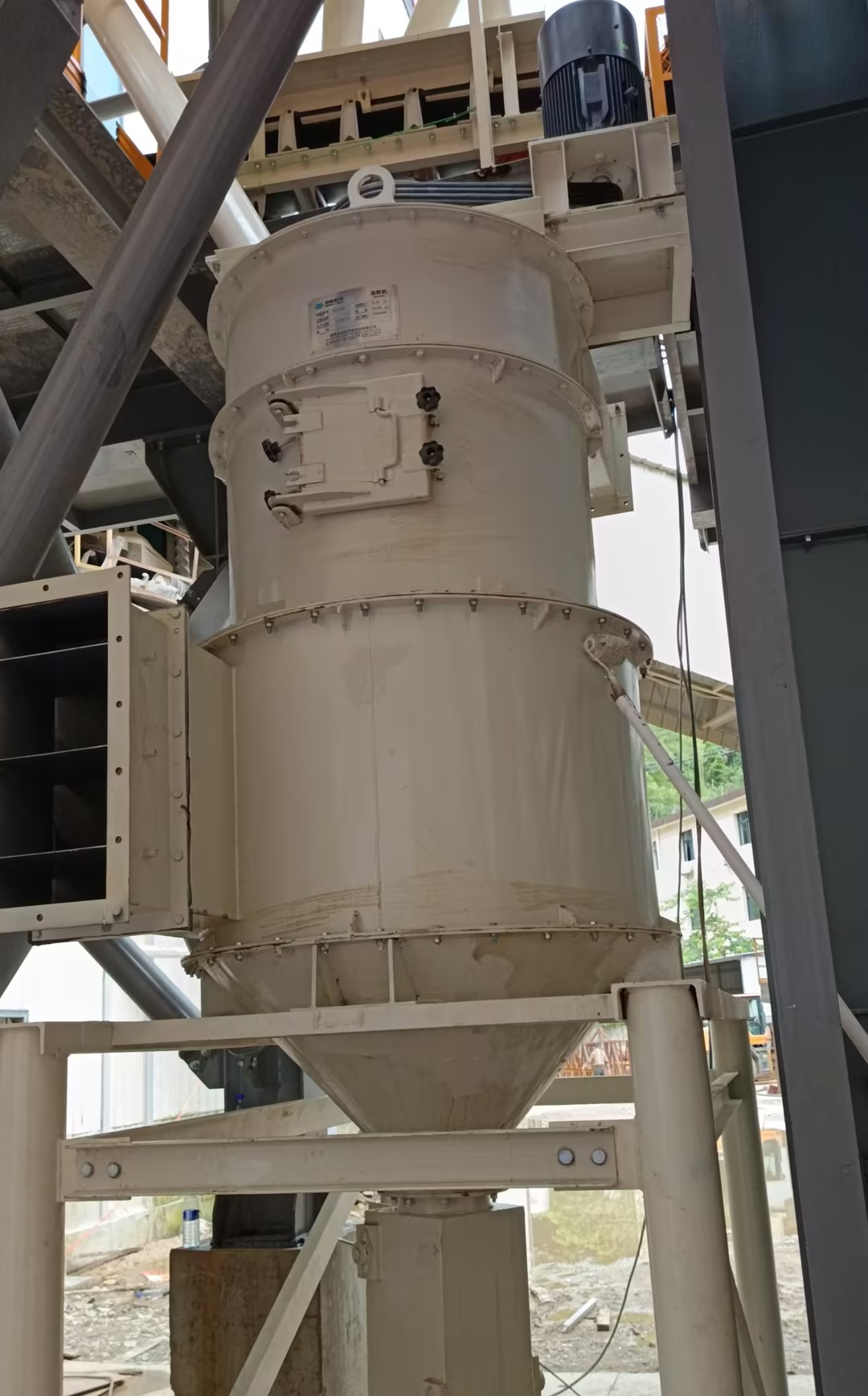

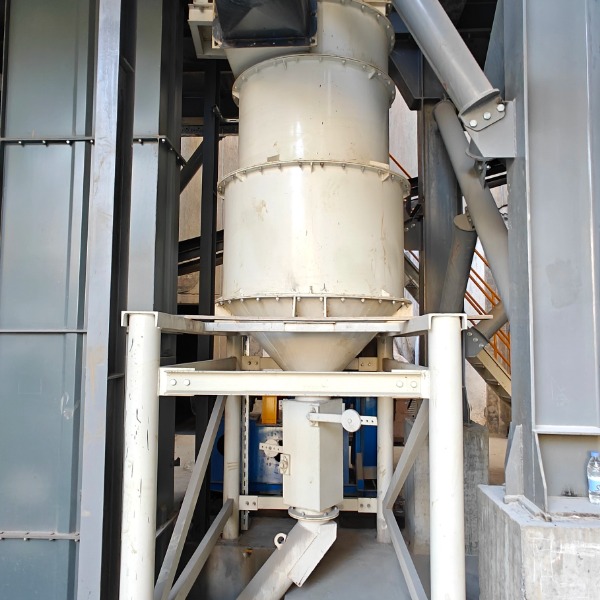

The Centrifugal Powder Separator is an advanced classification device used to separate fine particles from air or gas streams by utilizing centrifugal force. Commonly found in industries such as cement, mining, chemical, and sand production, it efficiently removes dust, fly ash, and ultra-fine powder from exhaust systems or material processing lines.
This cyclone dust collector is known for its high efficiency, simple structure, and low maintenance requirements. Powder Concentrator operates without moving parts, which minimizes wear and tear, and it can handle large volumes of fine powder at high temperatures and under harsh conditions.
The Centrifugal dust Separator uses the principle of centrifugal force to separate fine particles from air or gas streams with precision, achieving separation rates of up to 85–95%.
2.No Moving Parts
Unlike traditional classifiers, the powder concentrator has a simple structure with no internal moving components, reducing mechanical wear and maintenance needs.
3.Compact and Space-Saving Design
The vertical structure of the cyclone dust collector allows powder concentrator to fit into tight spaces, making it easy to integrate into existing production lines without requiring major layout changes.
4.Heat and Wear Resistance
The Centrifugal dust Separator is built from durable, heat-resistant materials that allow powder concentrator to operate in high-temperature environments such as cement kilns or sand-making systems.
5.Energy Saving
The Centrifugal dust Separator with mutiple grading systems efficiently seperating industrial powder that significantly saving energy. And the stable operation can lower power consumption.
Specification
1.Airflow Capacity
The powder concentrator can separate industrial dust range from 370 to 14,630 m³/h, accommodating various industrial needs.
2.Dimensions
The diameter of the Centrifugal dust separator can vary, with common sizes including Φ200mm, Φ300mm, up to Φ1000mm, affecting the overall height and footprint.
3.Weight
Depending on the model of the cyclone dust collector, weights can range from 37 kg to 500 kg, influencing installation and structural support requirements.
4.Resistance (Pressure Drop)
Typically between 880 to 2160 Pa, impacting the energy consumption and fan selection.
5.Inlet Velocity
Operational velocities are generally between 14 to 22 m/s, ensuring optimal separation efficiency.
Range of Configuration

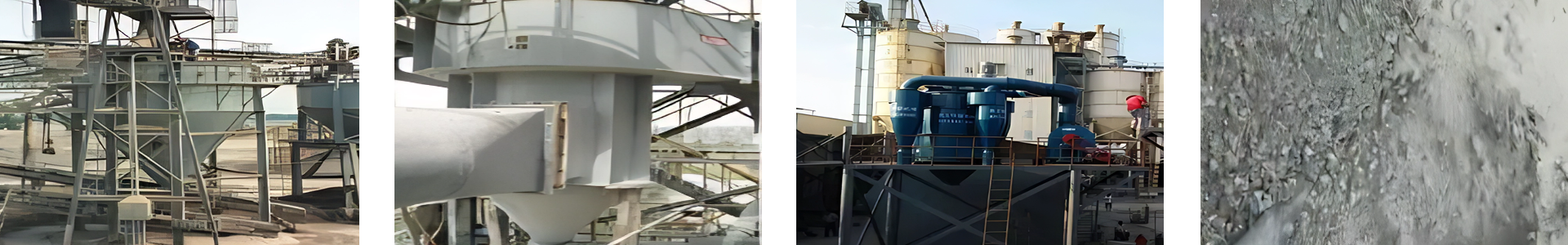

1.Cement Industry
In cement manufacturing, the powder concentrator is employed to separate fine cement particles from the air stream, enhancing product quality and reducing emissions.
2.Mining and Mineral Processing
The cyclone dust collector is used to control dust emissions during extraction and processing operations, ensuring a safer working environment and compliance with environmental regulations.
3.Chemical and Pharmaceutical Industries
The Centrifugal dust separator is utilized to separate solids from liquids or gases, aiding in the purification processes essential for producing high-purity chemicals and pharmaceuticals.
5.Woodworking and Metalworking
The cyclone dust collector is crucial in these industries for removing wood chips, sawdust, and metal shavings, protecting workers' health, preventing fire hazards, and prolonging machinery life.
Product Detailed
1.Inlet Pipe: This tangential entry point introduces dust-laden air into the powder concentrator, initiating a spiral motion that generates centrifugal force.
2.Cylindrical Body: The main chamber where the swirling airflow occurs, allowing heavier particles to move outward toward the walls.
3.Conical Section: Located below the cylindrical body, this cone-shaped part directs separated particles downward into the collection area.
4.Vortex Finder (Exhaust Pipe): A centrally located tube that allows cleaned air to exit the cyclone dust collector while preventing re-entrainment of particles.
5.Dust Collection Hopper: Situated at the bottom, this component collects the separated dust and particles for disposal or further processing.
6.Support Structure: A framework that holds all components in place, ensuring stability and proper alignment during operation.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
