Model: LN-ZDS-824S1

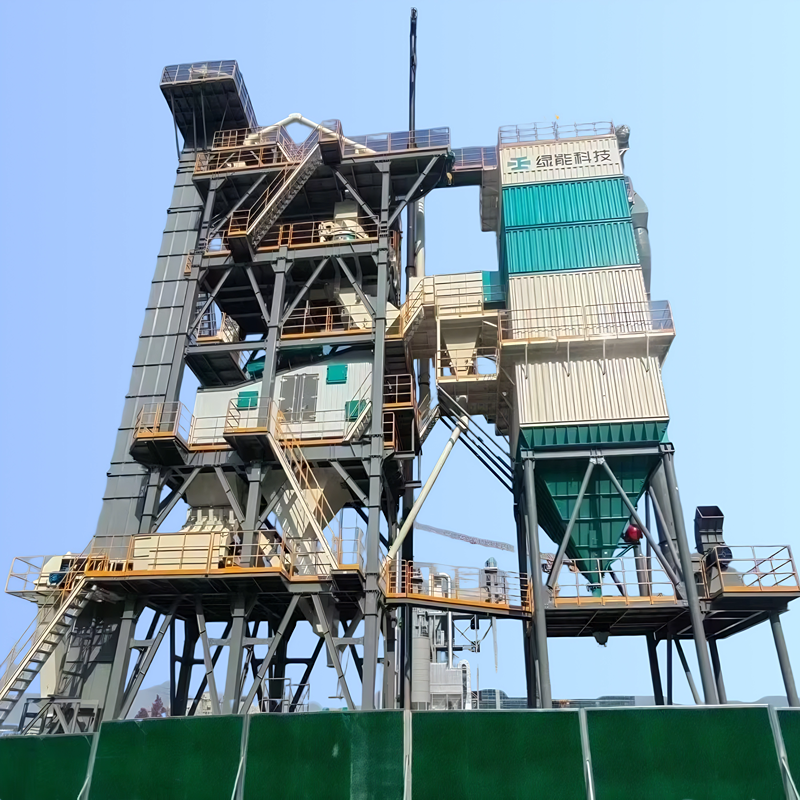

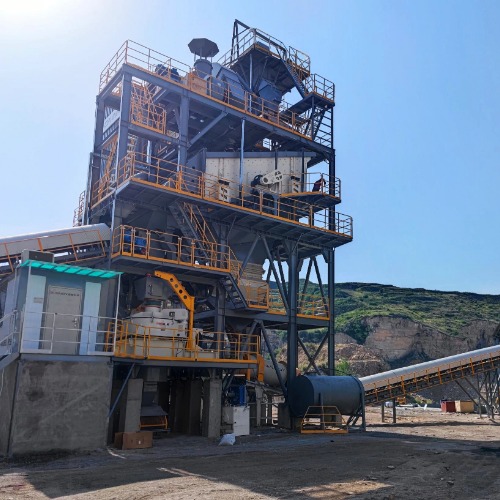

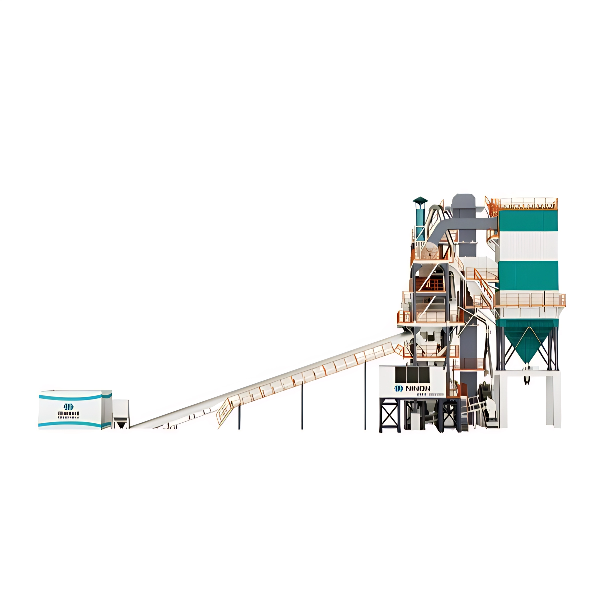

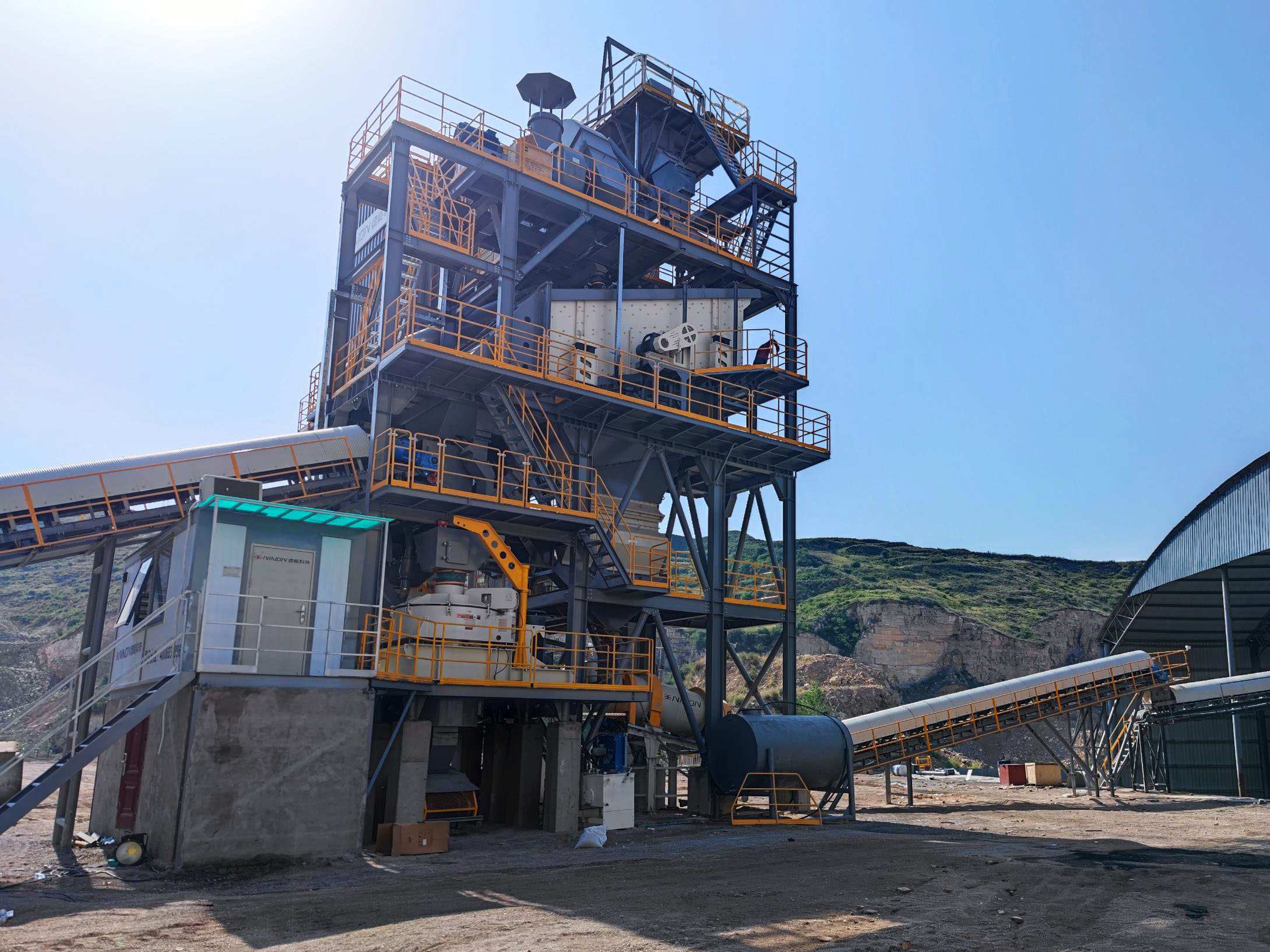

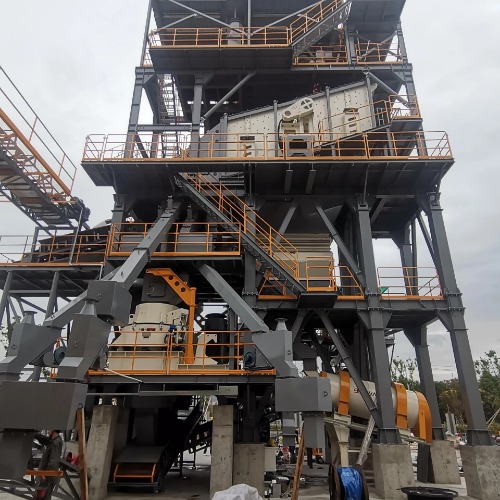

The Artificial Sand Processing Plant is a core machine that processes various sand and gravel aggregates into 0–5 mm manufactured sand through impact, extrusion, and grinding. It supports a feed size of 5–30 mm, with a maximum feed capacity of 85 t/h and an output capacity of 65–75 t/h.
The LN-ZDS-824S1 sand making plant features a high-speed sand crusher machine designed to convert 5–30 mm raw materials into 0–5 mm fine aggregates. This artificial sand making plant is built to deliver consistent granularity and excellent particle shape.
2.Integrated Sand Processing Plant System As a fully integrated sand processing plant, it combines impact, extrusion, and grinding to optimize the production process. This results in improved productivity and lower operational costs for users of the artificial sand making plant.
3.Robust Feed and Output Capacity Designed for industrial-scale performance, this sand making plant supports a maximum feed capacity of 85 t/h and an output range of 65–75 t/h—making it ideal for continuous operation in any sand processing plant setup.
4.Versatile Application in Artificial Sand Production Whether used independently or as part of a larger artificial sand making plant, the LN-ZDS-824S1 excels in various applications, including concrete aggregate production, highway base material, and construction-grade sand output.
5.Low Wear, Easy Maintenance The sand crusher machine within the LN-ZDS-824S1 is engineered for long-term use with wear-resistant parts, reducing downtime and maintenance costs. This makes it a durable and cost-effective core component in any sand processing plant.
Specification
Model
LN-ZDS-824S1
Equipment Power (Kw)
500
Maximum Feed Rate (t/h)
85
Output (10% Powder 0-5mm)(t/h)
65-75
Feed Particle Size
5-30
Remarks
Single-machine Sand Making
Applicable Materials
Mode of Sand Making and Aggregate Shaping

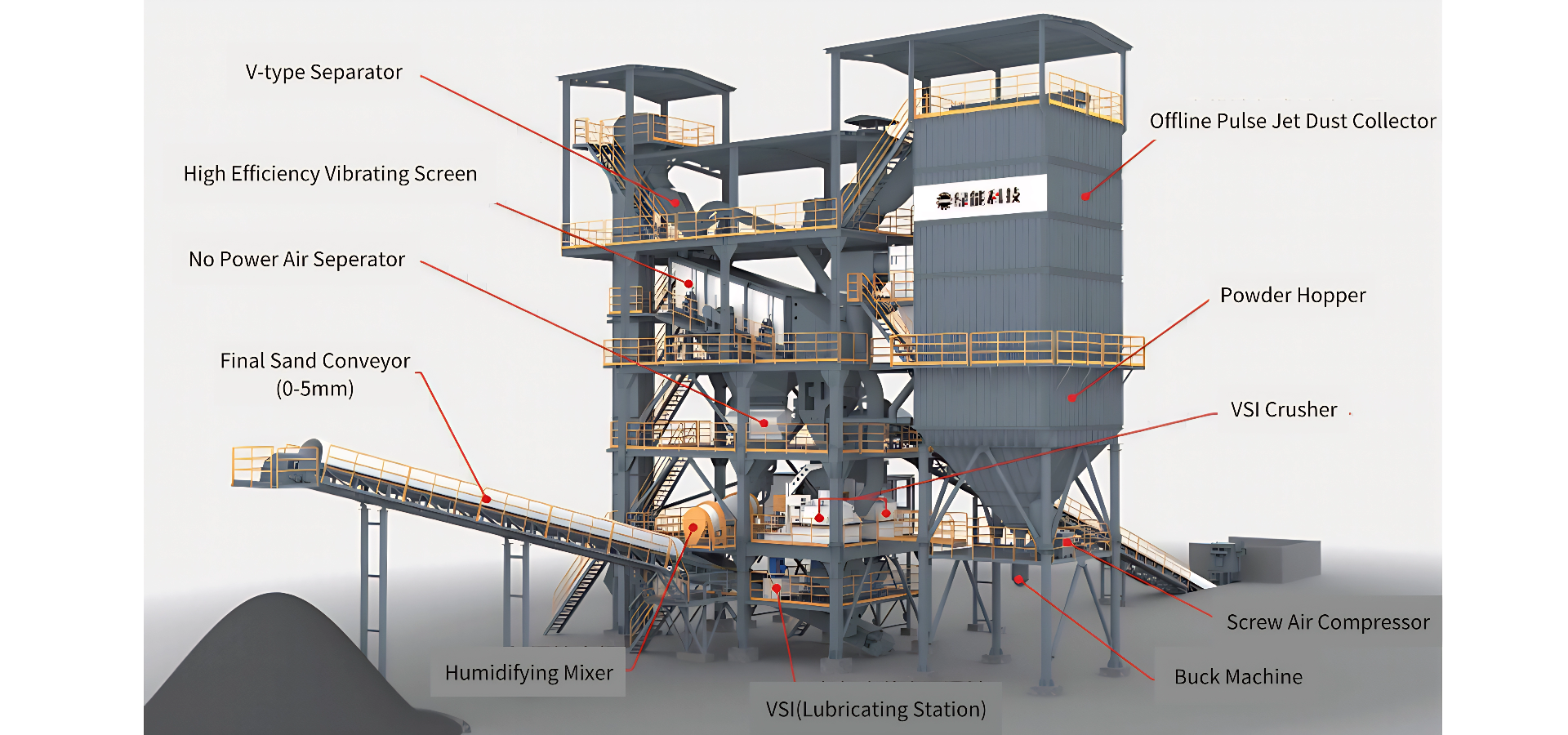

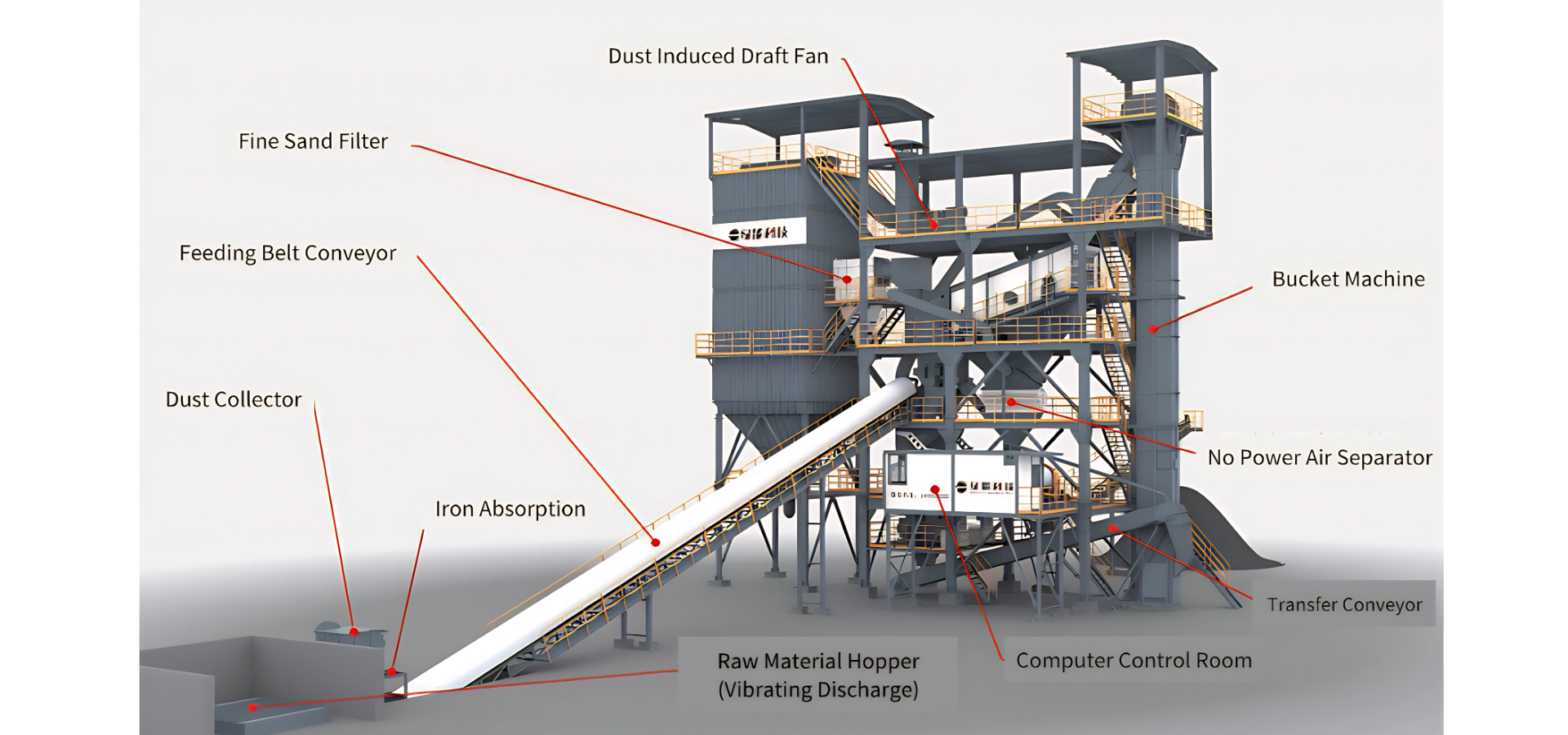

3D Drawing of ZDS Dry-Type Premium Sand Making and Shaping Plant

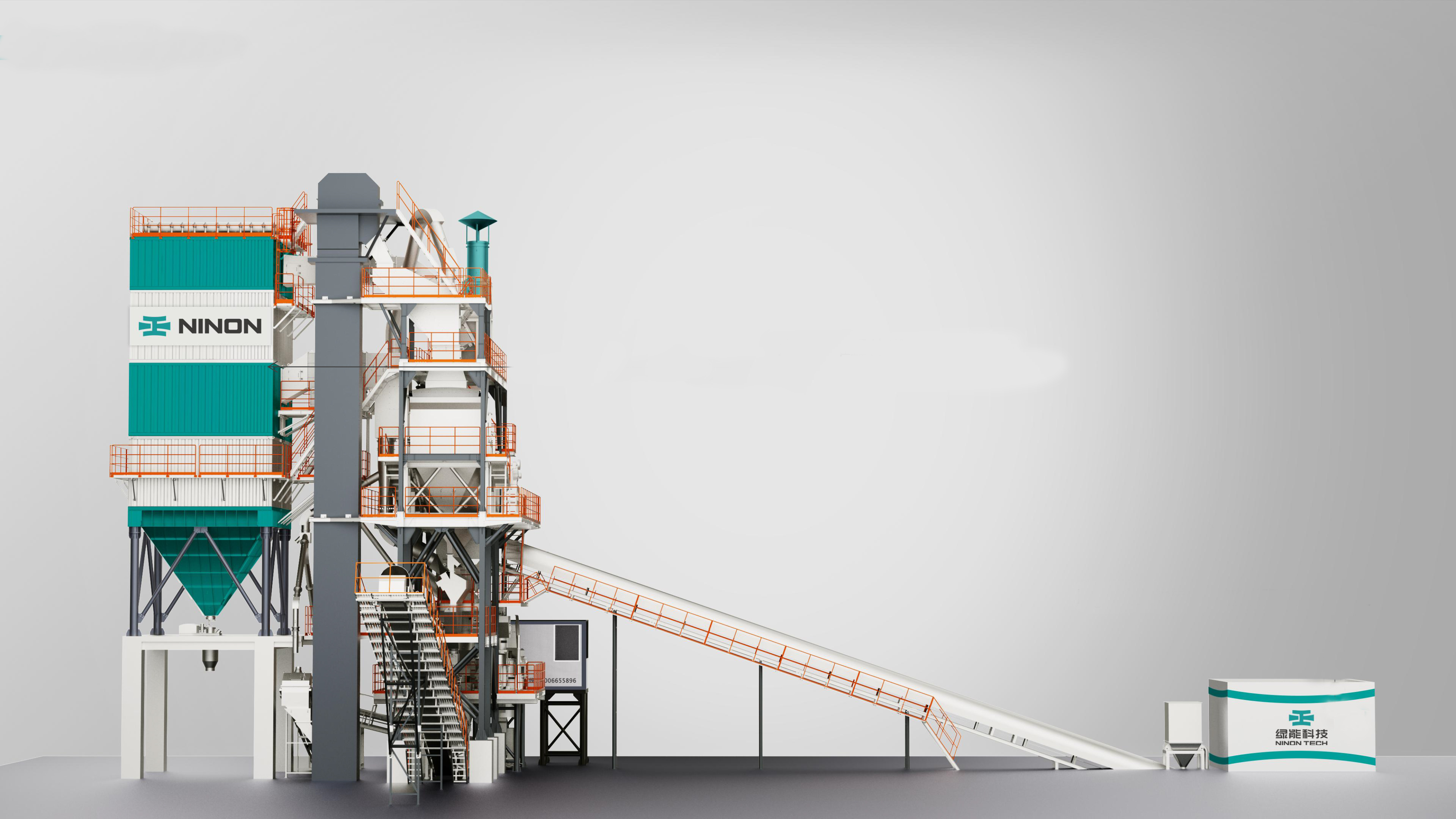

3D Drawing of DS Dry-Type Premium Sand Making and Shaping Plant
Video of the layout and construction process of Ninon's machinery

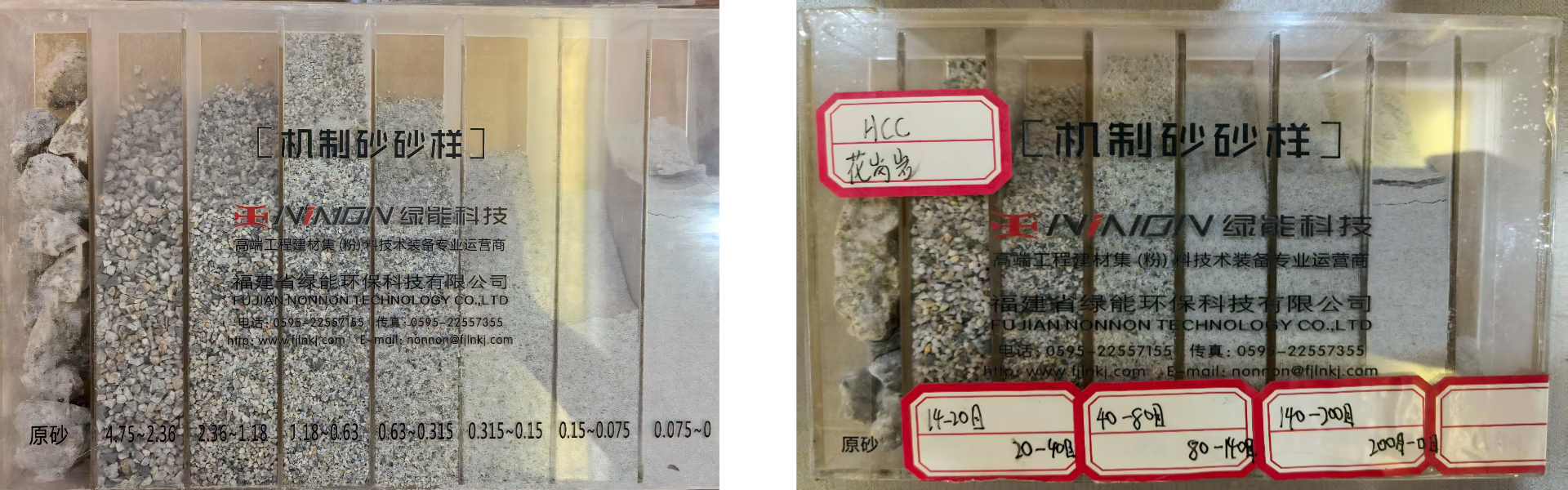

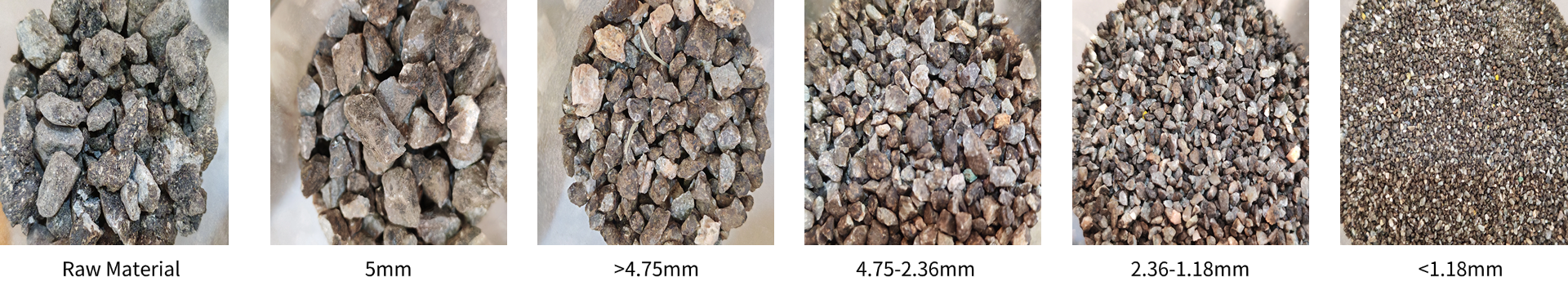

Final Sand Sample
Asphalt Concrete Aggregate
Limestone Aggregate
RAP Aggregate
Technical Data on Aggregate Shaping and Sand Production

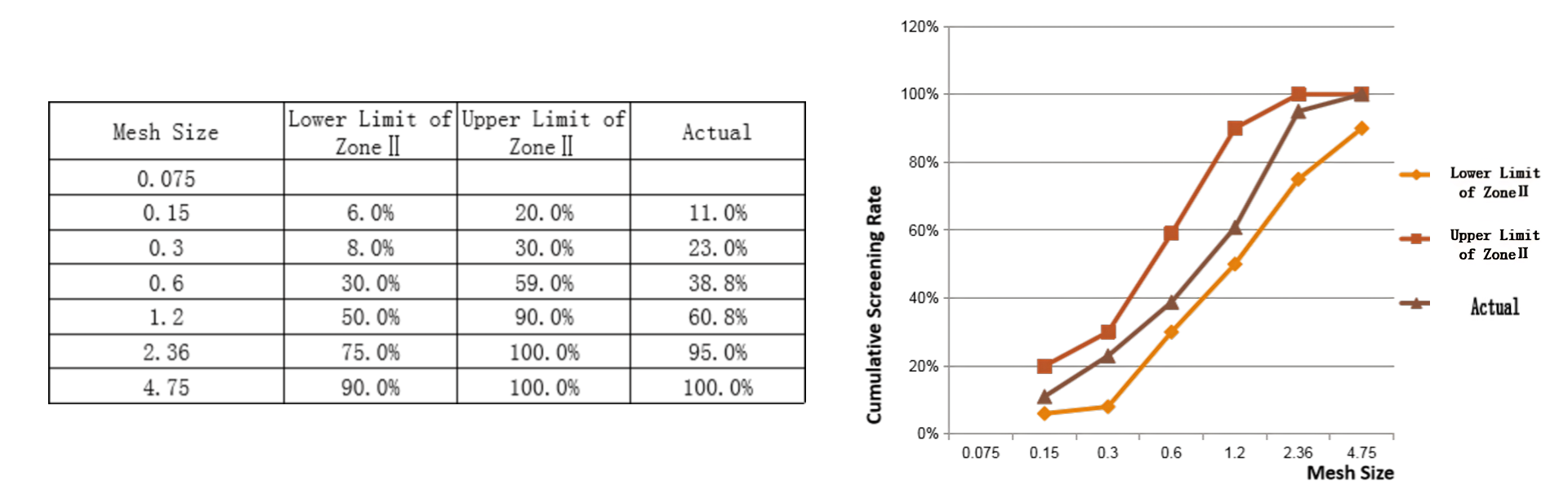

Screening Data and Gradation Curve (5-15mm raw material, modulus 2.7)

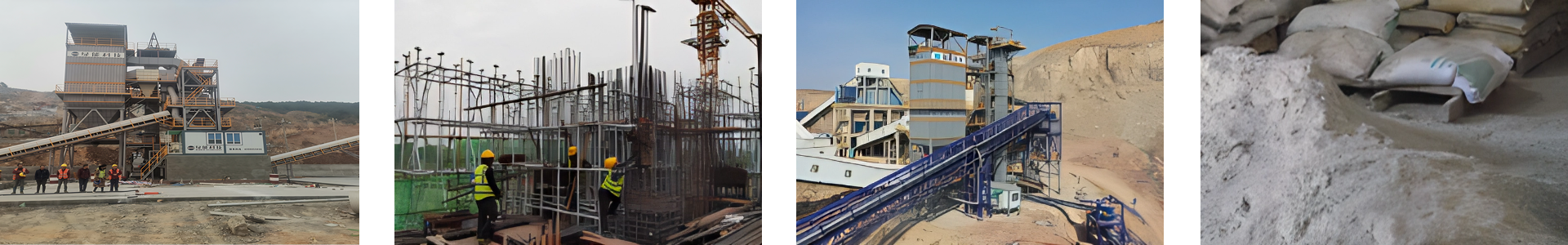

Range of Configuration
1.Commercial Concrete Production
The LN-ZDS-824S1 is widely used in artificial sand making plants to produce high-quality fine aggregates that meet strict gradation standards for ready-mix concrete. The sand crusher machine ensures consistent particle size, ideal for mixing.
2.Highway and Railway Infrastructure Projects As a key unit in a modern sand processing plant, this equipment supplies durable and angular manufactured sand for sub-base layers and pavement mixes—helping improve road longevity.
3.Real Estate and Urban Construction The artificial sand making plant powered by the LN-ZDS-824S1 is essential for supplying sand used in mortar, plaster, bricks, and block-making. The sand crusher machine offers a clean alternative to depleting natural river sand.
4.Hydropower and Dam Engineering In large-scale sand processing plant operations, this machine plays a critical role by delivering stable sand supply for concrete structures in dam and hydropower station construction, ensuring safety and strength.
5.Mining and Aggregate Recycling This sand crusher machine is also used to process mining tailings or waste rock in an artificial sand making plant, turning low-value materials into construction-grade sand—enhancing resource efficiency in sand processing plants.
Can the equipment be customized according to customer requirements?
Yes, we provide fully customized equipment solutions based on client requirements, including size specifications, functional configurations, and capacity design to meet the unique demands of each project.
Is Ninon provide installation and commissioning services?
Yes, we provide comprehensive installation and commissioning support, either on-site or through remote technical assistance, to ensure optimal equipment performance.
What is the warranty period for the products?
The standard warranty period for most core equipment is generally 12 months, with exact terms defined in the purchase agreement.
How to Choose the Most Suitable Equipment?
First, customers should provide information on the type and hardness of local raw materials (e.g., granite, river pebbles, limestone etc.).
Next, customers need to specify the desired finished product requirements, including fineness modulus and particle shape.
Then, based on the required production capacity (e.g., tons per hour), different models can be recommended—for example, a shaping sand making machine for higher output, or equipment tailored for ordinary or specialized mortar production depending on the application.
Finally, customers can select and customize the equipment based on site conditions, installation environment, energy consumption, maintenance costs, and overall project budget.
What certification standards do the machines comply with?
Our equipment complies with international standards, including ISO 9001 quality management certification，ISO 14001 – Environmental Management System. Third-party inspections, such as SGS reports, can be arranged based on specific customer requirements.
What are the available payment methods and Incoterms ?
We accept multiple payment methods, including T/T, L/C, and others as agreed upon in the contract. The Incoterms accepted are generally FOB,CFR,CIF,DAP,and also depending on the terms specified in the contract.
