Differences in Powder Content in Manufactured Sand and China's GB/T 14684-2011: Classification, Indicators and MB Value Testing Requirements
2015-09-30
Global Disparities in Maximum Powder Content Limits for Manufactured Sand

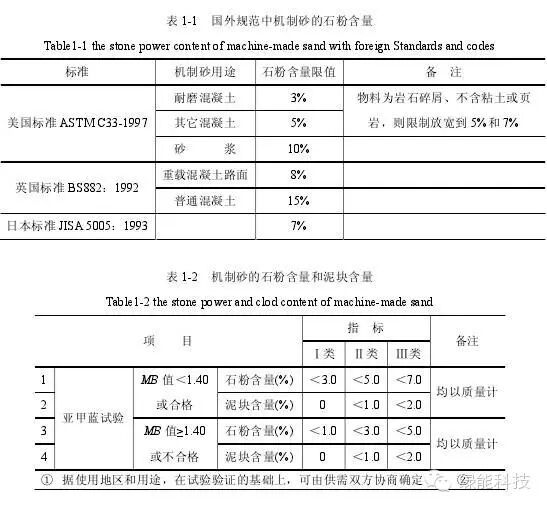

Across the global construction industry, the maximum allowable powder content in manufactured sand— a core output of any manufactured sand production line—varies drastically among national standards, as clearly outlined in Table 1-1. These differences stem from regional variations in raw material sources (e.g., hard rock vs. limestone), climate conditions (humid vs. arid environments), and typical construction needs, and they directly impact both the operation of the manufactured sand production line and the performance of concrete mixed in a concrete mixer. For example, some North American standards permit a higher powder content (up to 12%) for manufactured sand used in general-purpose concrete, as local aggregates often have lower clay impurities; this allows manufactured sand production line operators to reduce washing or screening steps, lowering costs. In contrast, Japanese standards set a stricter limit (max 8%) for the same application, requiring to incorporate advanced air-classification systems to remove fine powders—critical because Japan’s frequent rainfall demands concrete with strong impermeability, which could be compromised by excess powder if mixed incorrectly in a concrete mixer. Even within the European Union, minor differences exist: Germany’s DIN standard allows 10% powder content for low-strength concrete, while France’s NF standard caps it at 9%, forcing manufactured sand production line exporters to adjust processing parameters to avoid compatibility issues with local concrete mixer operations.
China's GB/T 14684-2011: Three-Category Classification of Manufactured Sand
China’s national standard GB/T 14684-2011 addresses quality consistency by classifying manufactured sand into three distinct categories (Category I, Category II, Category III) based on technical indicators—each tailored to specific concrete strength grades and directly guiding the design of manufactured sand production line processes and the use of concrete mixer equipment. Category I, the highest-grade manufactured sand, is strictly reserved for concrete with a strength grade higher than C60 (e.g., high-rise building columns or bridge piers). To meet this category’s requirements, a manufactured sand production line must include multi-stage crushing (jaw crusher + cone crusher), precise vibrating screens (to control particle size distribution), and a dry-type powder separator (to limit powder content to ≤3%). This low-powder sand is critical for concrete mixer operations: when mixing C70 or C80 high-strength concrete, excess powder would increase water demand, reducing compressive strength—so the concrete mixer must use a short, high-speed mixing cycle to ensure uniform dispersion without diluting the mix.
Category II manufactured sand, the most widely used type, applies to concrete with a strength grade of C30–C60 (e.g., residential building beams, highway pavements) and concrete requiring special properties like frost resistance (for northern China’s cold winters) or impermeability (for underground garages). For this category, a manufactured sand production line typically uses a combination of wet washing (to remove clay-based powders) and a cyclone separator (to cap powder content at ≤5%). When mixed in a concrete mixer, this sand pairs well with additives like air-entraining agents (for frost resistance) or water reducers (for impermeability): the concrete mixer operator will extend mixing time by 1–2 minutes to ensure the powder and additives bond evenly, preventing cracks in finished structures.
Category III manufactured sand, designed for concrete with a strength grade lower than C30 (e.g., non-load-bearing partition walls, decorative concrete blocks), has a more flexible powder content limit (≤7%). A manufactured sand production line for this category may omit advanced powder separation steps, relying on basic crushing and a single-screening process to reduce costs. In concrete mixer operations, this sand is mixed with lower proportions of cement (compared to Category I/II) and often combined with fly ash to improve workability: the concrete mixer uses a slower mixing speed to avoid segregating the coarser sand particles, ensuring the final concrete has sufficient cohesion for casting small components.
Key Indicators and VB Value Testing Requirements in GB/T 14684-2011
Beyond powder content, GB/T 14684-2011 specifies other critical indicators for manufactured sand—including particle shape, clay content, and MB value (methylene blue value)—all of which influence the efficiency of manufactured sand production line quality control and the reliability of concrete mixer output. The MB value, in particular, is a mandatory test to distinguish between harmless mineral powders (e.g., limestone fines) and harmful clay powders (e.g., montmorillonite), which can severely weaken concrete if not removed. For all three categories, the standard requires MB value testing: Category I sand must have an MB value ≤0.5 (indicating minimal clay), Category II ≤1.0, and Category III ≤1.5.
This testing directly impacts manufactured sand production line operations: if a batch of sand fails the MB value test (e.g., MB >1.0 for Category II), the manufactured sand production line must divert the material to a secondary washing station, where high-pressure water jets remove clay particles. Without this step, clay-rich sand would cause the concrete mixer to produce concrete with poor workability—clay absorbs water, leading to a dry, crumbly mix that is hard to cast. For concrete mixer operators, MB value test results also guide additive selection: sand with a high MB value (close to the category limit) may require additional water reducers to maintain fluidity, while low MB value sand can use standard additive dosages, reducing material costs.
In practice, manufactured sand production line managers often integrate real-time MB value testing into the production process (e.g., installing on-line sensors after the washing step) to avoid delays. This ensures that only qualified sand is sent to concrete mixer facilities, preventing rework and ensuring compliance with GB/T 14684-2011. For example, a manufactured sand production line supplying Category II sand to a highway project will conduct MB value tests every 2 hours; if a test shows MB =1.1, the line pauses to adjust the washing water pressure, bringing the MB value back to ≤1.0 before resuming—this small adjustment ensures the sand mixes smoothly in the project’s concrete mixer and meets the highway’s frost-resistance requirements.
